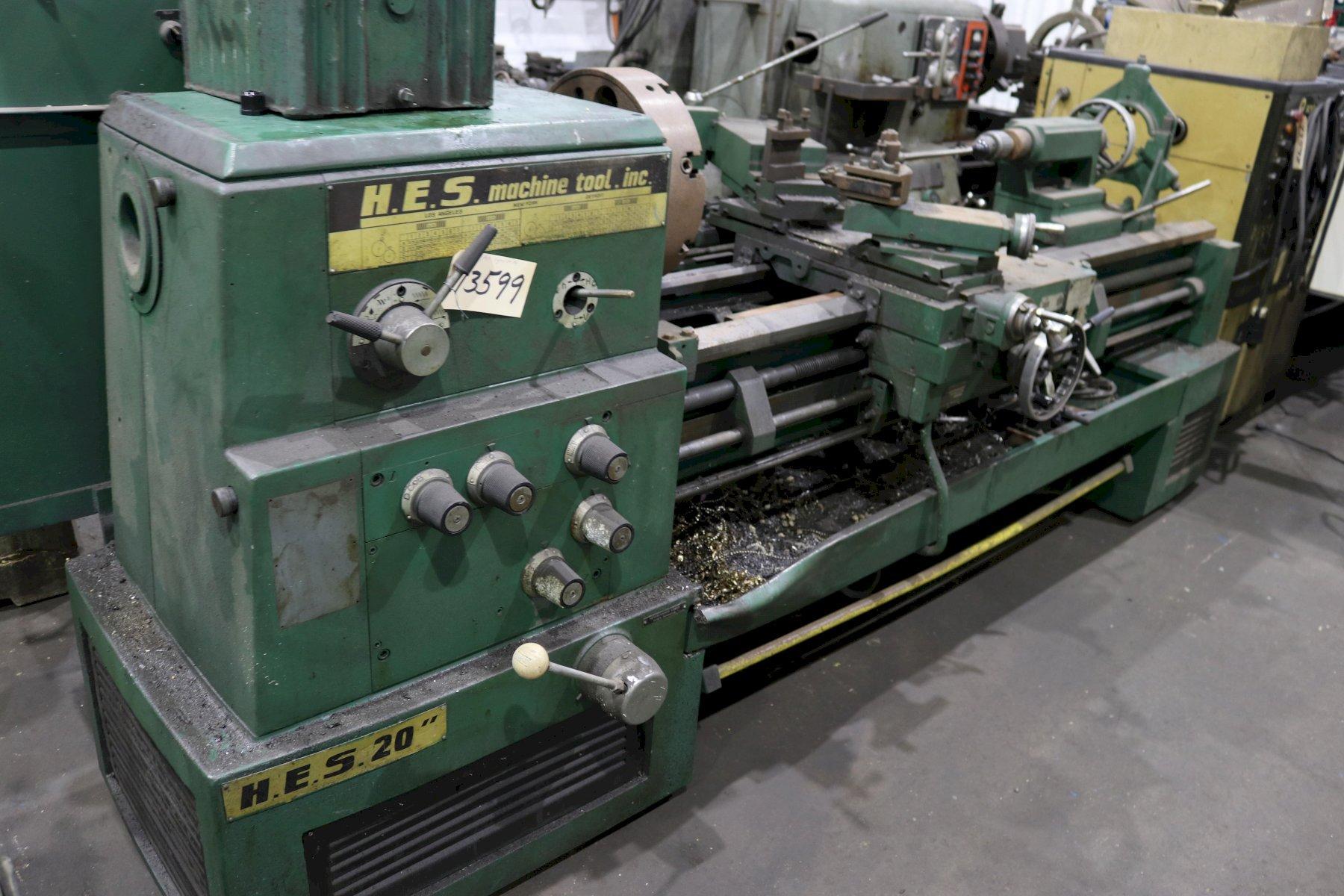

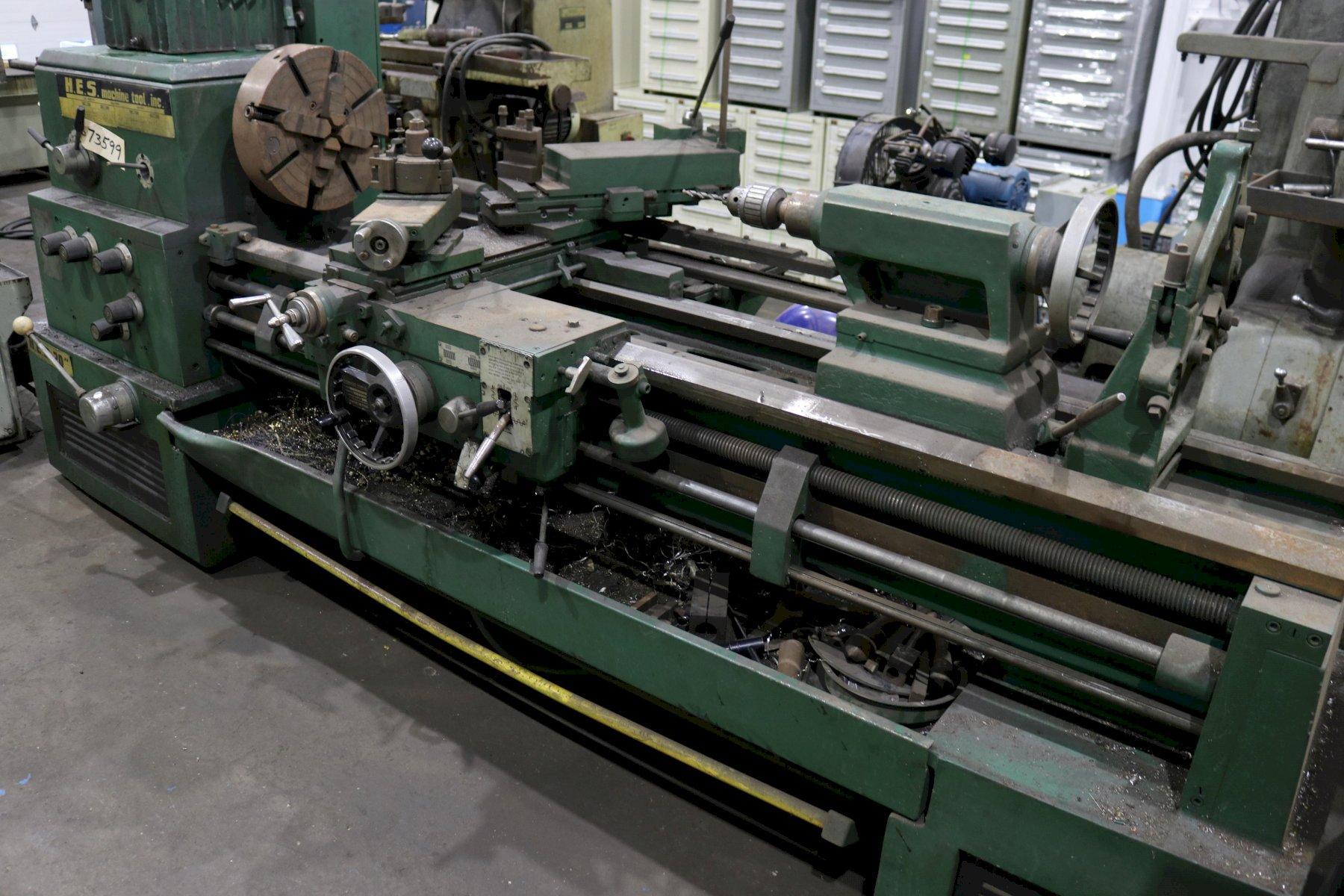

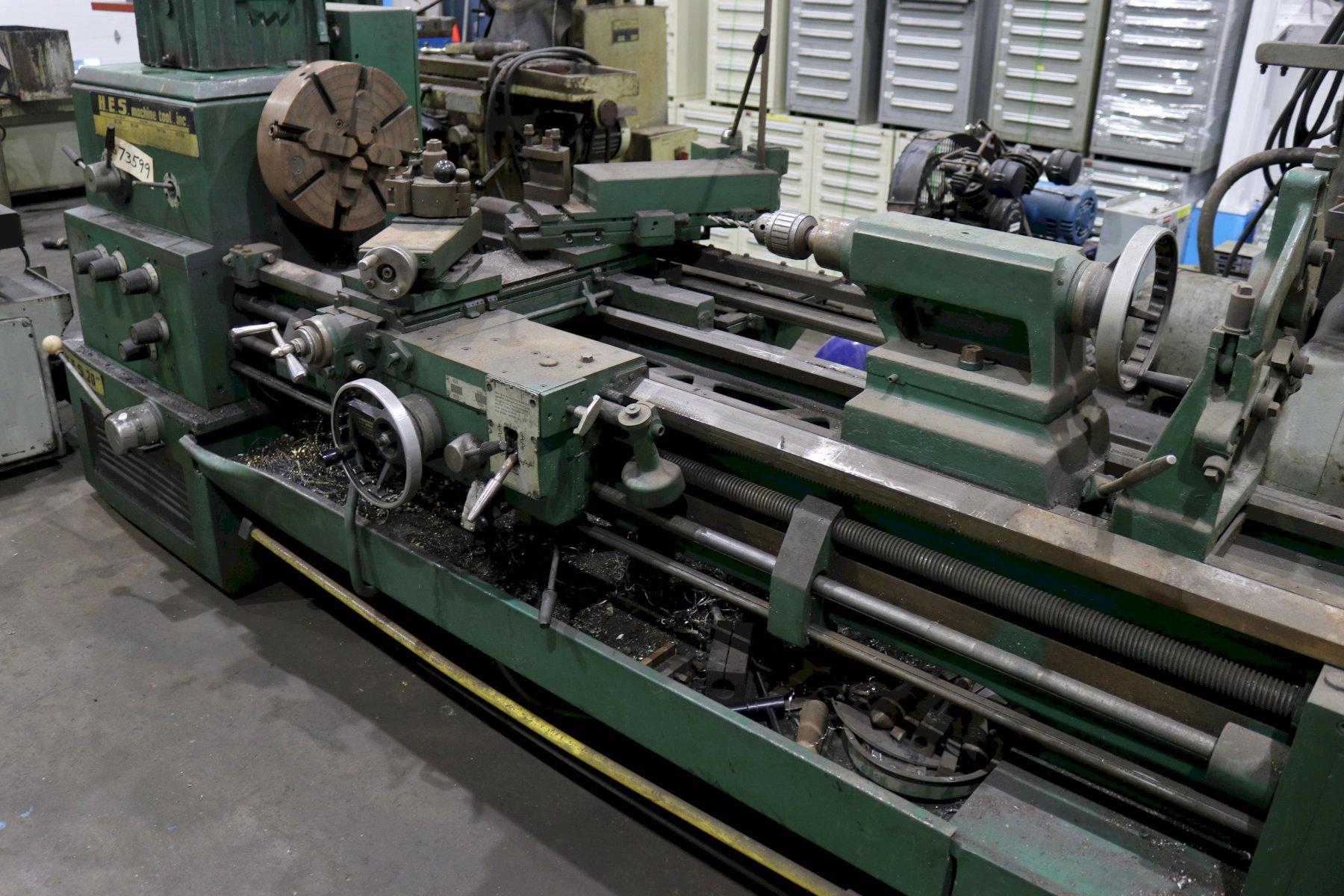

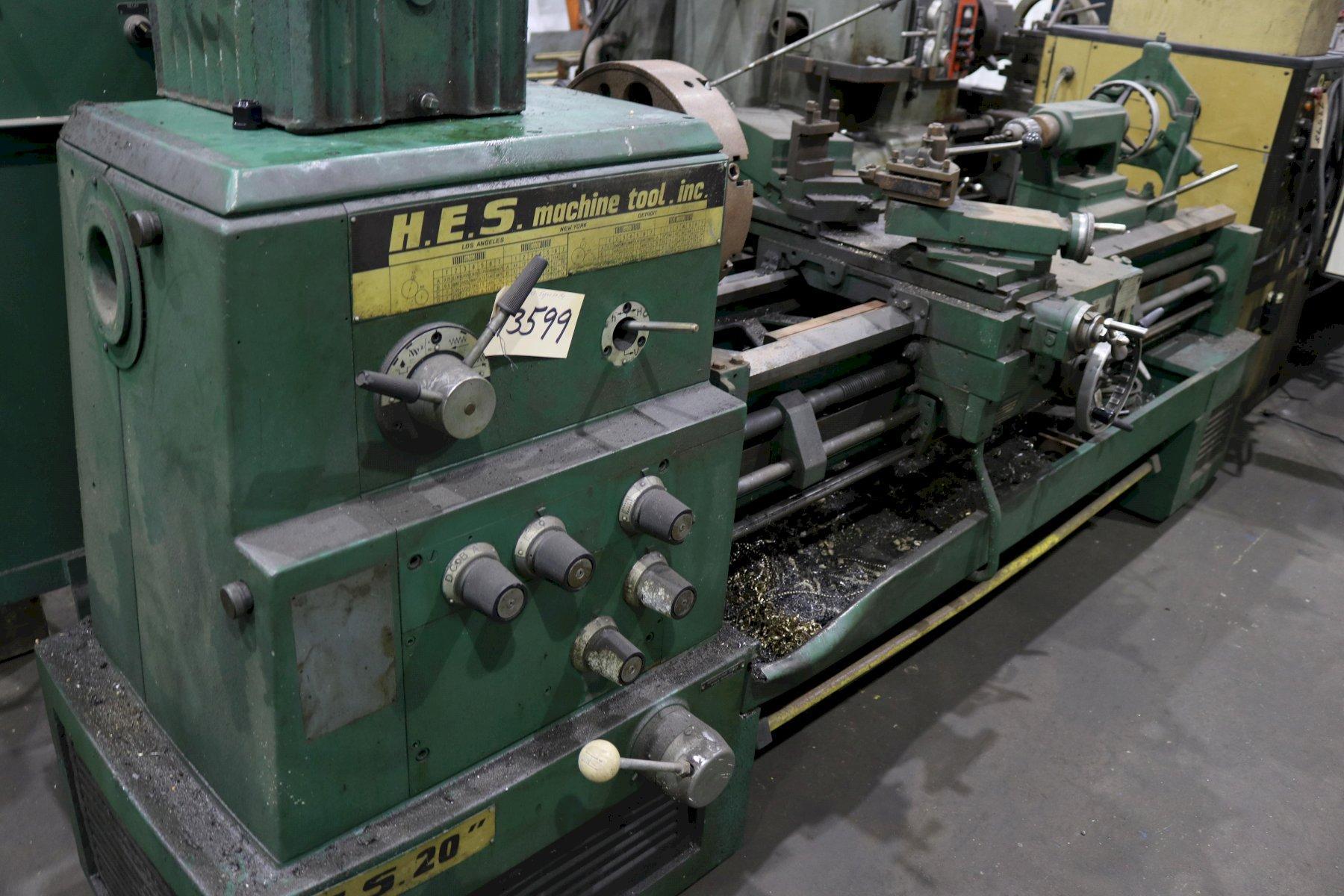

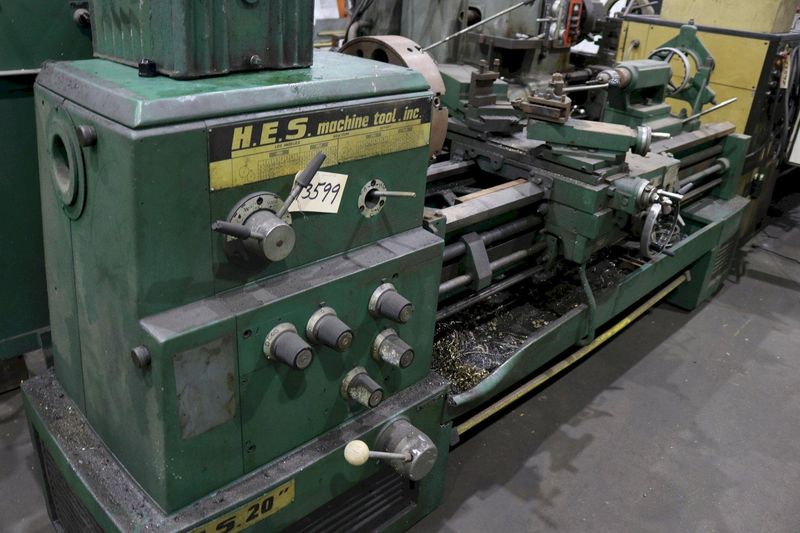

19-1/2" X 72" HES ENGINE LATHE: STOCK #73599

Manufacturer

Category

Lathes

Type

LATHES, ENGINE

Stock

73599

Model

550

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. 11420
MODEL ............................... #550
YEAR NEW ............................ 1970
MAXIMUM SWING OVER BED .............. 19-1/2"
SWING OVER CROSS SLIDE .............. 12"
DISTANCE BETWEEN CENTERS ............ 72"
SPINDLE SPEEDS ...................... (18) 36 - 1800 RPM
SPINDLE HOLE ........................ 2"
LONGITUDINAL FEEDS .................. (28) .0018 - .024 IPR
CROSS FEEDS ......................... 1/2 OF LONGITUDINAL
THREADS - ENGLISH ................... (35) 4 - 112 TPI
THREADS - METRIC .................... (35) .25 - 7 TPMM
RAPID TRAVERSE ...................... YES
3-POINT PLAIN STEADY REST ........... 6"
3-JAW CHUCK ......................... 10"

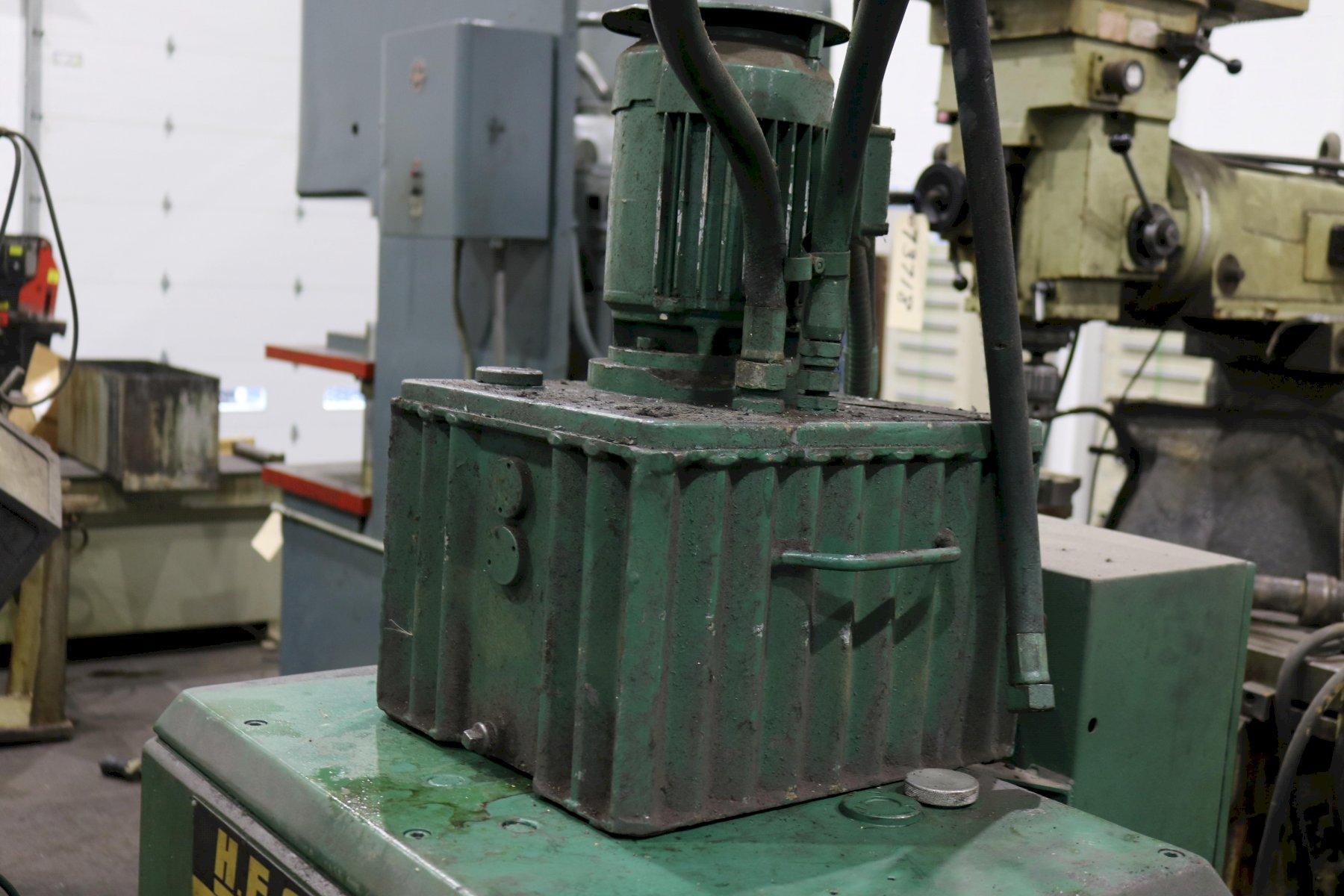

HYDRAULIC TRACING ATTACHMENT ........ YES
ENGLISH/METRIC THREADING  ........... YES
HORSEPOWER SPINDLE MOTOR ............ 5
