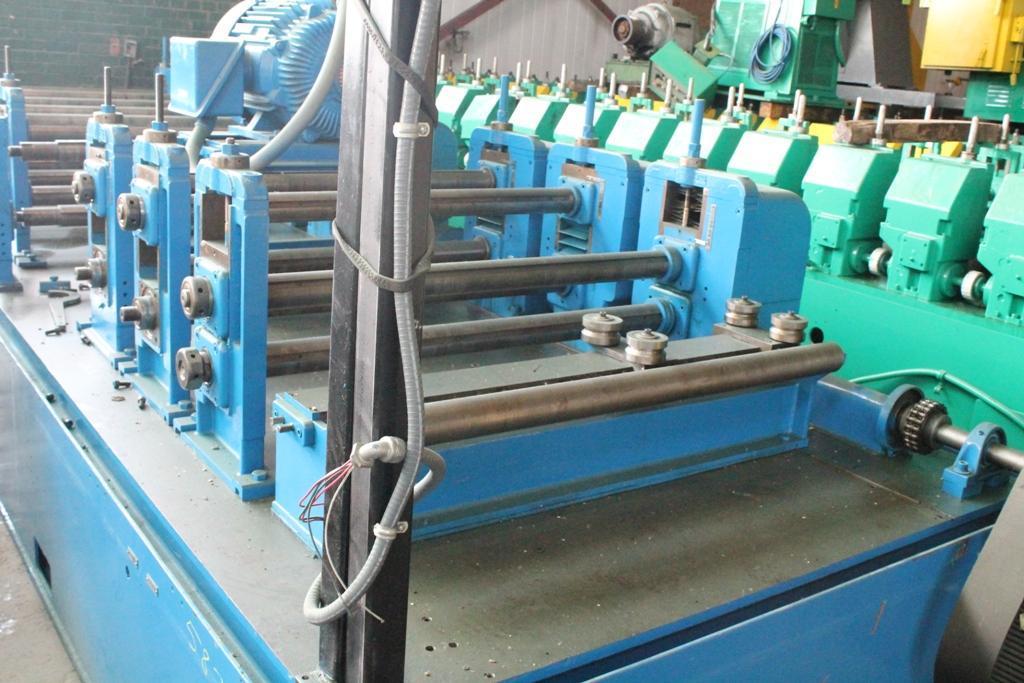

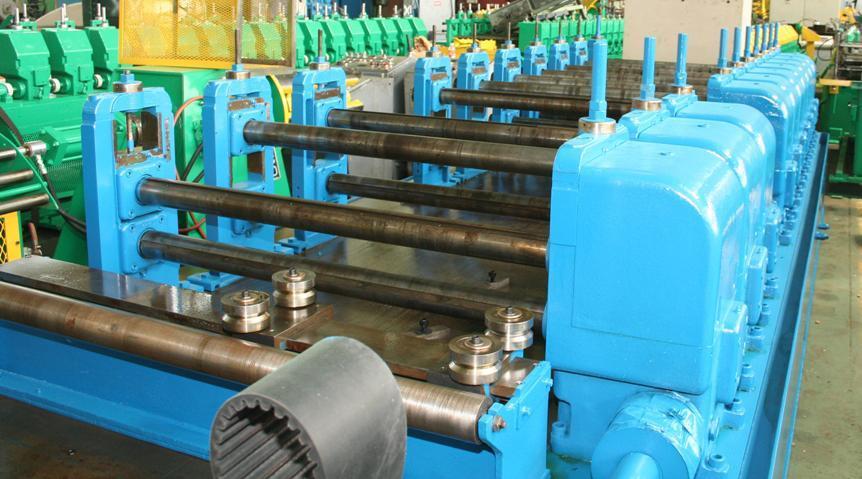

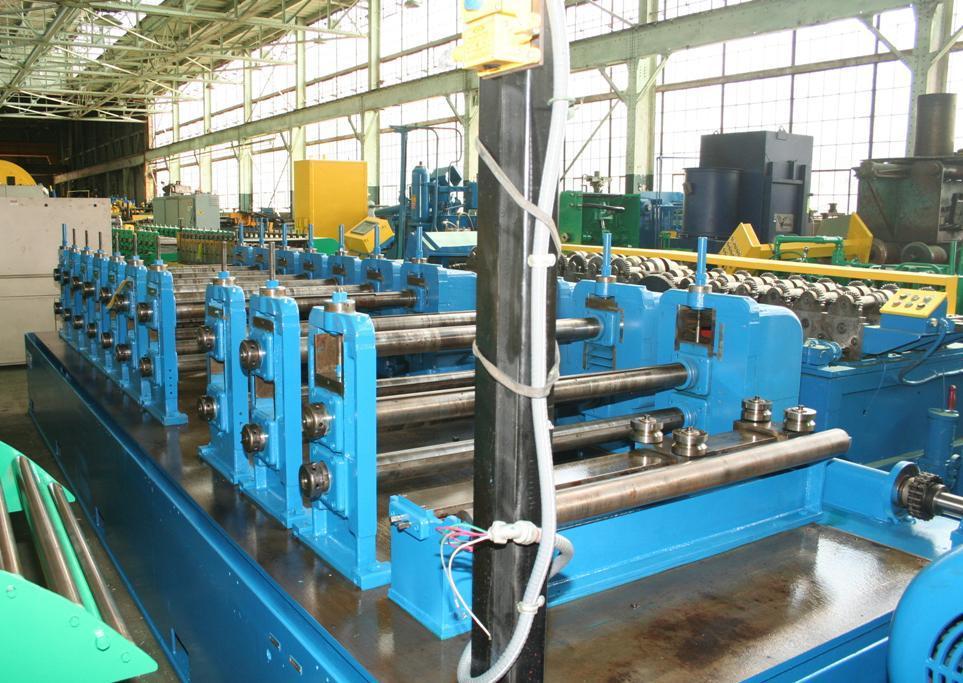

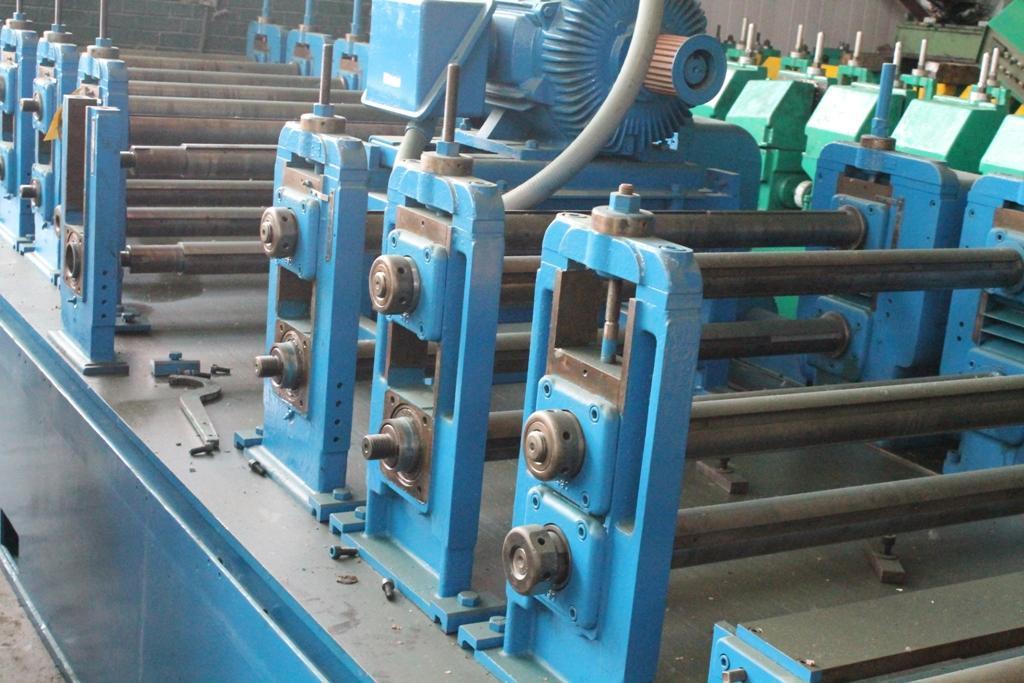

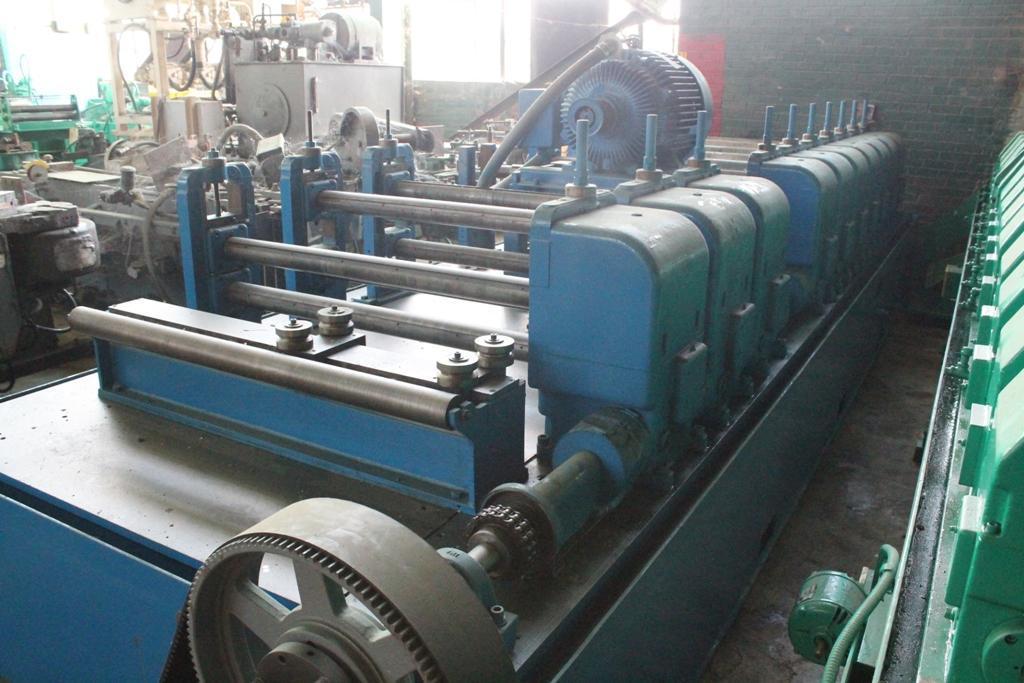

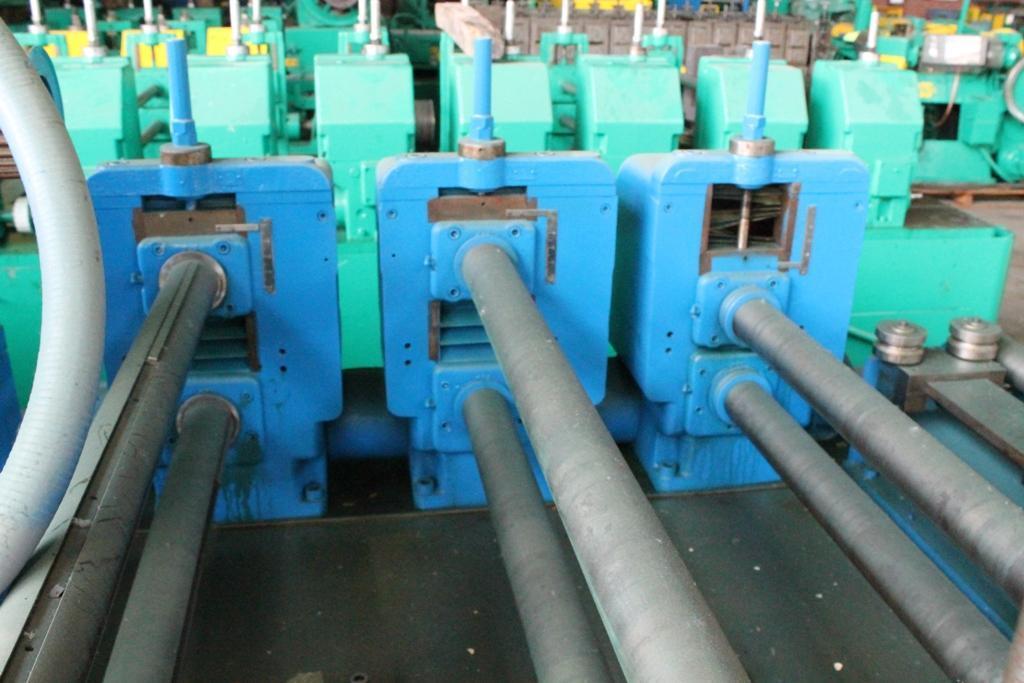

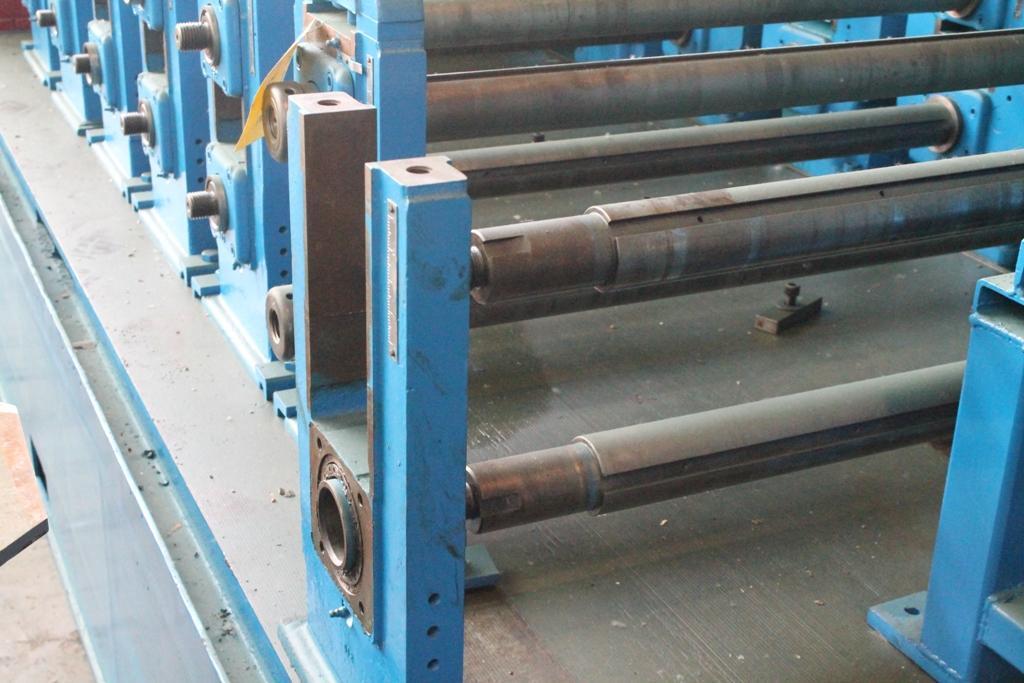

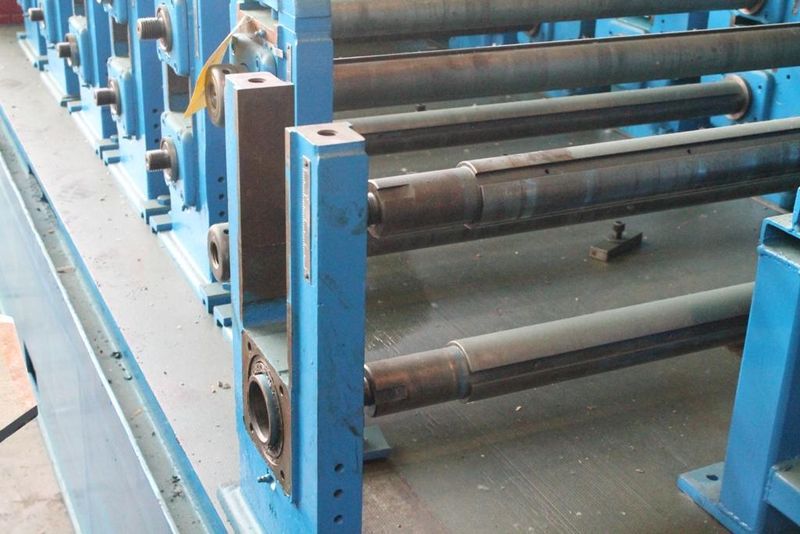

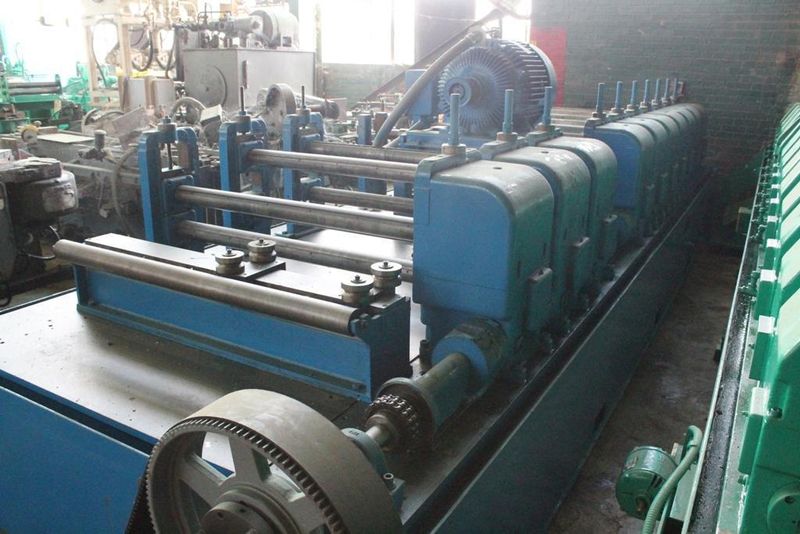

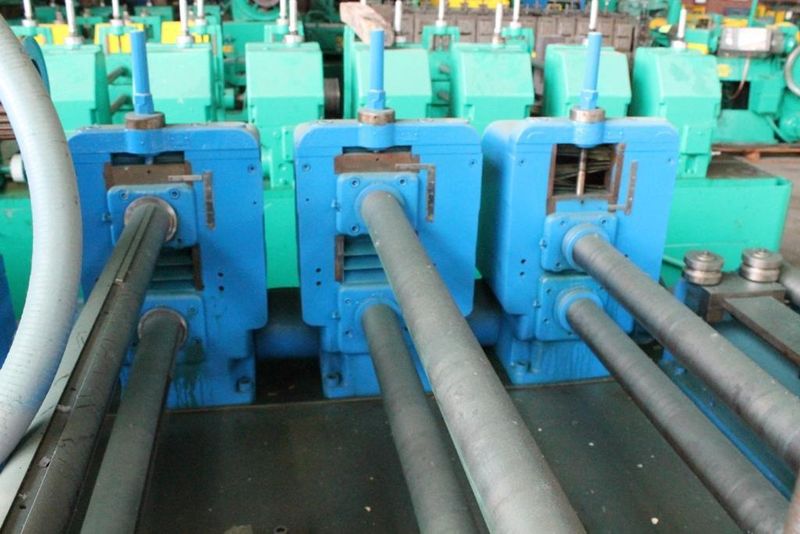

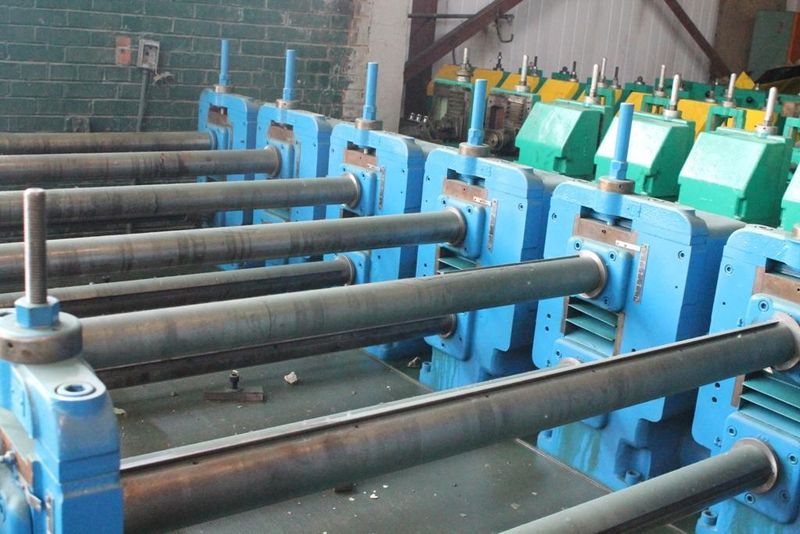

10 STAND MODEL #M2-1/2 P47 YODER / TIBO ROLLFORMER: STOCK #58781

Manufacturer

Category

Roll Formers

Type

ROLL FORMERS

Stock

58781

Model

10 X 2.5

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. 57318
MODEL .................................. M2-1/2 P47
DIRECTION OF TRAVEL .................... RIGHT TO LEFT

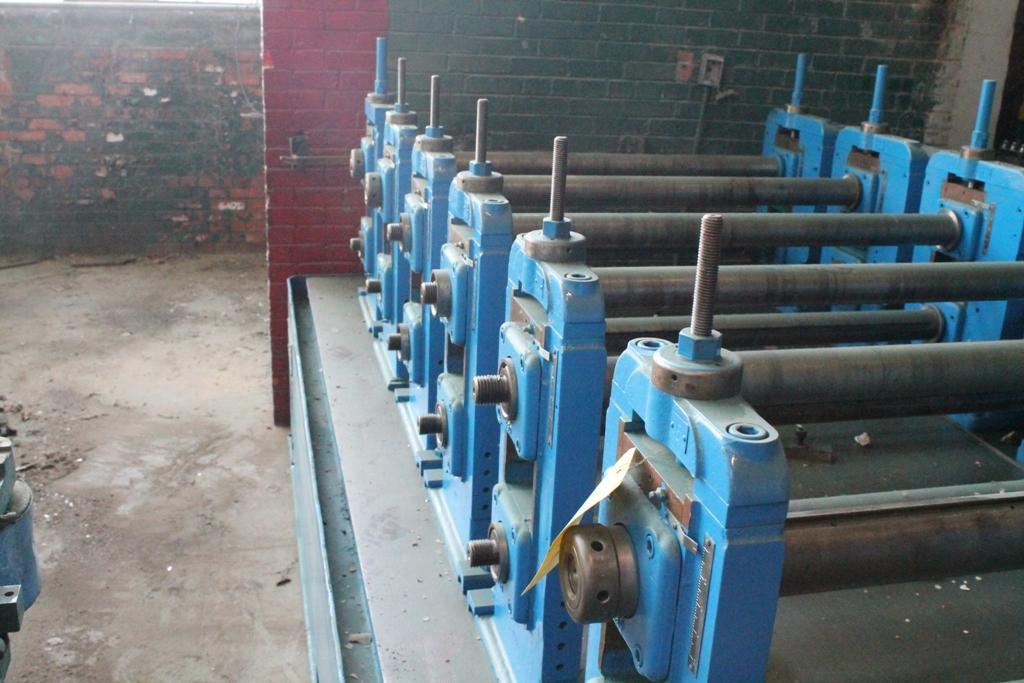

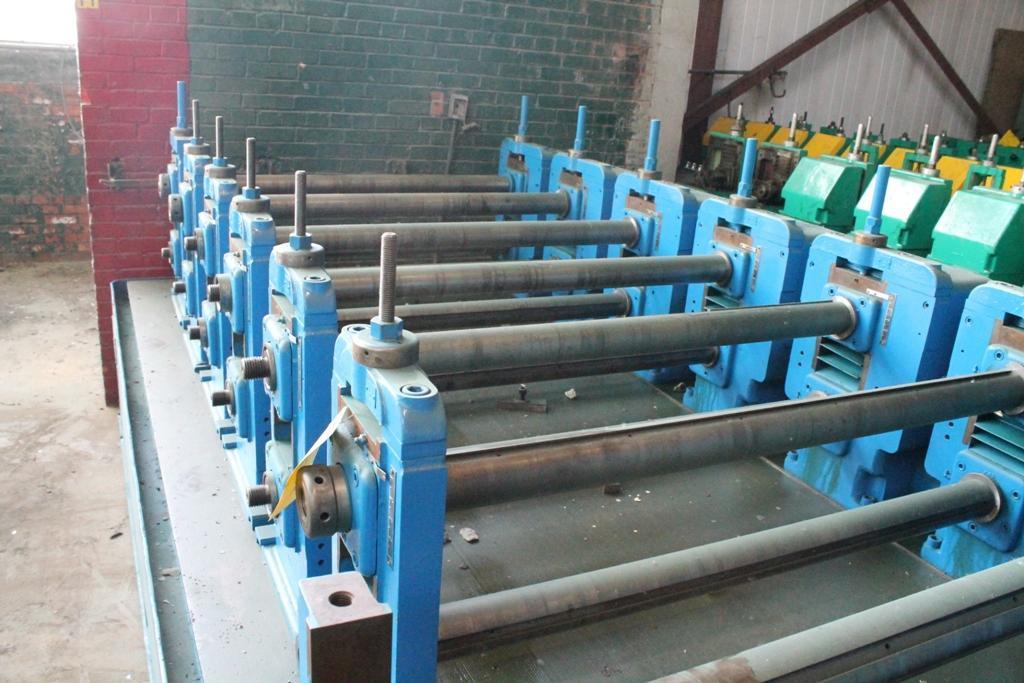

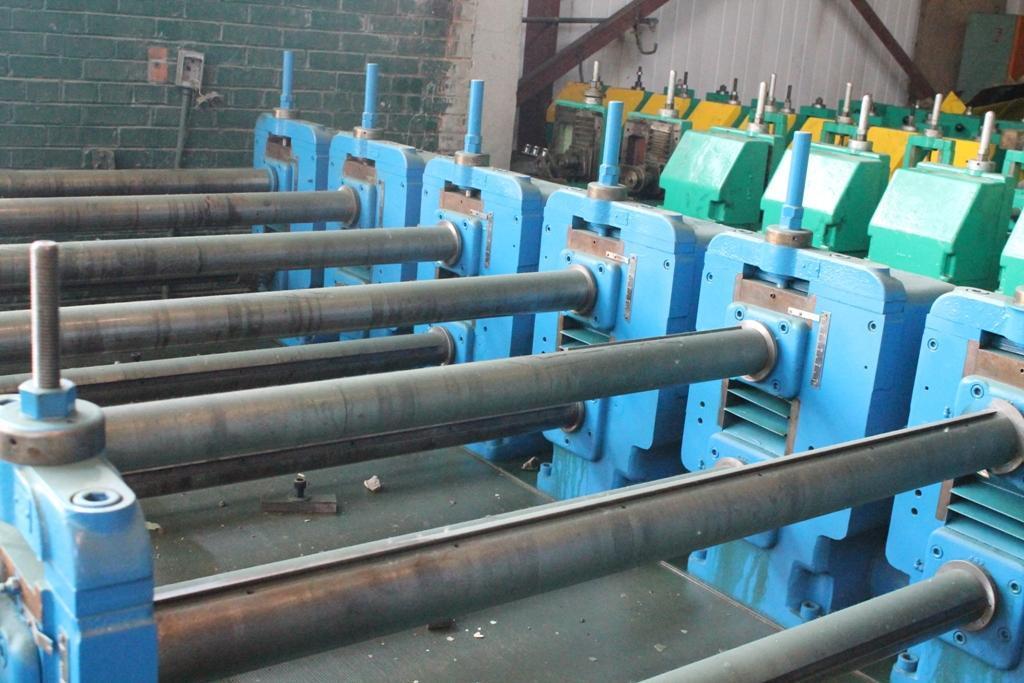

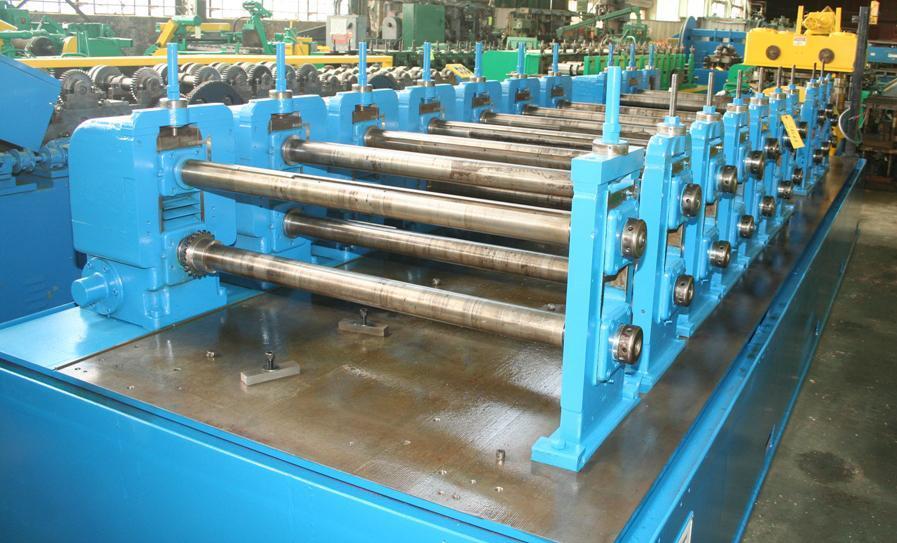

NUMBER OF STANDS ....................... 10

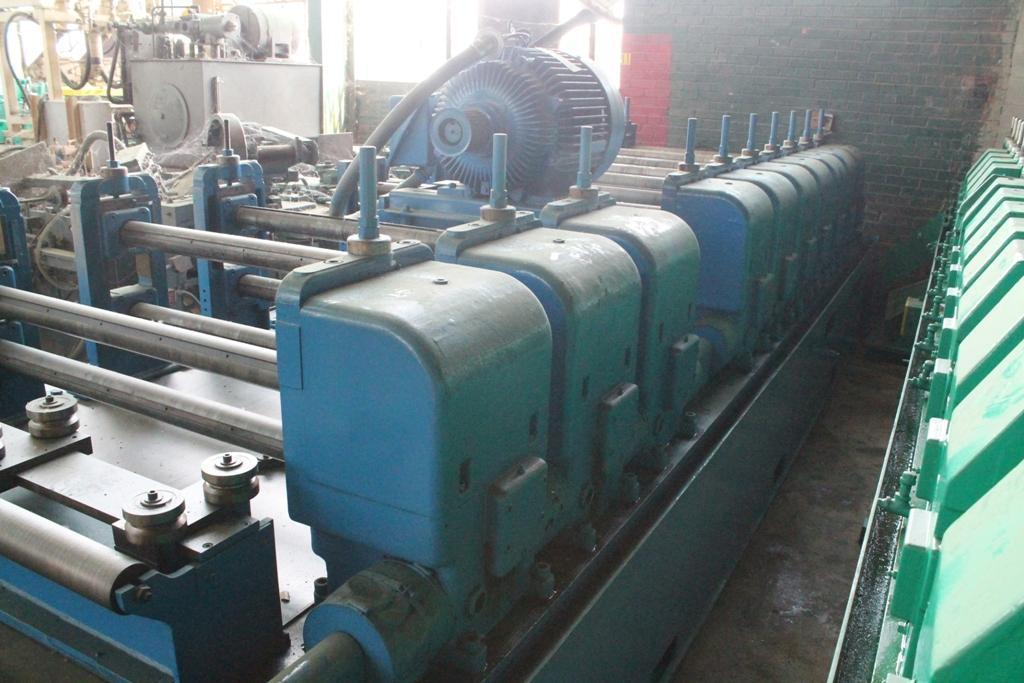

NUMBER OF DRIVE HOUSINGS ............... 10 ON 10 PASS MILL BED
SHAFT DIAMETER ......................... 2.9985 / 2.999
KEY WAY ................................ 5/8" W X 7/32" H
ROLL SPACE ............................. 47"
MIN VERTICAL SHAFT CENTERS ............. 15-13/16"
MAX VERTICAL SHAFT CENTERS ............. 9-1/8" (1" RISER ADDED)
HORIZONTAL SHAFT CENTERS ............... 17-3/4
CENTER LINE BOTTOM SPINDLE TO MILL BED . 8-1/2"
MILL BED TO BOTTOM OF MILL BASE ........ 23-7/8"
WORM RATIO ............................. 10-1
UNEQUAL GEAR RATIO ..................... 1.277 TO 1
TOP GEAR ............................... 23 TEETH
BOTTOM GEAR ............................ 18 TEETH
