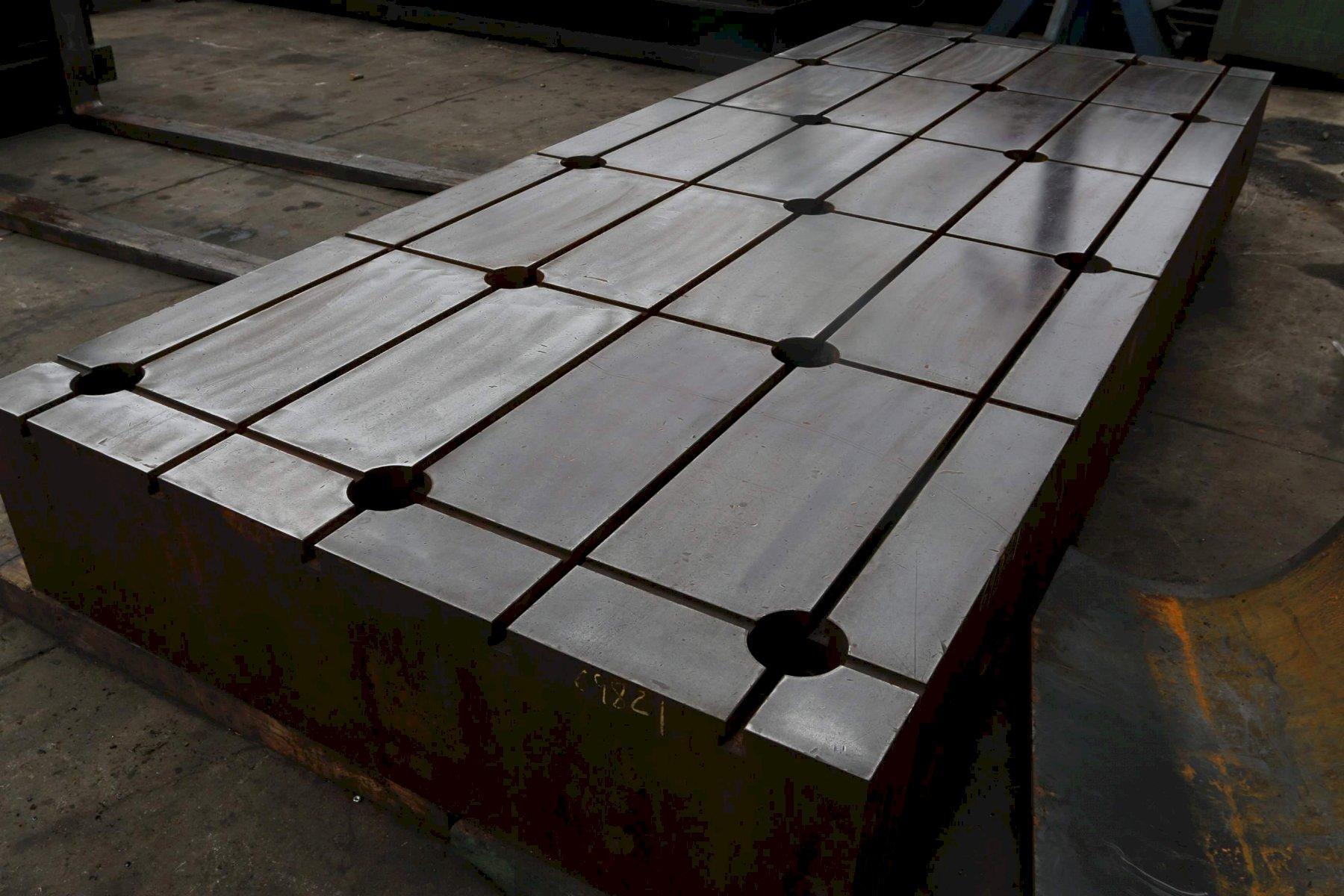

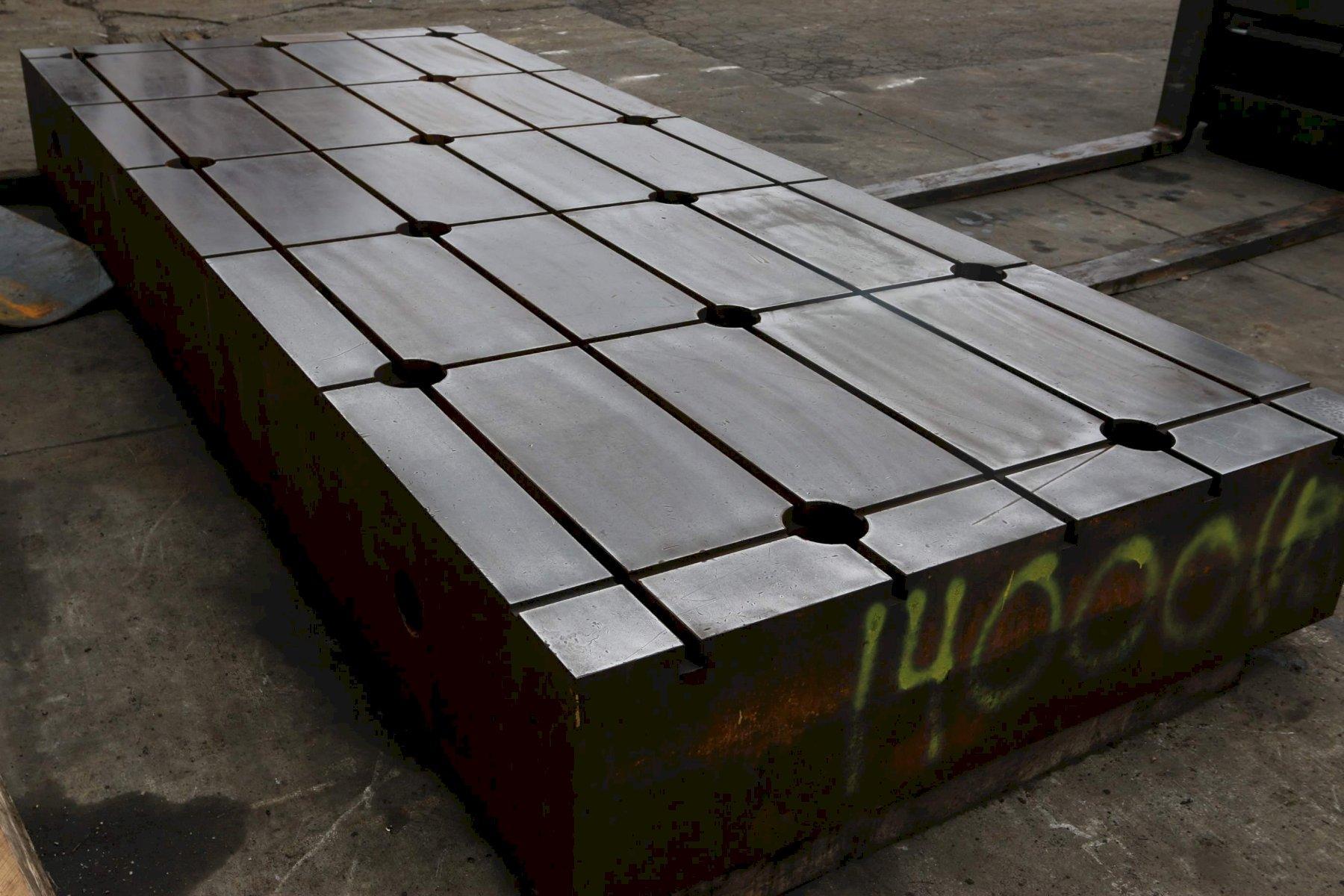

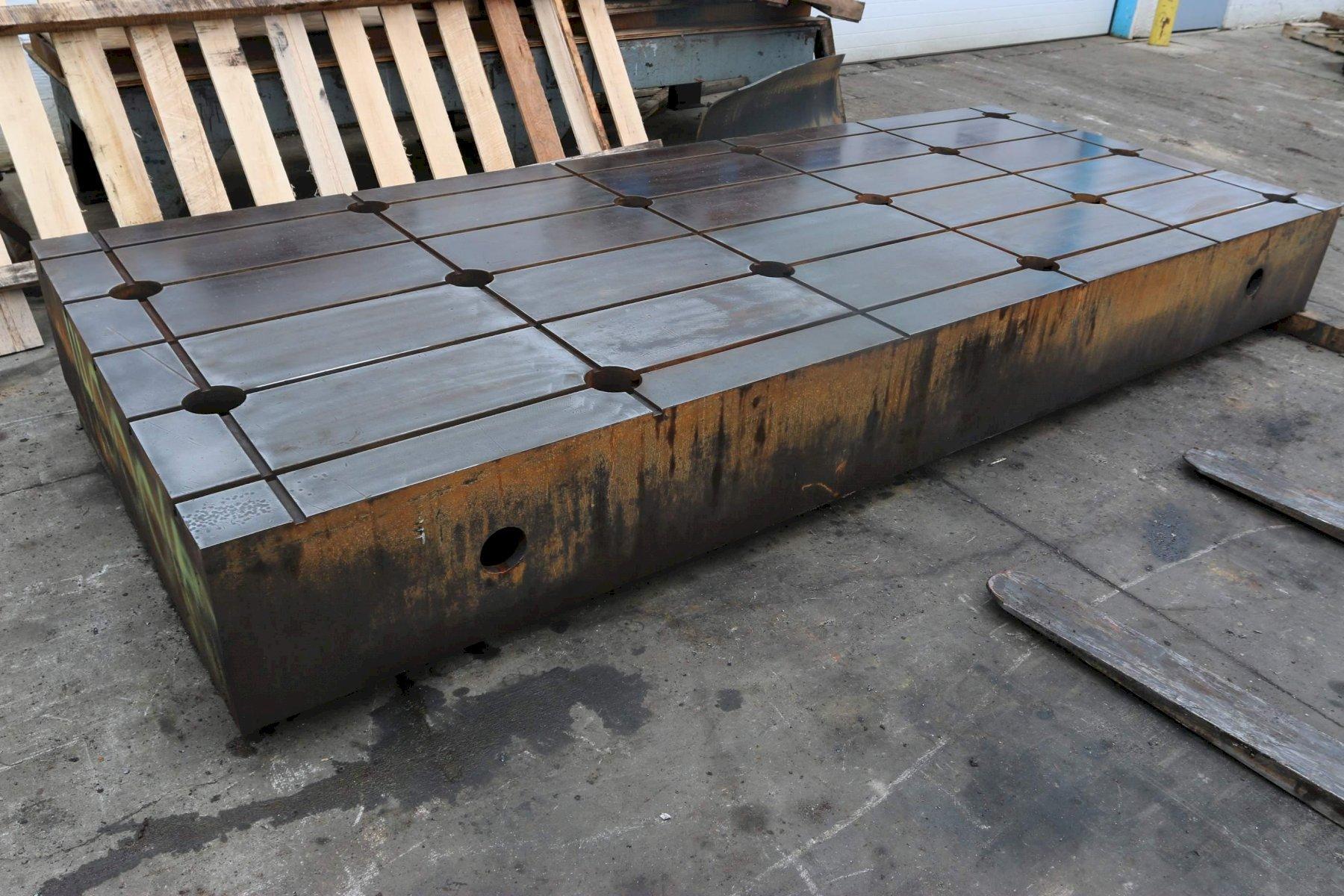

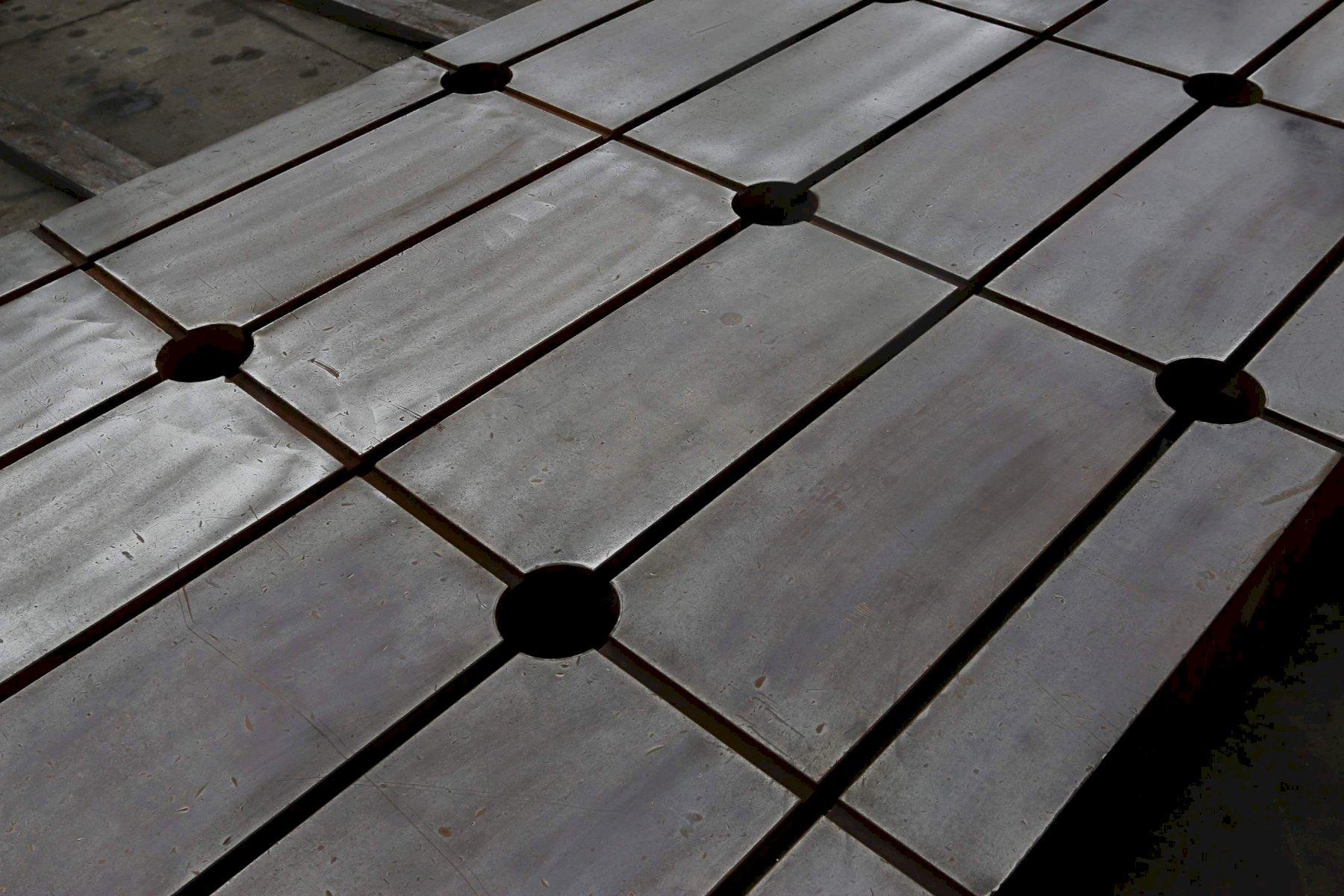

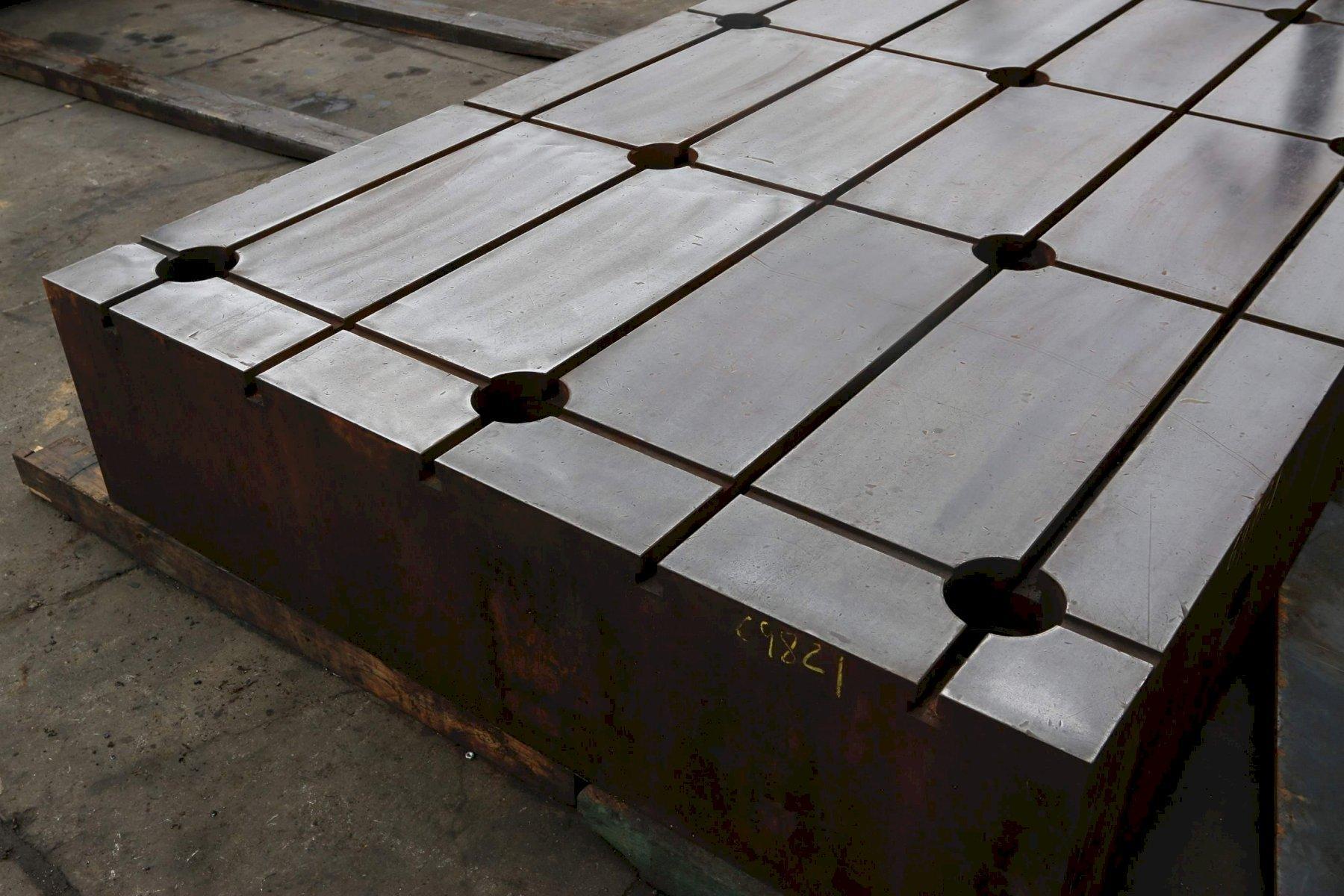

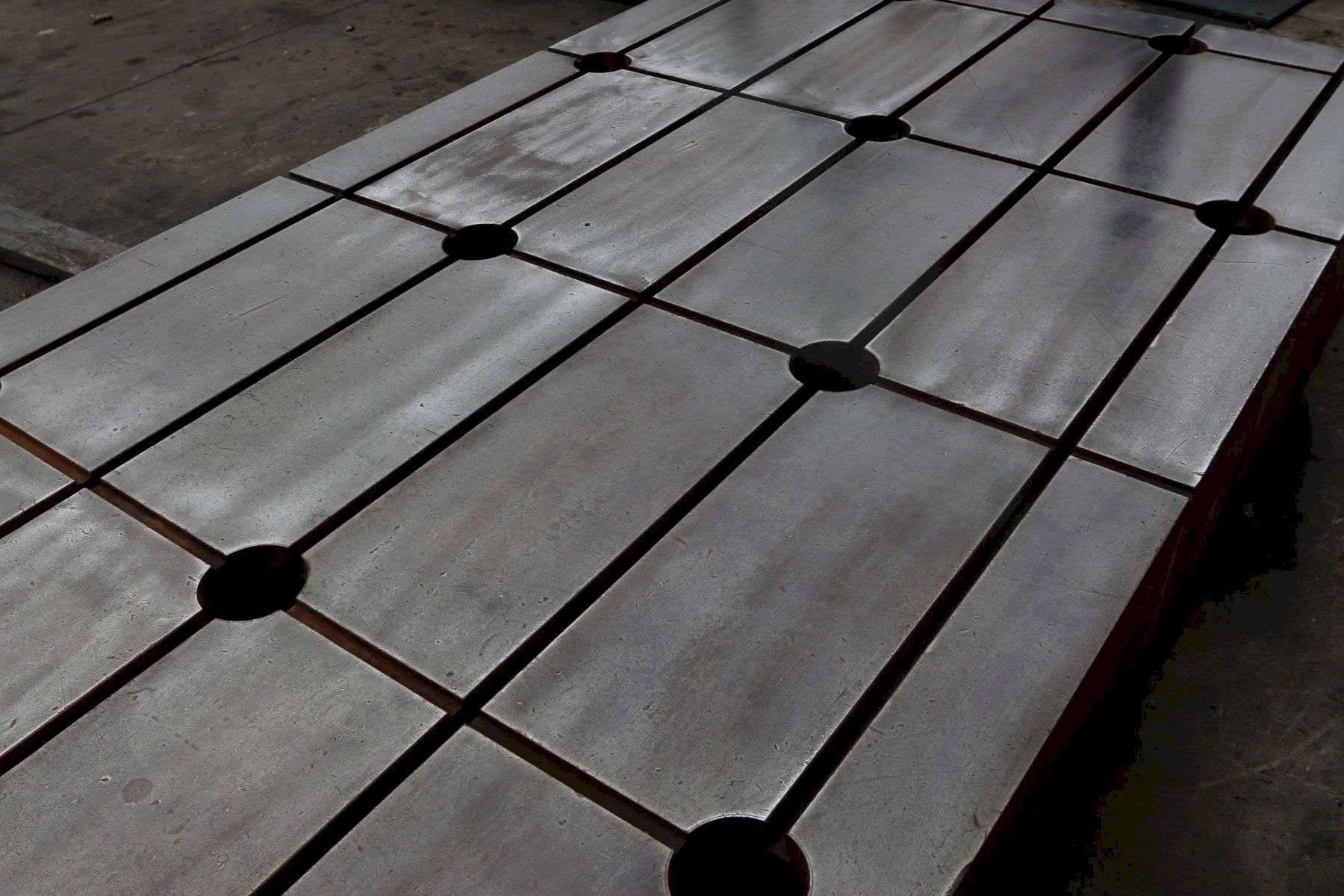

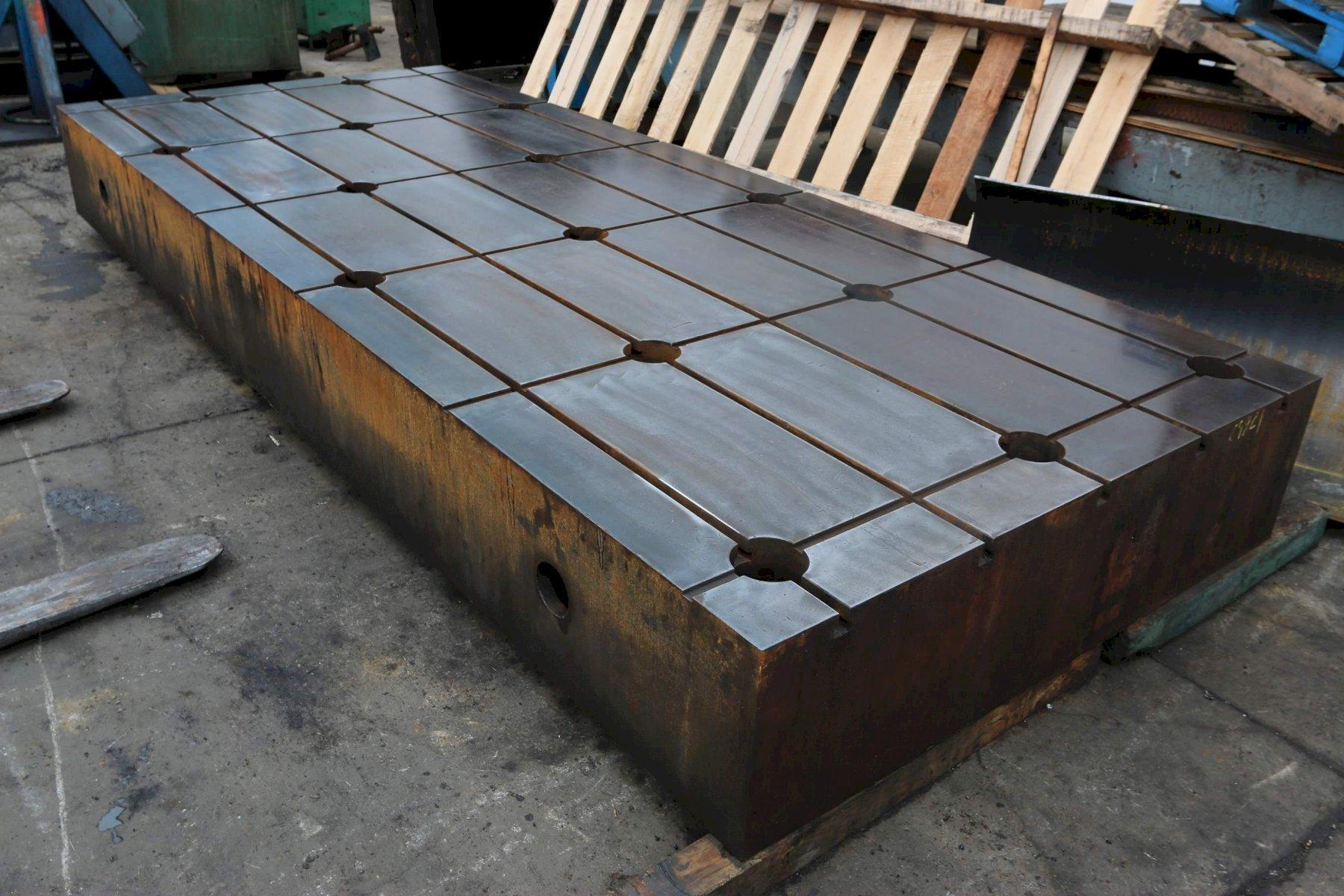

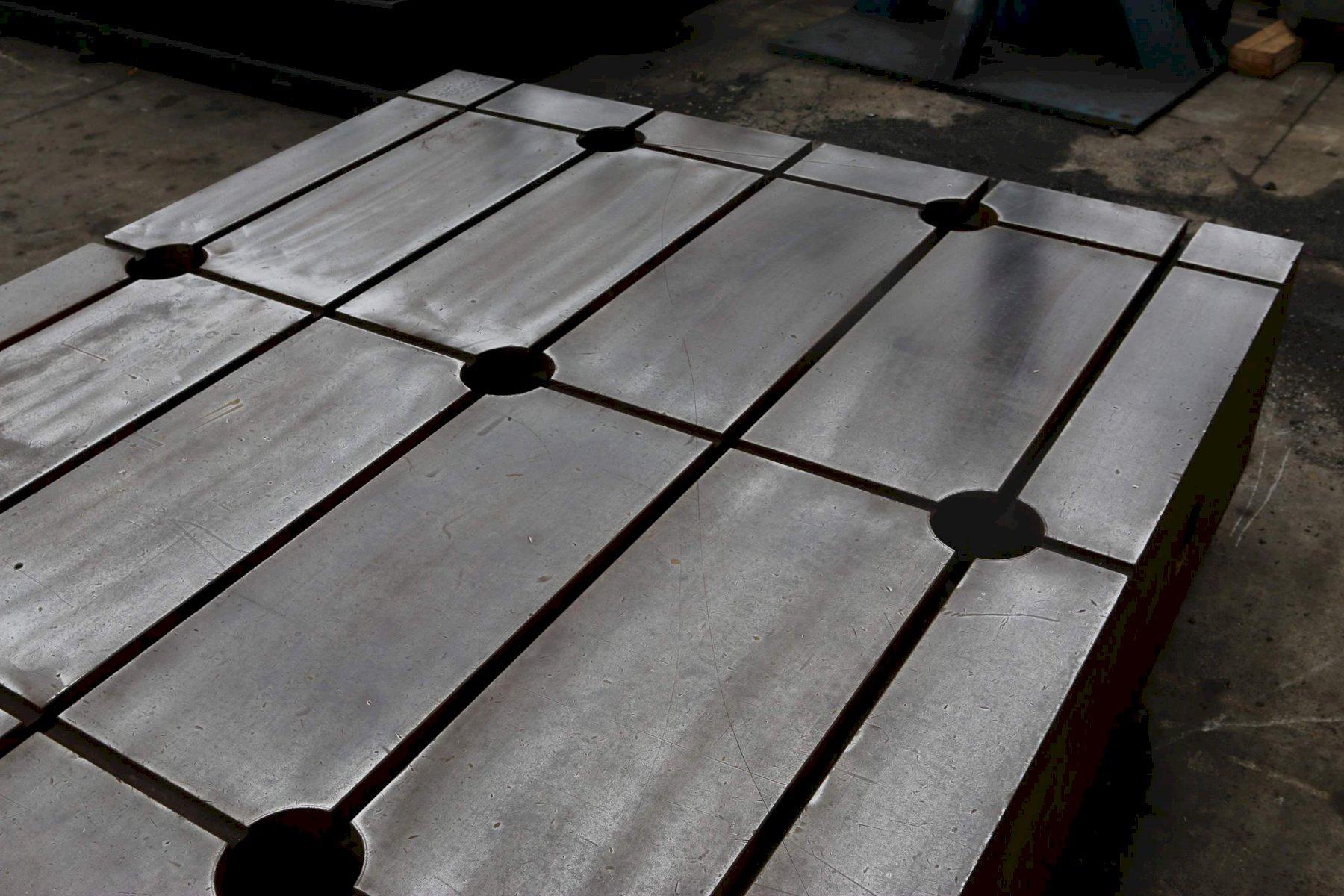

62" X 153" X 16" FLOOR PLATE: STOCK #69821

Manufacturer

Category

Tables

Type

TABLES, FLOOR & LAYOUT PLATES, (Radial & Boring Mill)

Stock

69821

Model

12 X 05

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



LENGTH OF PLATE ...................... 153" (12'9")
WIDTH OF PLATE ....................... 63"
THICKNESS OF PLATE ................... 16"
NUMBER OF T SLOTS .................... 5
LENGTH OF T SLOTS .................... 153"
DEPTH OF T SLOTS ..................... 1-1/4"
WIDTH OF T SLOTS ..................... 3/4"
WIDTH OF T SLOTS AT BOTTOM ........... 1-1/4"
CENTER DISTANCE BETWEEN  T SLOTS ..... 12"
SLOT CROSS DIRECTION ................. 6
LAYOUT SLOT CROSS DIRECTION CENTERS .. 28"
CAST IRON CONSTRUCTION ............... YES
LEVELING HOLES IN TOP ................ 17
