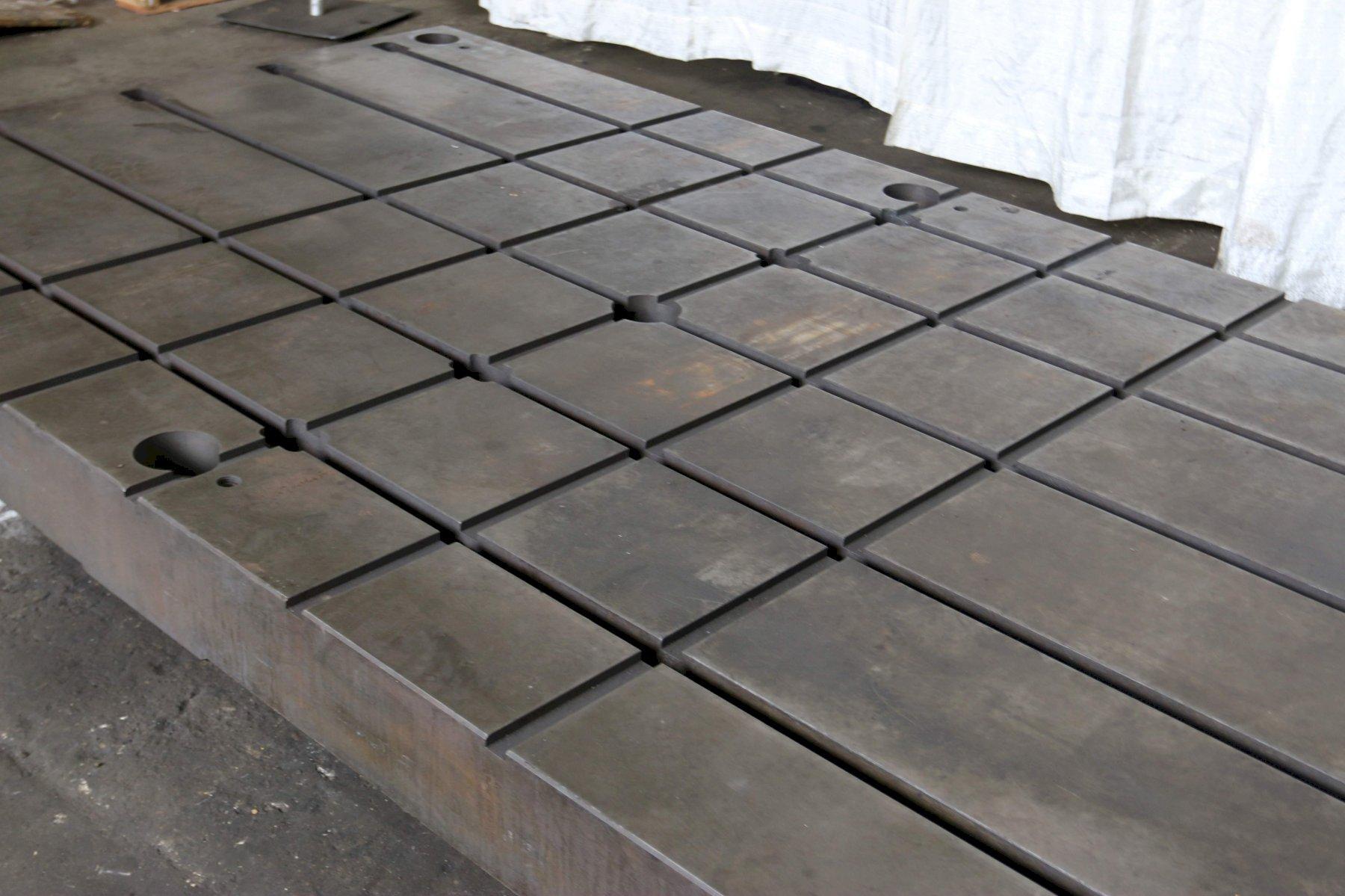

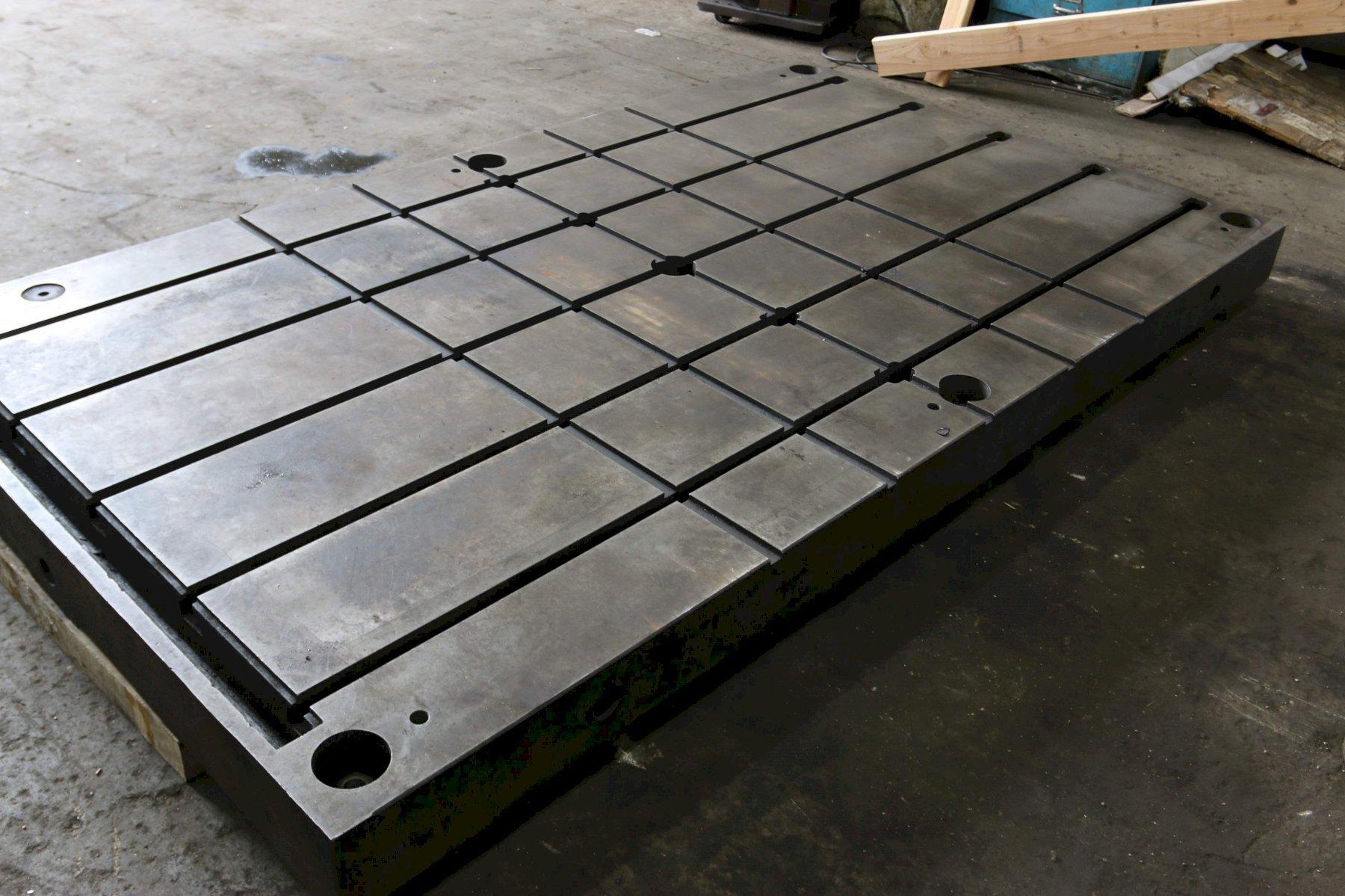

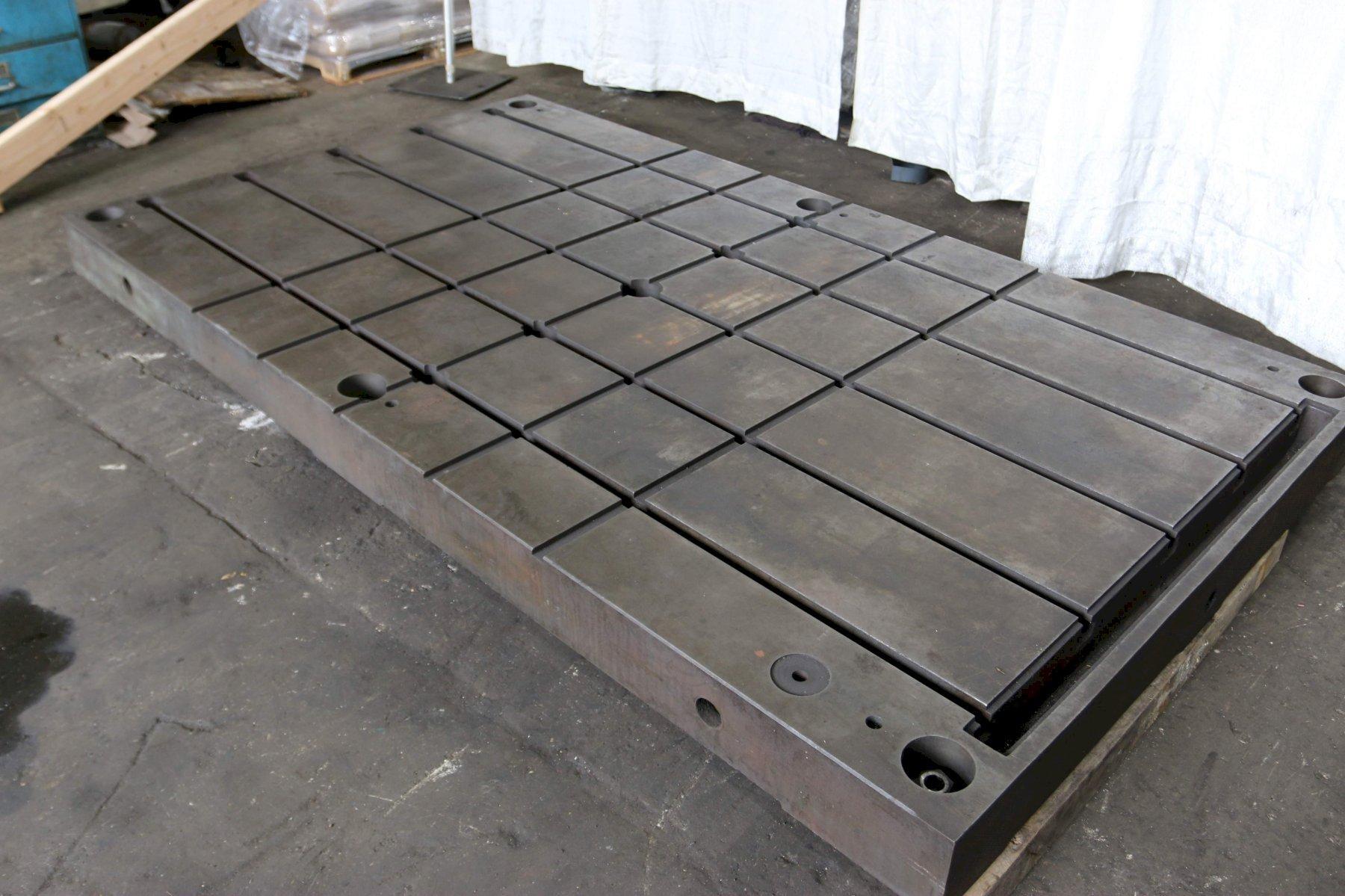

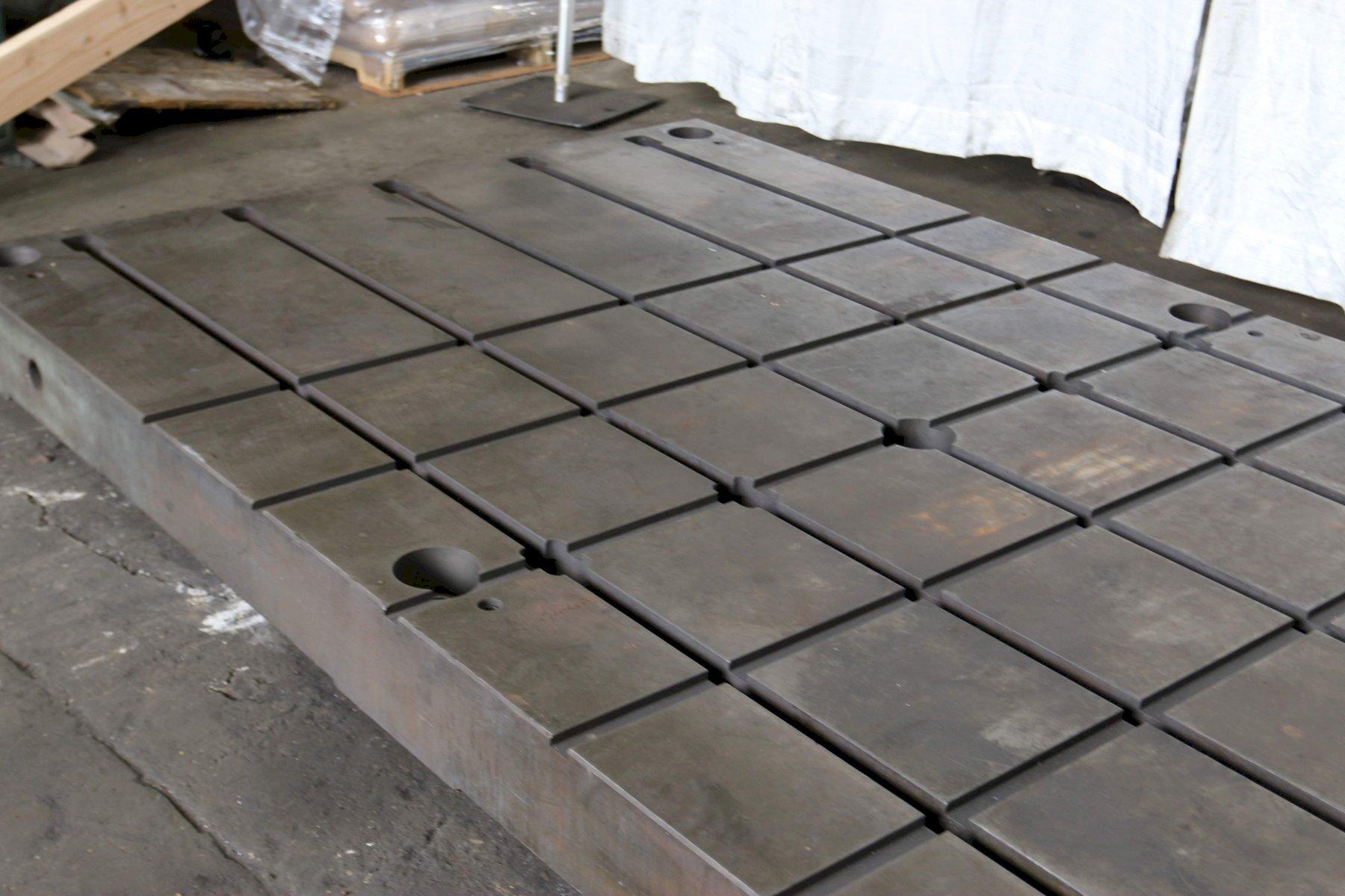

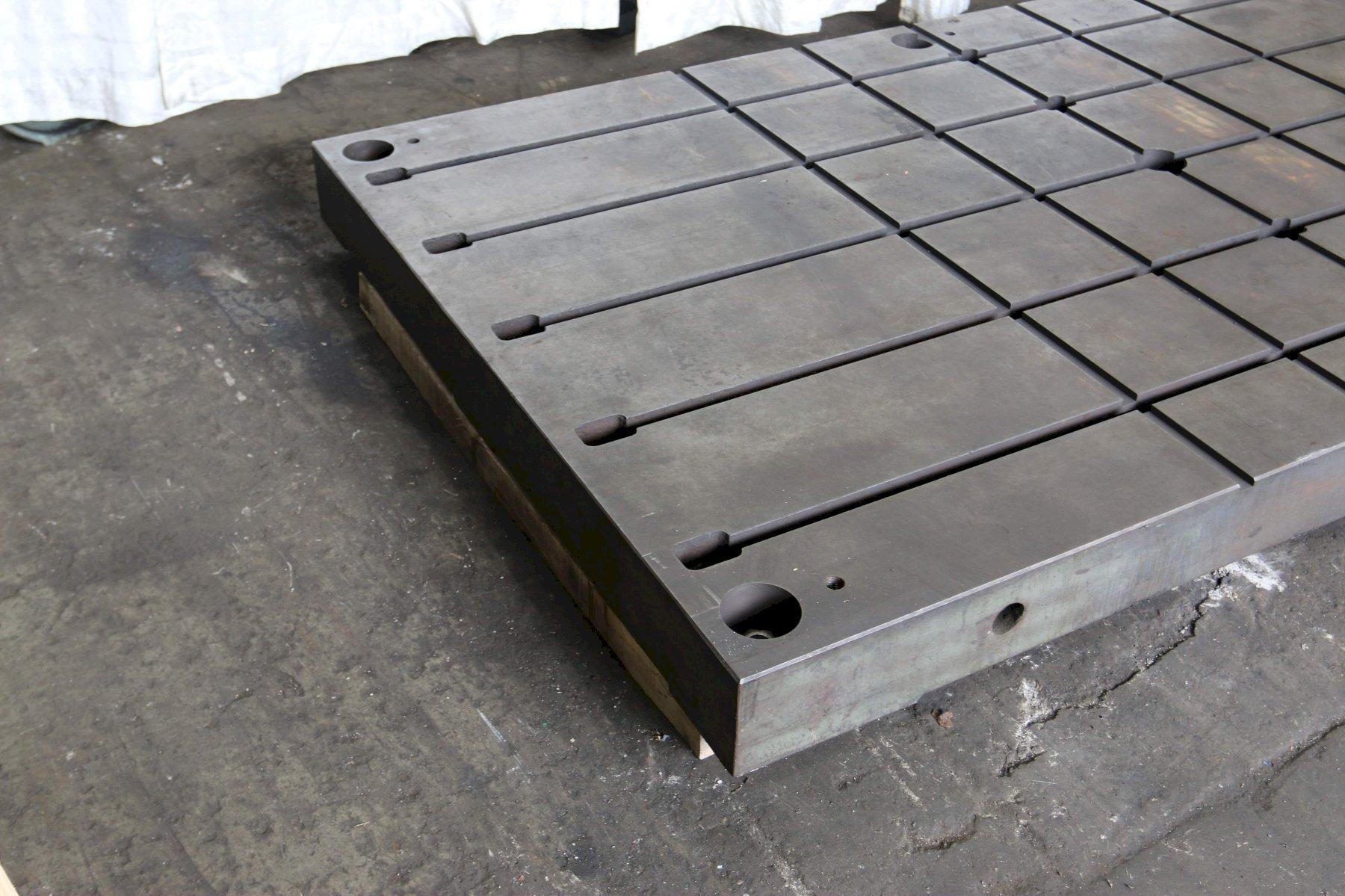

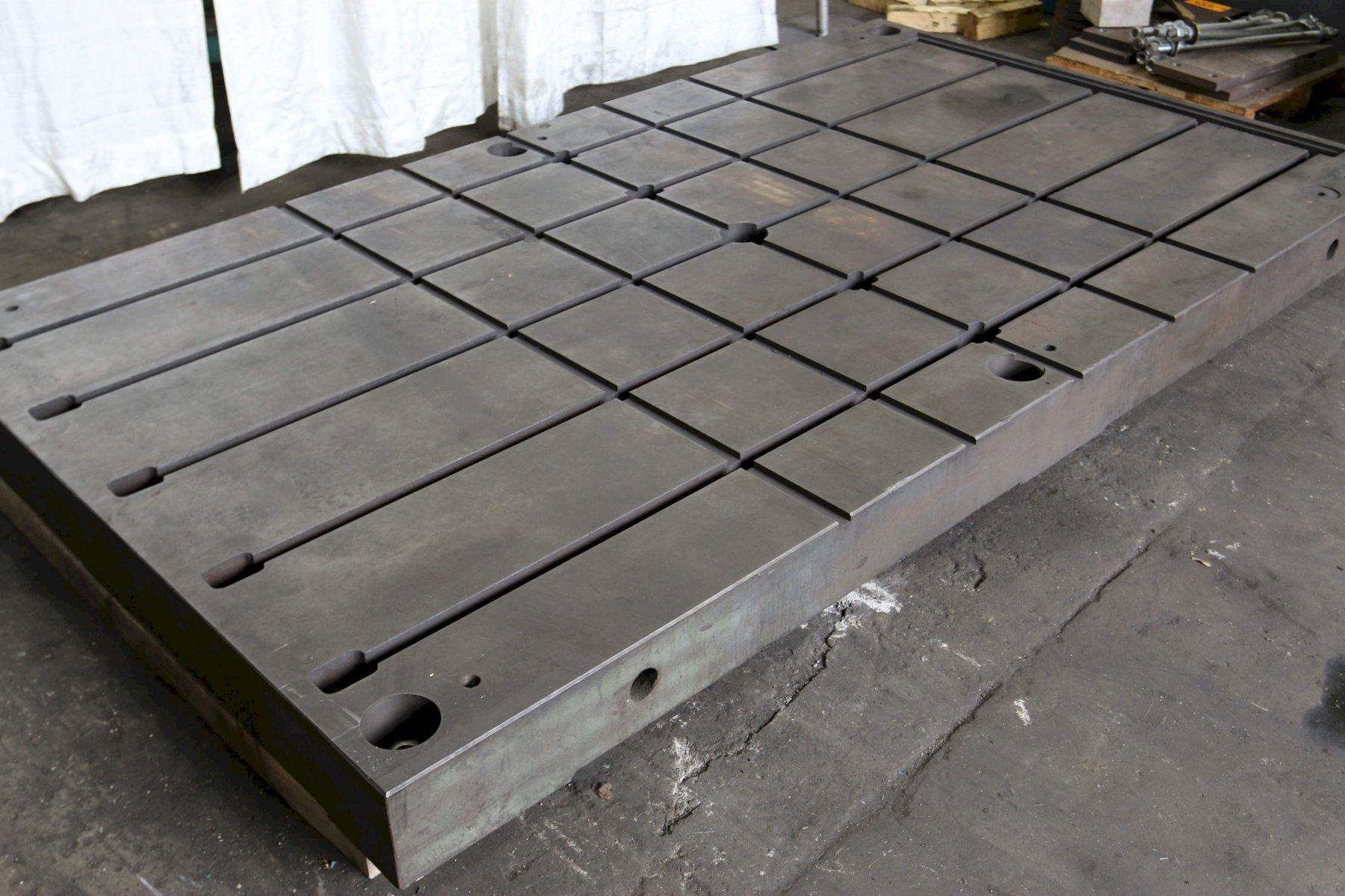

62' X 107-1/2' CAST IRON T-SLOTTED FLOOR PLATE: STOCK #71028

Manufacturer

Category

Tables

Type

TABLES, FLOOR & LAYOUT PLATES, (Radial & Boring Mill)

Stock

71028

Model

09 X 05

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



LENGTH OF PLATE ...................... 168" (14')
WIDTH OF PLATE ....................... 78"
THICKNESS OF PLATE ................... 13"
NUMBER OF T SLOTS .................... 10
LENGTH OF T SLOTS .................... 168"
DEPTH OF T SLOTS ..................... 2-3/8"
WIDTH OF T SLOTS ..................... 1-1/4"
WIDTH OF T SLOTS AT BOTTOM ........... 2-3/84"
CENTER DISTANCE BETWEEN  T SLOTS ..... 8"
SIDE OF PLATE TO CENTER FIRST SLOT ... 4"
CAST IRON CONSTRUCTION ............... YES
LEVELING HOLES IN TOP ................ 6
LEVING SCREWS ON SIDES ............... YES
