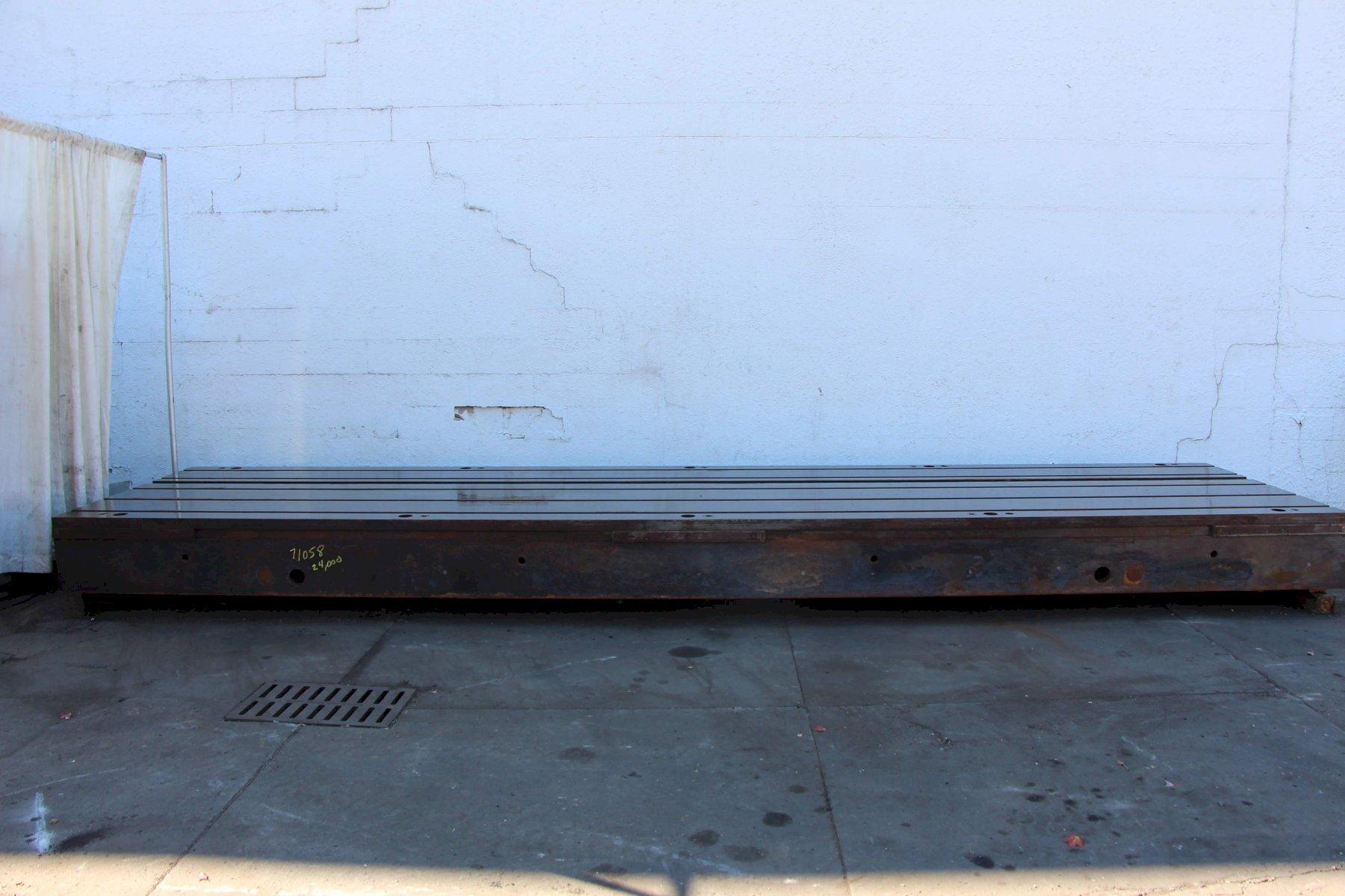

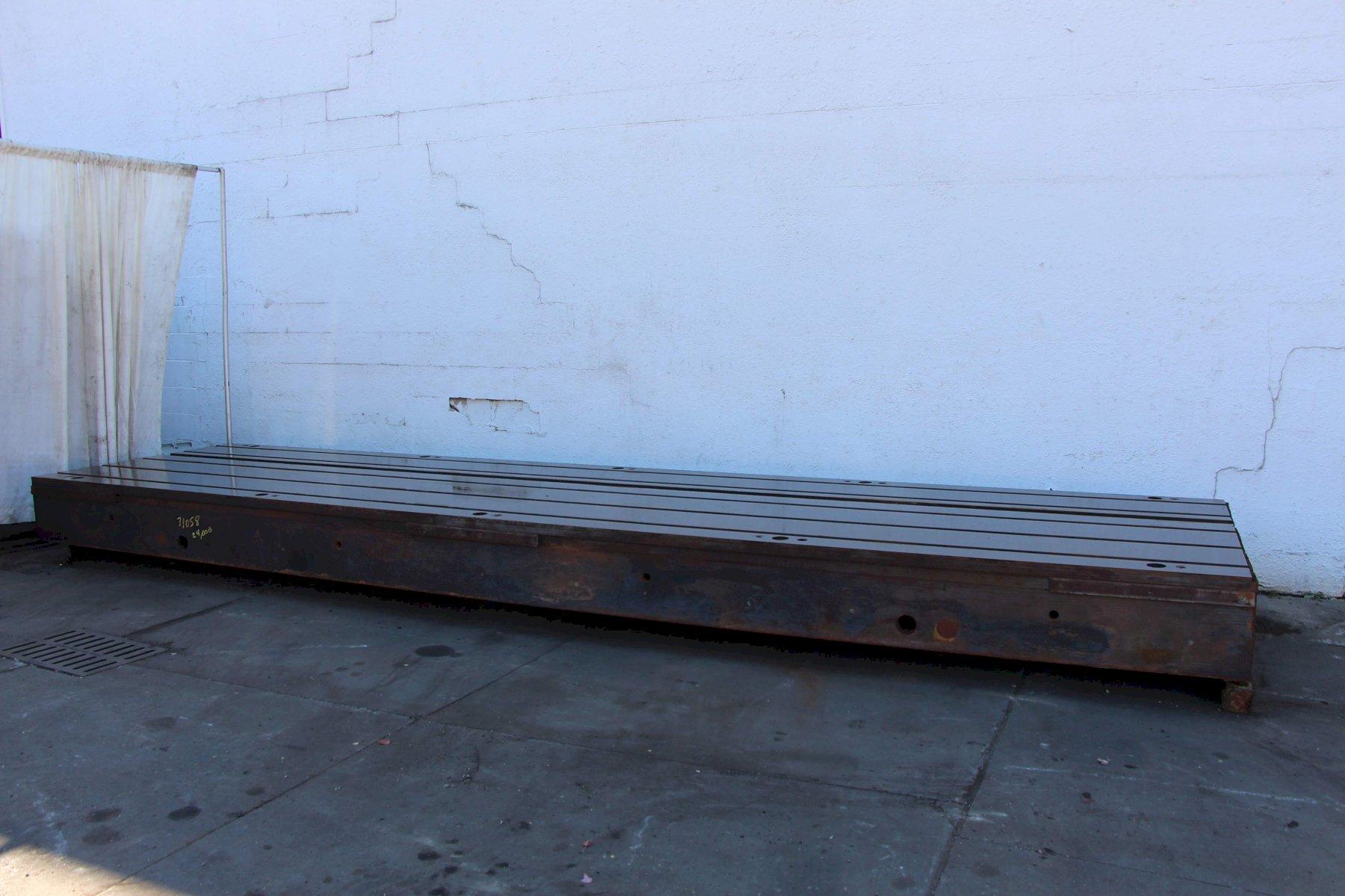

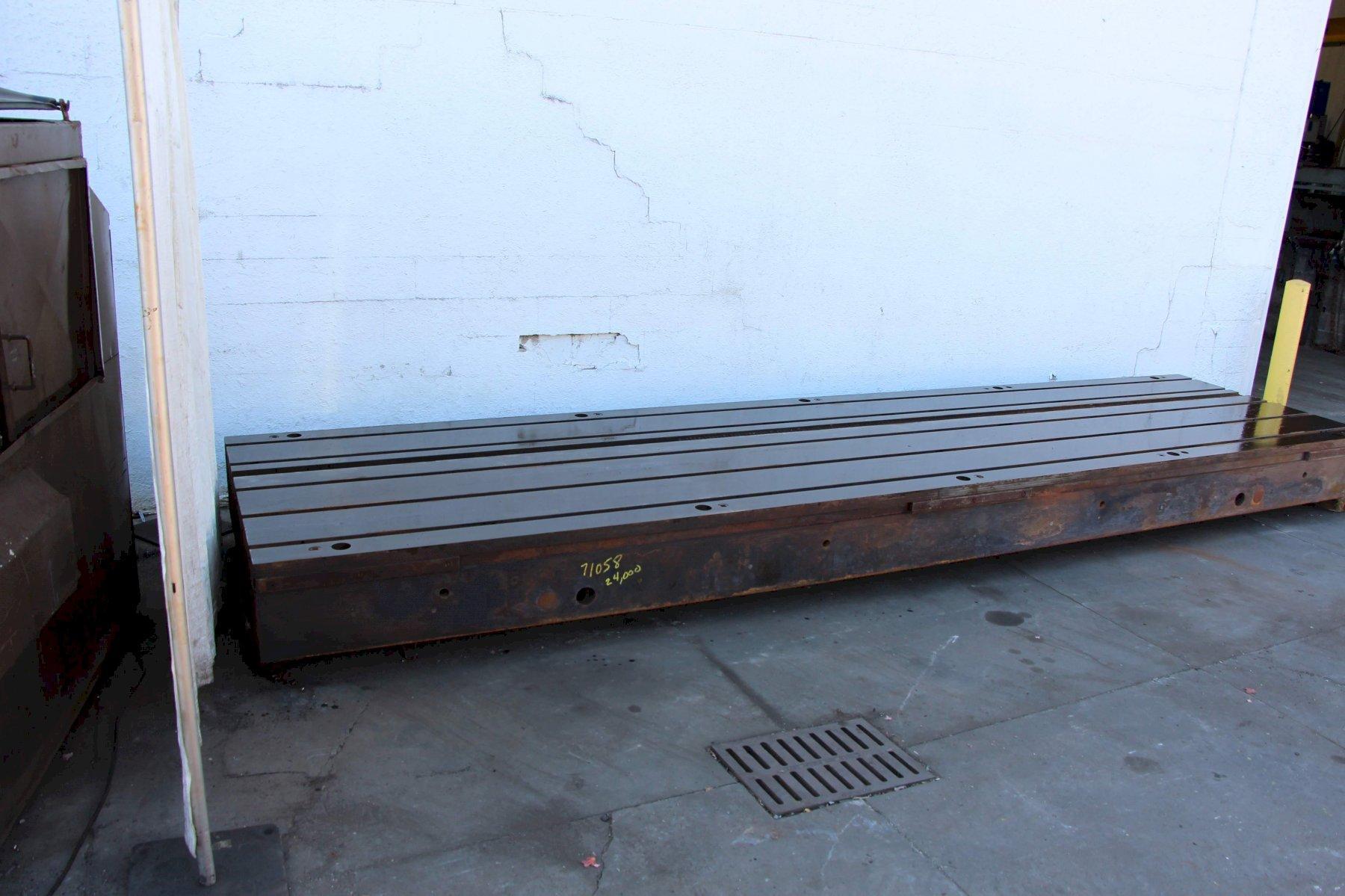

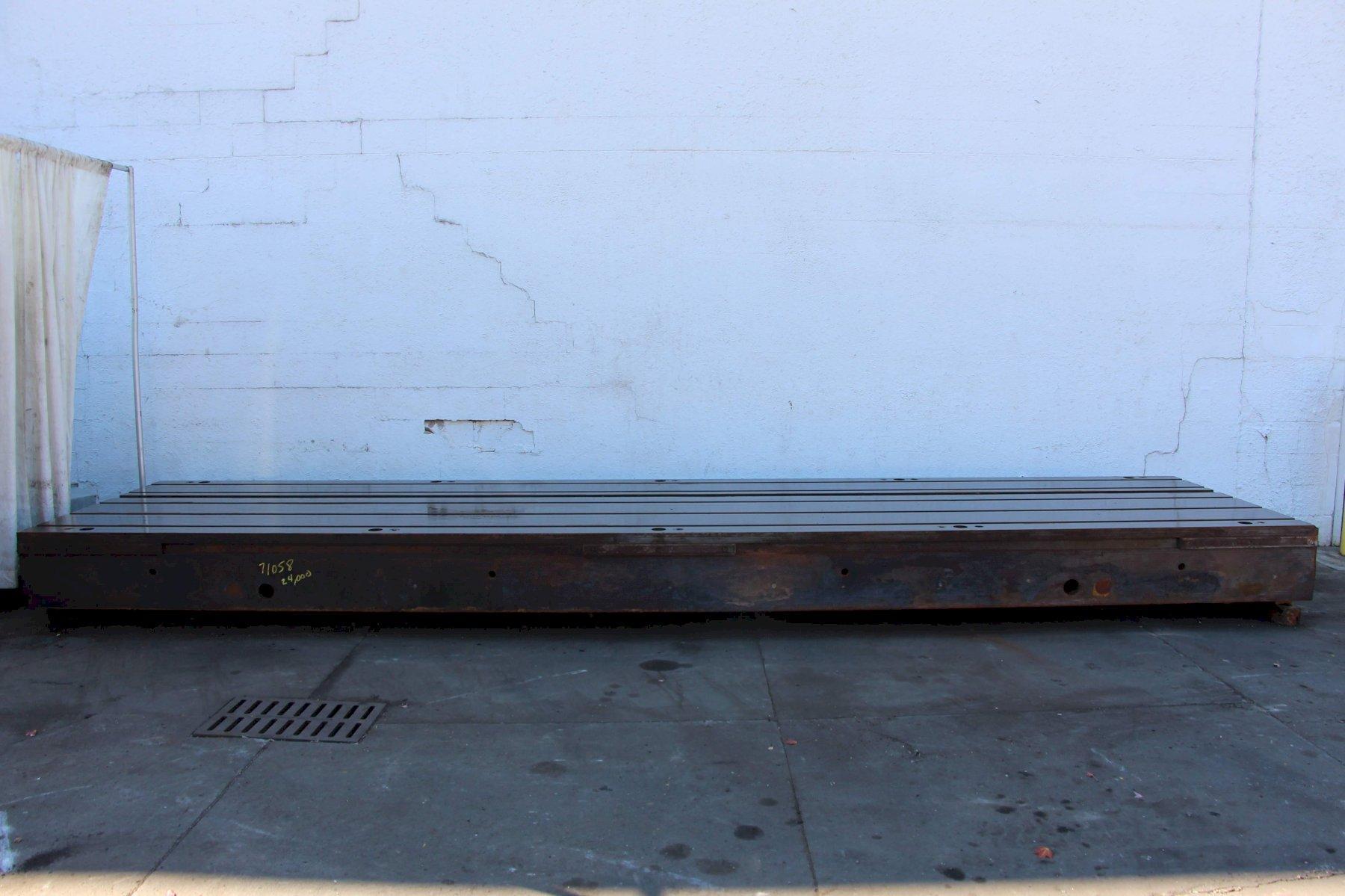

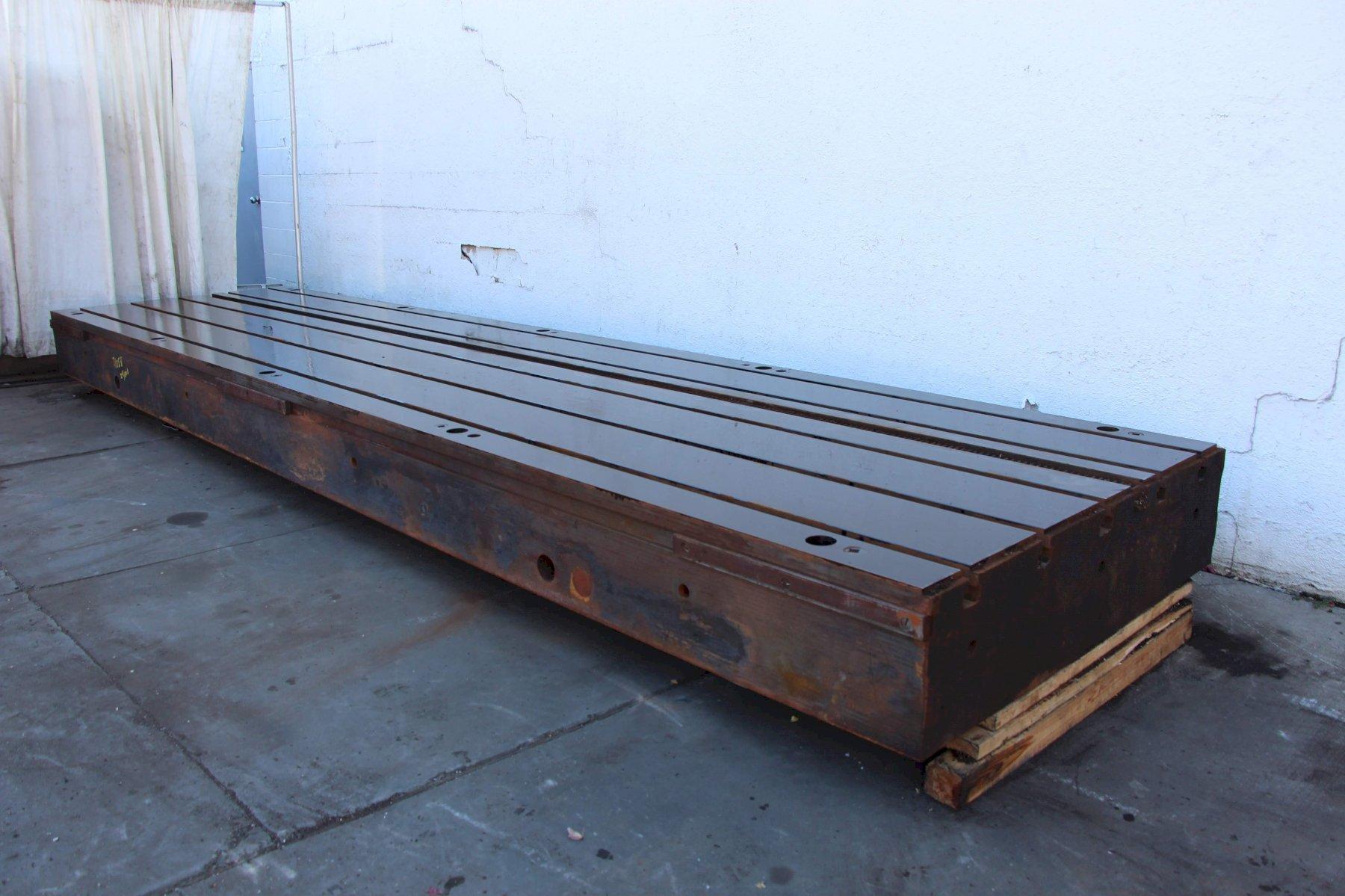

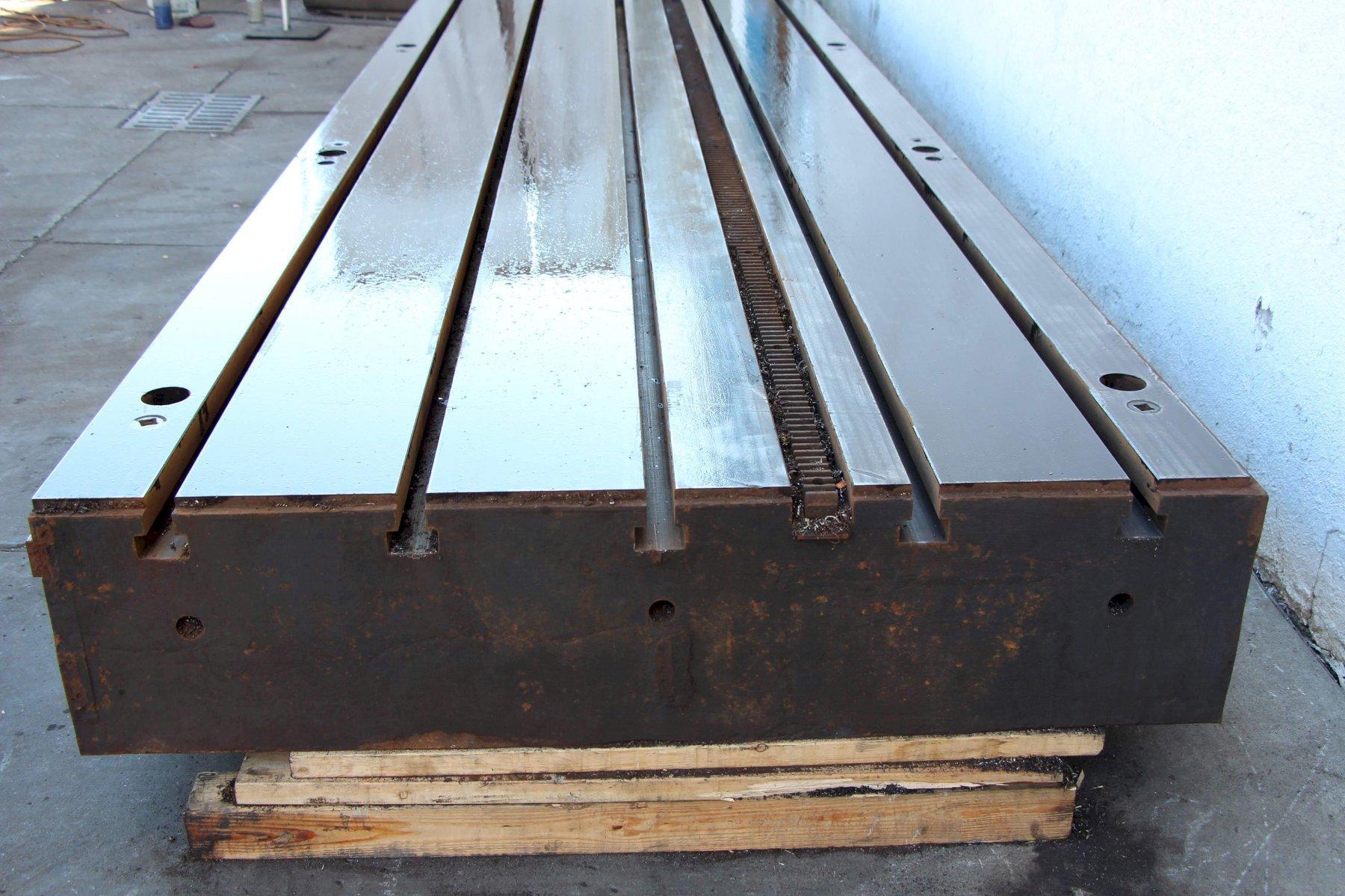

10' X 20' T-SLOTTED FLOOR PLATE: STOCK #71058

Manufacturer

Category

Tables

Type

TABLES, FLOOR & LAYOUT PLATES, (Radial & Boring Mill)

Stock

71058

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



LENGTH OF PLATE ...................... 240"
WIDTH OF PLATE ....................... 10'
THICKNESS OF PLATE ................... 15"

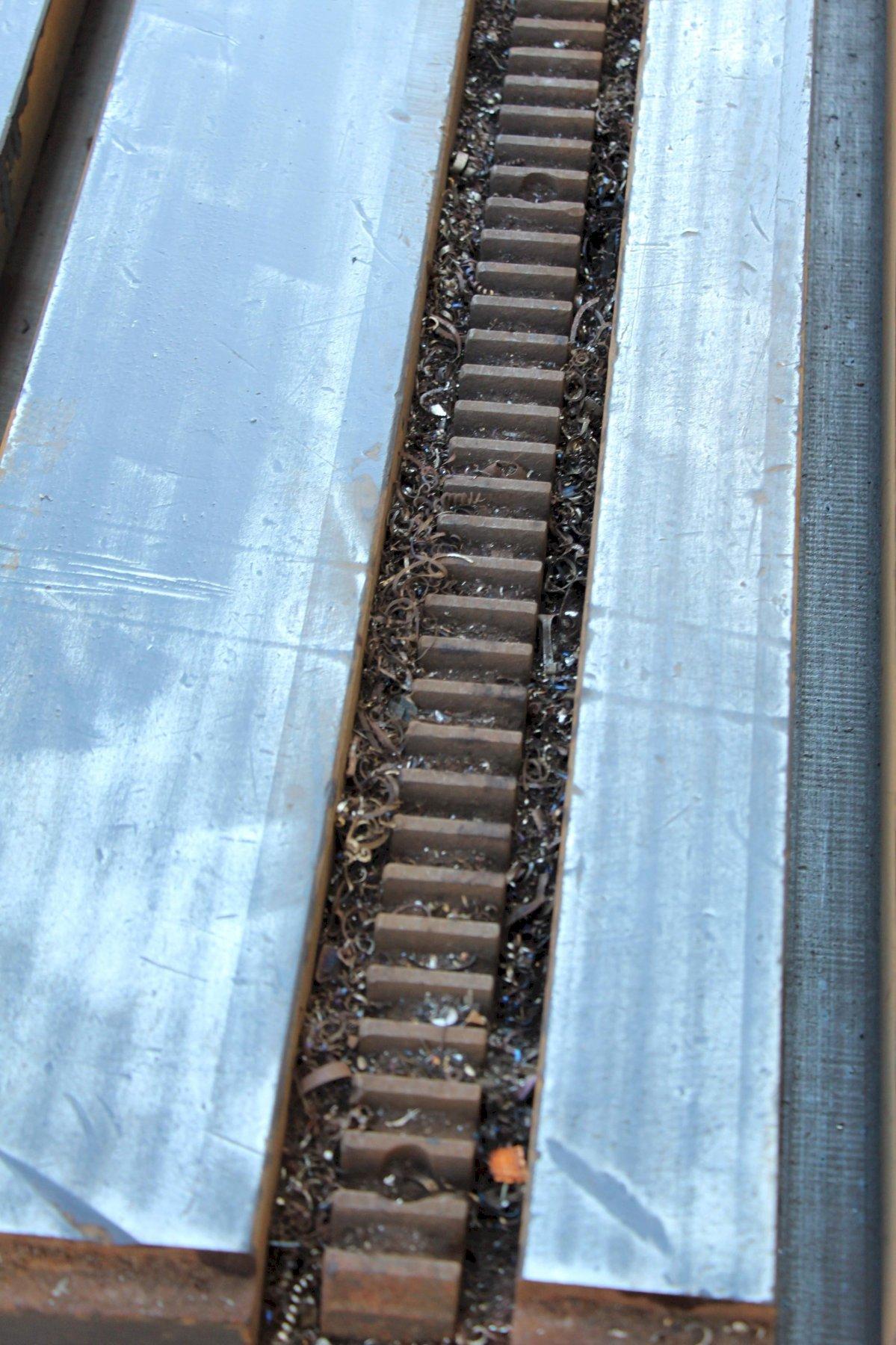

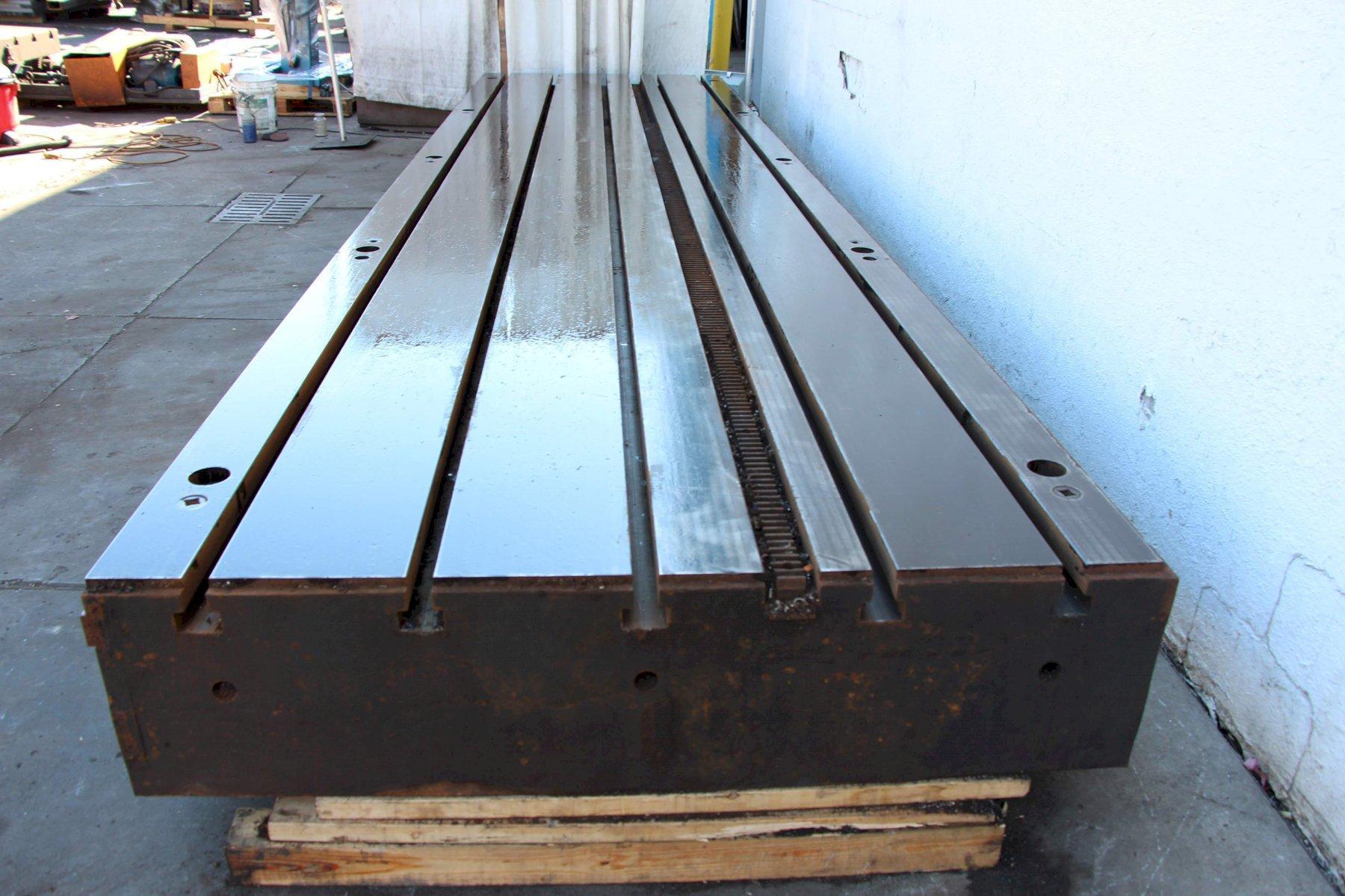

NUMBER OF T SLOTS LENGTH DIRECTION ... 10
LENGTH OF T SLOTS .................... 240"
DEPTH OF T SLOTS ..................... 3"
WIDTH OF T SLOTS AT TOP .............. 1-3/8"
WIDTH OF T SLOTS AT BOTTOM ........... 2-1/2"
CENTER DISTANCE BETWEEN  T SLOTS ..... 11"
CAST IRON CONSTRUCTION ............... YES

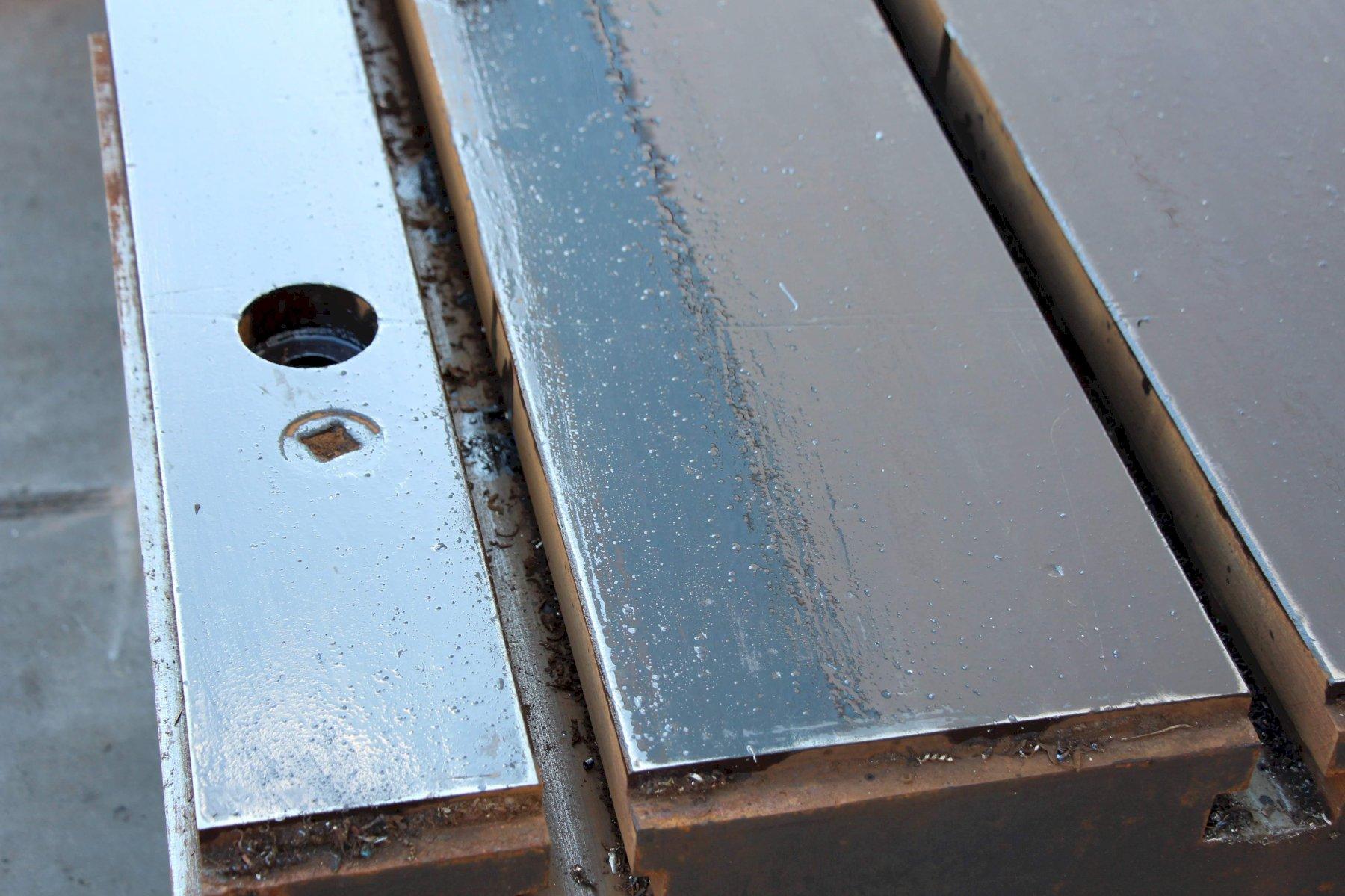

TIE DOWN HOLES ....................... 20
LEVELING SCREW ....................... 24
WEBB UNDERNEATH DIMENSION ............ 28" X 22"
KEYED ON SIDE ........................ 2"
