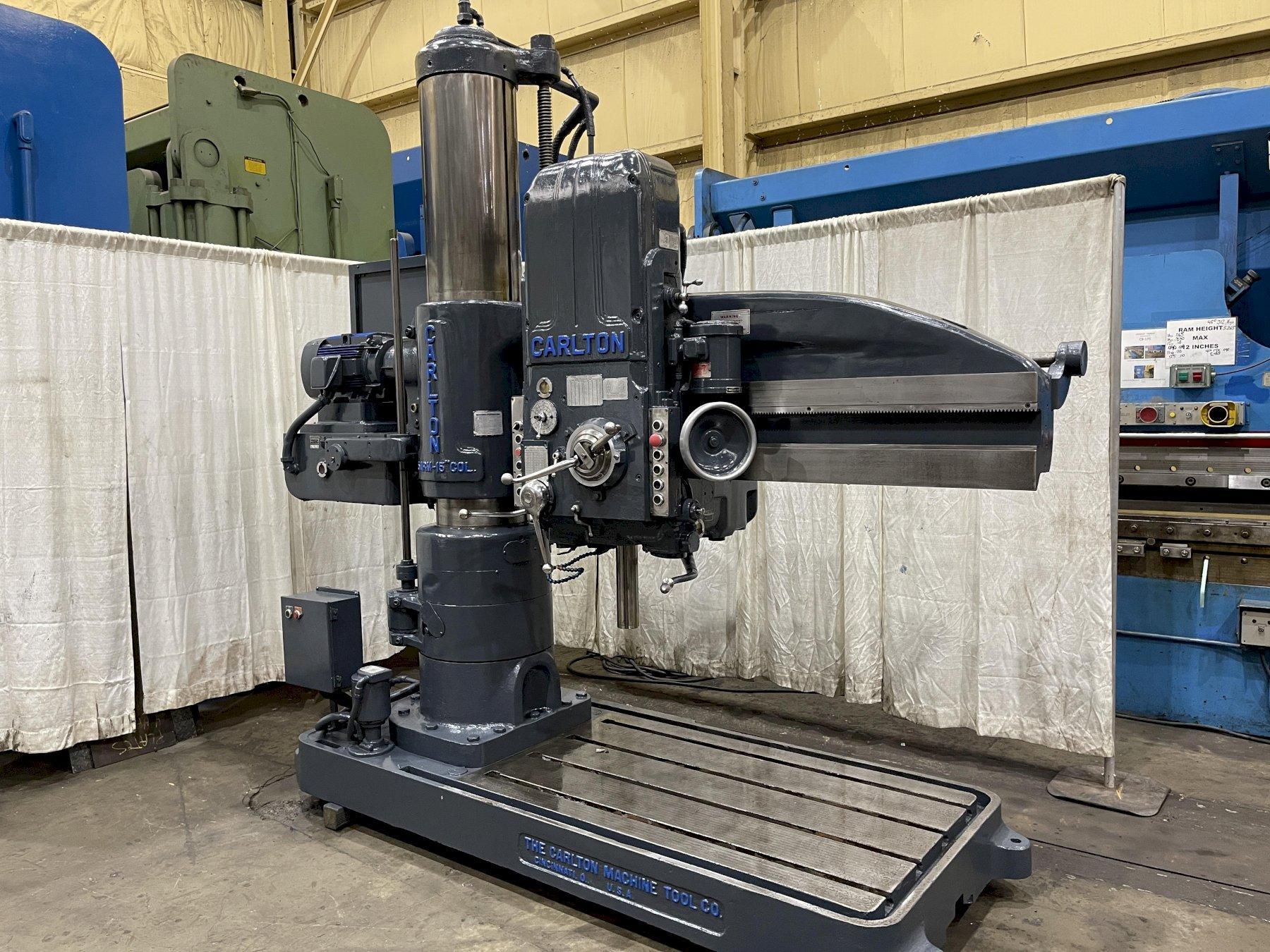

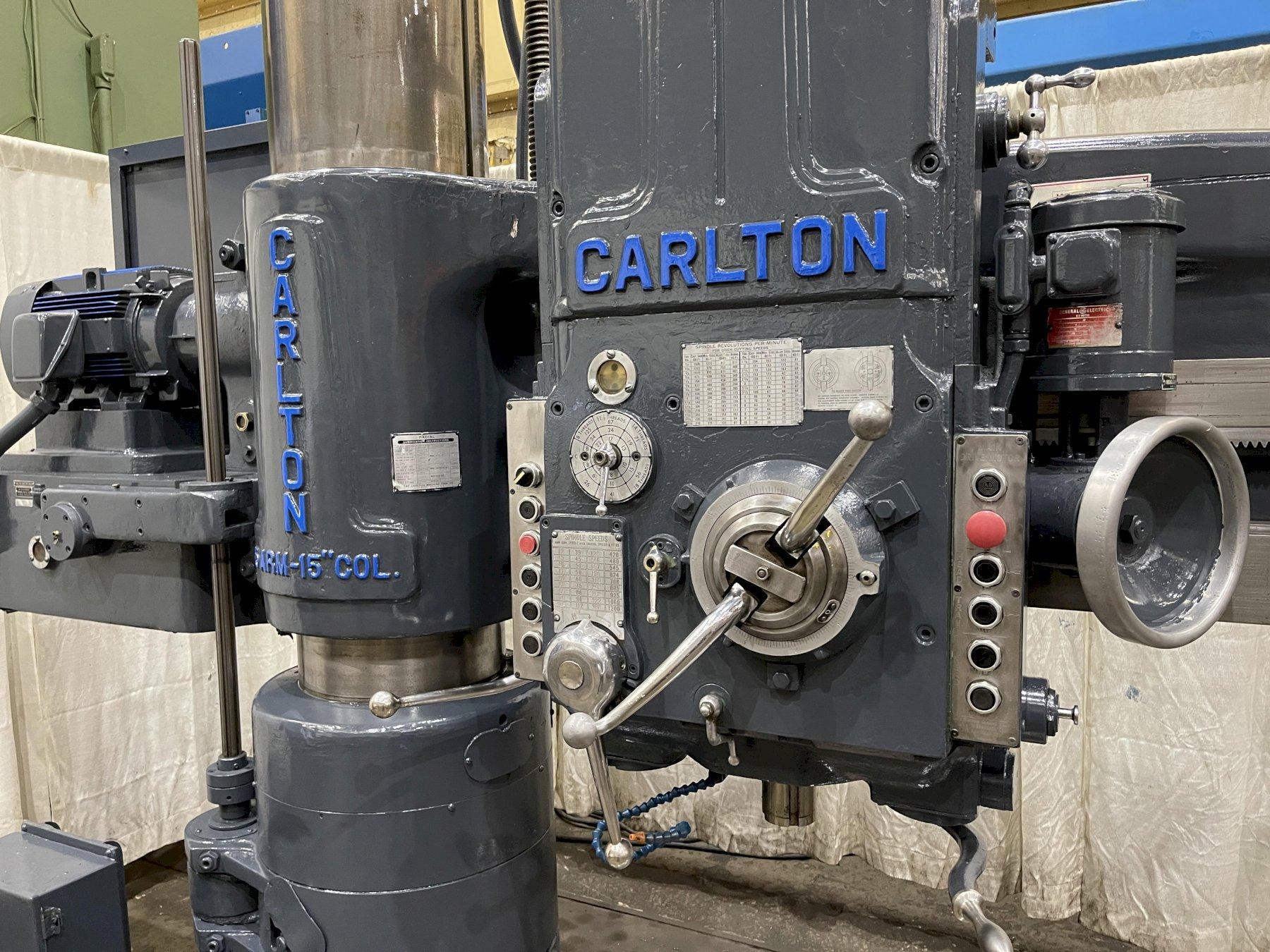

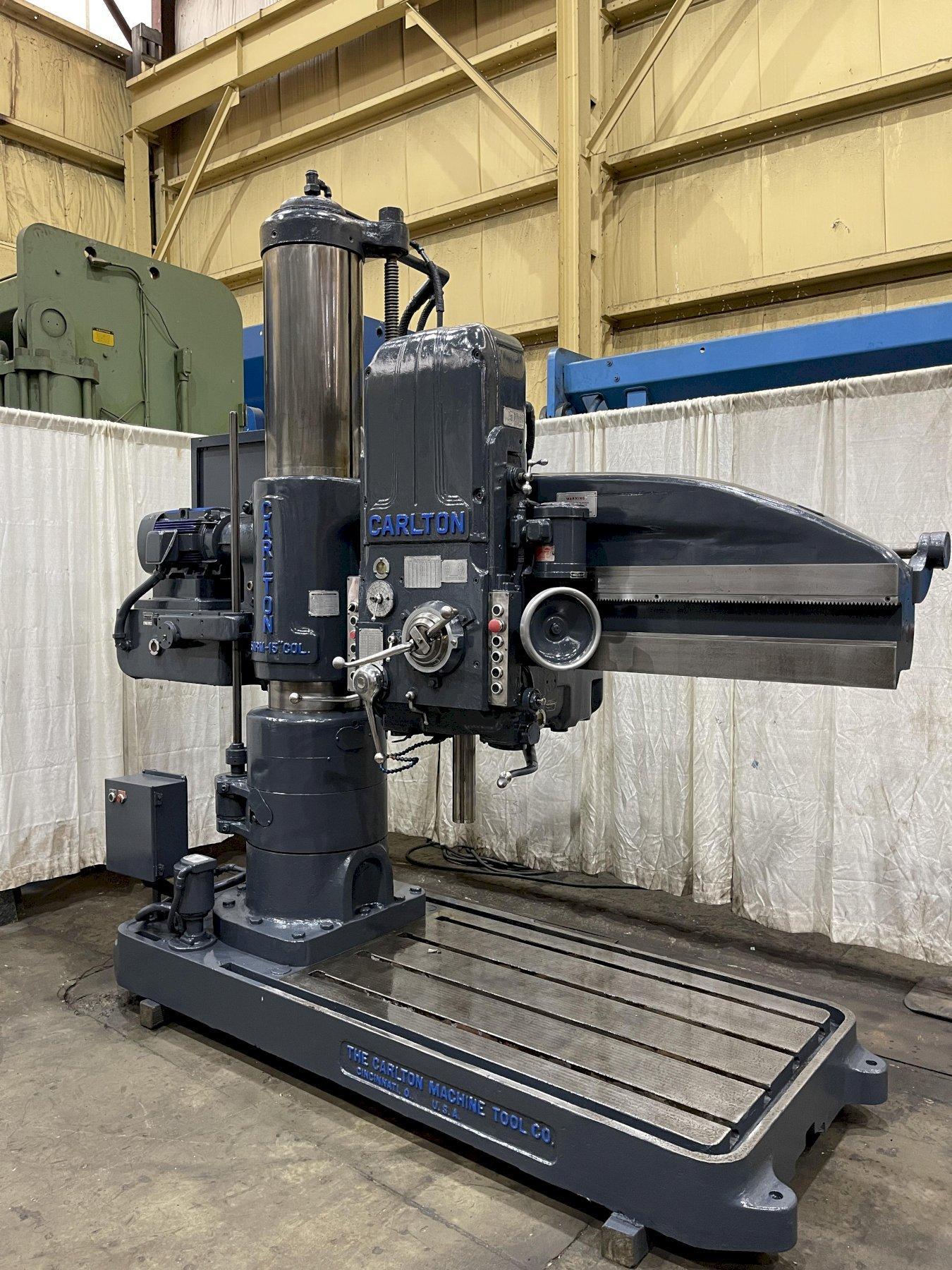

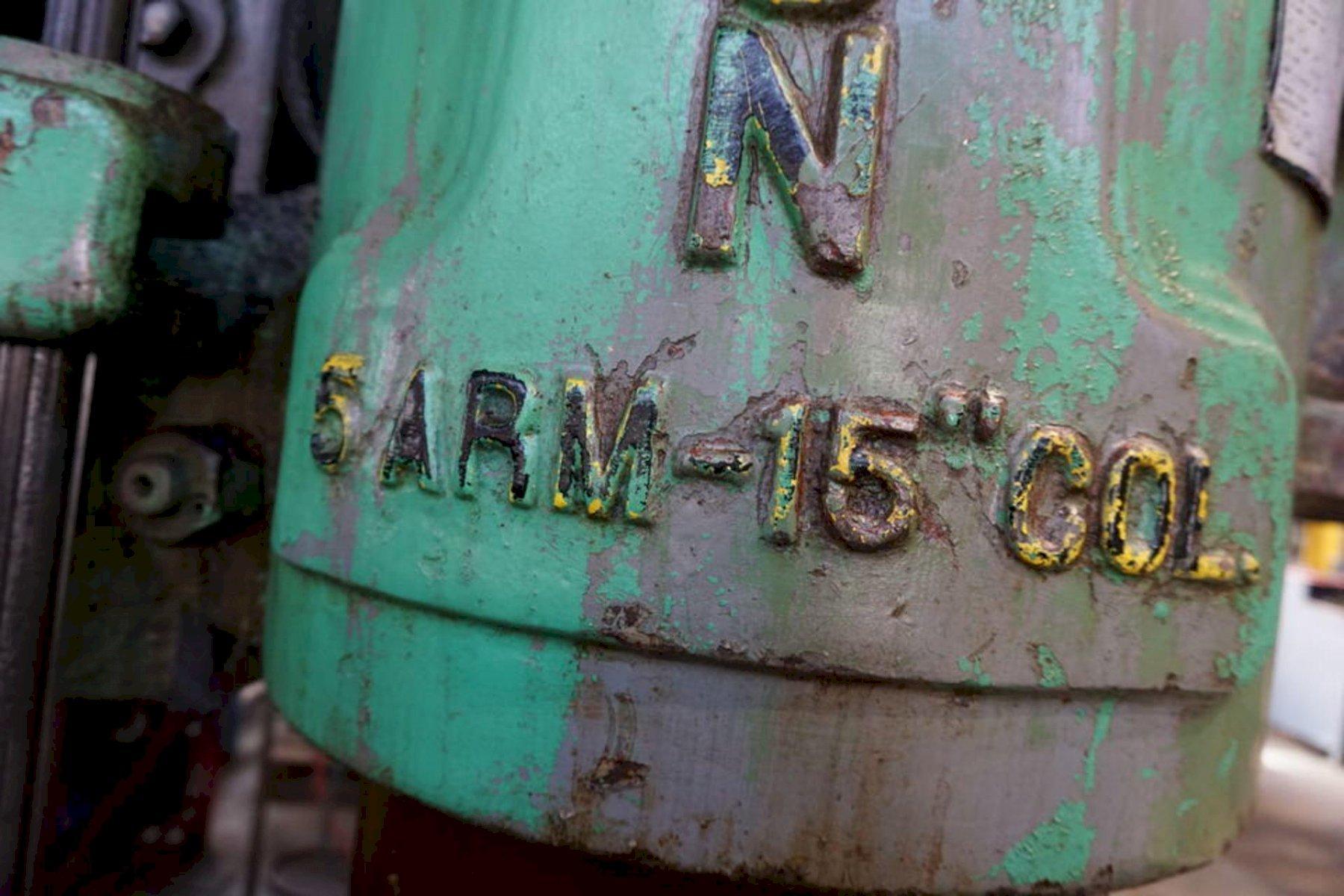

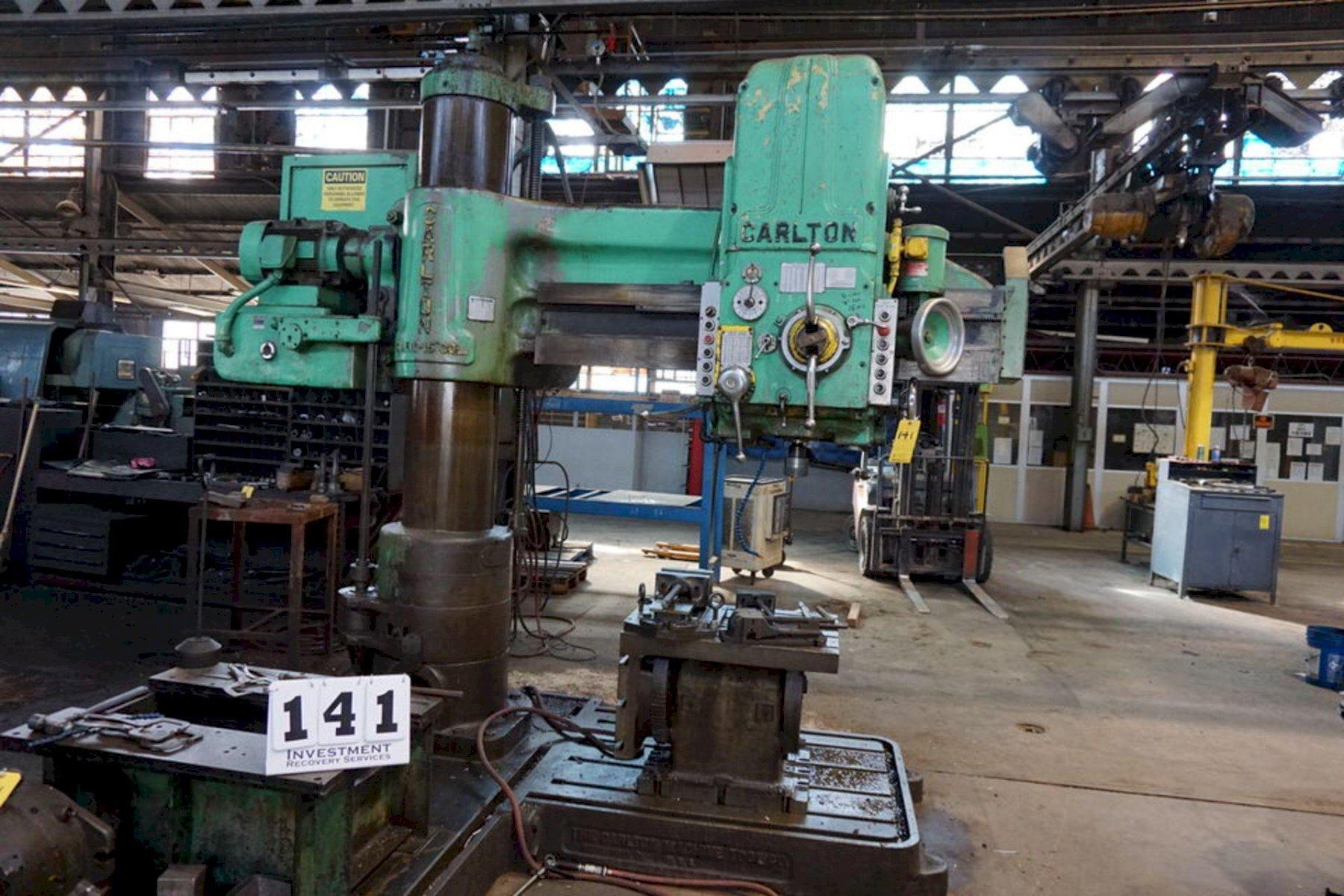

5' X 15' CARLTON RADIAL DRILL: STOCK #73421

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

73421

Model

05

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ 3A-5884
MODEL ................................. 3A
YEAR NEW .............................. 1980
AREA OF BASE .......................... 65" X 42"

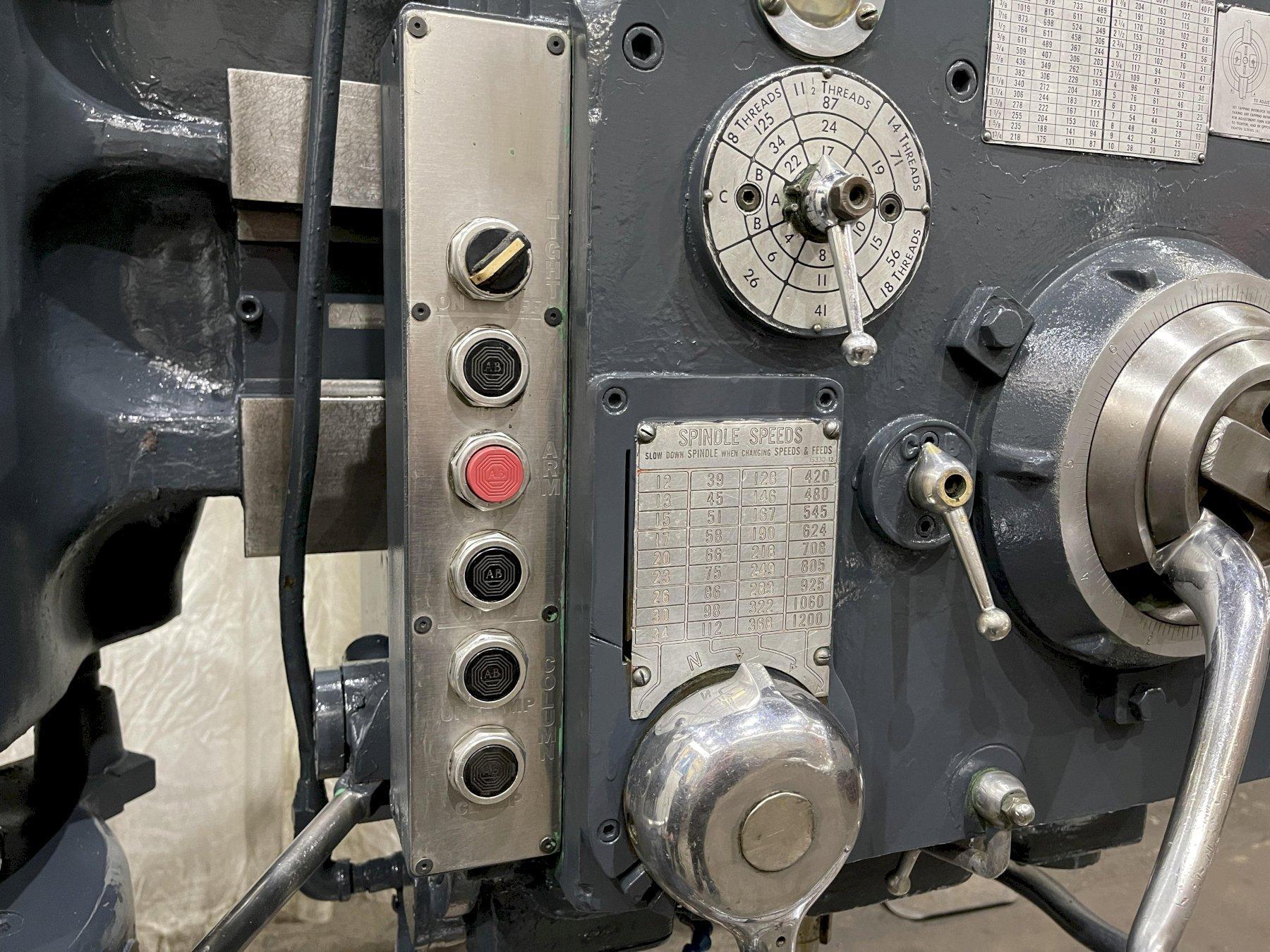

SPINDLE SPEEDS ........................ (36) 12 TO 1200 RPM
SPINDLE FEEDS ......................... (18) .004 TO .125 IPR
TAP LEADS ............................. 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ........................ 18"
DIAMETER OF SPINDLE ................... 3-3/16"
TAPER IN SPINDLE ...................... #5MT
DISTANCE SPINDLE TO BASE .............. 10-1/2" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ............ 15" MIN, 60" MAX
POWER ARM ELEVATION ................... YES
POWER HEAD TRAVERSE ................... YES
POWER COLUMN CLAMPING ................. YES
POWER HEAD CLAMPING ................... YES
COOLANT ............................... YES
SPINDLE MOTOR, HORSEPOWER ............. 20
