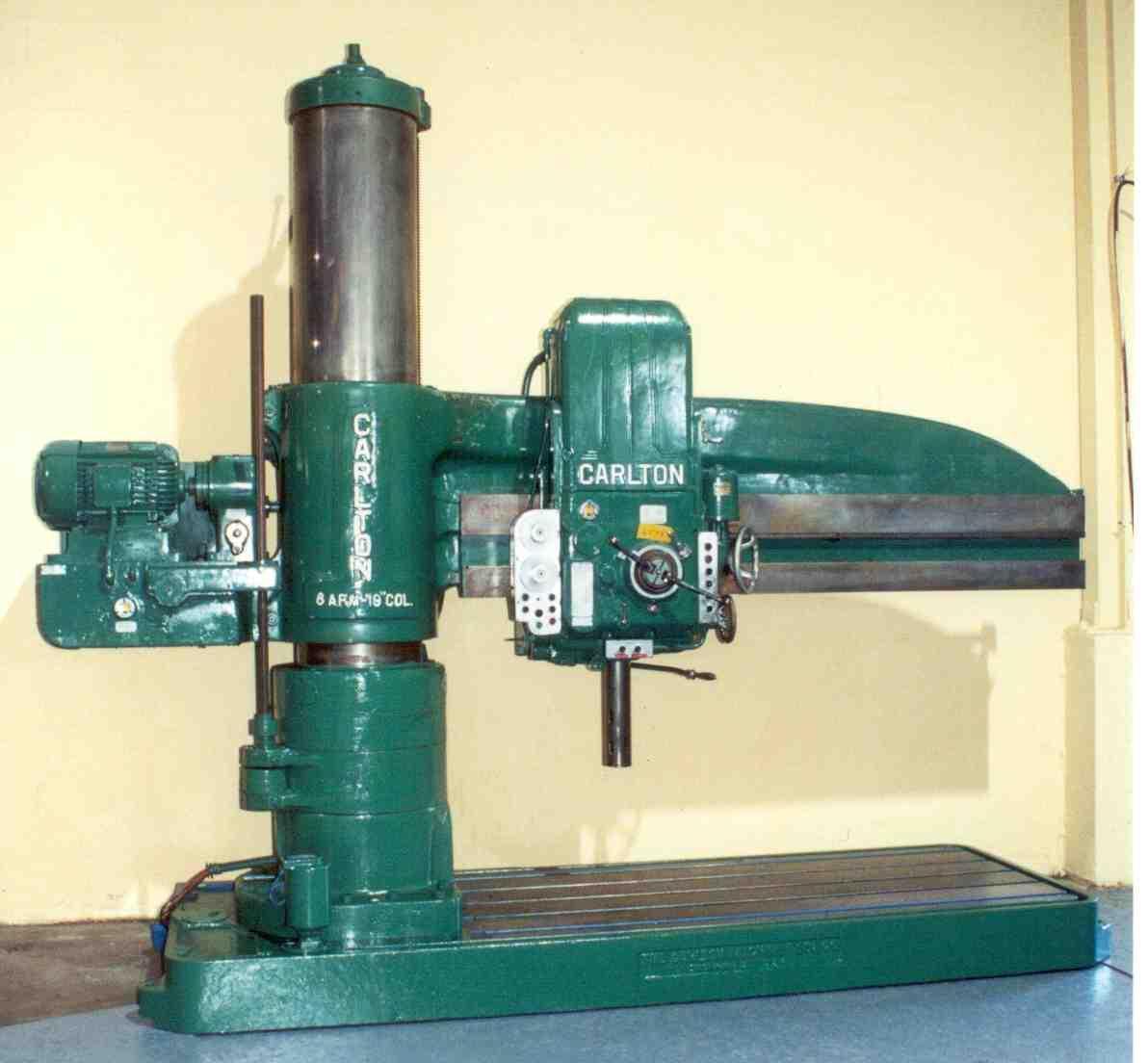

8' X 19' CARLTON RADIAL DRILL: STOCK #5629

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

5629

Model

08 X 19

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................... 4A-4317
SPINDLE SPEEDS ....................... (36) 15 TO 1500 RPM
FEEDS ................................ (18) .004 TO .125 IPR
THREADS .............................. 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ....................... 20"
DIAMETER OF SPINDLE .................. 4"
TAPER IN SPINDLE ..................... #6 MT
DISTANCE SPINDLE TO COLUMN ........... 13-1/4" MIN. / 96" MAX.
DISTANCE SPINDLE TO FLOOR ............ 52" MIN. / 94" MAX.
TRAVEL OF HEAD ON ARM ................ 82-3/4"
TRAVEL OF ARM ON COLUMN .............. 43-1/2"
POWER CLAMPING TO HEAD AND COLUMN
POWER HEAD TRAVERSE
POWER ARM ELEVATION
40 HORSEPOWER SPINDLE DRIVE MOTOR
