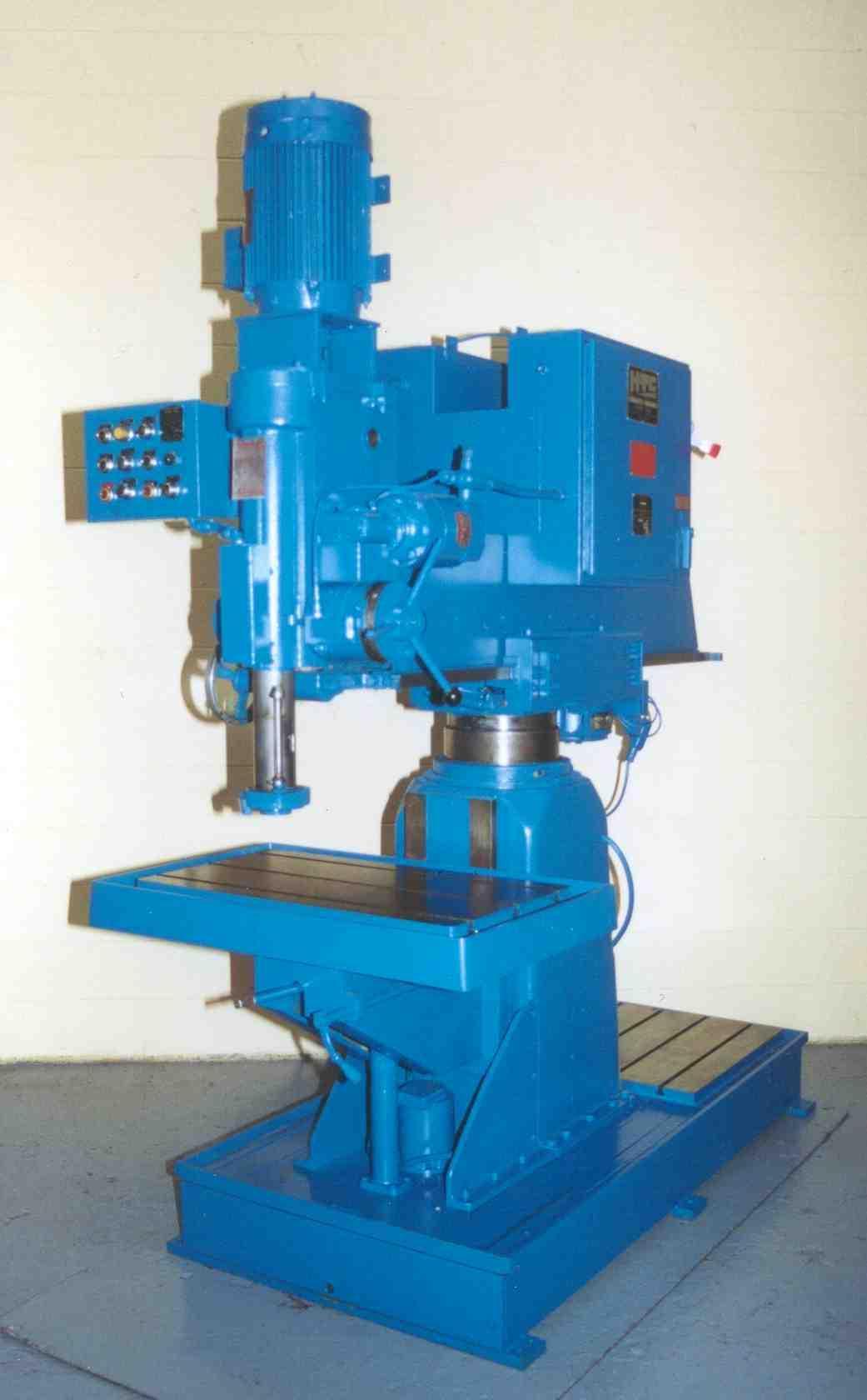

4' X 12" JOHANSSON RADIAL DRILL: STOCK #8579

Manufacturer

JOHANSSON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

8579

Model

04 X 12

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................... 682G2061
MODEL ................................ 10400
AREA OF TABLE ........................ 40" X 26"
AREA OF BASE ......................... 32" X 28"
SPINDLE SPEEDS ....................... (8) 59 TO 2000 RPM
FEEDS ................................ 0" TO 12" IPM
DISTANCE SPINDLE TO COLUMN ........... 7" MIN. TO 48" MAX.
DISTANCE SPINDLE TO BASE ............. 32" MIN. TO 54" MAX.
DISTANCE SPINDLE TO TABLE ............ 4" MIN. TO 32" MAX.
HORIZONTAL TRAVEL OF HEAD ON COLUMN .. 41"
VERTICAL TABLE TRAVEL ON COLUMN ...... 16"
TAPER IN SPINDLE ..................... #5 MT
DIAMETER OF SPINDLE .................. 3-1/2"
SPINDLE TRAVEL ....................... 10"
TAPPING
POWER HEAD TRAVEL & ARM CLAMPING
10 HORSEPOWER MAIN MOTOR
