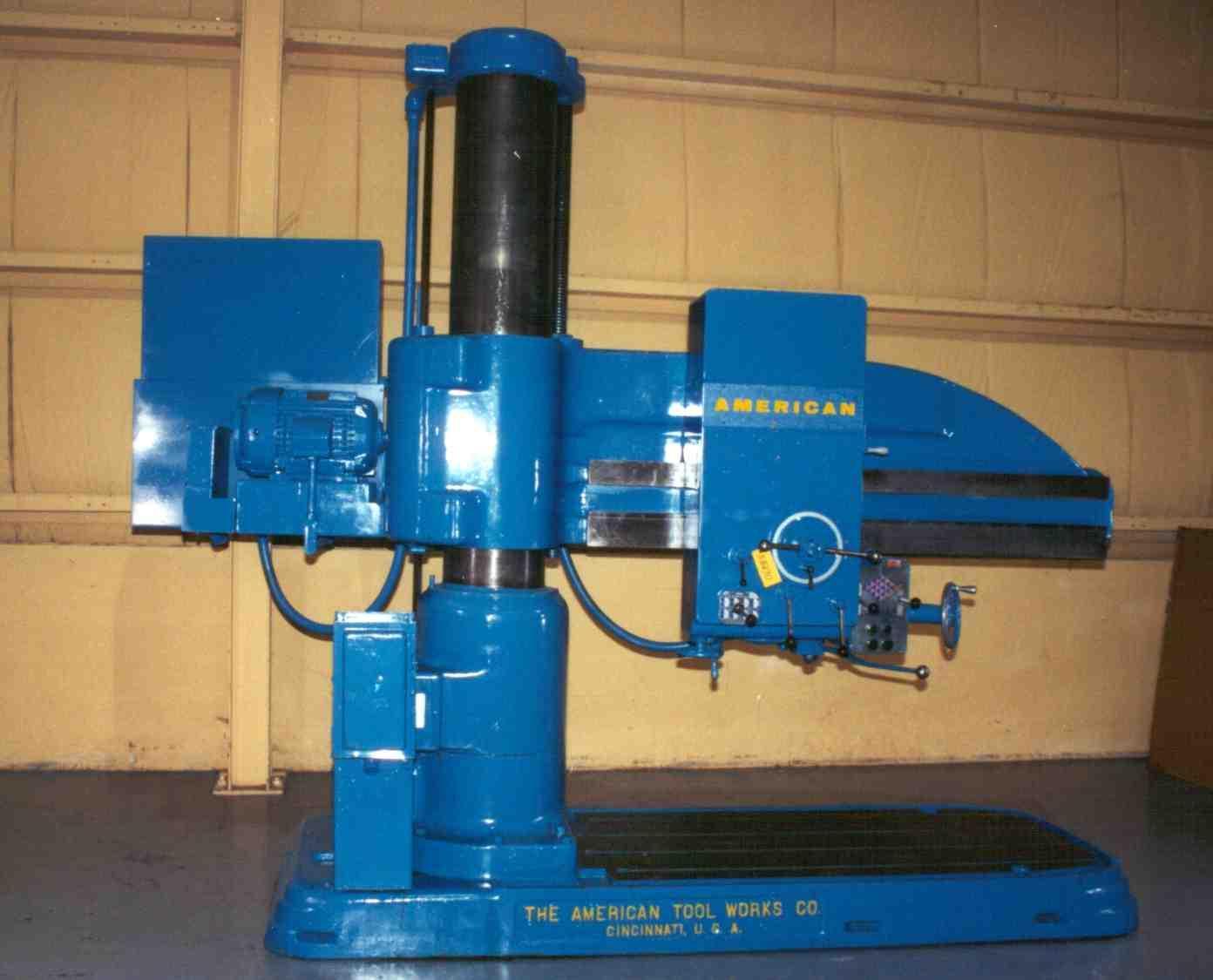

6' X 15" AMERICAN RADIAL DRILL: STOCK #11200

Manufacturer

American

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

11200

Model

06 X 15

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 77662
NEW ................................ 1966
WORKING SURFACE OF BASE ............ 84" X 42"
SPINDLE SPEEDS ..................... (32) 25 TO 2000 RPM
FEEDS .............................. (16) .003 TO .125 IPR
TAP LEADS .......................... 8 - 11-1/2 - 14 - 18 TPI
SPINDLE TRAVEL ..................... 18"
TAPER IN SPINDLE ................... #5 MT
DISTANCE SPINDLE TO BASE ........... 26" MIN. / 66" MAX.
DISTANCE SPINDLE TO COLUMN ......... 16" MIN. / 72" MAX.
TRAVEL OF HEAD ON ARM .............. 56"
TRAVEL OF ARM ON COLUMN ............ 40"
POWER ELEVATION .................... YES
POWER HEAD TRAVERSE ................ YES
MOTOR .............................. 25 HP
