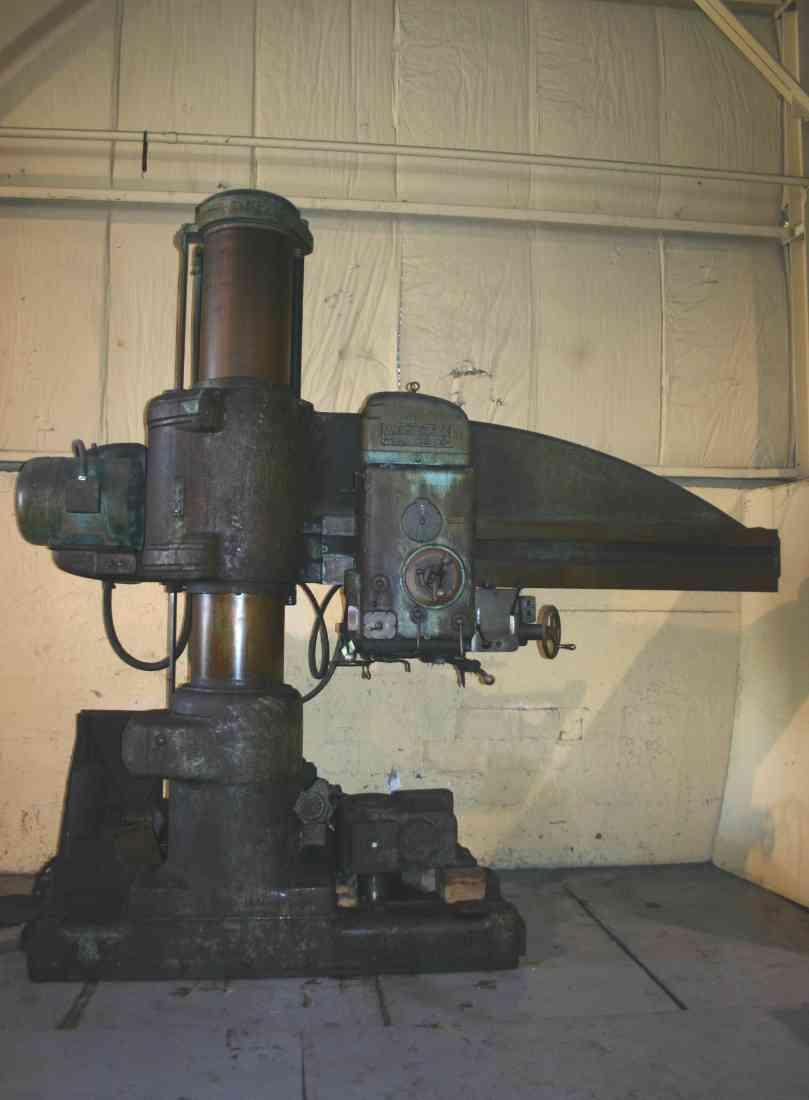

7' X 17' AMERICAN RADIAL DRILL: STOCK #15381

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

15381

Model

07 X 17

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... 69777-46
ARM LENGTH X COLUMN DIAMETER ..... 7 X 17"
SPINDLE SPEEDS ................... (32) 20 TO 1600 RPM
SPINDLE FEEDS .................... (16) .003 TO .125 IPR
SPINDLE STROKE ................... 18"
SPINDLE DIAMETER ................. 3-1/4"
SPINDLE TAPER .................... #5 MT
SPINDLE TO COLUMN ................ 14" MIN. TO 84" MAX.
SPINDLE TO BASE .................. 10-1/2" MIN. TO 72" MAX.
DRIVEN TRACK TYPE BASE ........... YES
POWER HEAD TRAVEL ................ YES
POWER CLAMPING ................... YES
POWER ELEVATION .................. YES
COOLANT .......................... YES
MOTOR ............................ 20 HORSEPOWER SPINDLE MOTOR
