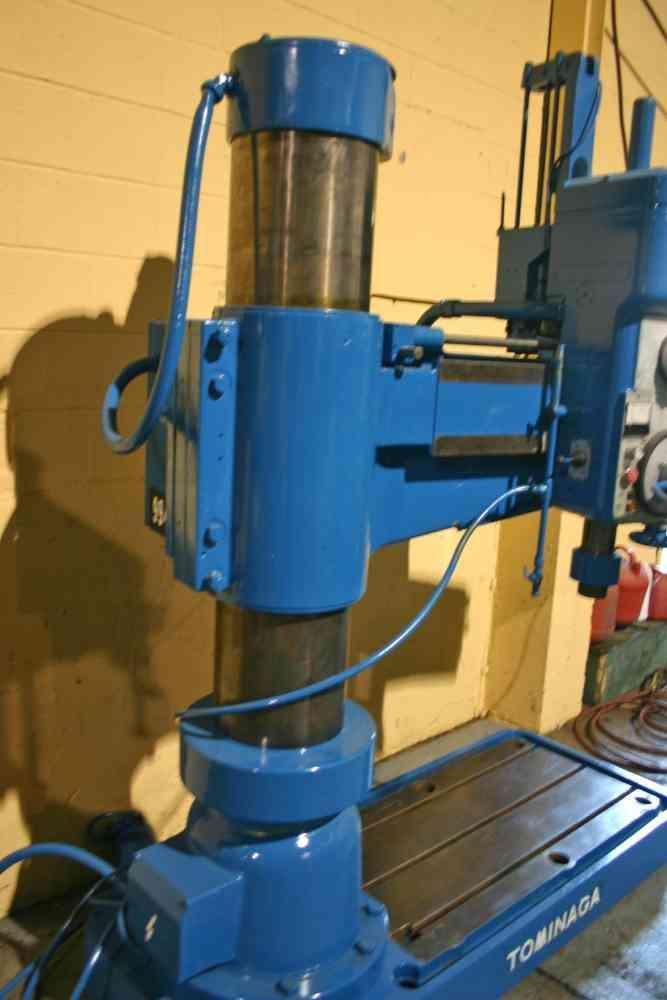

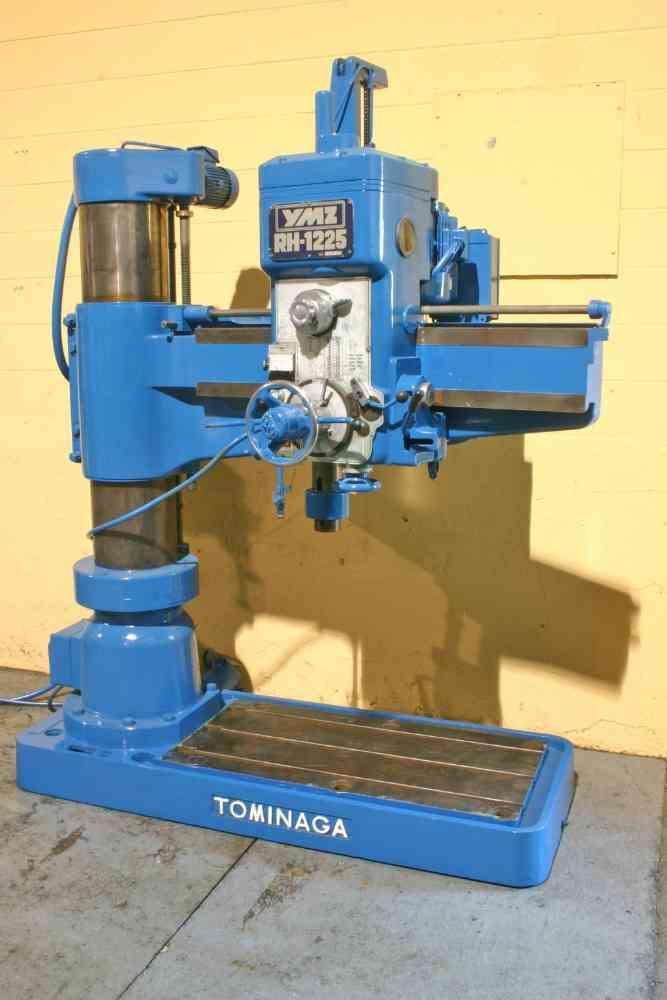

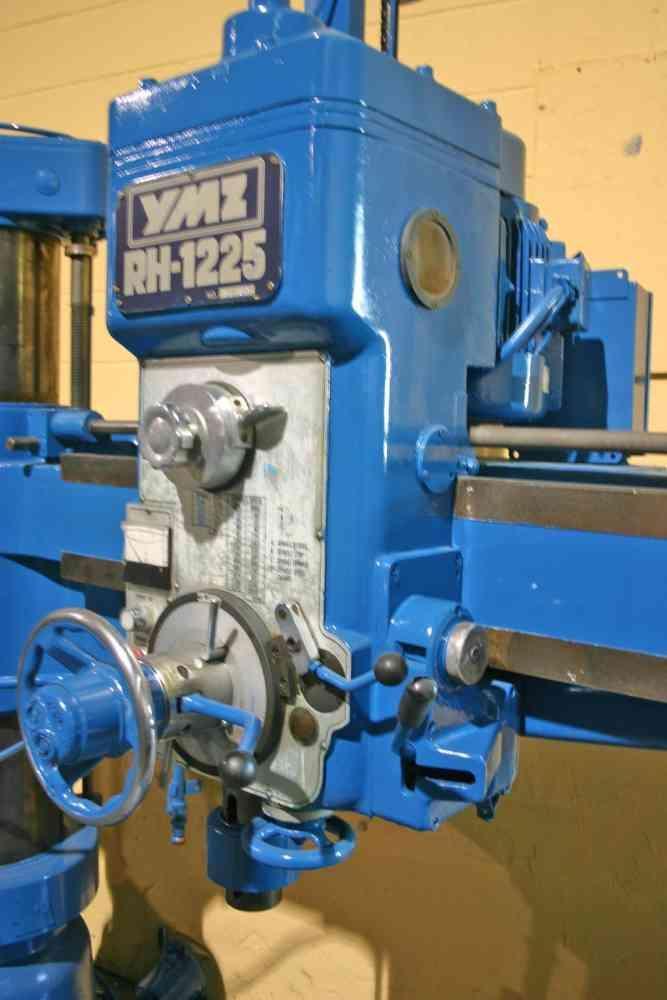

4' X 11" YMZ (TOMINAGA) RADIAL DRILL: STOCK #18579

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

18579

Model

04 X 11

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ 81186
MODEL ................................. RH1225
YEAR NEW .............................. 1983
AREA OF BASE .......................... 48" X 29"
SPINDLE SPEEDS ........................ (12) 40 - 2010 RPM
SPINDLE FEEDS ......................... (6) .003" TO .040 IPR
DIAMETER OF SPINDLE ................... 3-35/64"
SPINDLE TRAVEL ........................ 13-3/4"
TAPER IN SPINDLE ...................... #5MT
DISTANCE SPINDLE TO BASE .............. 13" MIN, 51-3/16"
DISTANCE SPINDLE TO COLUMN ............ 9-1/16" MIN TO 48-7/16"
POWER ELEVATION ....................... YES
POWER HEAD TRAVERSE ................... YES
POWER CLAMPING ........................ YES
MOTOR ................................. 7-1/2 HORSEPOWER
