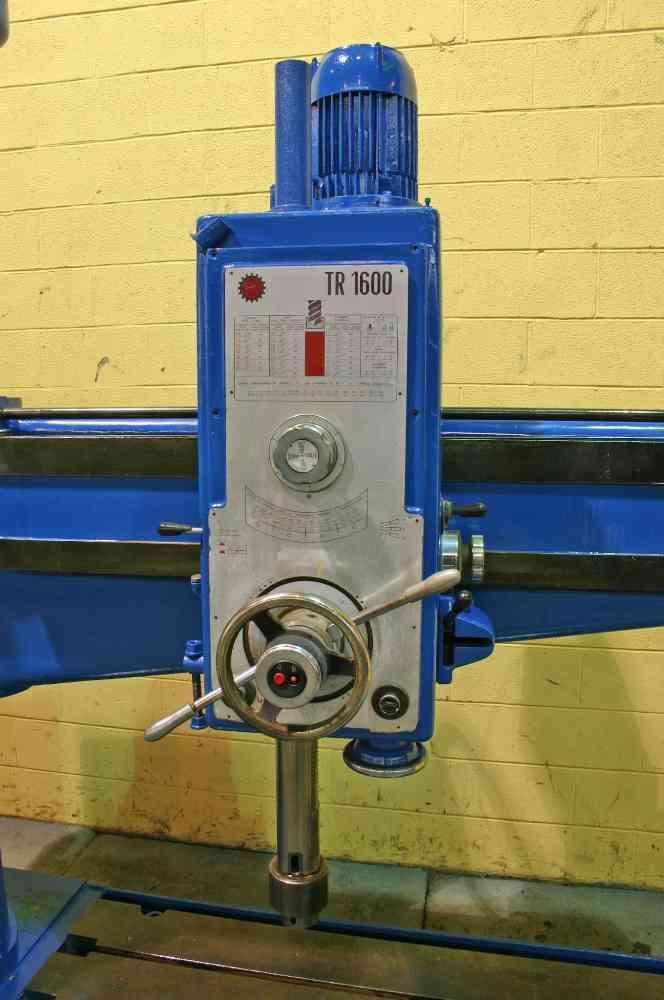

5' X 15' BERGONZI MODEL #TM1600 RADIAL DRILL: STOCK #51281

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

51281

Model

05 X 15

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. 108
MODEL ............................... TM50-1600
NEW ................................. 1970

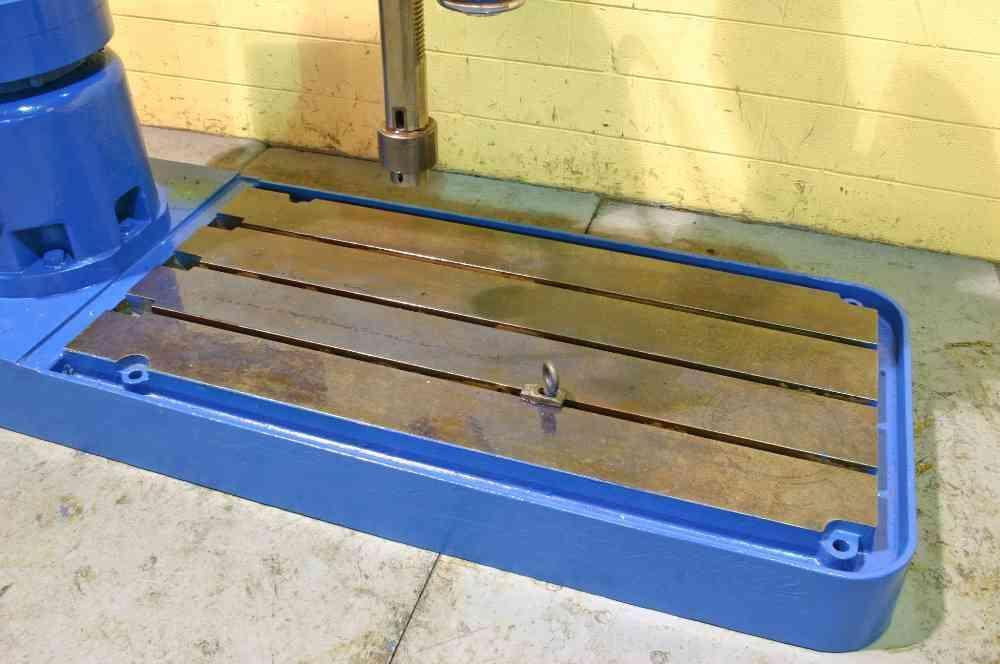

AREA OF BASE ........................ 66" X 33"
SPINDLE SPEEDS ...................... (16) 30 TO 1520 RPM
FEEDS ............................... (12) .004, TO 0.022 IPR
DIAMETER OF SPINDLE ................. 3-1/2"
TAPER IN SPINDLE .................... #5 MT
SPINDLE TRAVEL ...................... 11-7/8"
DRILLING CAPACITY ................... 2" MILD STEEL
DRILLING CAPACITY ................... 2-9/16" CAST IRON
TAPPING CAPACITY CAST IRON .......... 2"
DISTANCE SPINDLE TO COLUMN .......... 63" MAXIMUM
VERTICAL ARM TRAVEL ................. 30"
DISTANCE SPINDLE TO BASE ............ 12" MINIMUM TO 54" MAXIMUM
TRAVEL OF HEAD ON ARM ............... 51"
POWER ARM AND HEAD CLAMPING ......... YES
COOLANT ............................. YES
MOTOR ............................... 7-1/2 HP
