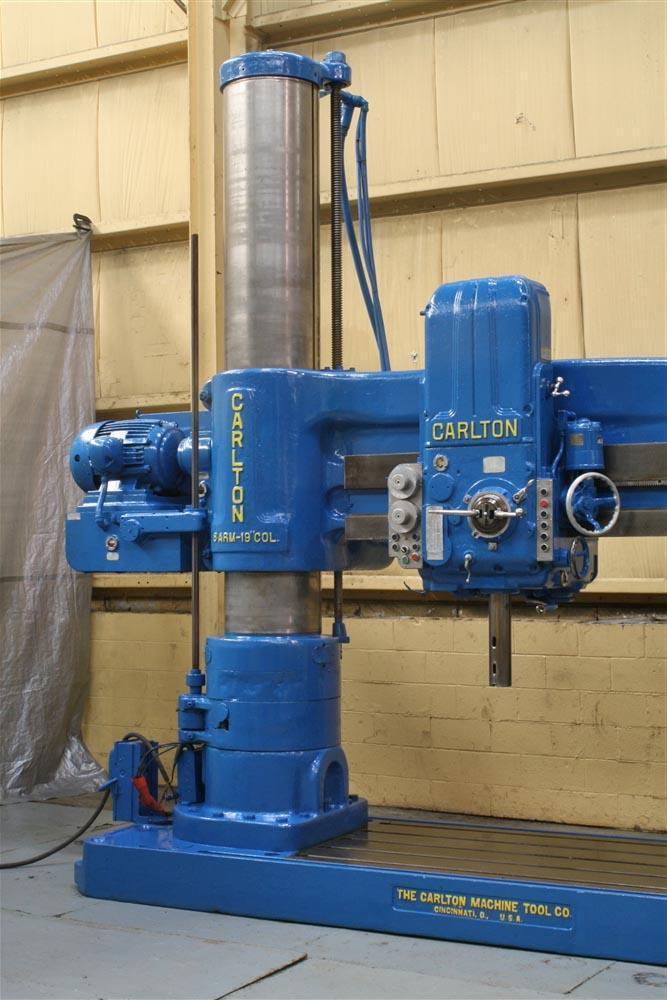

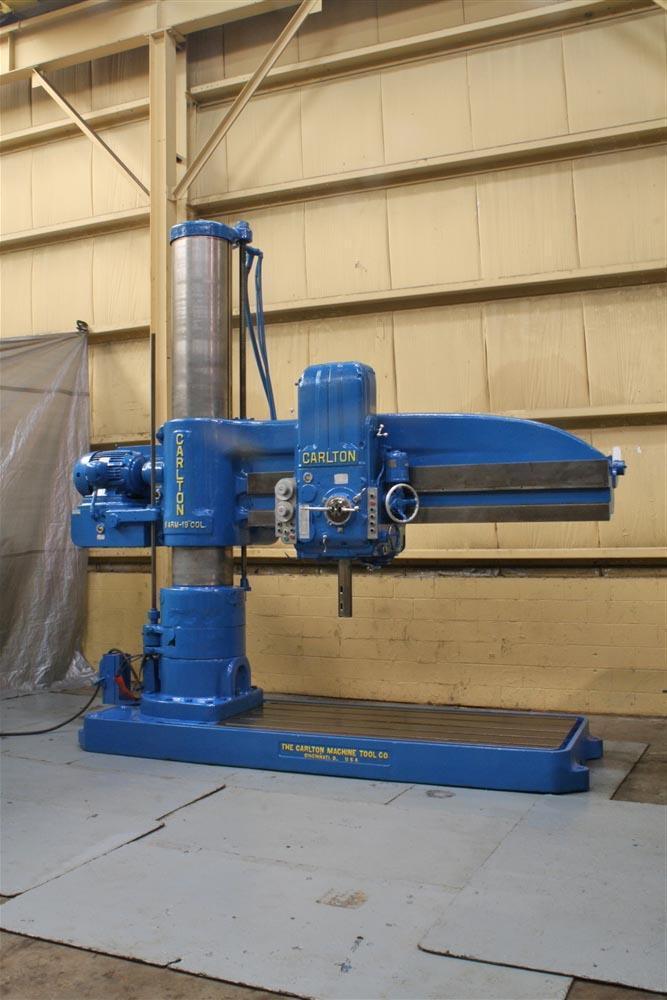

8' X 19' CARLTON RADIAL DRILL: STOCK #52306

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

52306

Model

08 X 19

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL NUMBER ................ 4A4475
AREA OF BASE ................. 100" X 50"
SPINDLE SPEEDS ............... (36) 12 TO 1200 RPM
FEEDS ........................ (18) .004 TO .125 IPR
TAP LEADS .................... 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ............... 20"
DIAMETER OF SPINDLE .......... 4"
TAPER IN SPINDLE ............. #6MT
DISTANCE SPINDLE TO BASE ..... 30" MIN, 112" MAX
DISTANCE SPINDLE TO COLUMN ... 13-1/4" MIN, 96" MAX
POWER ARM ELEVATION .......... YES
POWER HEAD CLAMP ............. YES
POWER ARM CLAMP .............. YES
POWER COLUMN CLAMP ........... YES
POWER HEAD TRAVERSE .......... YES
MOTOR ........................ 30 HORSEPOWER
