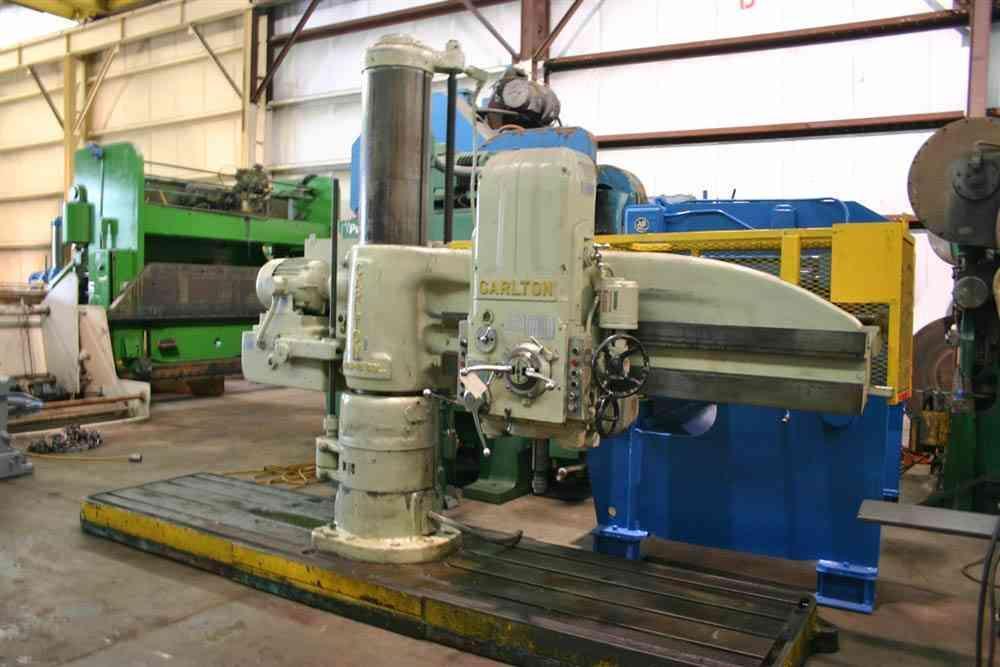

6' X 15" CARLTON MODEL #3A RADIAL DRILL: STOCK #53568

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

53568

Model

06 X 15

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................... 3A4845
MODEL ................................ 3A
AREA OF BASE, DUAL BASE .............. 74" X 43" PER SIDE
SPINDLE SPEEDS ....................... (36) 15 TO 1500 RPM
FEEDS ................................ (18) .004 TO .125 IPR
TAP LEADS ............................ 8, 11-/12, 14, 18 TPI
DIAMETER OF SPINDLE .................. 3"
TAPER IN SPINDLE ..................... #5
SPINDLE TRAVEL ....................... 18"
DISTANCE SPINDLE TO COLUMN ........... 15" MIN, 72" MAXIMUM
DISTANCE SPINDLE TO BASE ............. 12" MIN, 66" MAXIMUM
TRAVEL OF ARM ON COLUMN .............. 36"
TRAVEL OF HEAD ON ARM ................ 57"
POWER ARM ELEVATION .................. YES
POWER HEAD TRAVERSE .................. YES
POWER CLAMPING ....................... YES
MOTOR ................................ 15 HORSEPOWER
