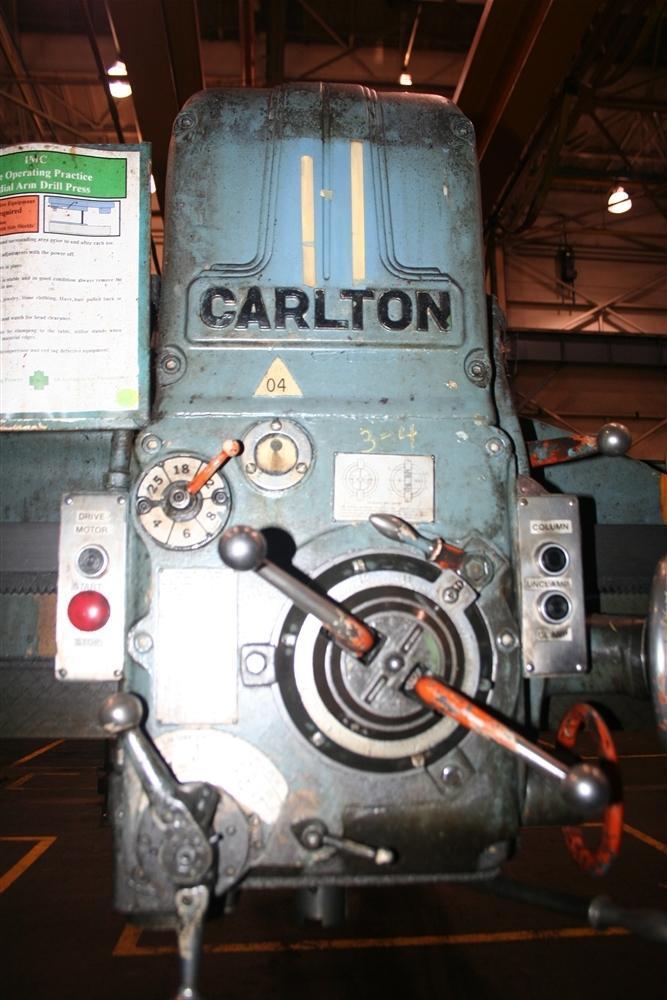

5' X 11" CARLTON RADIAL ARM DRILL: STOCK #58558

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

58558

Model

05 x 11

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ 1A4342
MODEL ................................. 1A
YEAR NEW .............................. 1978
AREA OF BASE .......................... 66" X 37"
SPINDLE SPEEDS ........................ (12) 80 TO 1500 RPM
FEEDS ................................. (6) .004 TO .025 IPR
SPINDLE TRAVEL ........................ 12"
DIAMETER OF SPINDLE ................... 2-1/2"
TAPER IN SPINDLE ...................... #4 MT
DISTANCE SPINDLE TO COLUMN ............ 9-1/2" MIN, 60" MAX
DISTANCE SPINDLE TO BASE .............. 24" MIN. TO 54" MAX
POWER COLUMN CLAMPING ................. YES
POWER HEAD TRAVERSE ................... YES
POWER ELEVATION  ...................... YES
MOTOR ................................. 5 HORSEPOWER
