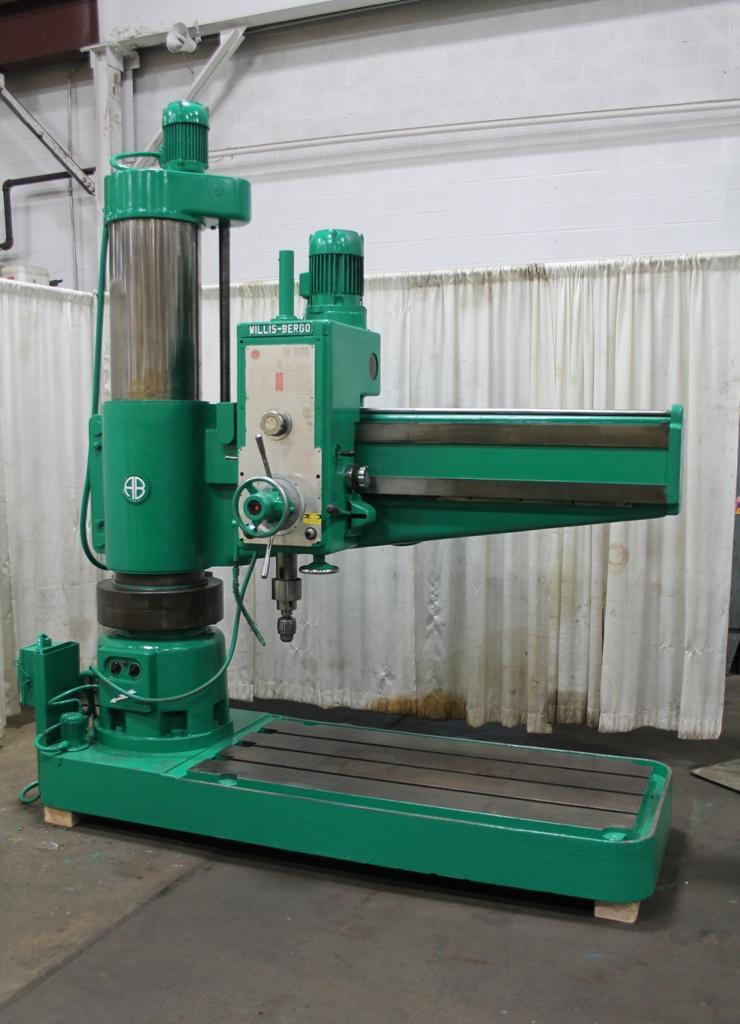

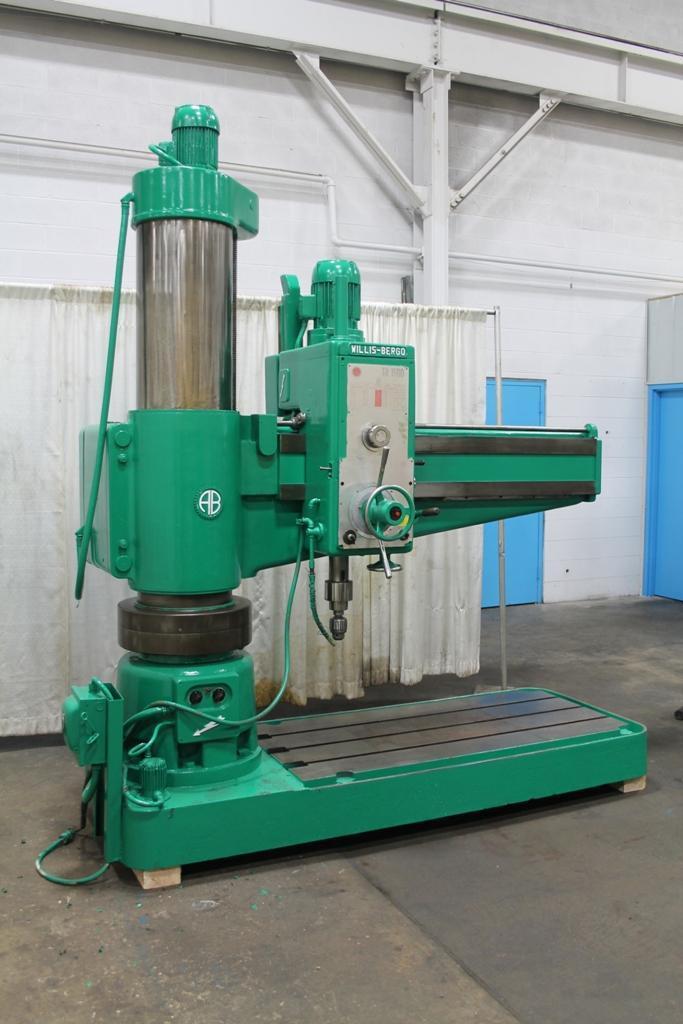

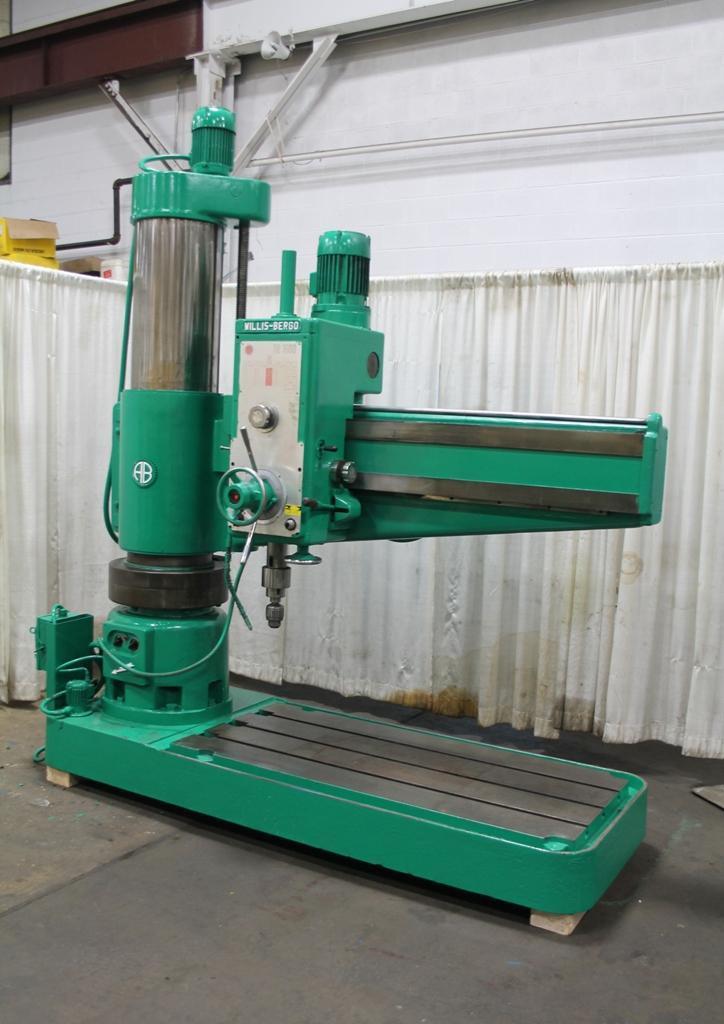

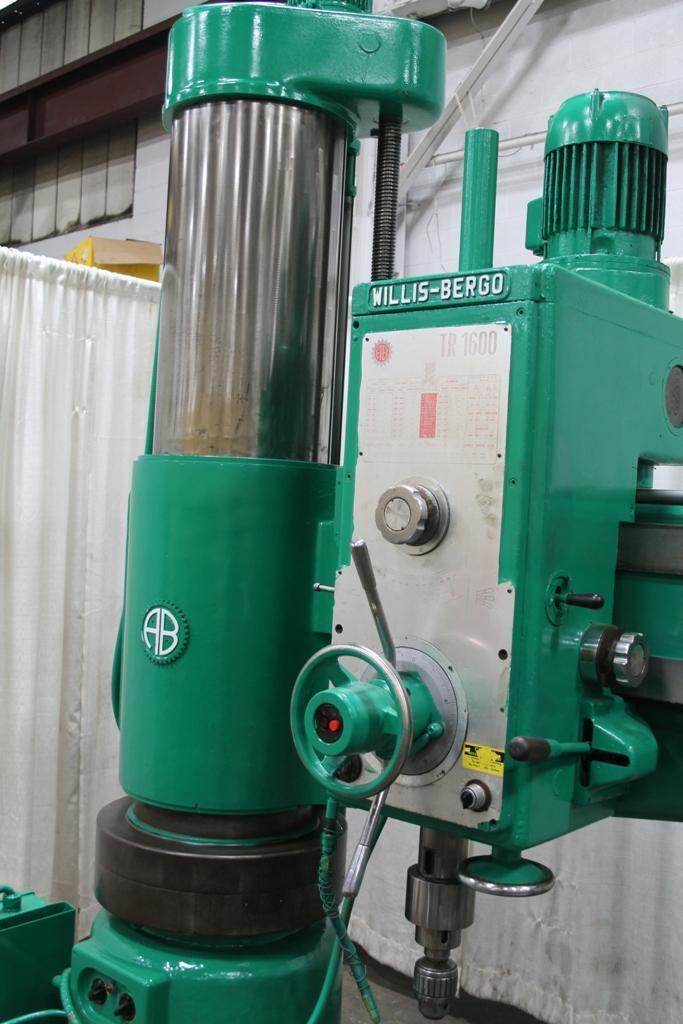

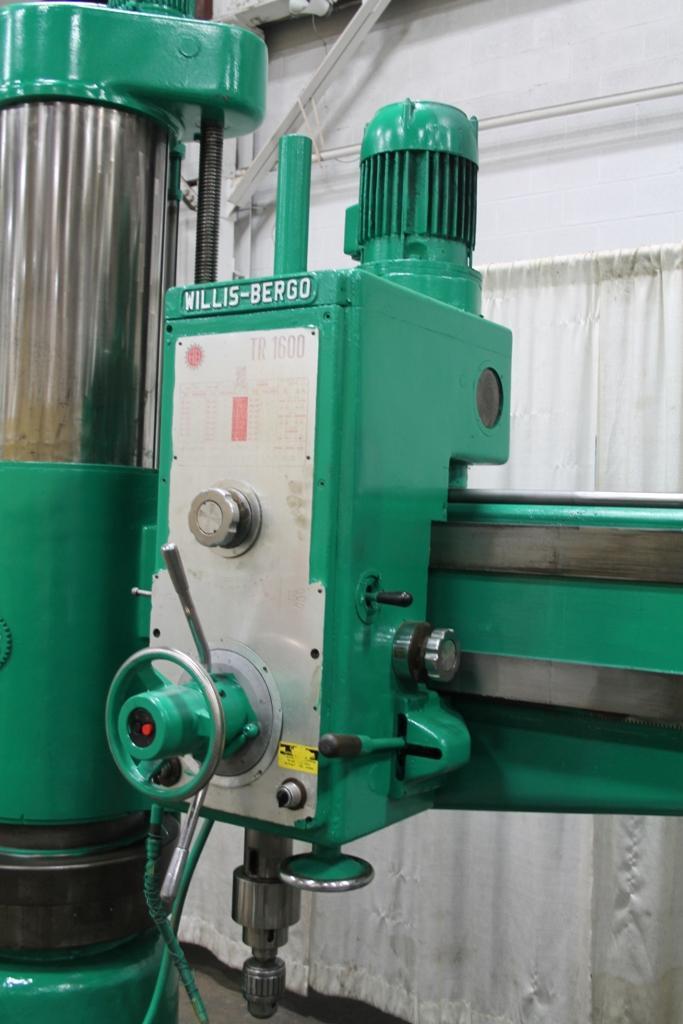

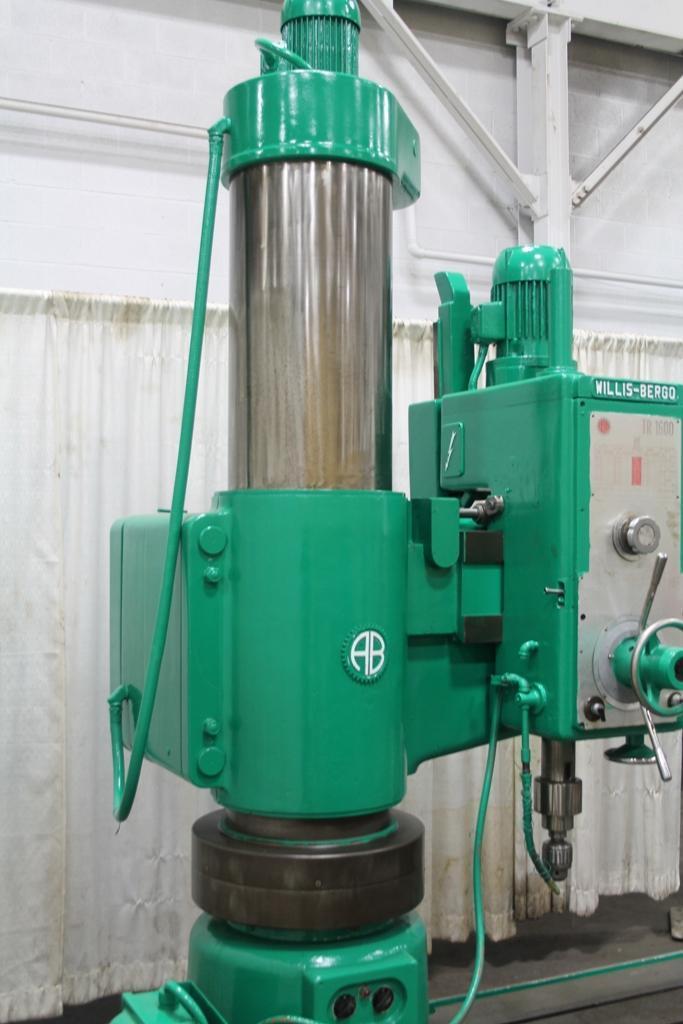

4' X 14' BERGONZI/WILLIS-BERGO RADIAL ARM DRILL: STOCK # 59191

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

59191

Model

04 X 14

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ....................... TM1600
AREA OF BASE ................ 52" X 25"
SPINDLE SPEEDS .............. (12) 23 TO 1850 RPM
FEEDS ....................... (5) .003,.006,.009,.013 & .021 IPR
TAPPING ..................... YES
DIAMETER OF SPINDLE ......... 3-3/8"
TAPER IN SPINDLE ............ #5 MT
SPINDLE TRAVEL .............. 11-7/8"
DRILLING CAPACITY ........... 2" MILD STEEL
DRILLING CAPACITY ........... 2-9/16" CAST IRON
TAPPING CAPACITY CAST IRON .. 2"
DISTANCE SPINDLE TO COLUMN .. 49"
DISTANCE SPINDLE TO BASE .... 12" MINIMUM TO 54" MAXIMUM

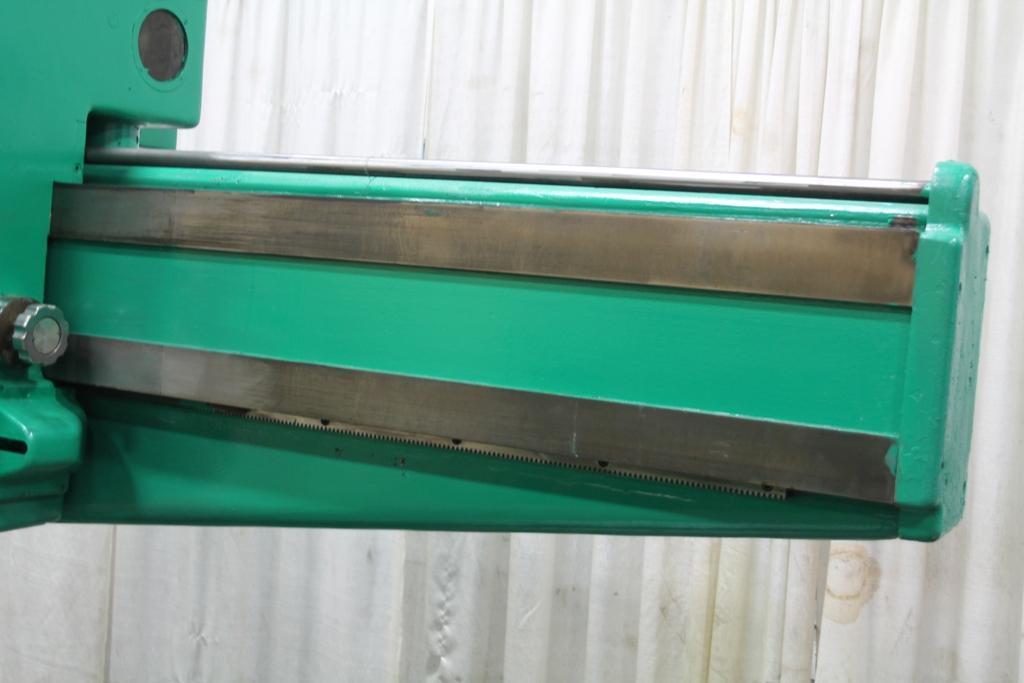

TRAVEL OF HEAD ON ARM ....... 37-1/2"
POWER ARM AND HEAD CLAMPING . YES
COOLANT ..................... YES
MOTOR ....................... 6-1/2 HORSEPOWER

No Video Available
