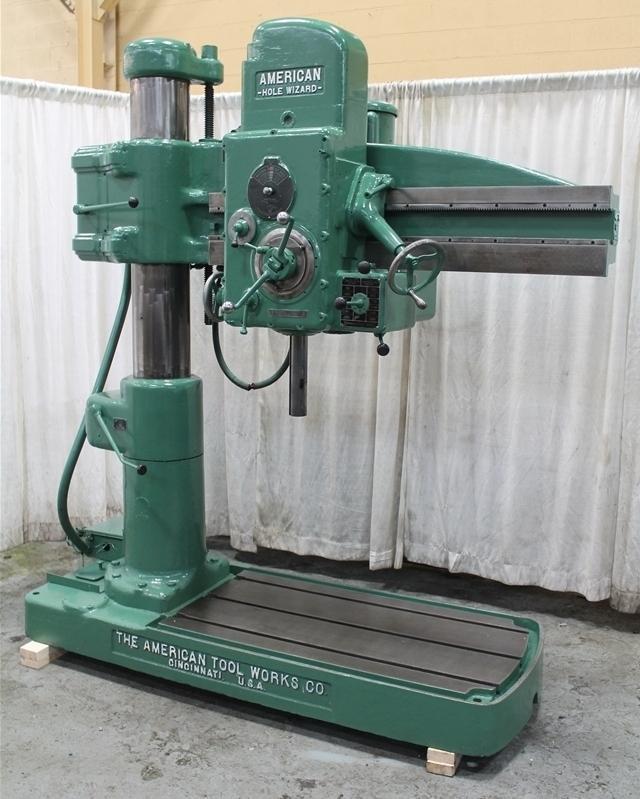

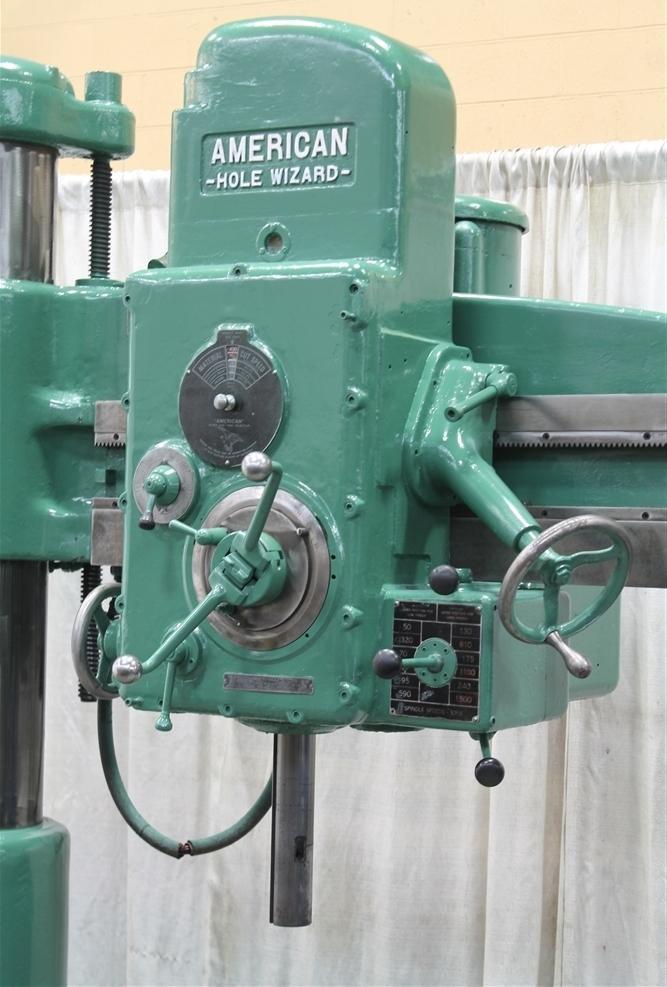

4' X 9' AMERICAN HOLE WIZARD RADIAL ARM DRILL: STOCK #62917

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

62917

Model

04 X 09

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ 69224
MODEL ............................. HOLE WIZARD
ARM LENGTH ........................ 4'

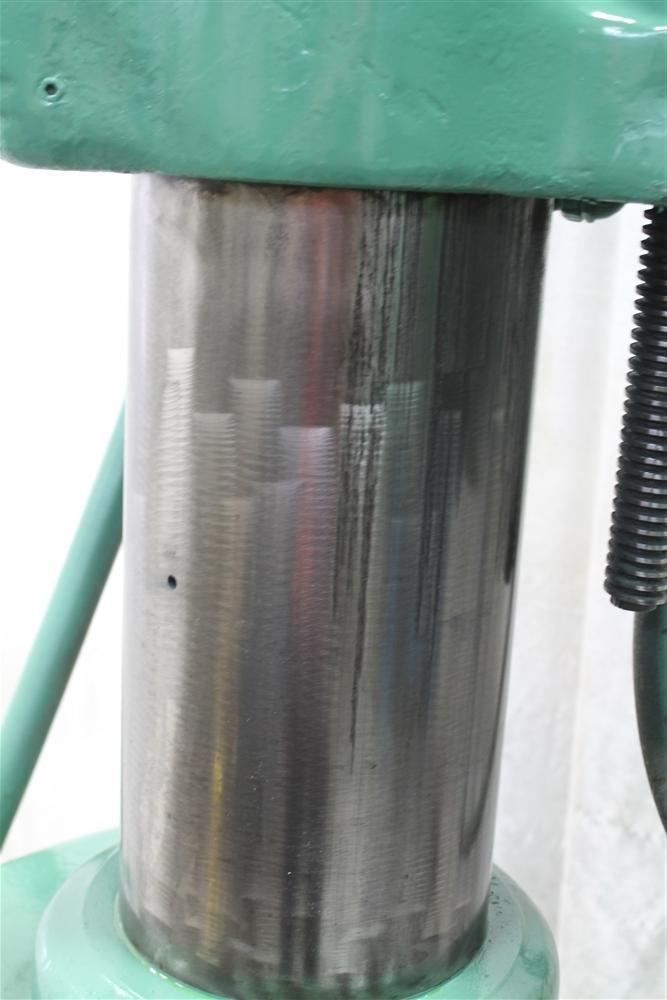

COLUMN DIAMETER ................... 9"

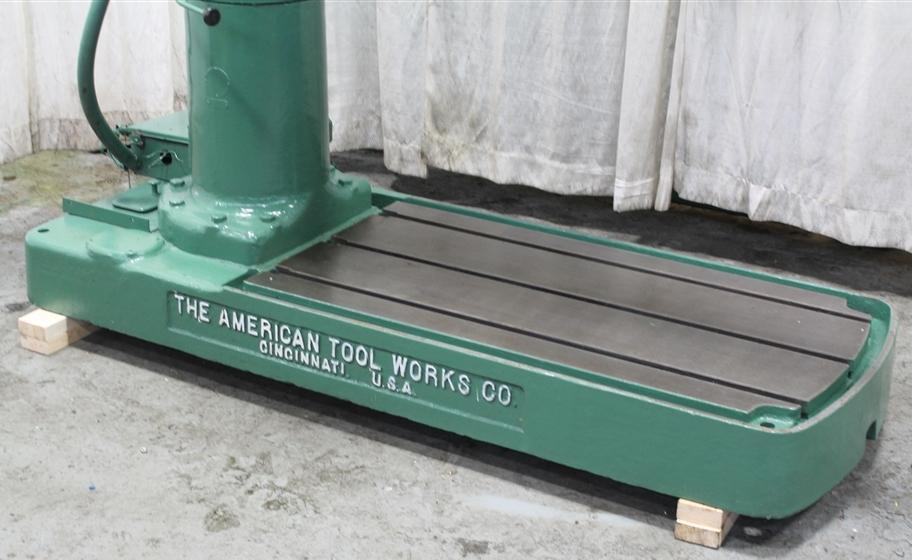

AREA OF BASE ...................... 53" X 30"
AXILLARY L BASE ................... YES

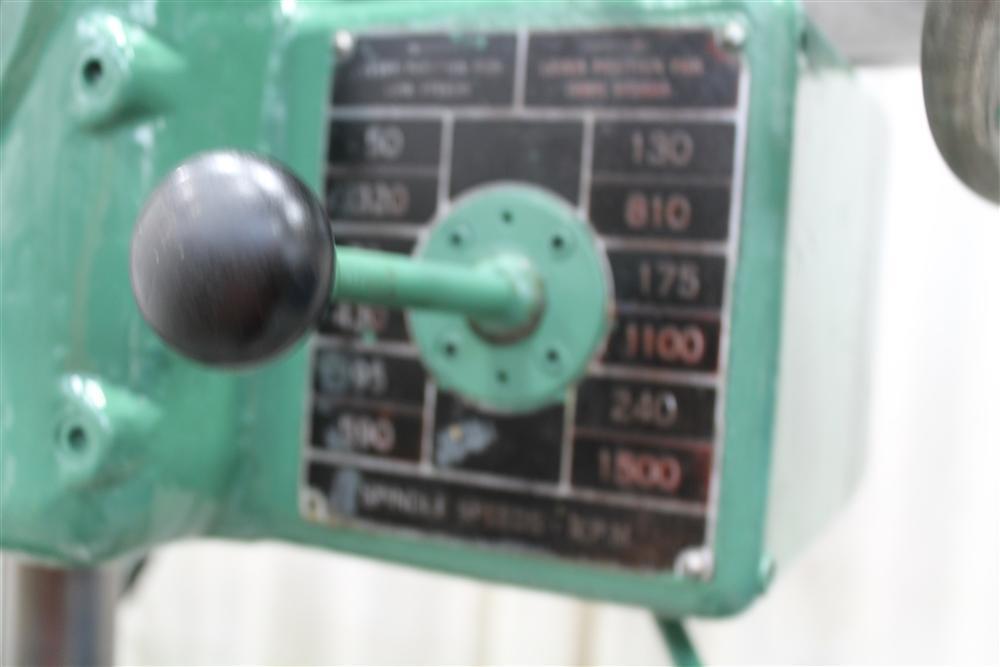

SPINDLE SPEEDS .................... (12) 50 TO 1500 RPM

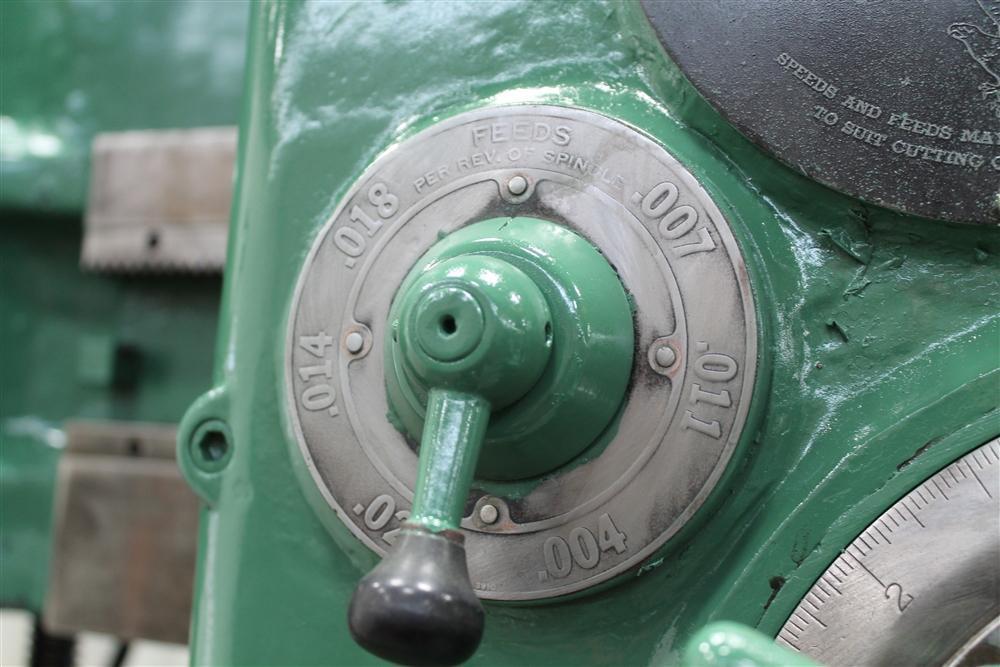

SPINDLE FEEDS ..................... (6) .004 TO .025 IPR
SPINDLE STROKE .................... 9"
DIAMETER OF SPINDLE ............... 2-1/2"
TAPER IN SPINDLE .................. MORSE
DISTANCE SPINDLE TO COLUMN ........ 11" MIN 48" MAX
DISTANCE SPINDLE TO BASE .......... 16" MIN 56" MAX
VERTICAL ARM TRAVEL ............... 24"
POWER ELEVATION ................... YES
MOTOR ............................. 5 HORSEPOWER
