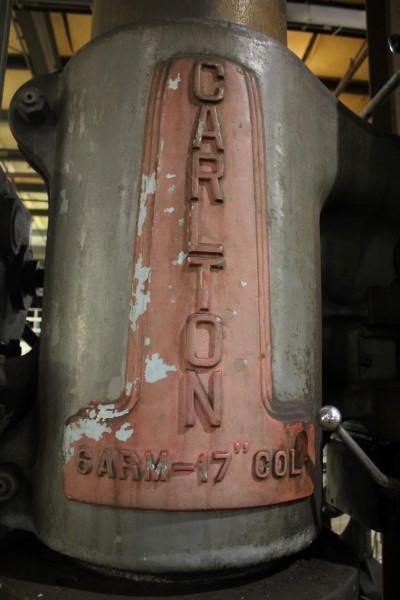

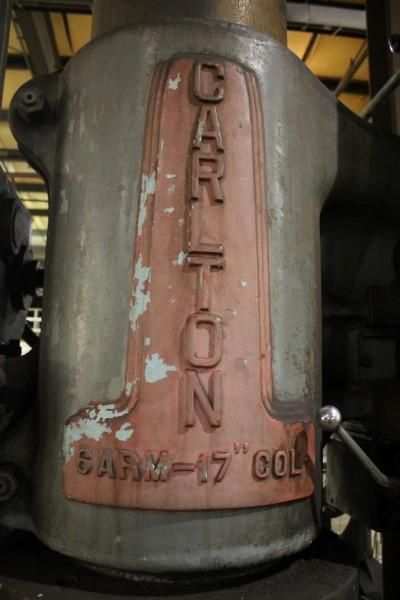

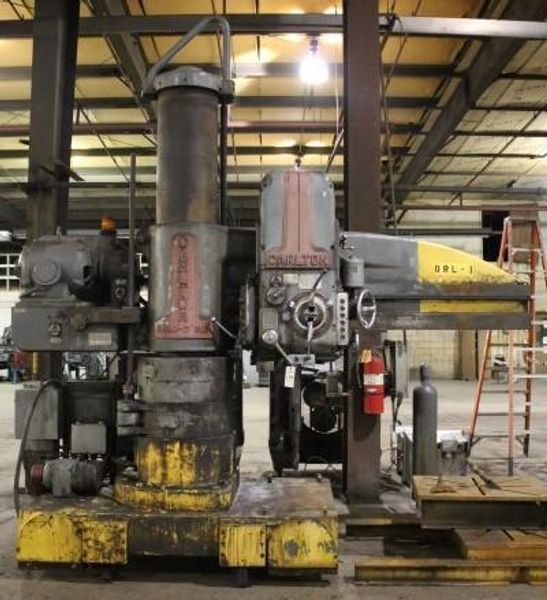

6' X 17' CARLTON TRACK STYLE RADIAL DRILL: STOCK 63528

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

63528

Model

06 X 17

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... 3AS 4413
MODEL ............................ 3AS
SPINDLE SPEEDS ................... (18) 54 TO 600 RPM
SPINDLE FEEDS .................... (18) .004 TO .22 IPR
DIAMETER OF SPINDLE .............. 3-3/16"
TAPER IN SPINDLE ................. #5 MT
SPINDLE TRAVEL ................... 18"
DISTANCE SPINDLE TO COLUMN ....... 13-1/2" TO 72" MAXIMUM
TRAVEL OF HEAD ON ARM ............ 58-3/4"
TRAVEL OF ARM ON COLUMN .......... 37-1/2"
POWER HEAD CLAMPING .............. YES
POWER HEAD TRAVERSE .............. YES
POWER ARM ELEVATION .............. YES
POWER ARM CLAMPING ............... YES
TRACK TYPE BASE .................. YES
MOTOR ............................ 20 HORSEPOWER
