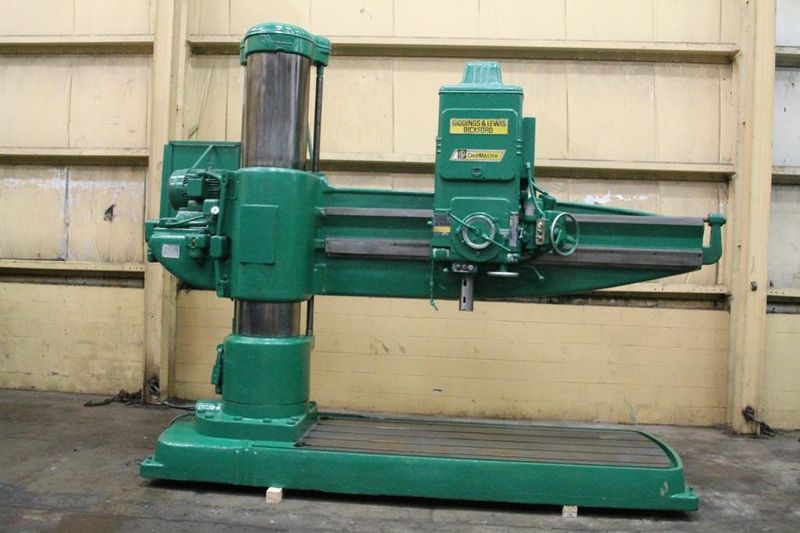

8' X 19' GIDDINGS & LEWIS CHIPMASTER RADIAL DRILL: STOCK #63728

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

63728

Model

08 X 19

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ......................... 956-00145-65
NEW IN ......................... 1965
AREA OF BASE ................... 102" X 50"
SPINDLE TRAVEL ................. 20"
DIAMETER OF SPINDLE ............ 4-1/2"
TAPER IN SPINDLE ............... #6 MT
SPINDLE SPEEDS ................. (36) 12 TO 1500 RPM
THREADS ........................ 8, 11-1/2, 14, 18,20, & 27 TPI
FEEDS .......................... (18) .004 TO .125 IPR
DISTANCE SPINDLE TO COLUMN ..... 17" MIN. TO 96" MAXIMUM
DISTANCE SPINDLE TO BASE ....... 36" MIN. TO 78" MAXIMUM
TRAVEL OF HEAD ON ARM .......... 79"
TRAVEL OF ARM ON COLUMN ........ 42"
POWER HEAD TRAVEL .............. YES
POWER COLUMN CLAMPING .......... YES
POWER ARM ELEVATION ............ YES
POWER HEAD CLAMPING ............ YES
MOTOR .......................... 30 HORSEPOWER
