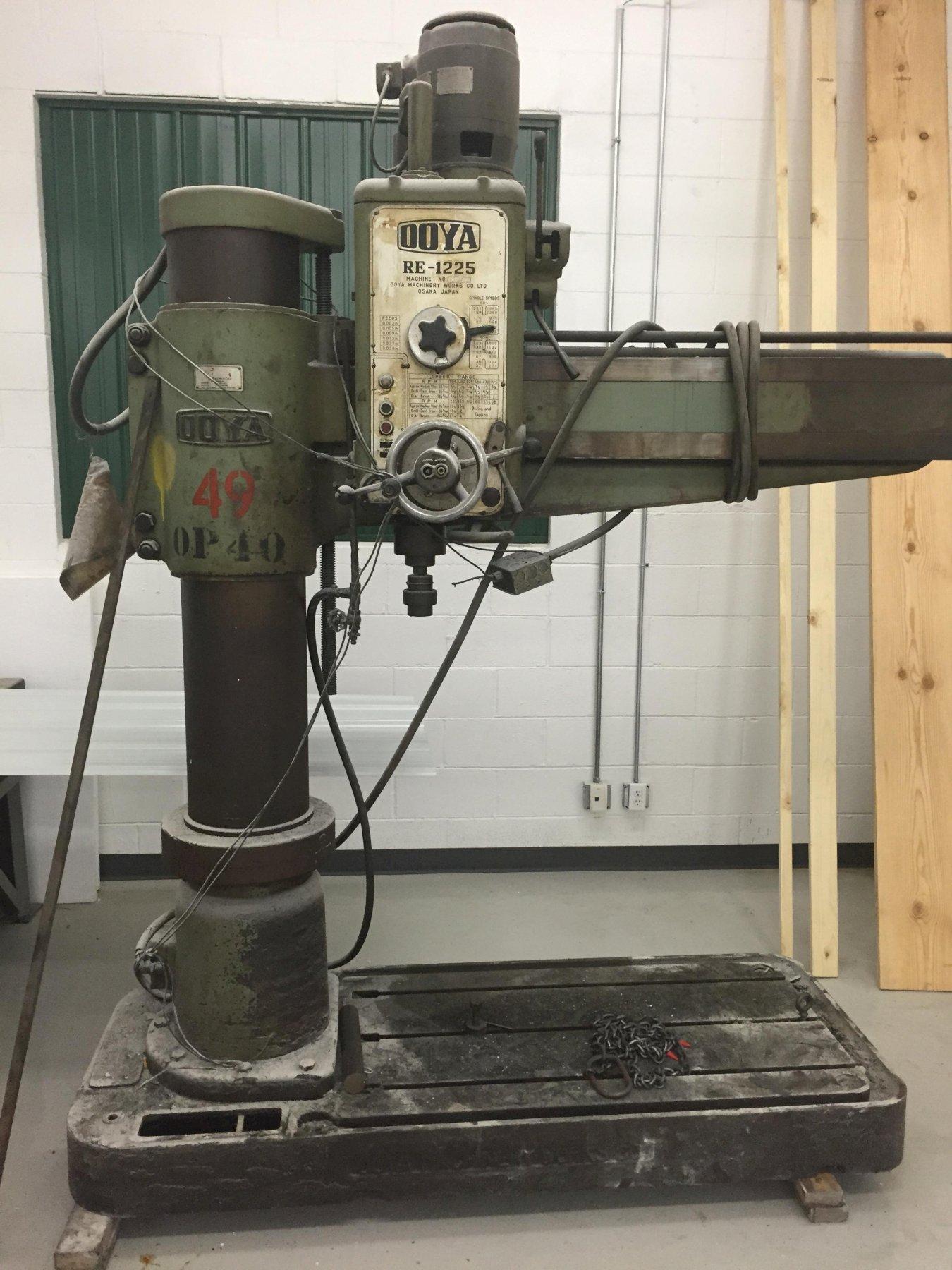

4' X 13' OOYA MODEL #RE-1225 RADIAL DRILL: STOCK #64377

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

64377

Model

04 x 13

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ..................... N68-7164
MODEL ...................... RE-1225
DIAMETER OF COLUMN  ........ 12-5/8"
COLUMN TO SPINDLE CENTER ... 11-5/8" TO 49-3/8"
SPINDLE SPEEDS ............. (24) 32 TO 1985 RPM
FEEDS ...................... (6) .0032 TO .04
SPINDLE TAPER .............. #5 M.T.
DIAMETER OF SPINDLE ........ 2-3/8"
DIAMETER OF QUILL .......... 3-1/16"
VERTICAL SPINDLE TRAVEL .... 11-13/16"
HORIZONTAL HEAD TRAVEL ..... 37-3/4"
SPINDLE TO BASE ............ 13" TO 51-3/4"
VERTICAL ARM TRAVEL ........ 25-5/8"
DRILLING CAPACITY, STEEL ... 2-1/4"
DRILLING CAPACITY, CAST .... 2-5/8"
POWER CLAMPING ............. YES
POWER ELEVATION ............ YES
COOLANT .................... YES
MOTOR ...................... 5 HP
