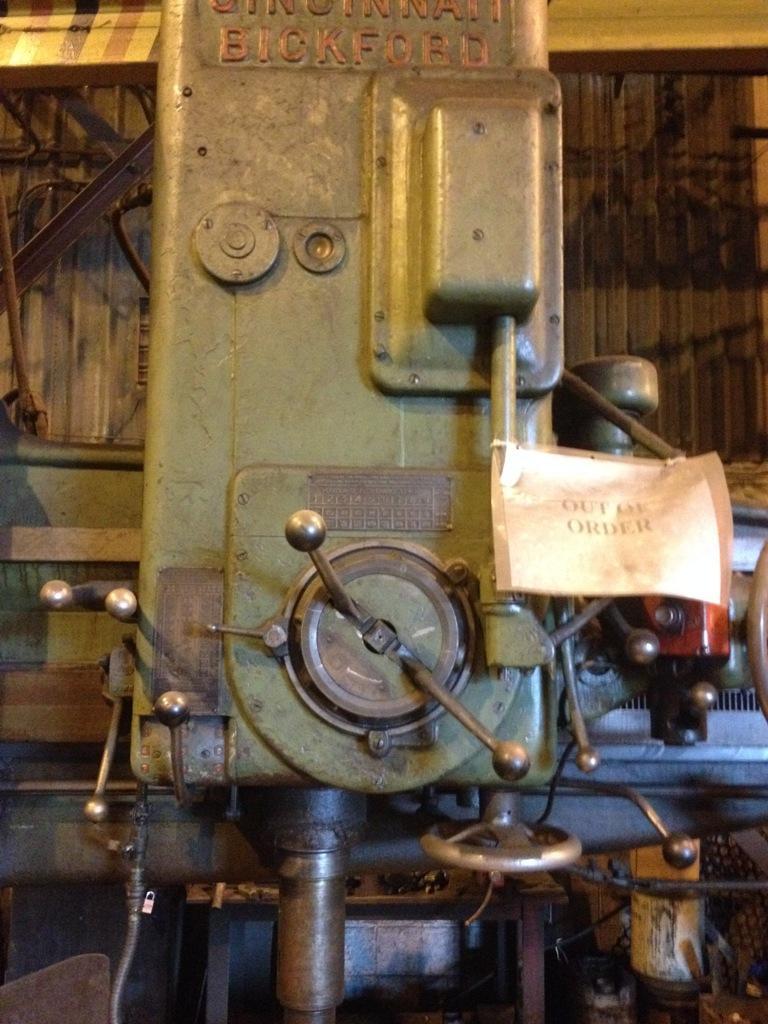

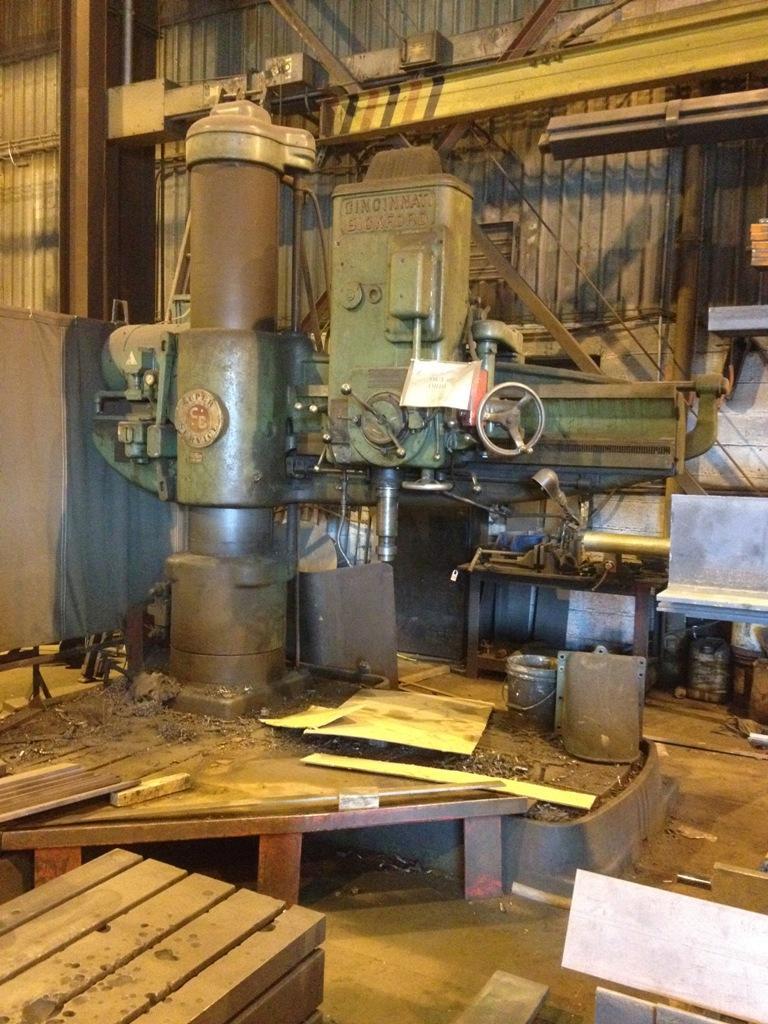

5' X 17" CINCINNATI RADIAL DRILL: STOCK #64869

Manufacturer

Cincinnati

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

64869

Model

05 x 17

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ 5E-734
ARM LENGTH X COLUMN DIAMETER .......... 5' X 17"
AREA OF BASE (T-SLOTTED) .............. 50" X 82"
SPINDLE SPEEDS ........................ (36) 14 TO 1700 RPM
SPINDLE FEEDS ......................... (18) .004 TO .125 IPR
TAP LEADS ............................. (6) 8 TO 27 TPI
SPINDLE STROKE ........................ 18"
SPINDLE DIAMETER ...................... 4-3/16"
SPINDLE TAPER ......................... #6 MT
SPINDLE RADIUS (MIN. / MAX.) .......... 23-3/8" / 83-5/8"
SPINDLE TO BASE (MIN. / MAX.) ......... 15" / 72"
POWER COLUMN CLAMPING ................. YES
POWER HEAD TRAVERSE ................... YES
POWER HEAD CLAMPING ................... YES
COOLANT ............................... YES
MOTOR ................................. 20 HP
