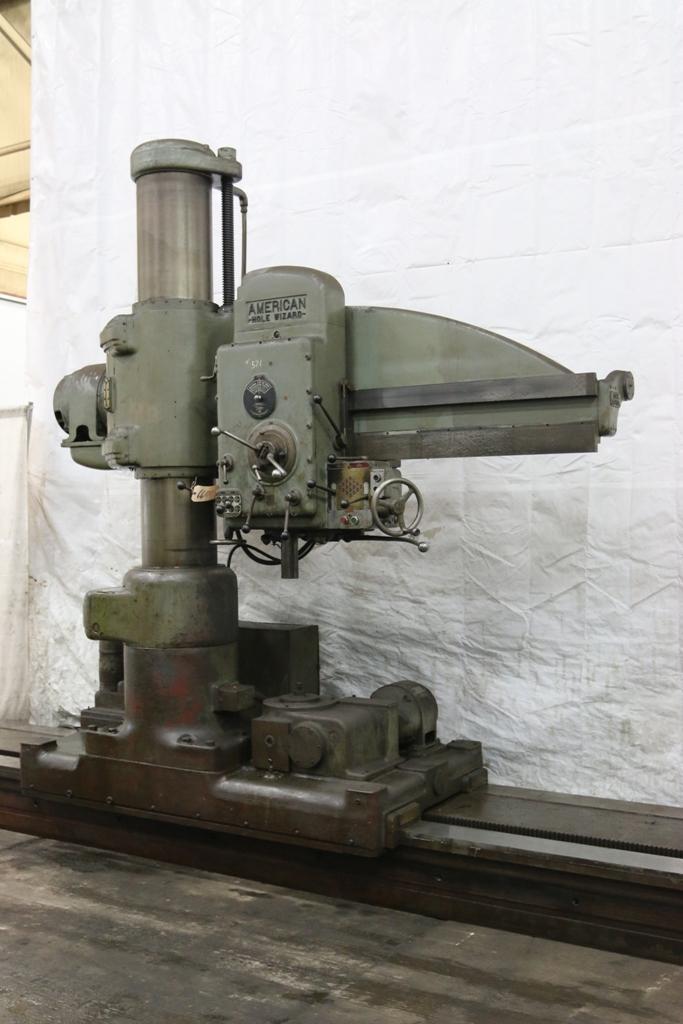

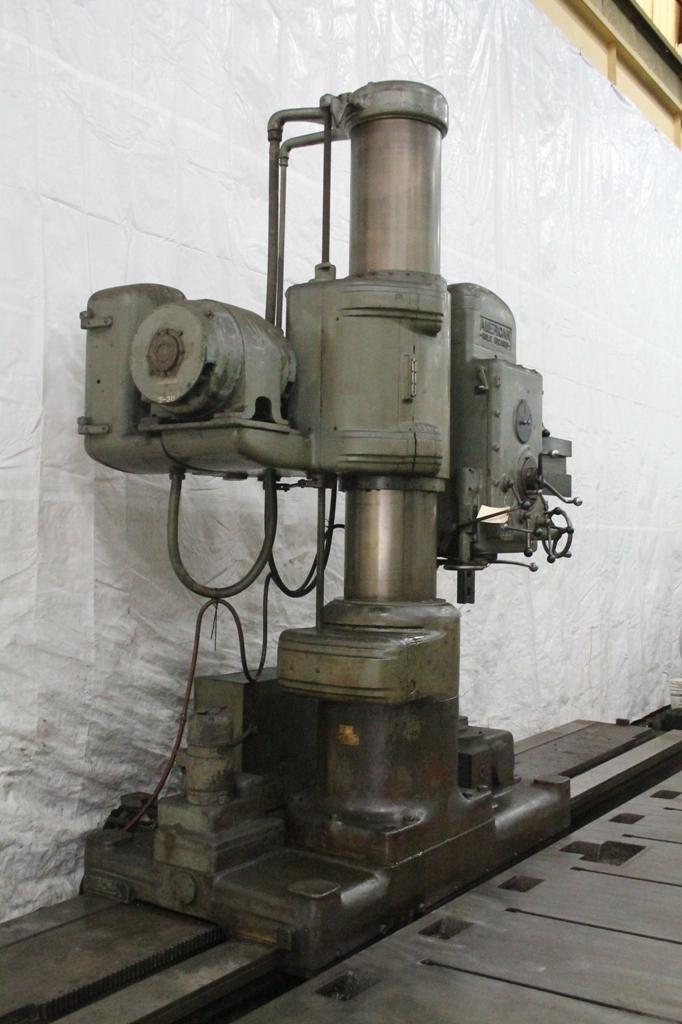

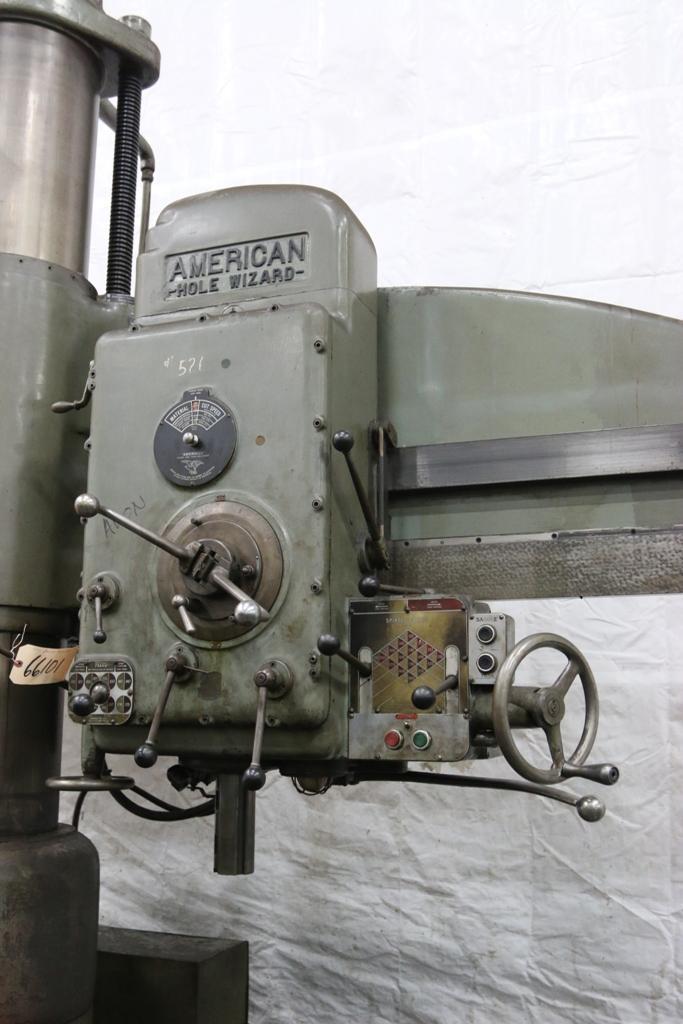

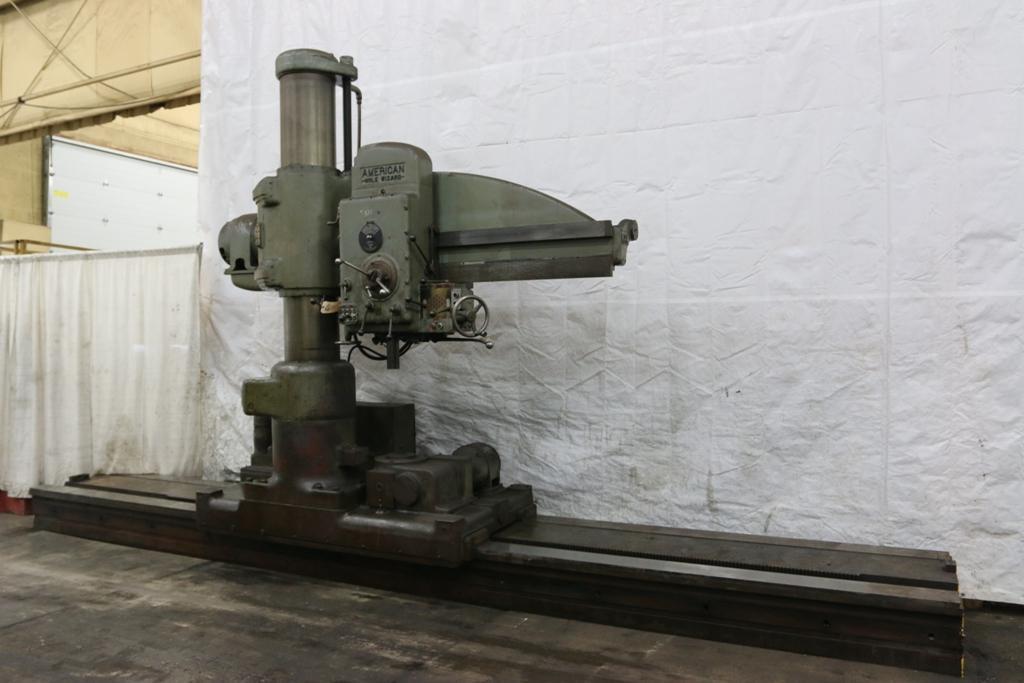

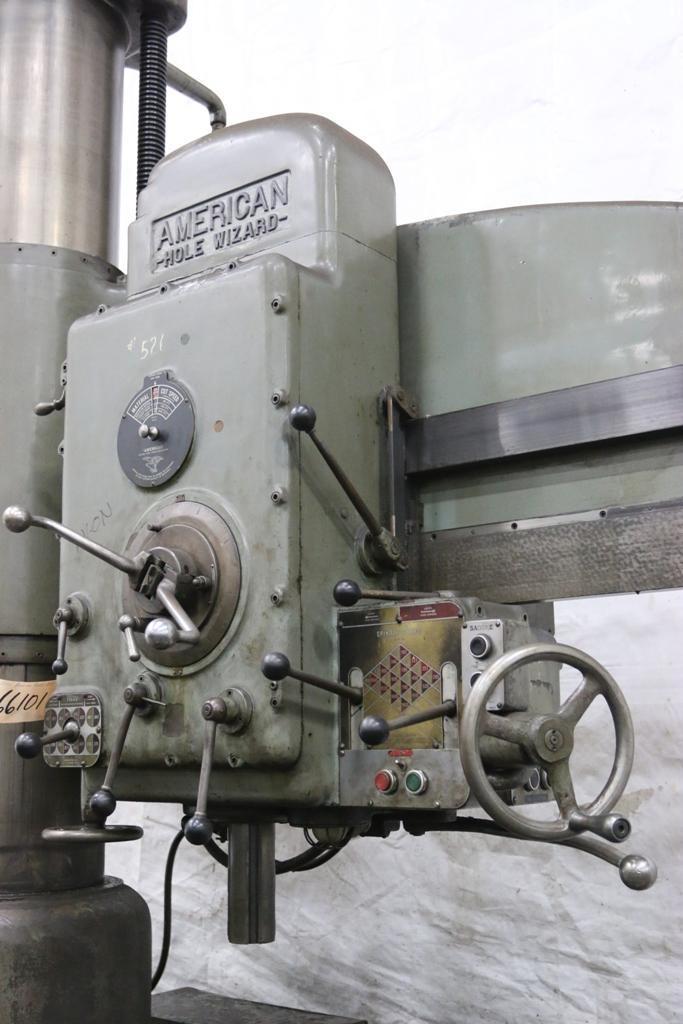

5' X 15" AMERICAN TRAVELING BASE RADIAL DRILL: STOCK #66101

Manufacturer

American

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

66101

Model

05 X 15 RAIL

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... 72603-52
SPINDLE SPEEDS ................... (32) 20 TO 1600 RPM

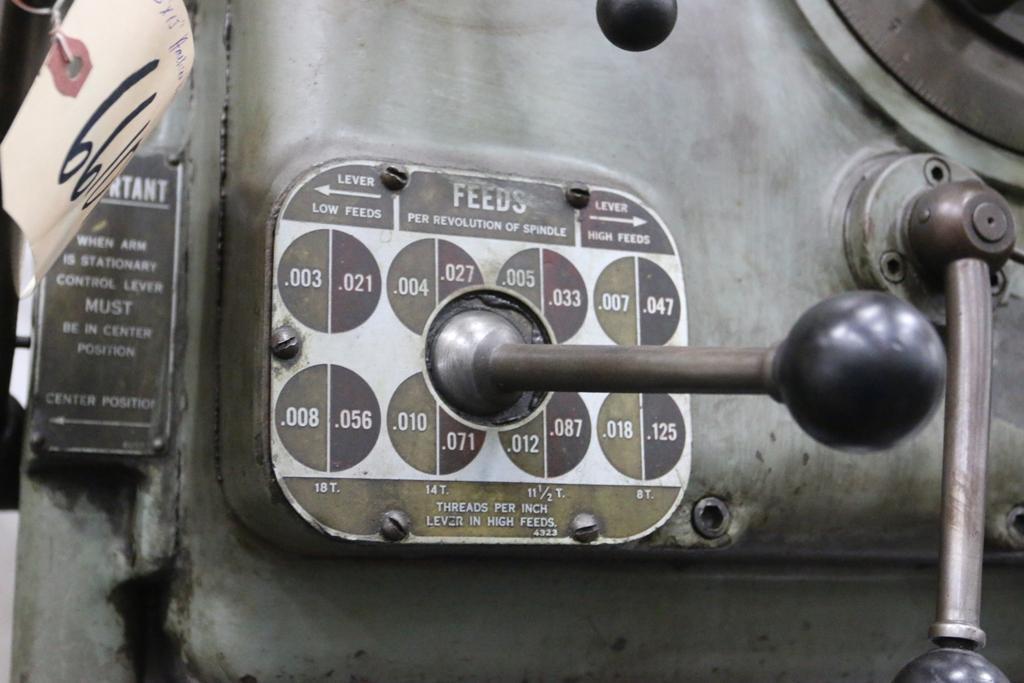

FEEDS ............................ (16) .003 TO .125 IPR
SPINDLE TRAVEL ................... 18"
DIAMETER OF SPINDLE .............. 3-1/4"
TAPER IN SPINDLE ................. #5 MT
DISTANCE SPINDLE TO COLUMN ....... 13-5/8" TO 60" MAXIMUM
DISTANCE SPINDLE TO BASE ......... 8-1/2" TO 66" MAXIMUM
TRAVEL OF HEAD ON ARM ............ 46-3/8"
TRAVEL OF ARM ON COLUMN .......... 39-1/2"
POWER HEAD TRAVEL ................ YES
POWER ELEVATION .................. YES
POWER CLAMPING ................... YES

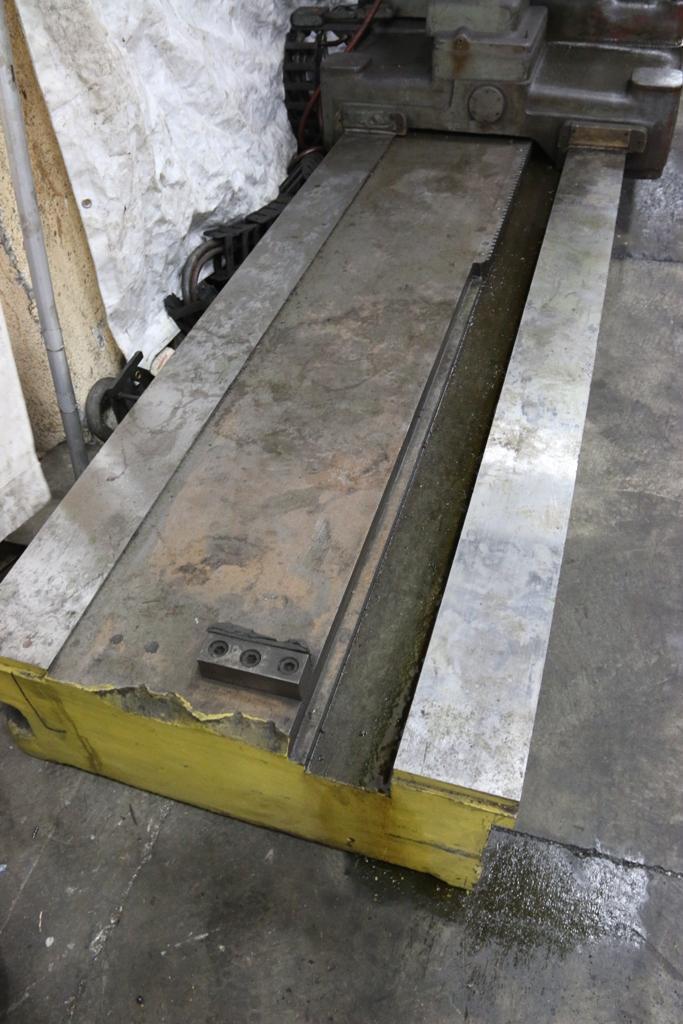

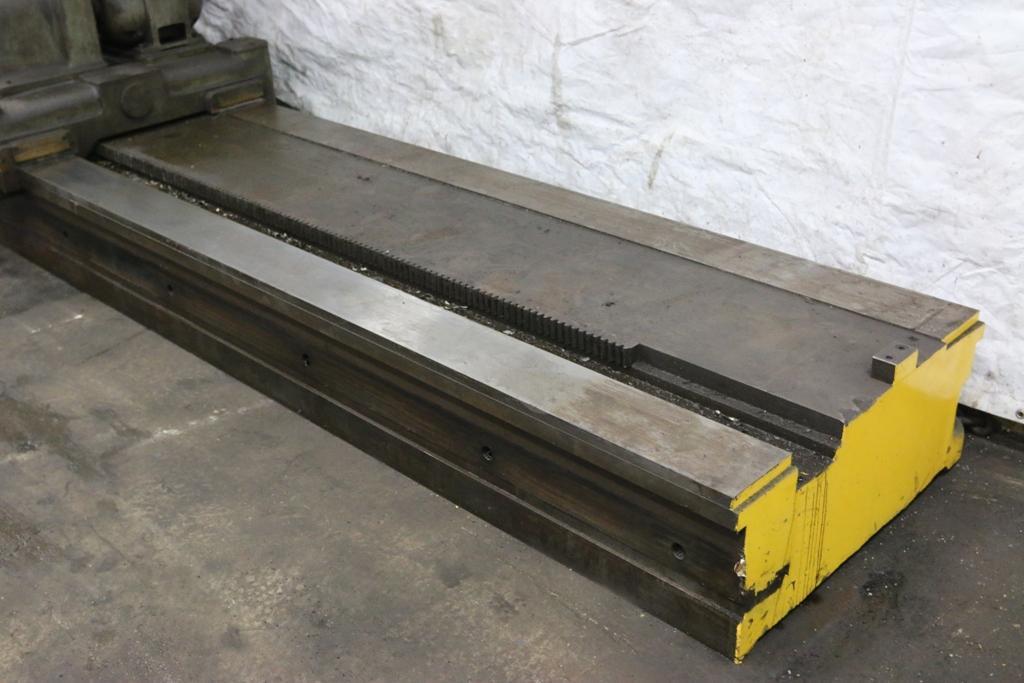

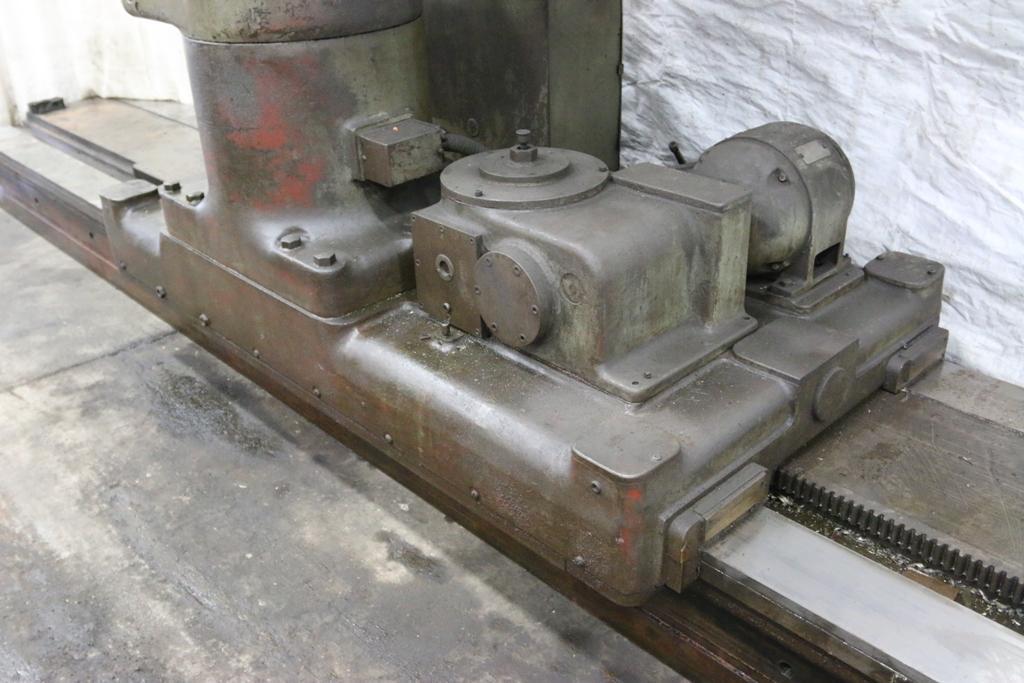

TRAVELING BASE MOVEMENT .......... 15'
MOTOR ............................ 20 HORSEPOWER
