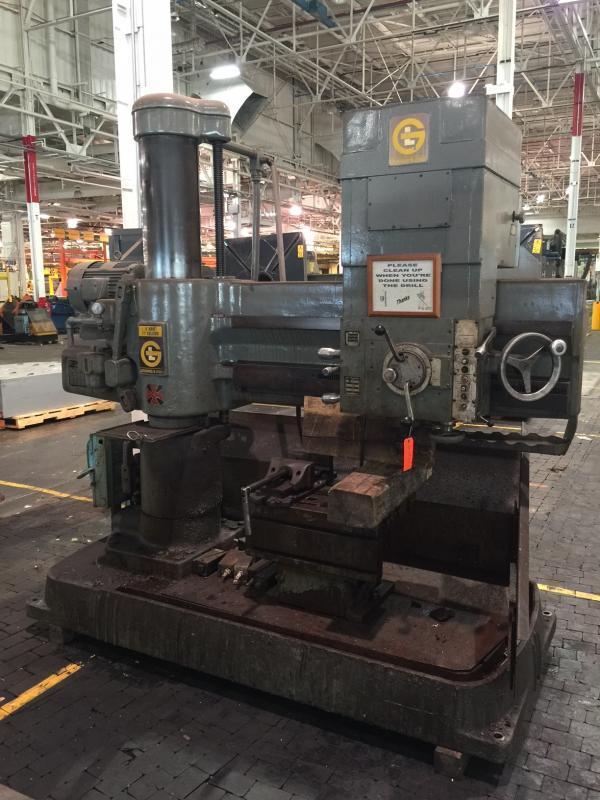

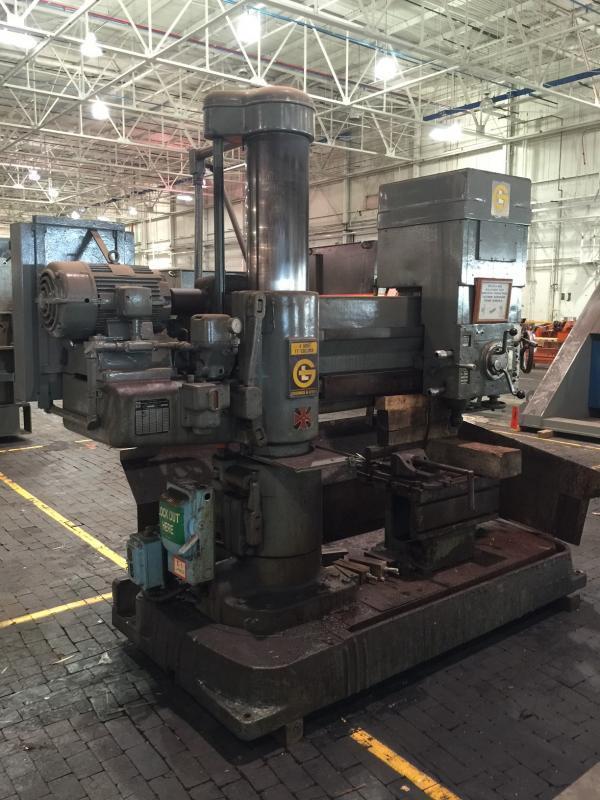

4' X 11" GIDDINGS & LEWIS RADIAL ARM DRILL: STOCK #66345

Manufacturer

GIDDINGS & LEWIS

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

66345

Model

04 X 11

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ 00102
TYPE .................................. 952
MODEL ................................. CHIPMASTER

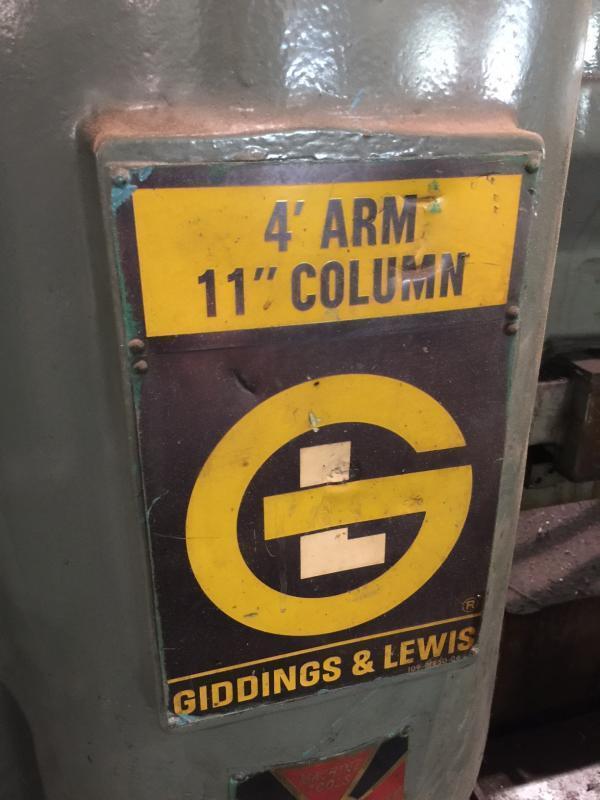

ARM LENGTH ............................ 4'
COLUMN DIAMETER ....................... 11"
SPINDLE RADIUS, MAX. / MIN. ........... 57-1/8" / 20"
SPINDLE TO BASE, MAX. / MIN. .......... 54" / 14"
SPINDLE TRAVEL ........................ 14"
ARM TRAVEL ON COLUMN .................. 26"
HEAD TRAVEL ON ARM .................... 37-1/8"
SPINDLE TAPER ......................... #5 MT
SPINDLE DIAMETER ...................... 3-15/16"
SPINDLE SPEEDS ........................ (12) 40-1600 RPM
SPINDLE FEEDS ......................... (9).006-.125 IPR
TAP LEADS ............................. 8 & 11.5 TPI
TAPPING ............................... YES
POWER CLAMPING ........................ YES
MAIN MOTOR ............................ 7-1/2 HORSEPOWER
