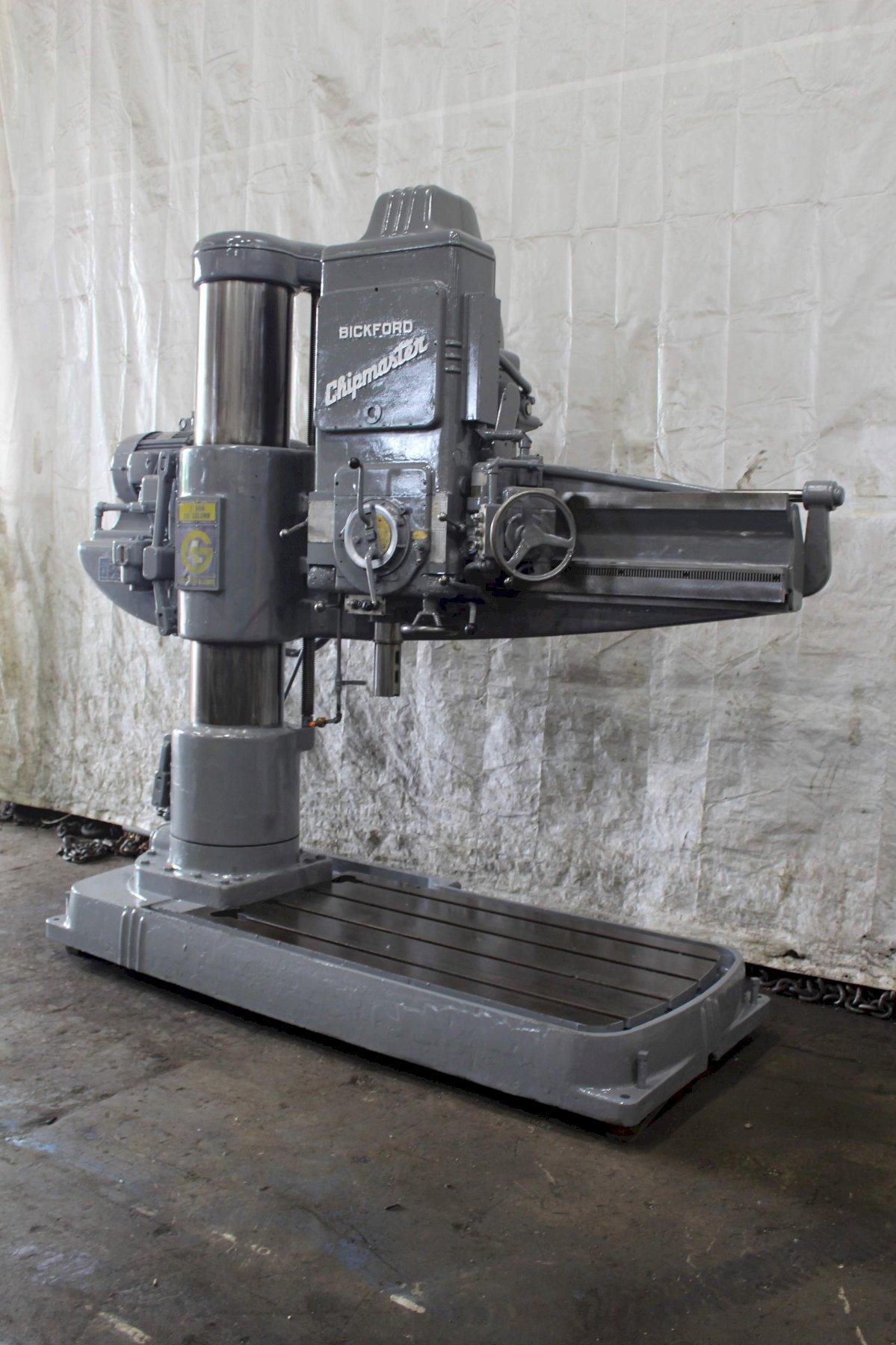

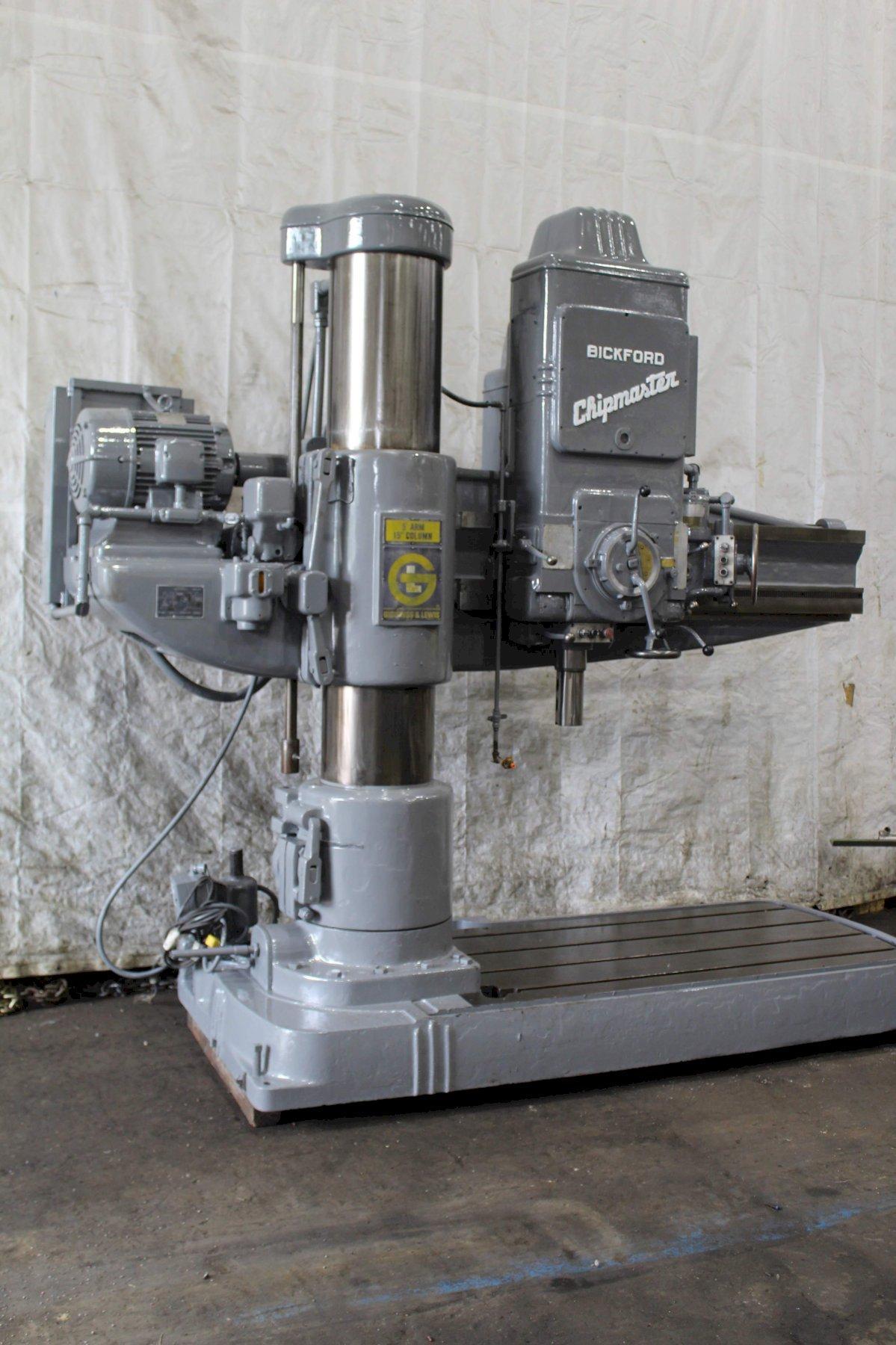

5' X 15' GIDDINGS & LEWIS RADIAL DRILL: STOCK #66497

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

66497

Model

05 X 15

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... 00141-66
MODEL ............................ 954
YEAR ............................. 1966

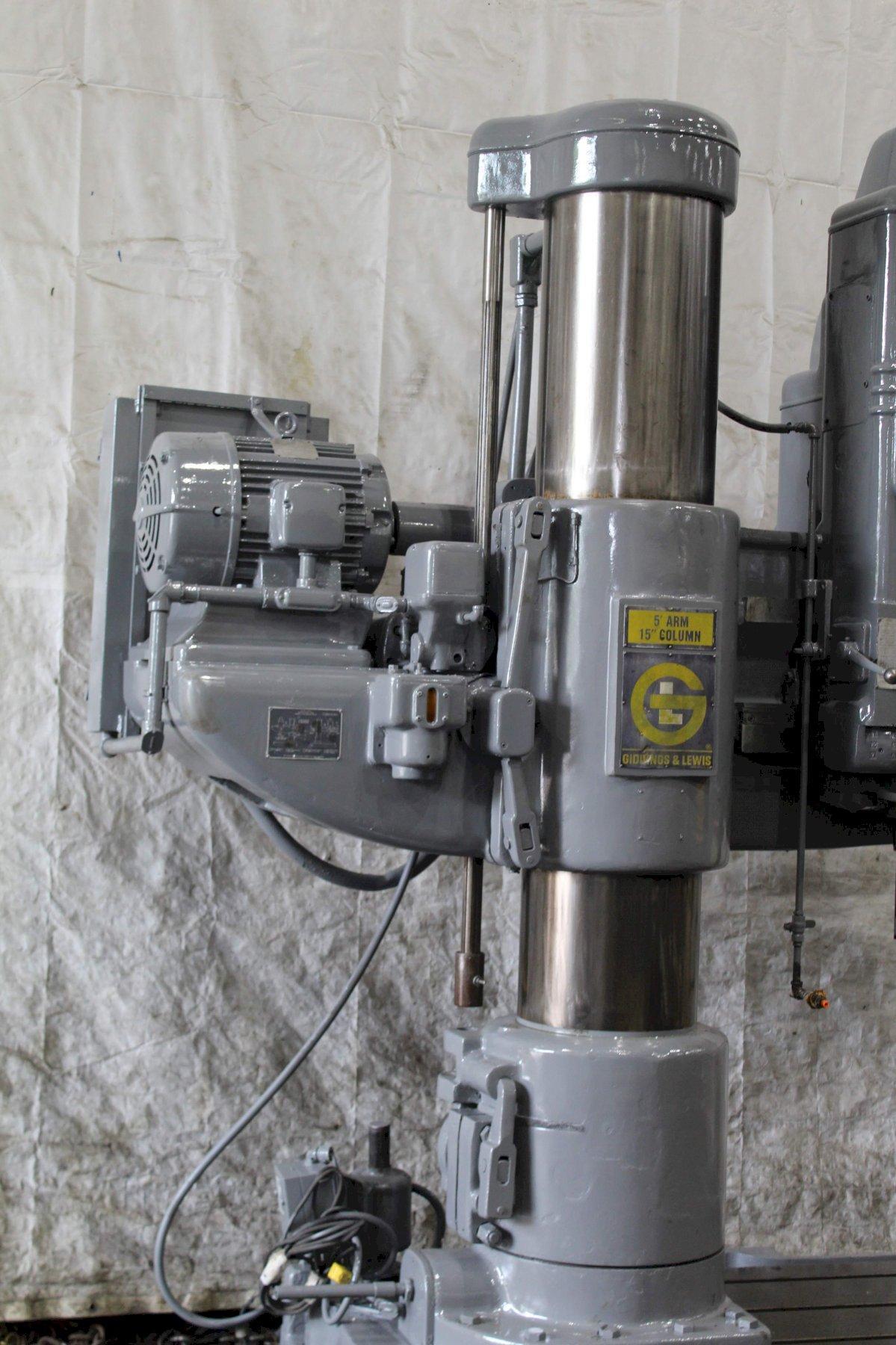

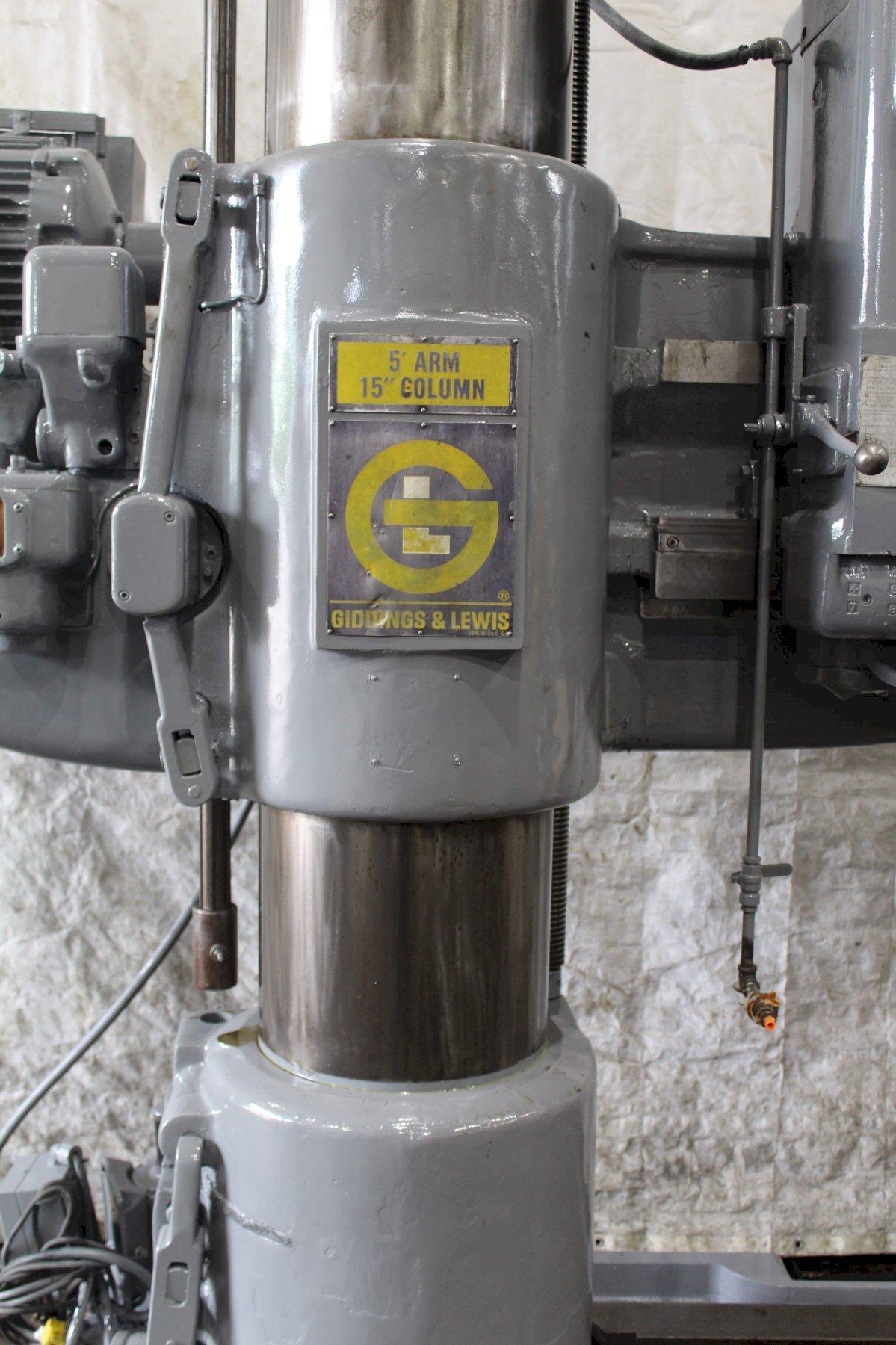

LENGTH OF ARM .................... 5'
DIAMETER OF COLUMN ............... 15"
WORKING SURFACE OF BASE .......... 70" X 44"
SPINDLE SPEEDS ................... (36) 12 TO 1500 RPM
FEEDS ............................ (18) .004 TO .125 IPR

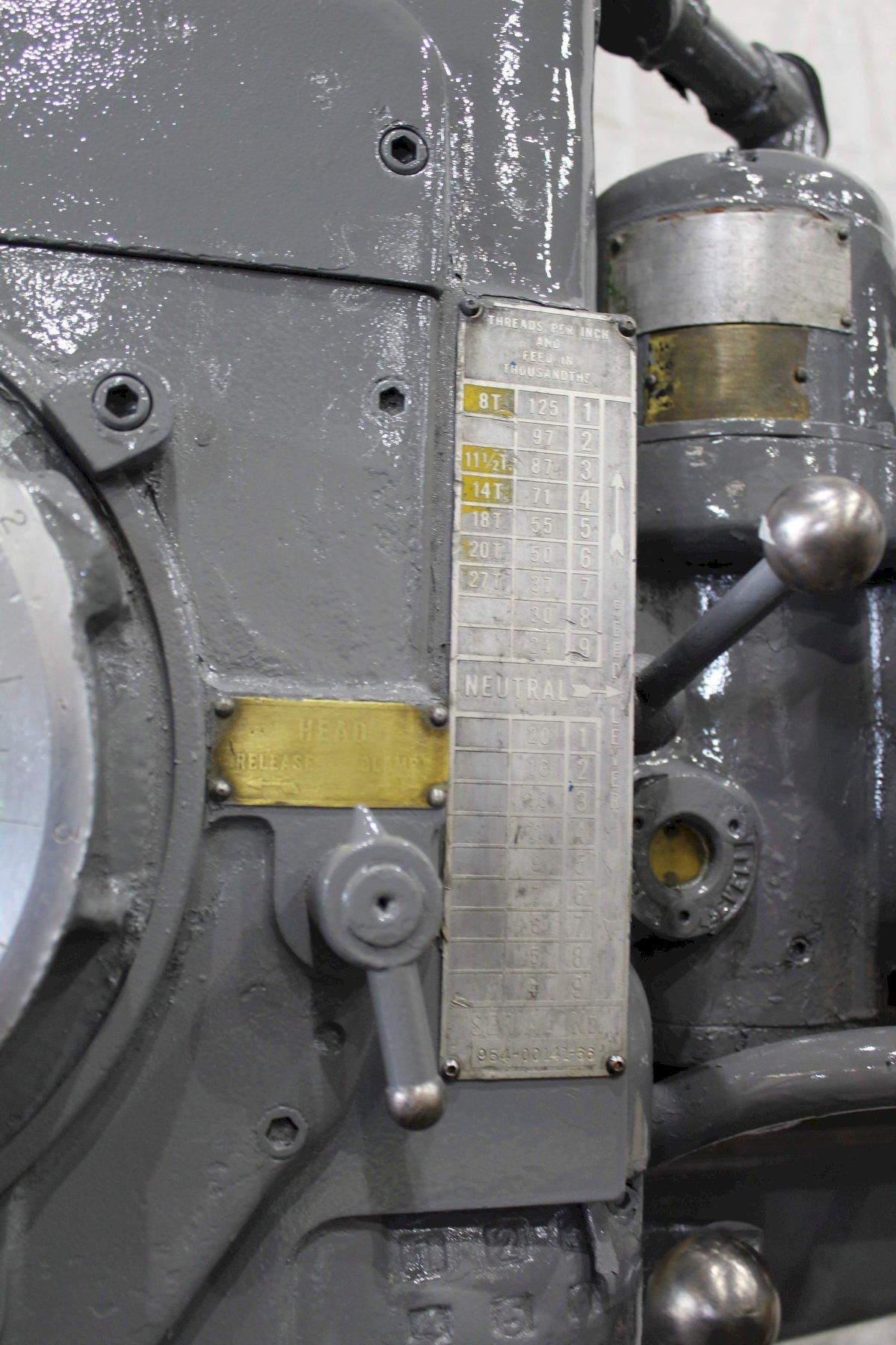

THREADS .......................... 8, 11-1/2, 14, 18, 20, 27 TPI
SPINDLE TRAVEL ................... 20"
DIAMETER OF SPINDLE .............. 4-9/16"
TAPER IN SPINDLE ................. #5 MT
DISTANCE SPINDLE TO COLUMN ....... 15" MINIMUM, 60" MAXIMUM
TRAVEL OF ARM ON COLUMN .......... 54"
POWER HEAD & COLUMN CLAMPING ..... YES
POWER ELEVATION & HEAD TRAVERSE .. YES
COOLANT .......................... YES

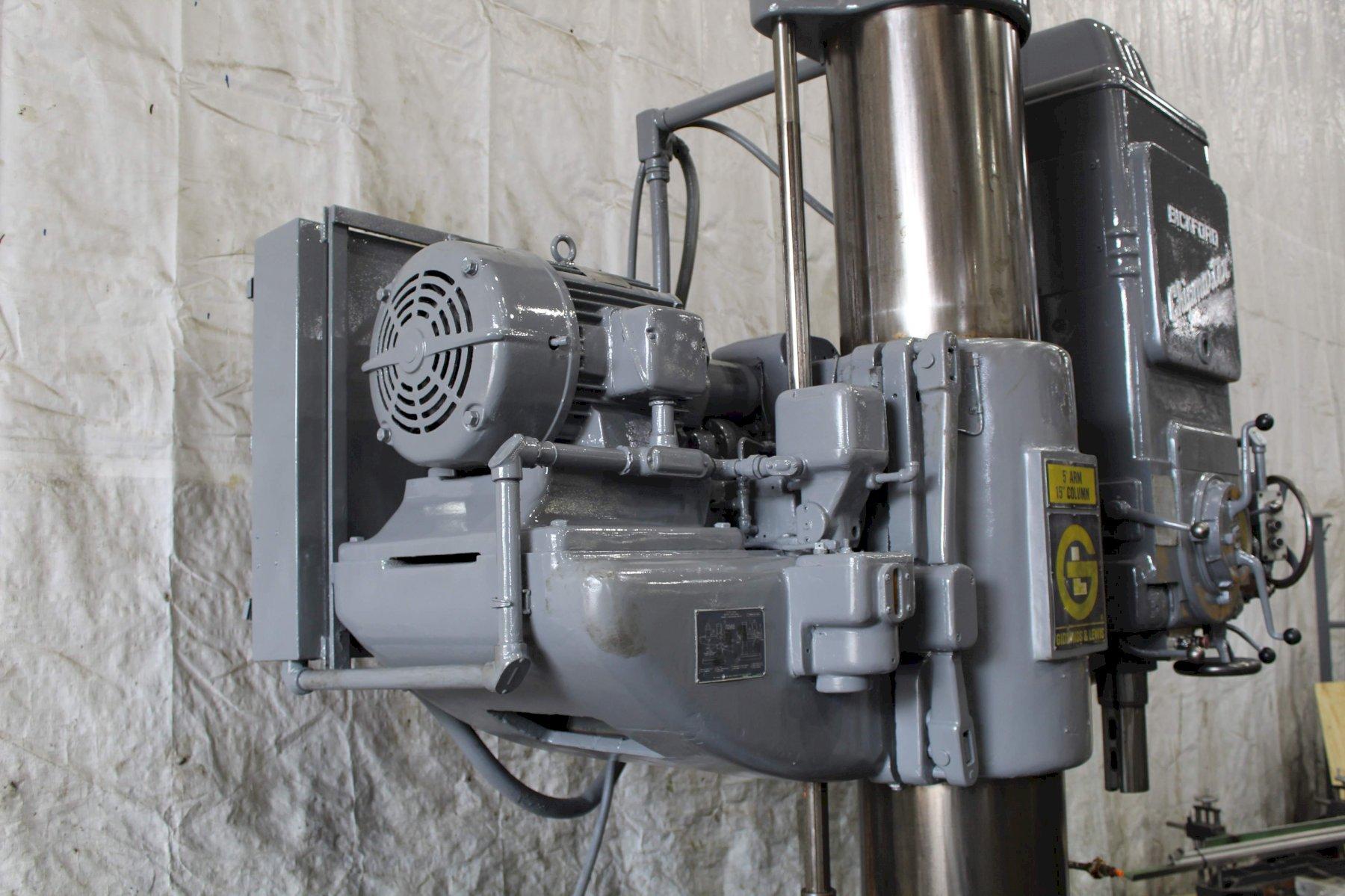

MOTOR ............................ 20 HORSEPOWER
