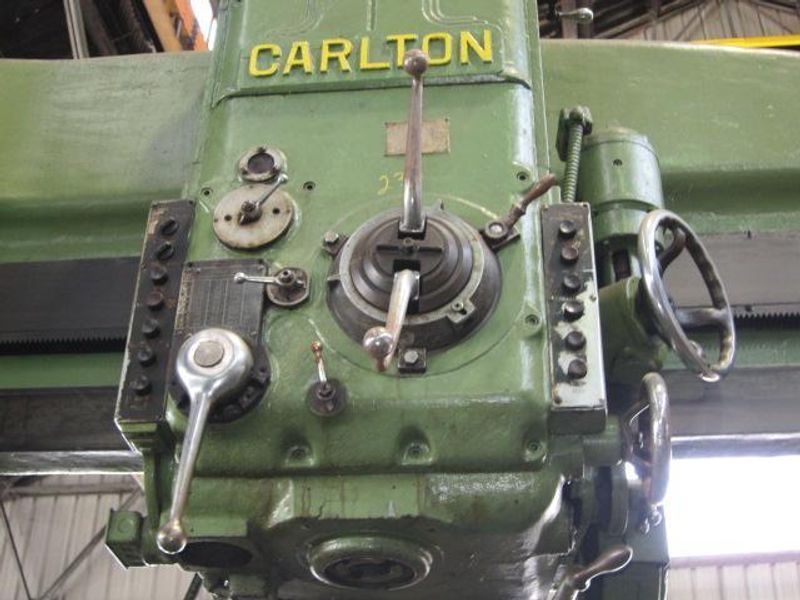

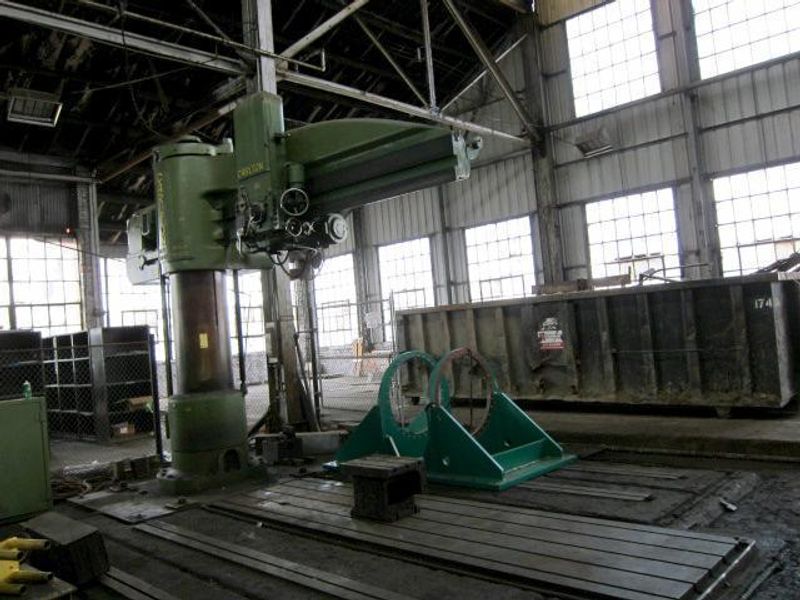

10' X 26" CARLTON MODEL #5A RADIAL DRILL: STOCK #67016

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

67016

Model

10 X 26

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ............................. 5A
AREA OF BASE....................... 130" X 57"
SPINDLE SPEEDS..................... (12) 10 TO 1000 RPM
FEEDS.............................. (18) .004 TO .250
THREADS............................ (5) 6, 7, 8, 11-1/2, 18
DISTANCE SPINDLE TO BASE........... 18-1/2" MINIMUM, 96" MAXIMUM
DISTANCE SPINDLE TO COLUMN......... 15" MINIMUM, 120" MAXIMUM
SPINDLE TRAVEL..................... 24"
TAPER IN SPINDLE................... #6MT
DIAMETER OF SPINDLE................ 4"
TRAVEL OF ARM ON COLUMN............ 54"
TRAVEL OF HEAD ON ARM.............. 105"
POWER ELEVATION ................... YES
POWER HEAD TRAVERSE ............... YES
POWER CLAMPING .................... YES
MOTOR ............................. 30 HORSEPOWER
