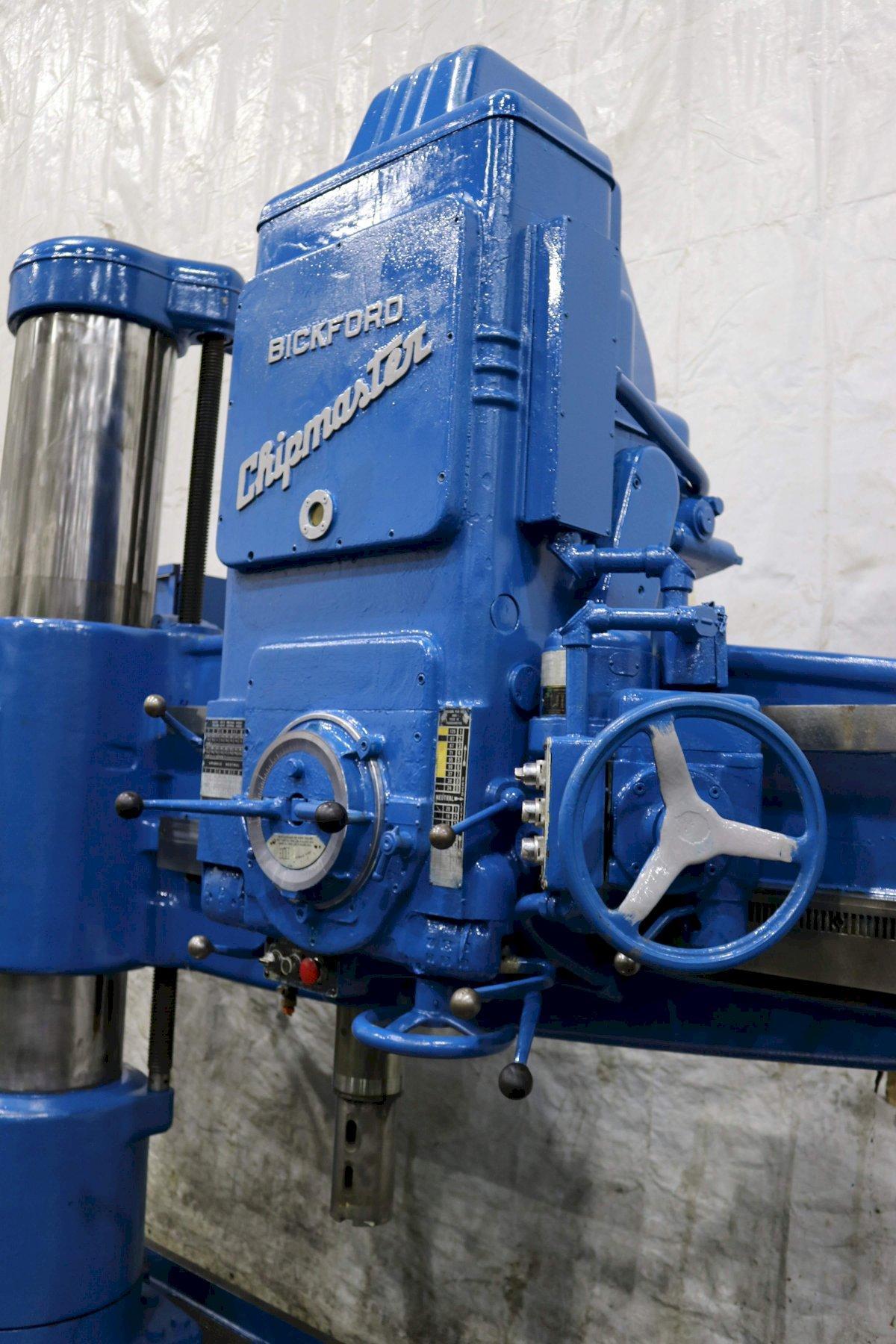

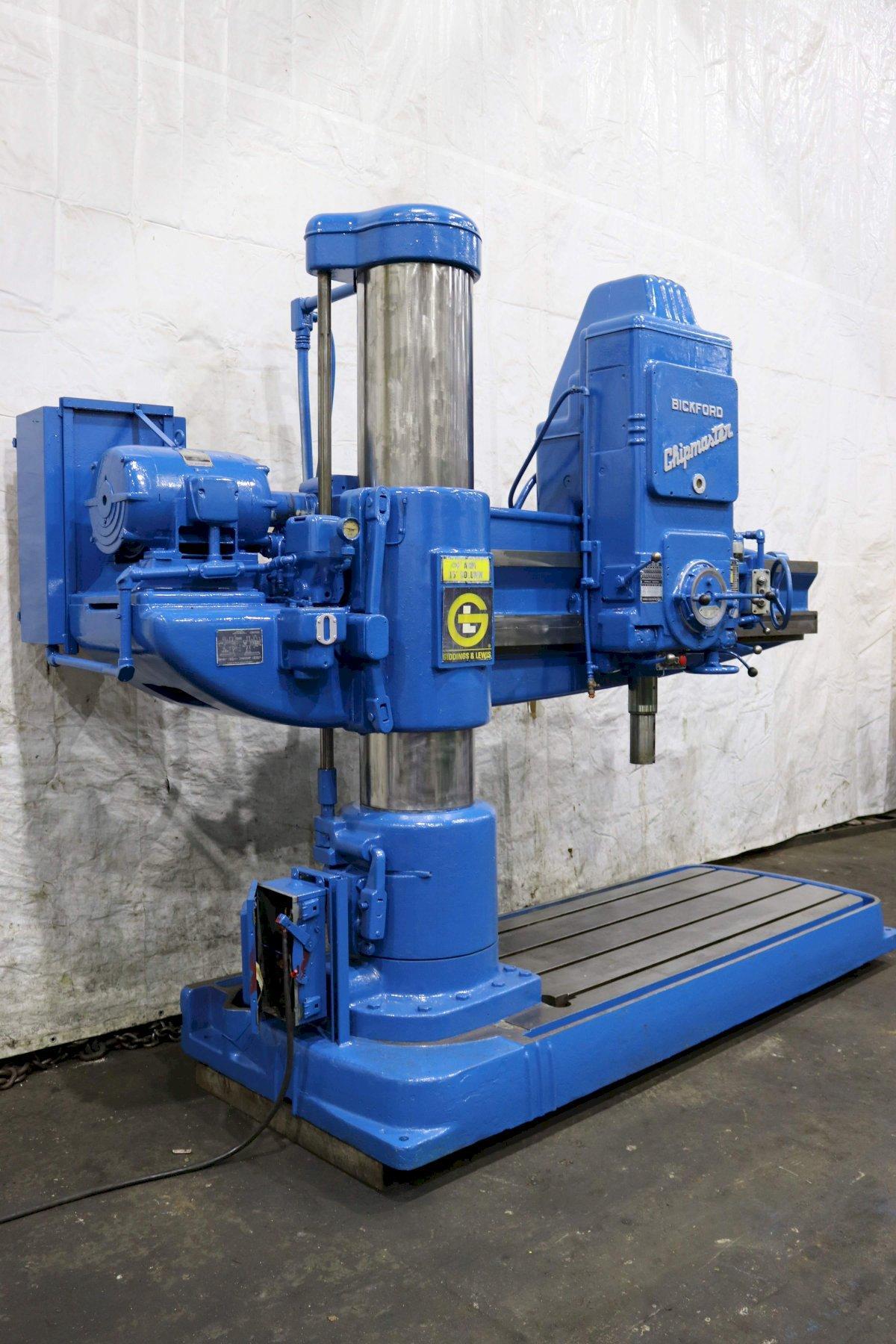

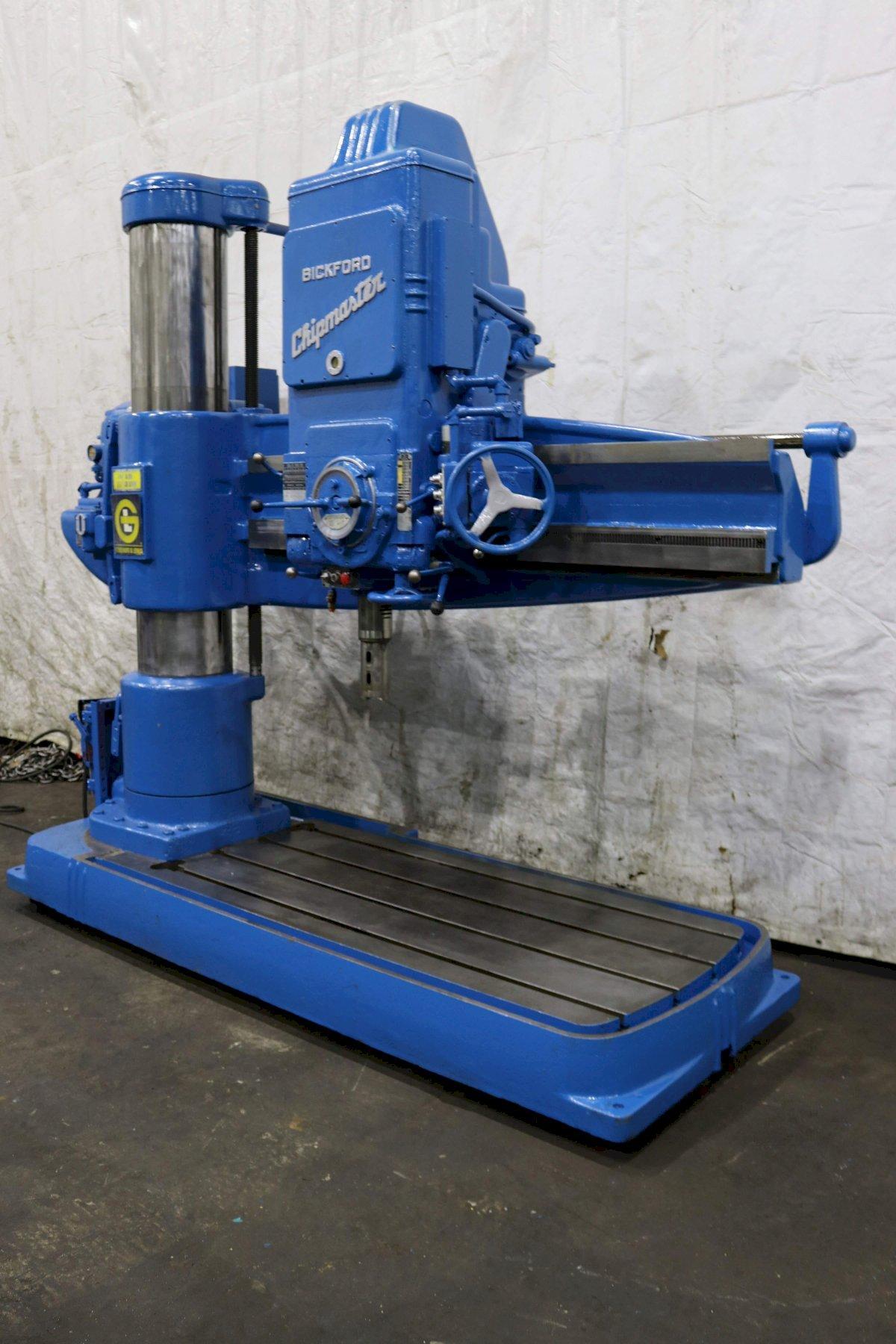

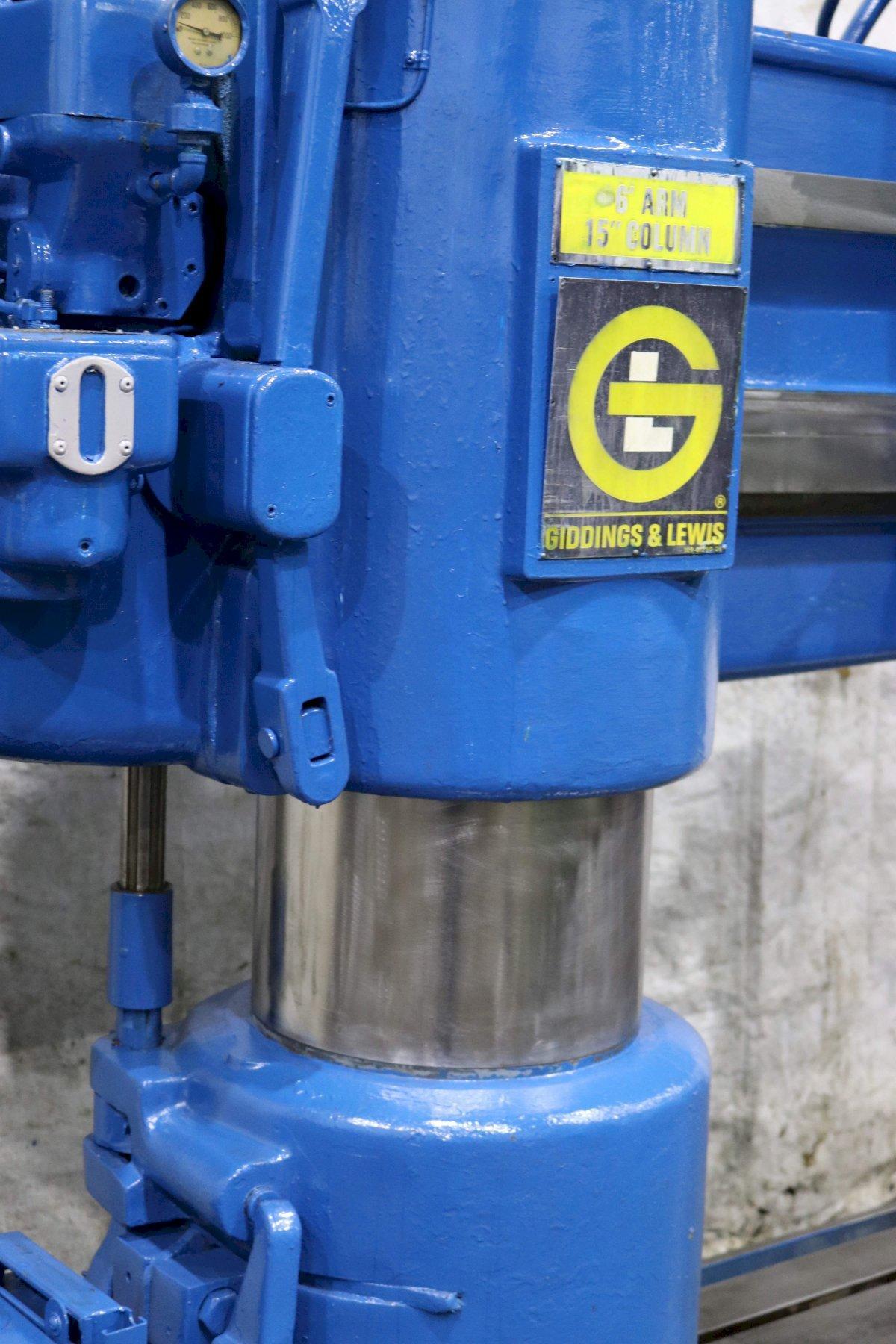

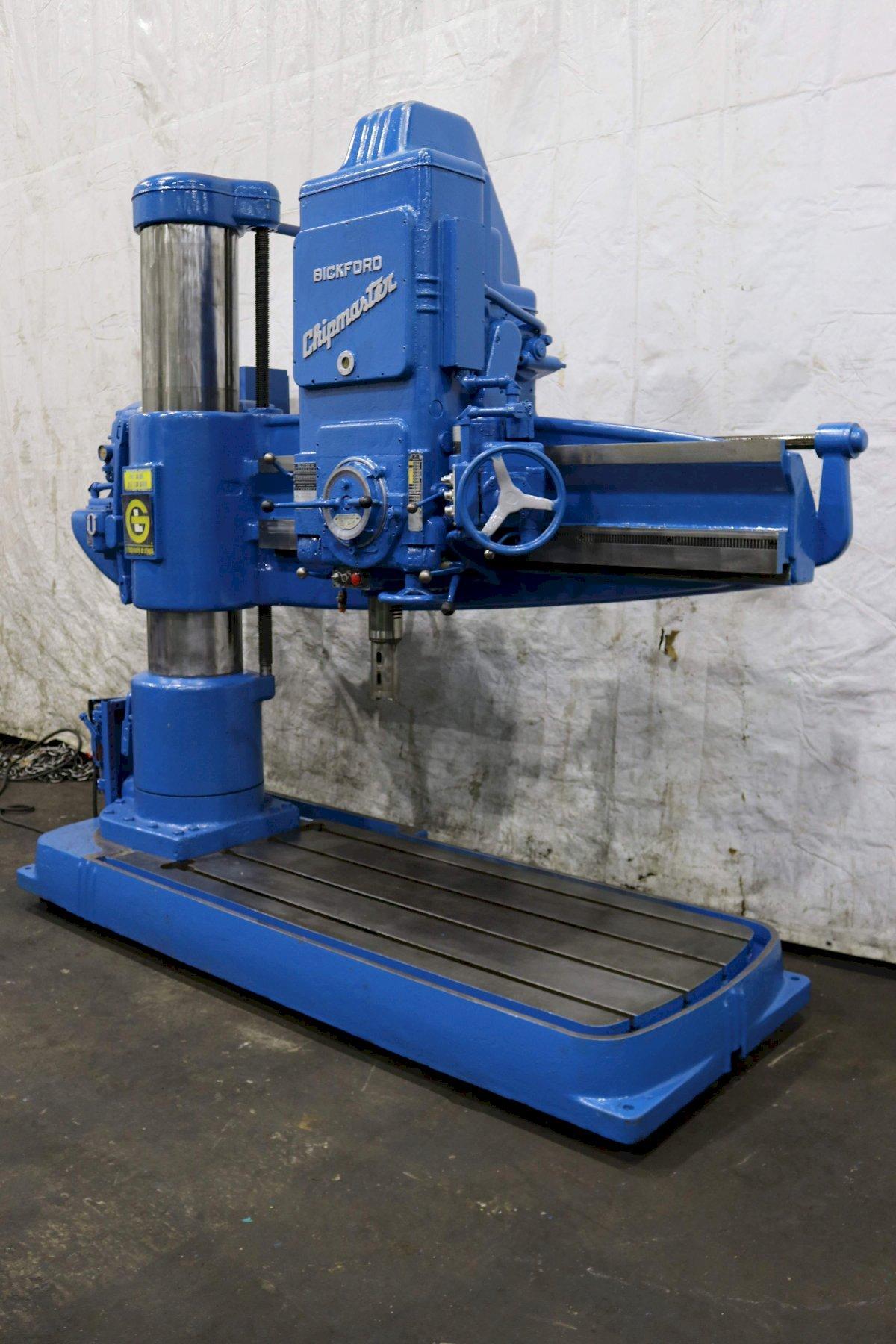

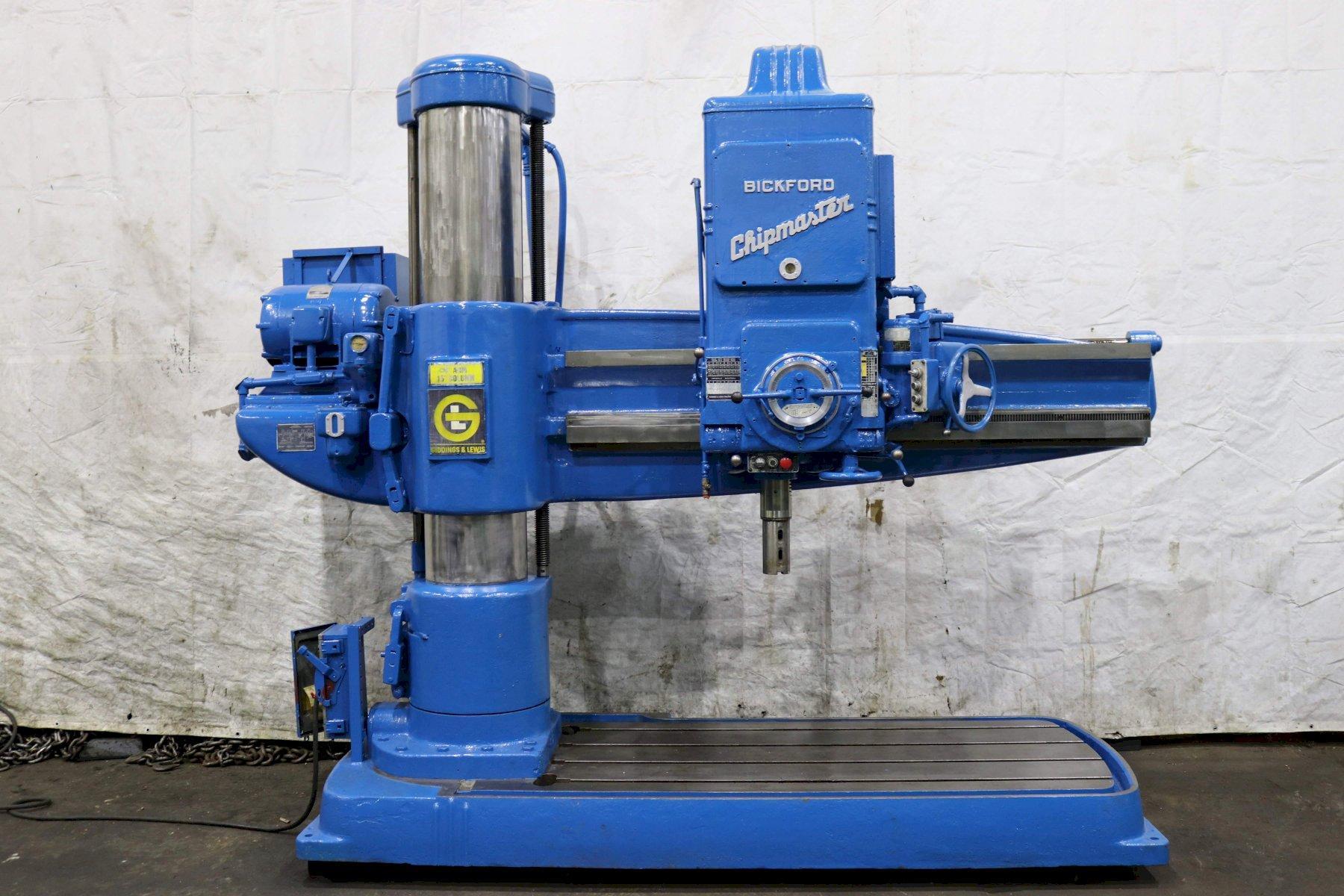

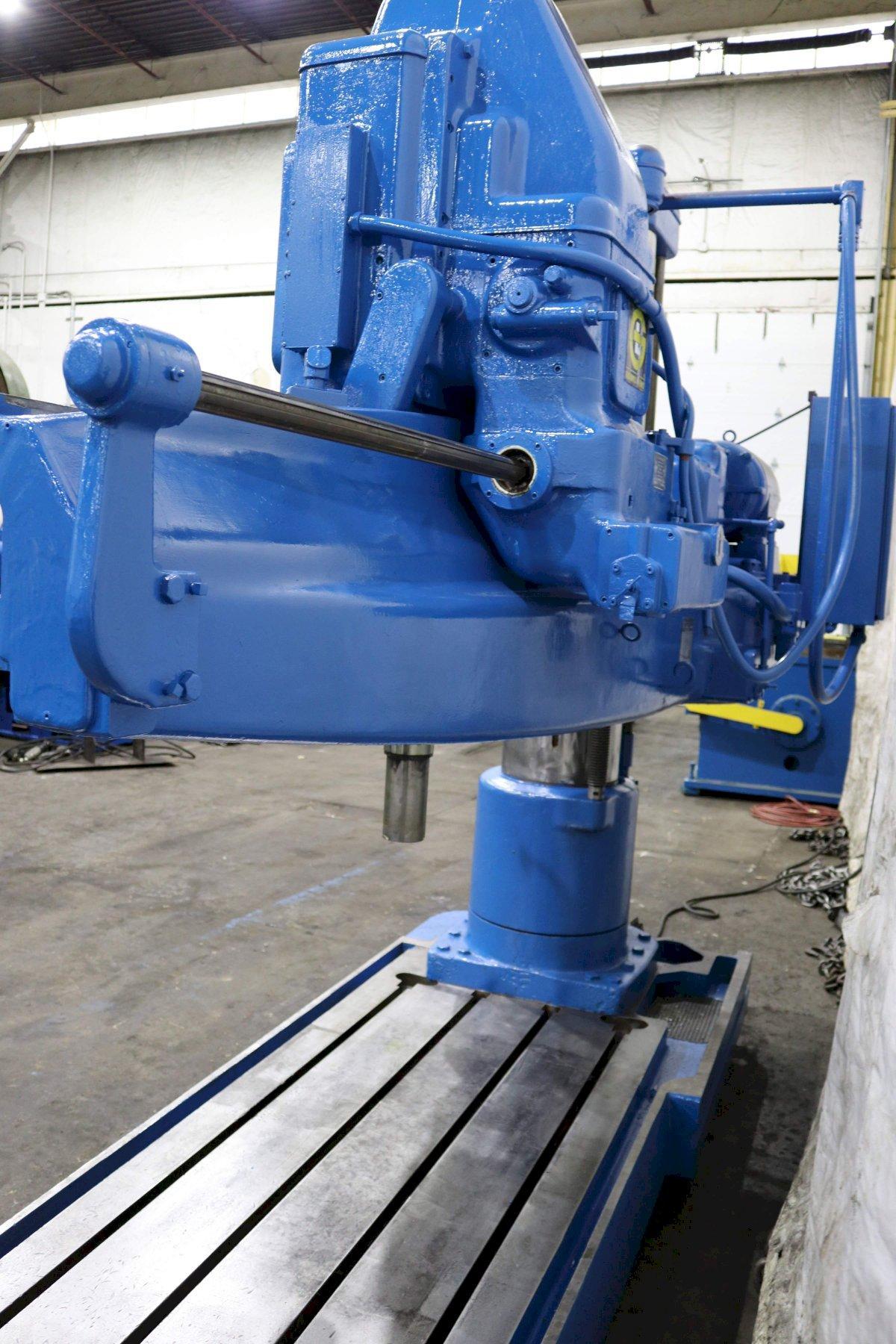

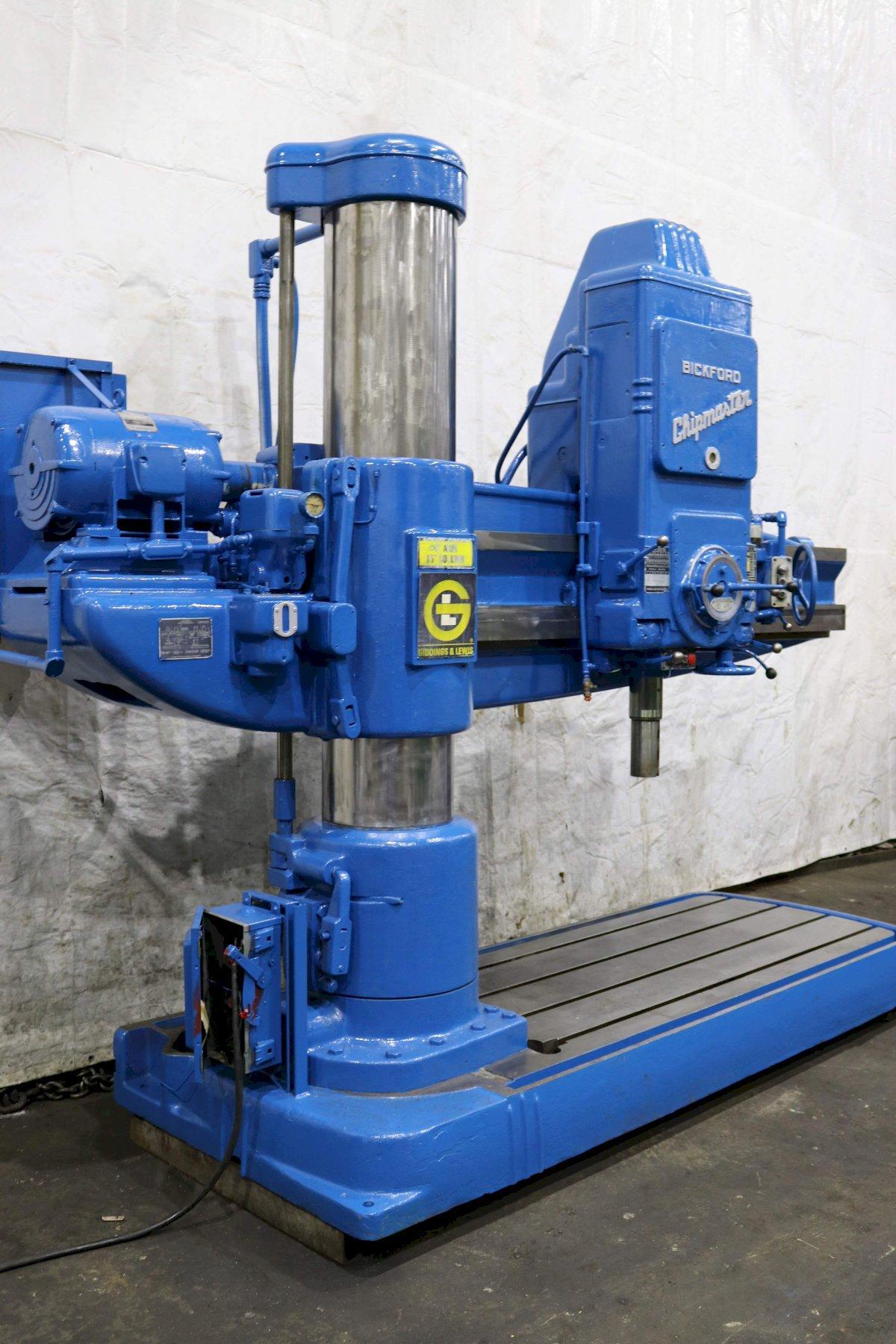

6' X 15' GIDDINGS & LEWIS RADIAL ARM DRILL: STOCK #67605

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

67605

Model

06 X 15

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. 954-00134-65

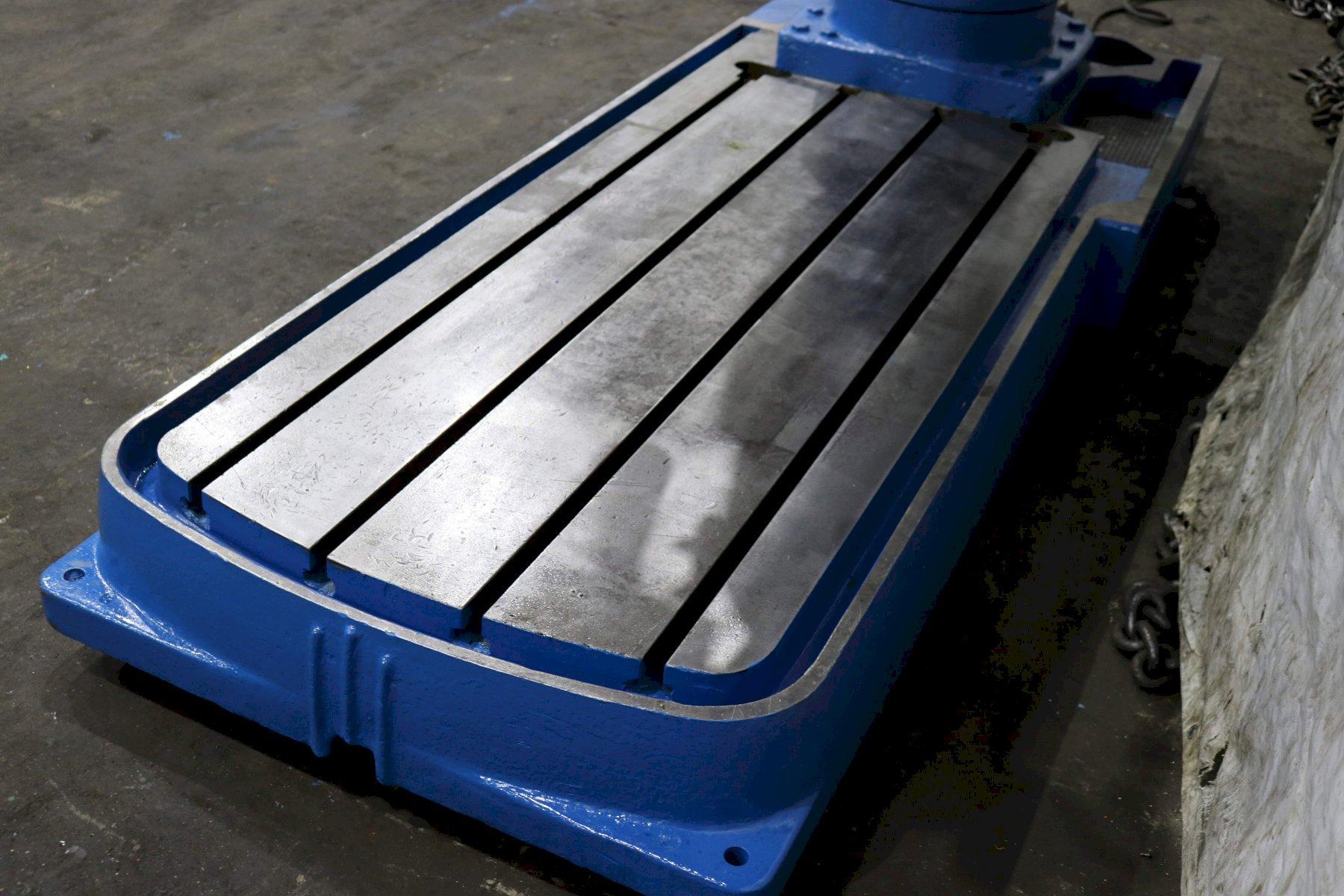

AREA OF BASE ........................ 83" X 39"

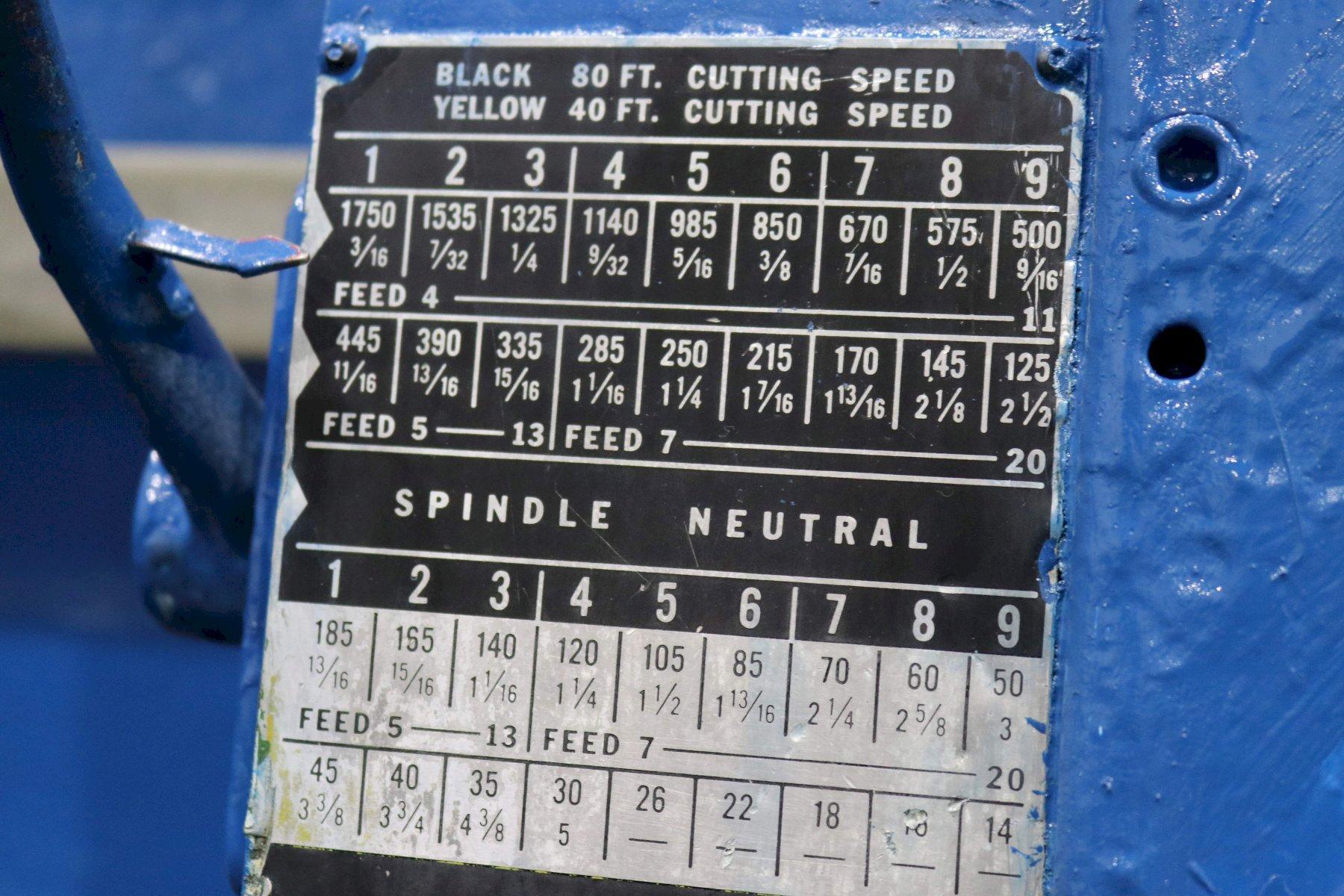

SPINDLE SPEEDS ...................... 14 TO 1750 RPM
FEEDS ............................... .004 TO .125 IPR
SPINDLE TRAVEL ...................... 20"
DIAMETER OF SPINDLE ................. 3-15/16"
TAPER IN SPINDLE..................... #5 MT
DISTANCE SPINDLE TO BASE ............ 10-1/2" MINIMUM, 66" MAXIMUM
DISTANCE SPINDLE TO COLUMN .......... 15-5/8" MINIMUM
TRAVEL OF HEAD ON ARM ............... 56-3/8"

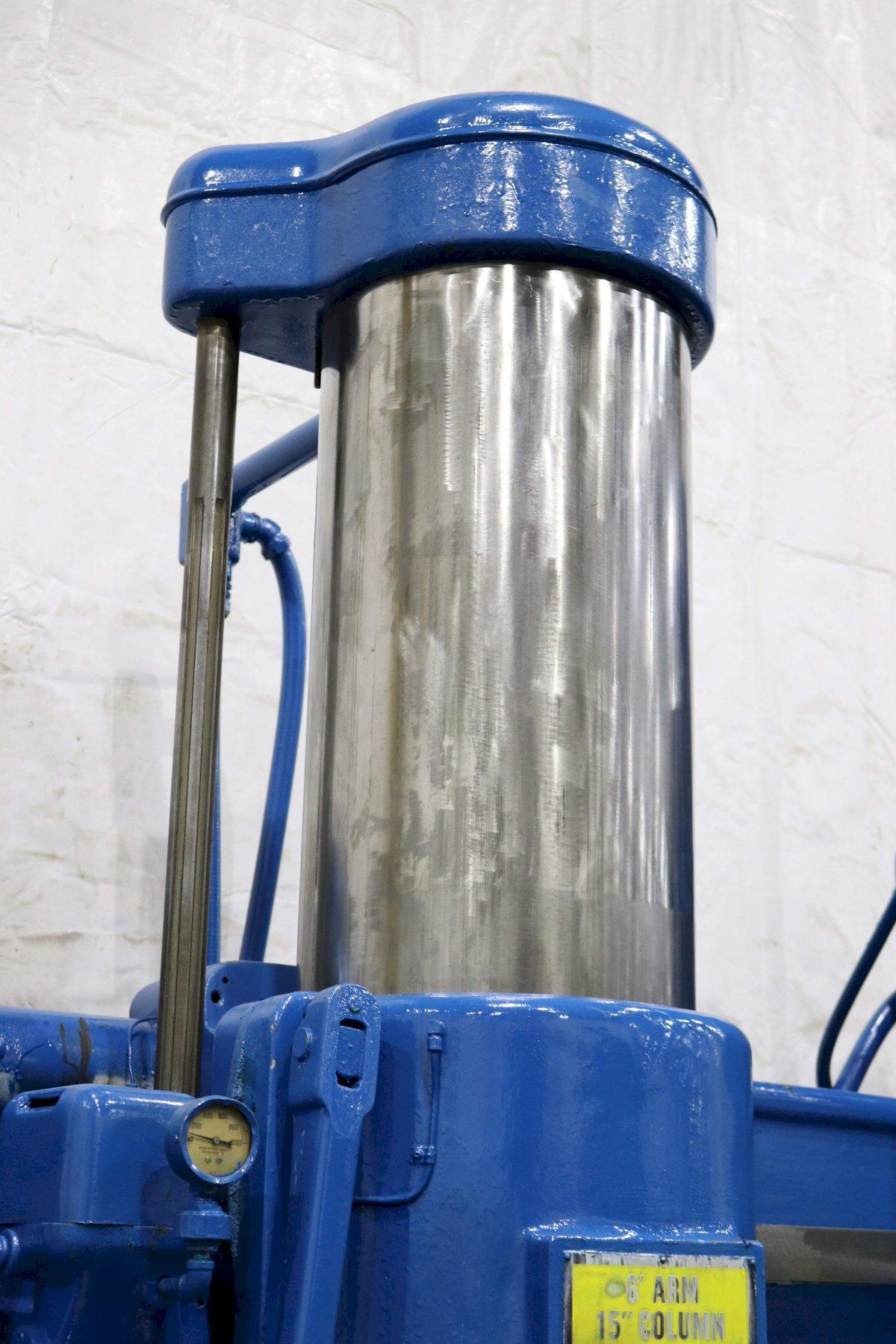

TRAVEL OF ARM ON COLUMN ............. 35-1/2"

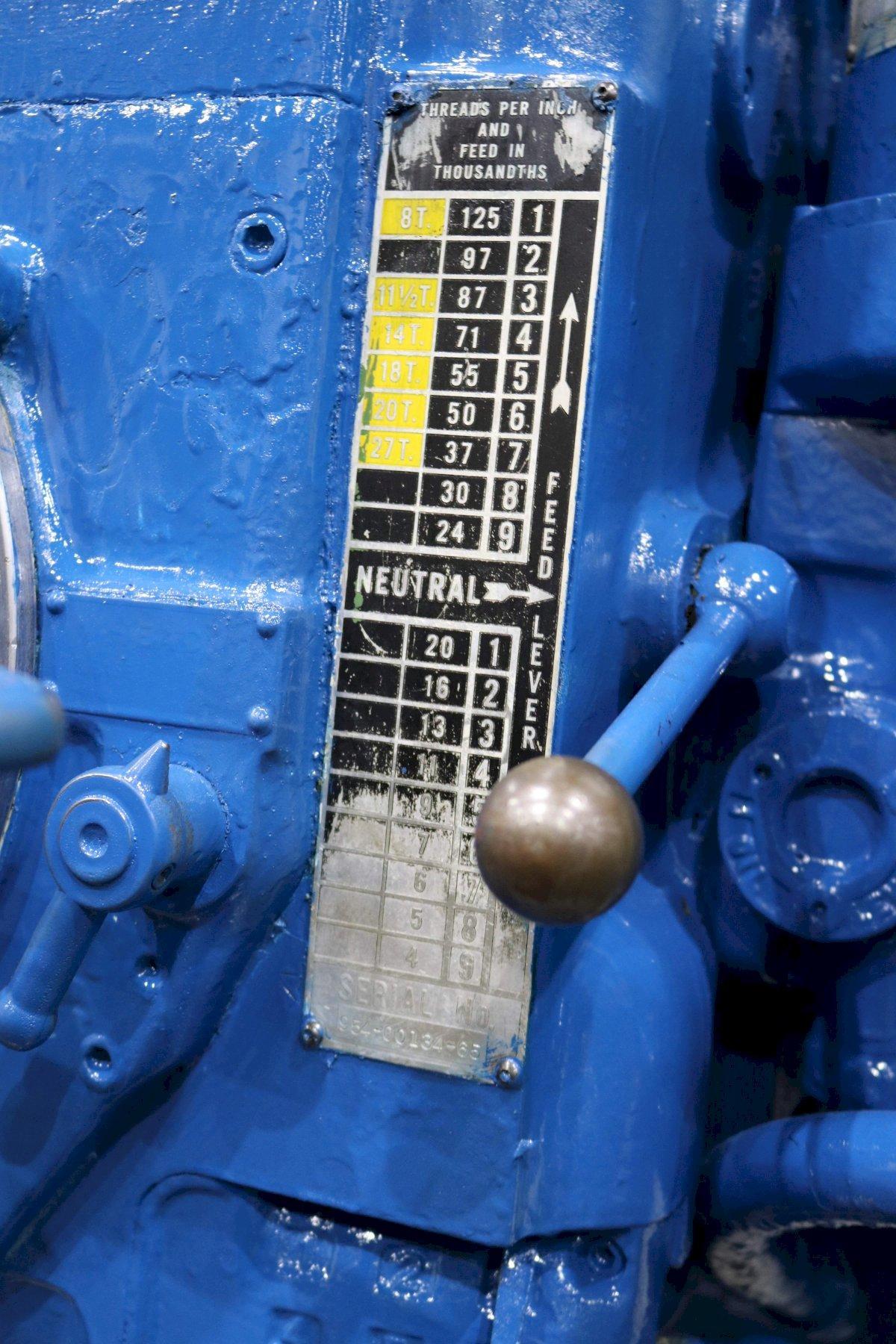

TAP LEADS ........................... 8 TO 27 TPI
POWER ELEVATION ..................... YES
POWER CLAMPING ...................... HEAD & ARM
RAPID TRAVERSE ...................... YES
COOLANT ............................. YES

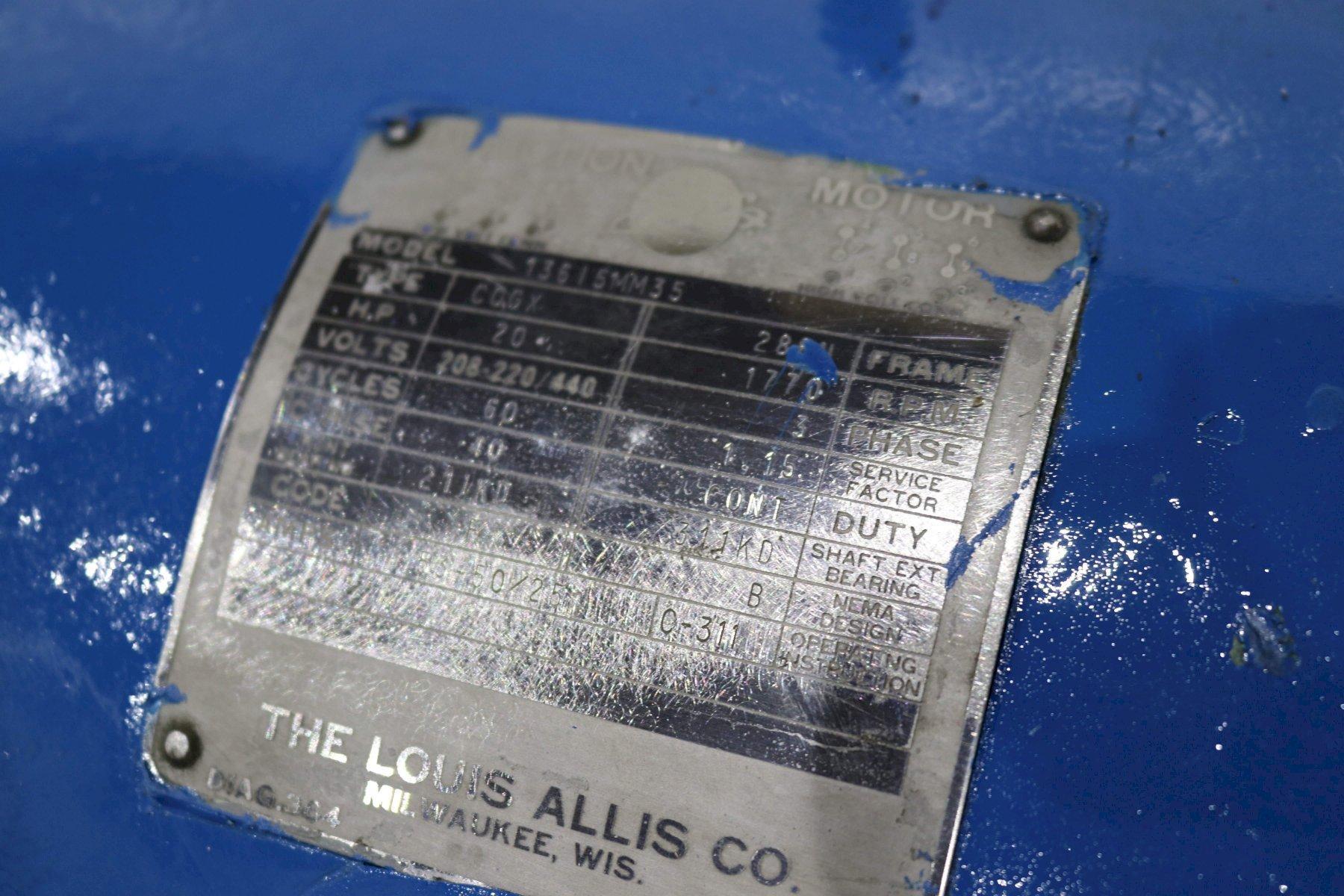

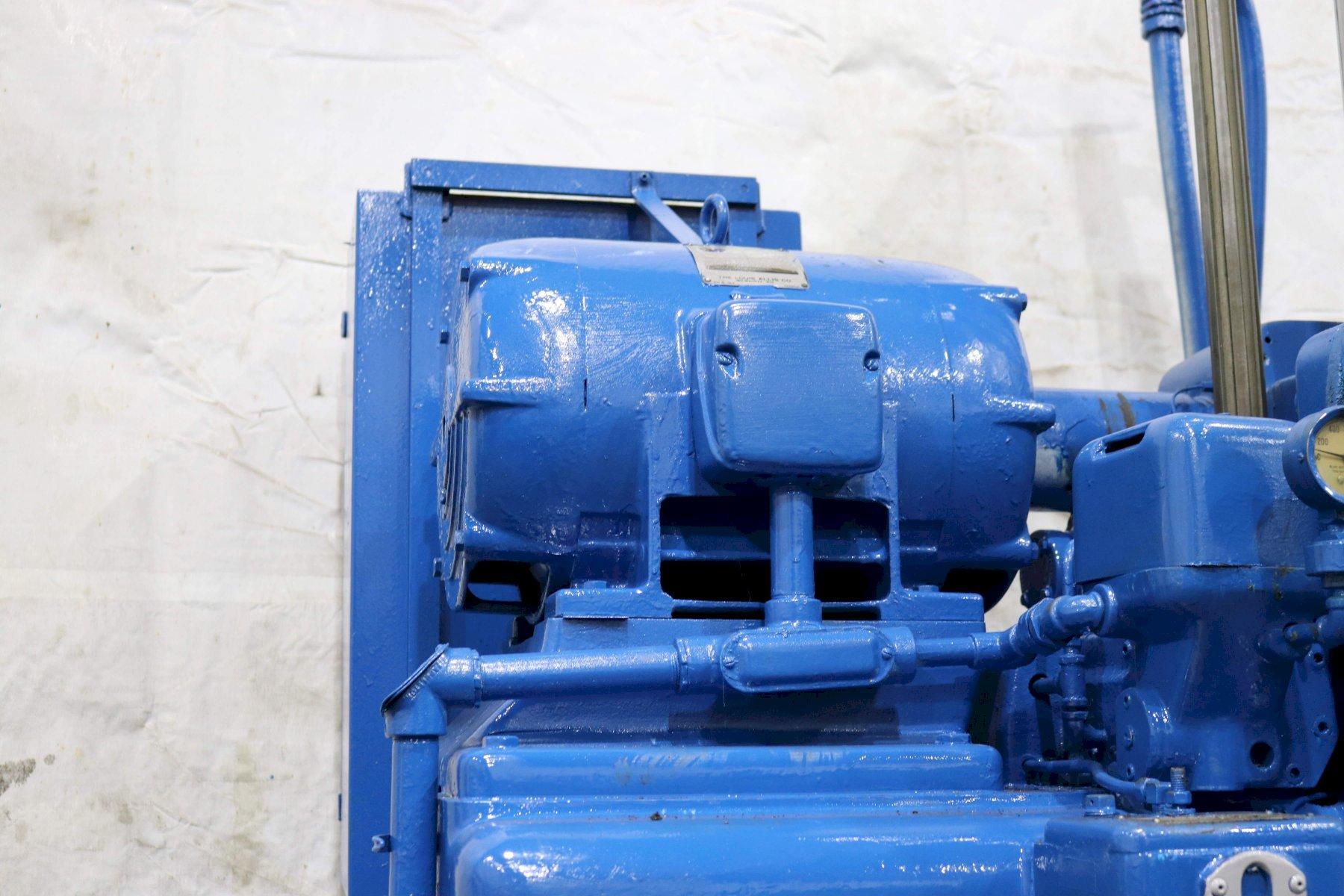

HORSEPOWER MAIN MOTOR ............... 20
