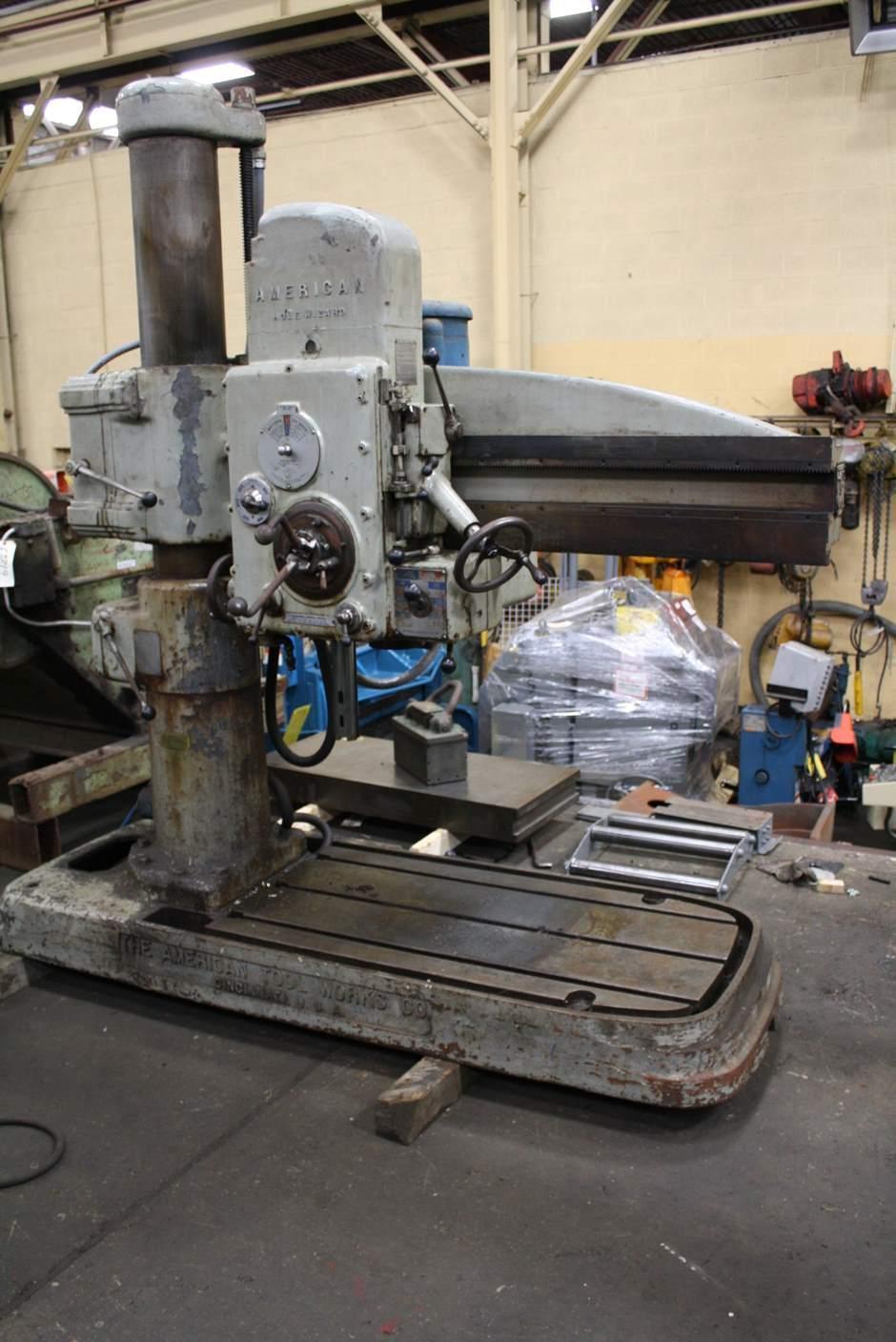

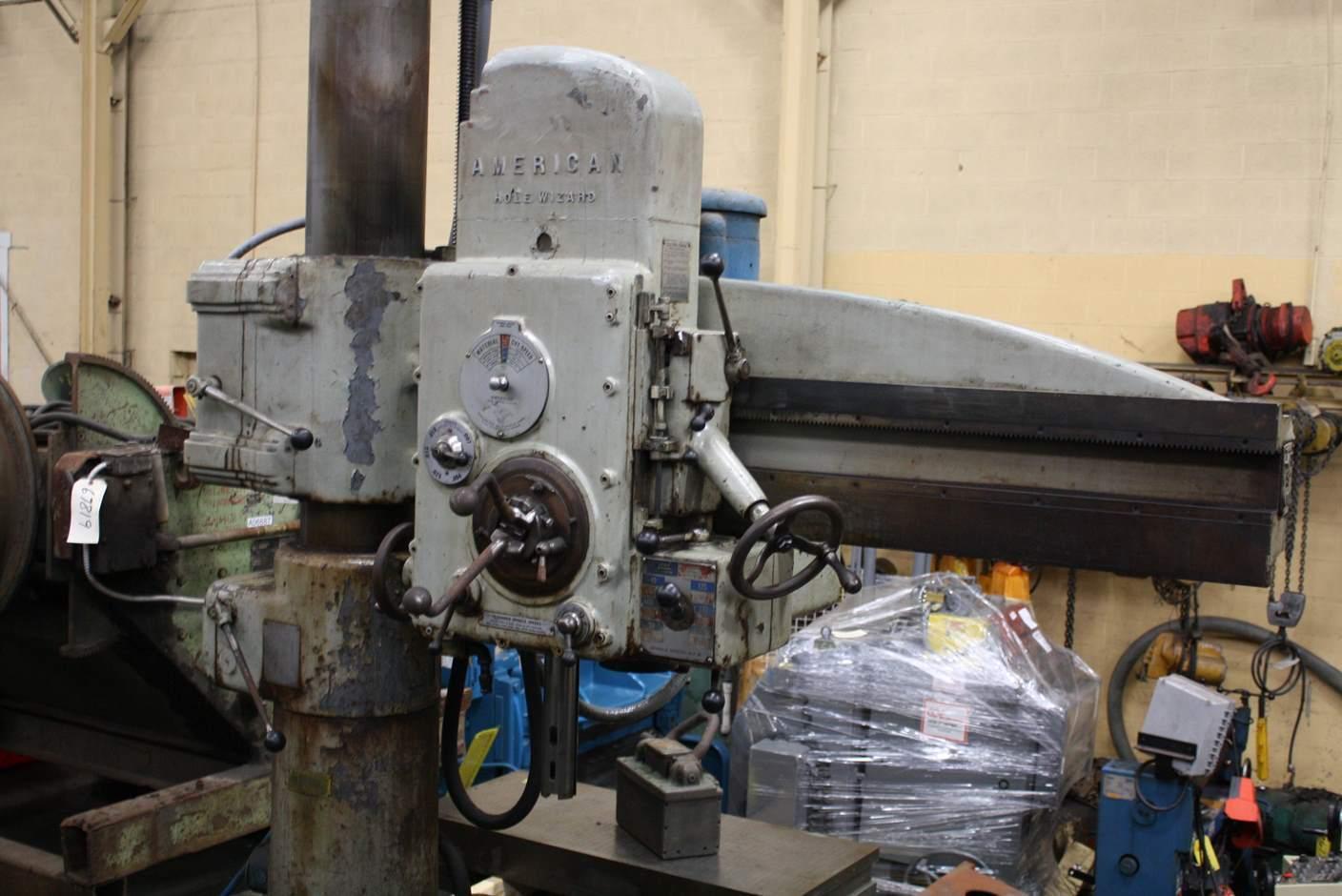

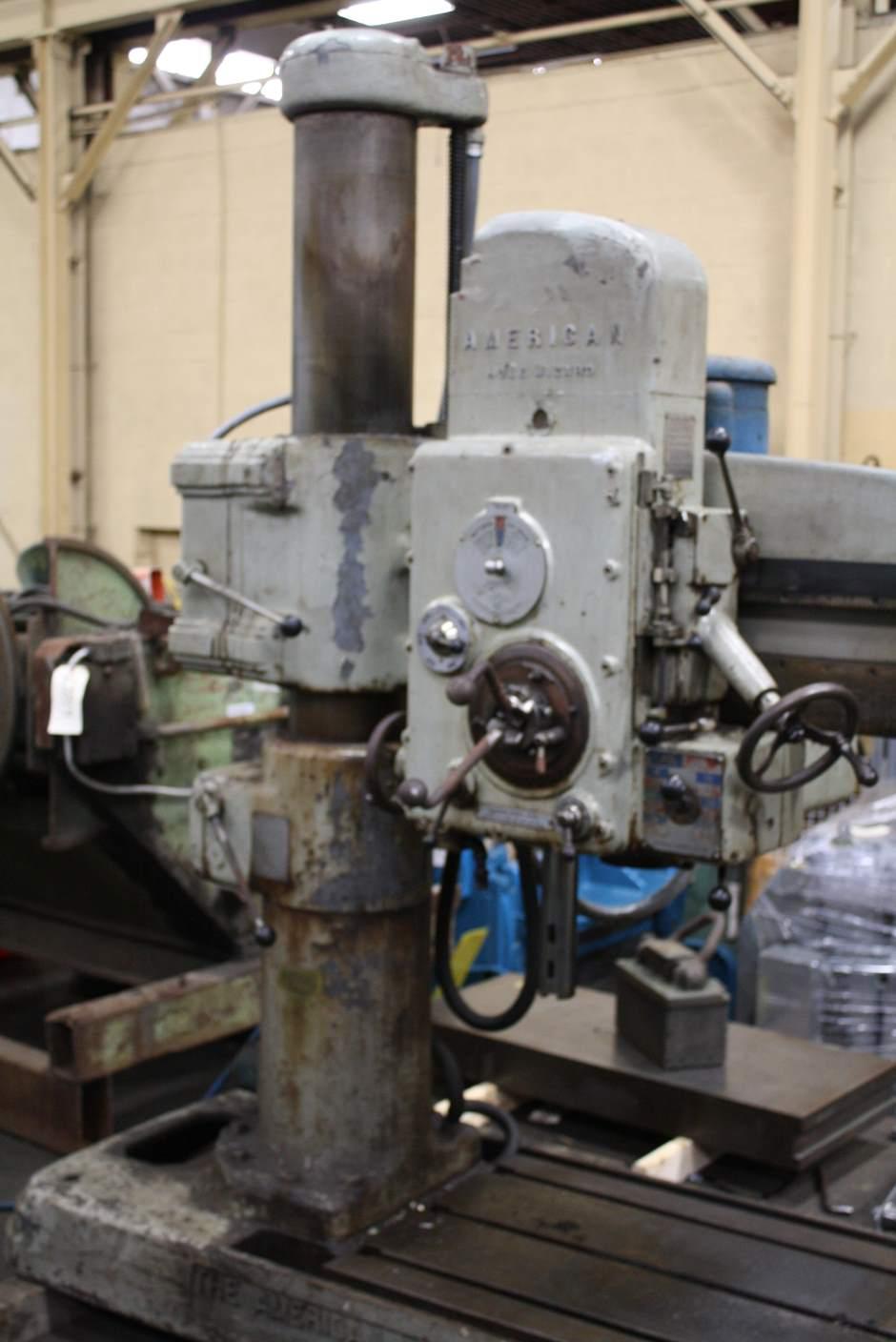

4' X 9' AMERICAN HOLE WIZARD RADIAL DRILL: STOCK #67708

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

67708

Model

04 X 09

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ 75946-58
MODEL ............................. HOLE WIZARD
ARM LENGTH ........................ 4'
COLUMN DIAMETER ................... 9"
AREA OF BASE ...................... 53" X 30"
SPINDLE SPEEDS .................... (12) 25 TO 2250 RPM
SPINDLE FEEDS ..................... (6) .004 TO .025 IPR
SPINDLE STROKE .................... 9"
DIAMETER OF SPINDLE ............... 2-1/2"
TAPER IN SPINDLE .................. #4 MT MORSE
DISTANCE SPINDLE TO COLUMN ........ 11" MIN 48" MAX
DISTANCE SPINDLE TO BASE .......... 16" MIN 56" MAX
VERTICAL ARM TRAVEL ............... 24"
POWER ELEVATION ................... YES
POWER CLAMPING .................... YES
MOTOR ............................. 5 HORSEPOWER
