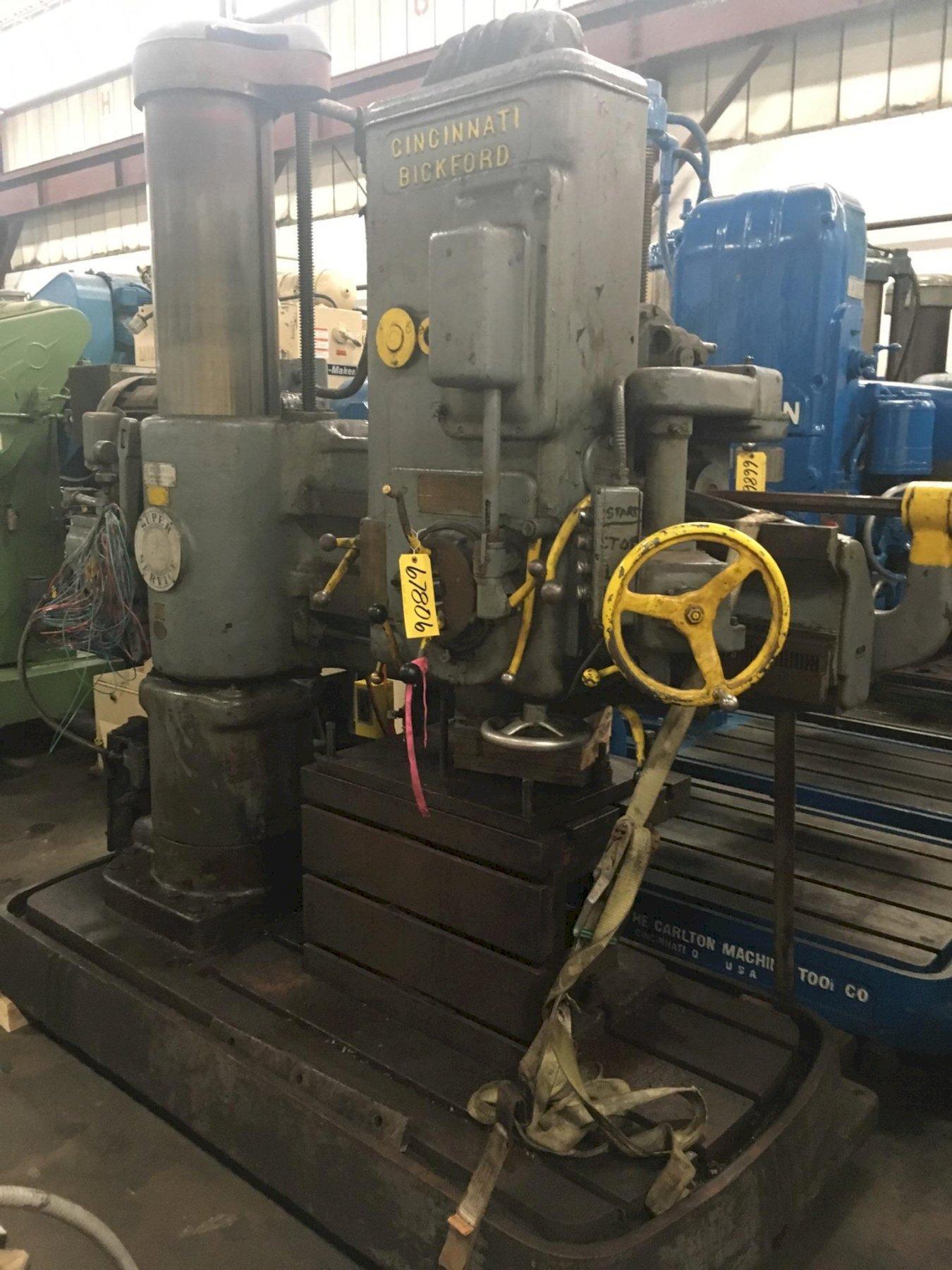

4' X 13' CINCINNATI BICKFORD SUPER SERVICE RADIAL DRILL: STOCK #67806

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

67806

Model

04 x 13

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .......................... 3E-1381
ARM LENGTH X COLUMN DIAMETER .... 4' X 13"
AREA OF BASE (T-SLOTTED) ........ 59" X 42"
SPINDLE SPEEDS .................. (36) 11 TO 1500 RPM
SPINDLE FEEDS ................... (18) .004 TO .024 IPR
SPINDLE STROKE .................. 16"
SPINDLE DIAMETER ................ 3-15/16"
SPINDLE TAPER ................... #5 MT
THREADS ......................... 8, 11-1/2 & 14 TPI
SPINDLE TO COLUMN ............... 12-1/8" MIN. / 48" MAX.
SPINDLE TO BASE ................. 14" MIN. / 60" MAX.
BASE HEIGHT ..................... 9"
ARM ELEVATION ................... POWER
HEAD TRAVERSE ................... POWER
COLUMN CLAMPING ................. POWER
COOLANT ......................... YES
SPINDLE MOTOR ................... 10 HORSEPOWER

No Video Available
