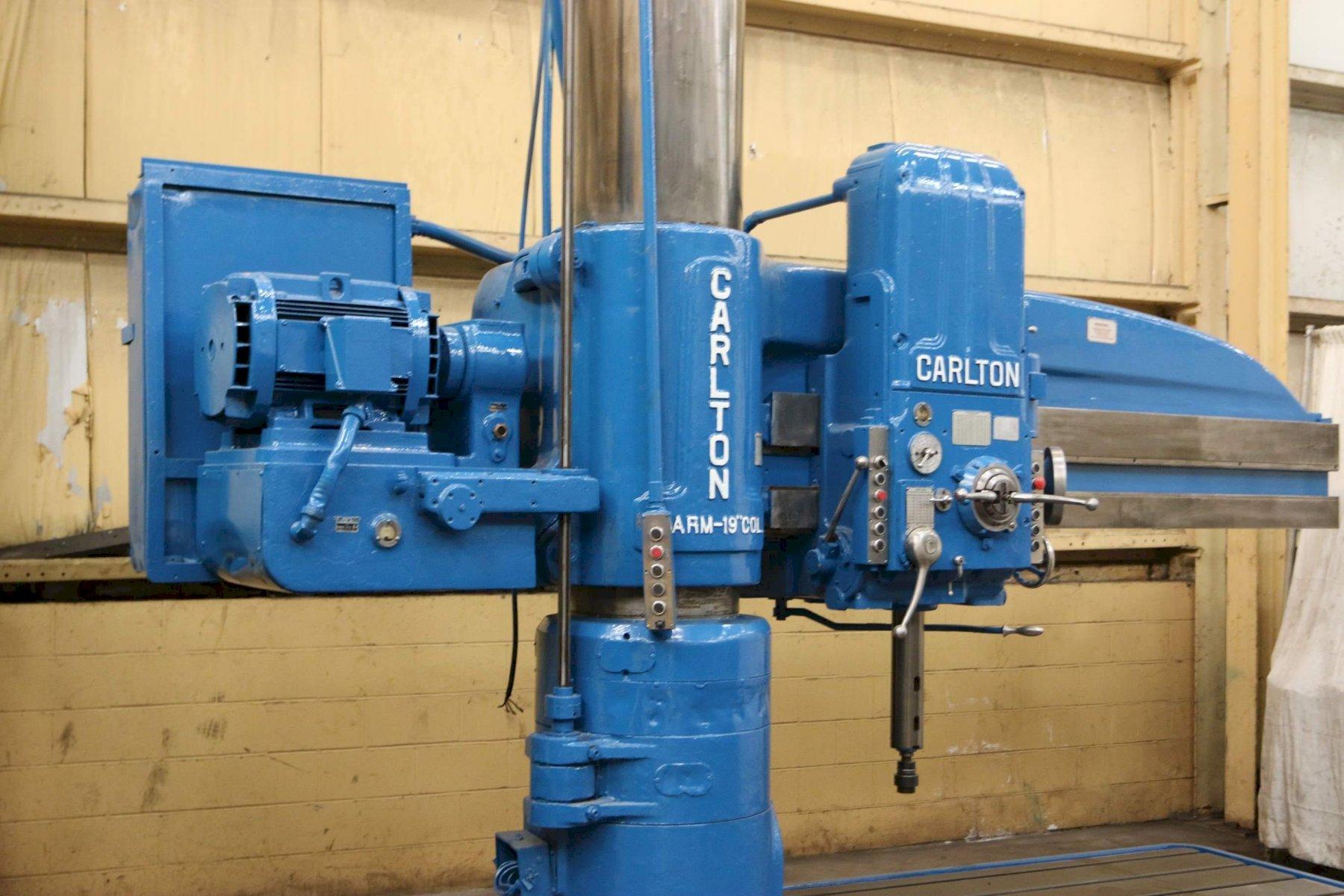

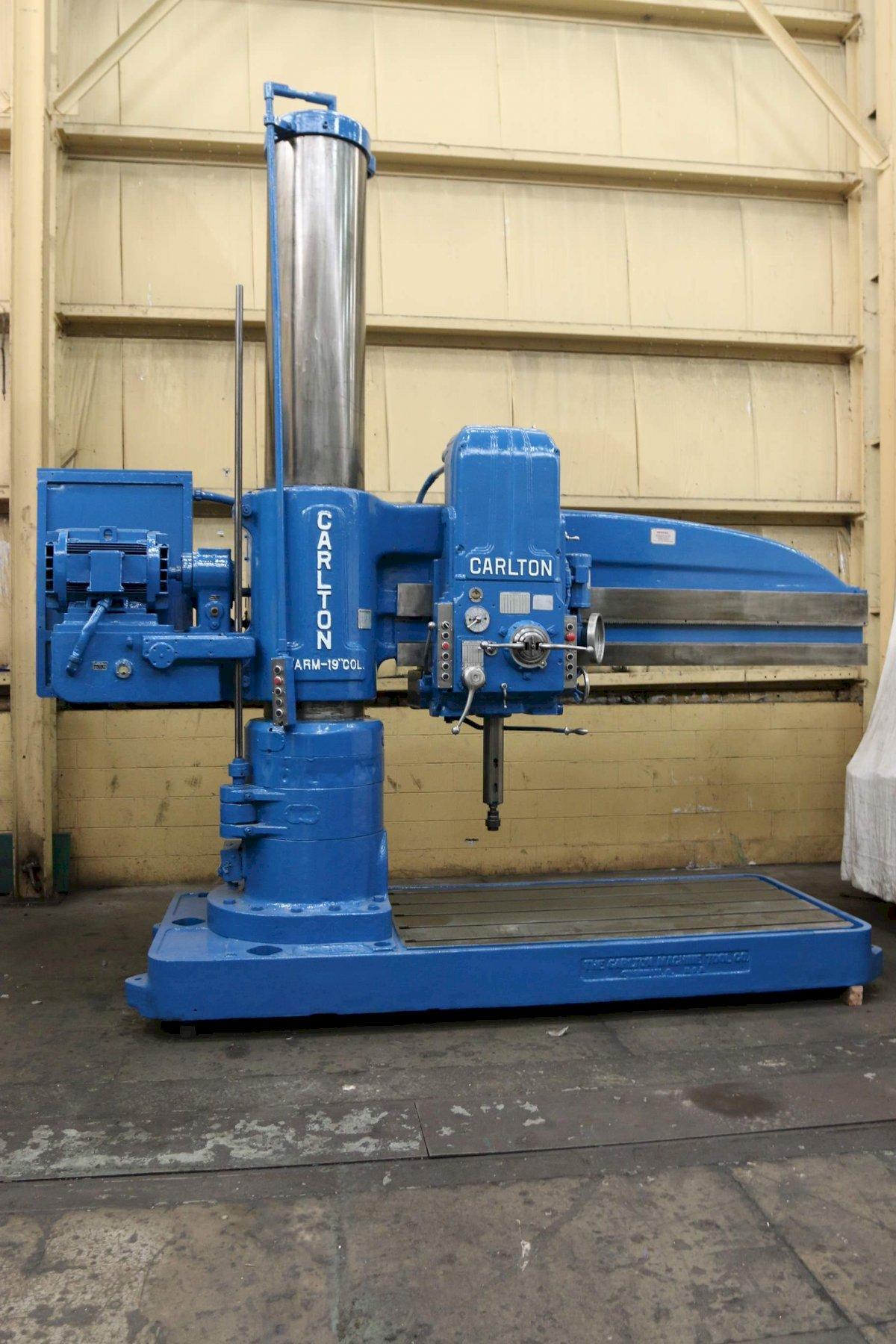

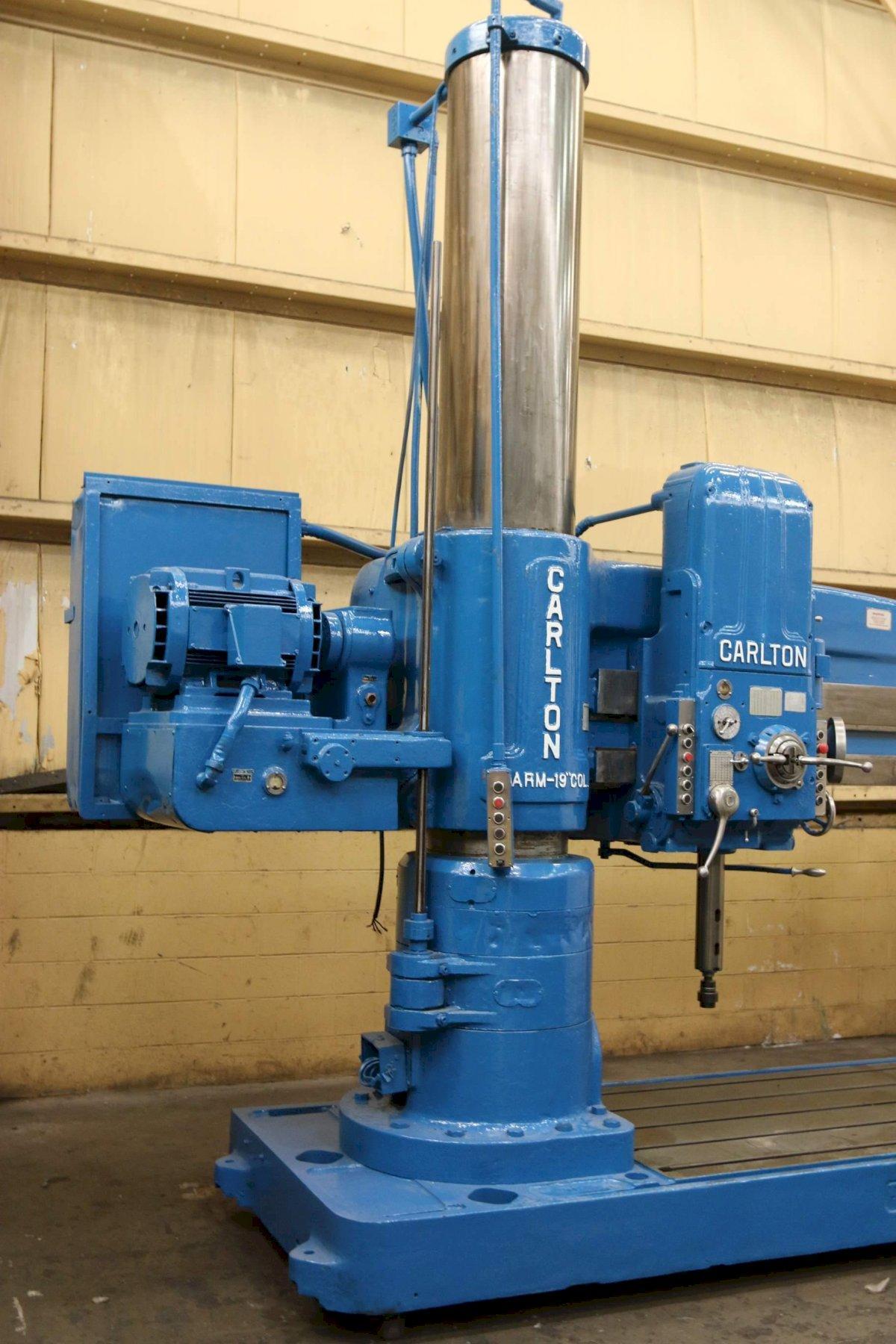

8' X 19" CARLTON RADIAL DRILL: STOCK #68960

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

68960

Model

08 X 19

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 3435
MODEL .............................. 4A

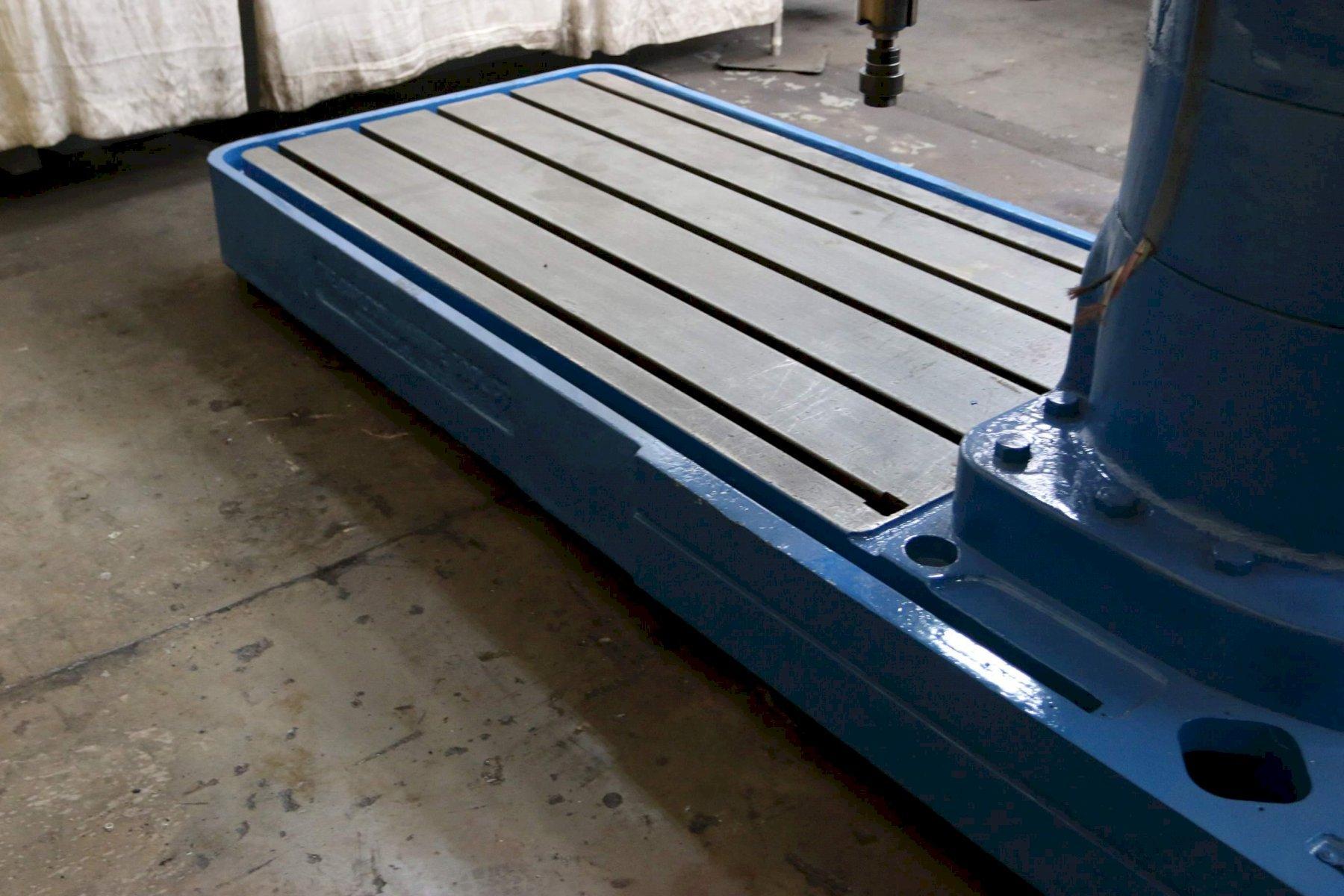

AREA OF BASE DUAL BASE ............. 102" X 58"
SPINDLE SPEEDS ..................... 15 TO 1500 RPM
FEEDS .............................. (18) .004 TO .125 IPR
THREADS ............................ 8,11-1/2,14,18 TPI
DIAMETER OF SPINDLE ................ 4"
SPINDLE TRAVEL ..................... 24"
TAPER IN SPINDLE ................... #MT
DISTANCE SPINDLE TO BASE ........... 40" MINIMUM TO 94" MAXIMUM
DISTANCE SPINDLE TO COLUMN ......... 15" MINIMUM TO 96" MAXIMUM
TRAVEL OF HEAD ON ARM  ............. 81"
TRAVEL OF ARM ON COLUMN ............ 54"
POWER ARM ELEVATION ................ YES
POWER HEAD TRAVERSE ................ YES
POWER CLAMPING ..................... YES
COOLANT ............................ YES
MAIN MOTOR ......................... 30 HP
