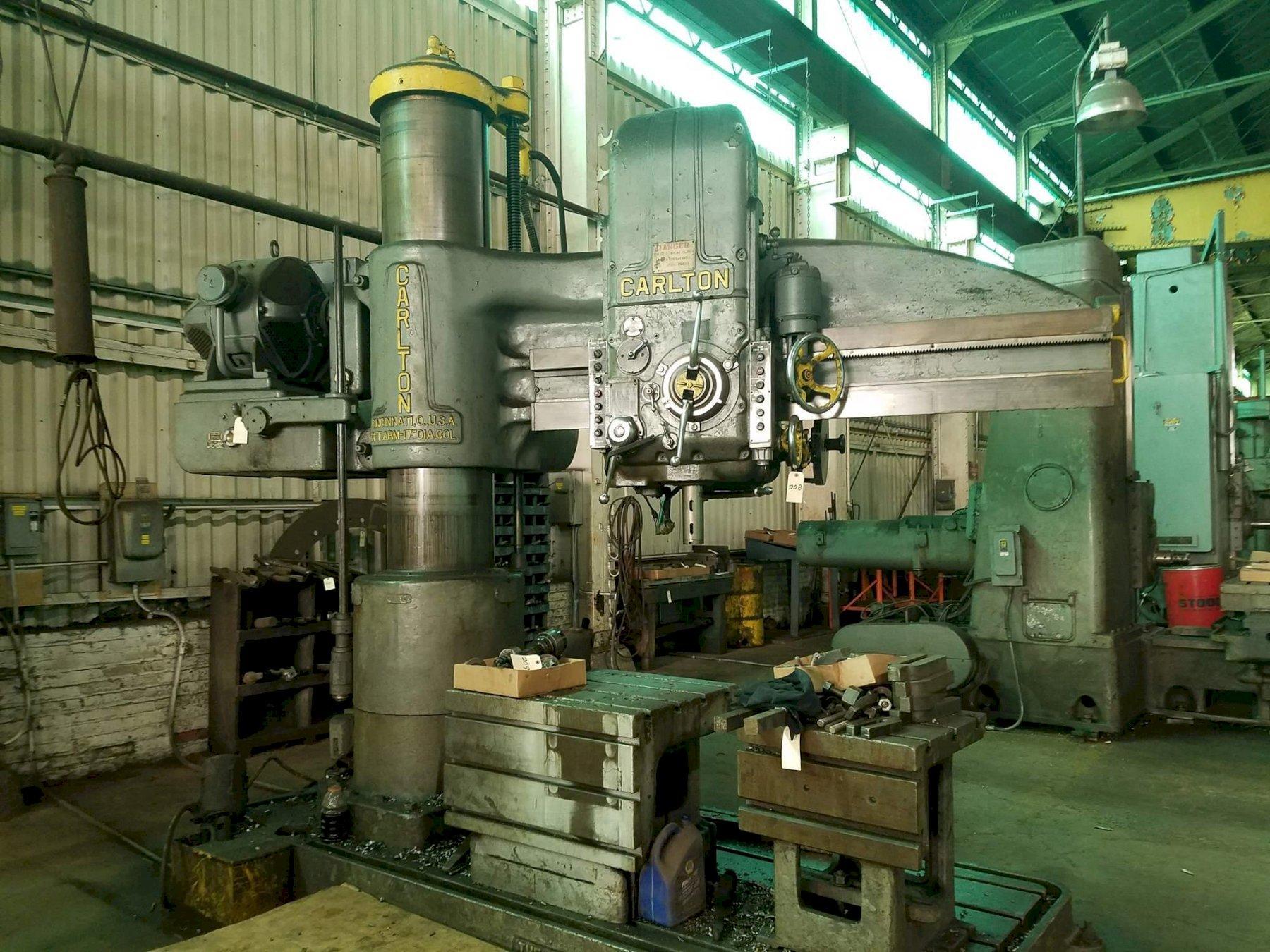

6' X 17" CARLTON RADIAL DRILL: STOCK #68963

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

68963

Model

06 X 17

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ #3A2738
AREA OF BASE .......................... 77" X 48"
SPINDLE SPEEDS ........................ (36) 12 TO 1200 RPM
FEEDS ................................. (18) .004 TO .125 IPR
TAP LEADS ............................. 8, 11-1/2, 14, 18 TPI
DIAMETER OF SPINDLE ................... 4"
TAPER IN SPINDLE ...................... #5 MT
SPINDLE TRAVEL ........................ 18"
DISTANCE SPINDLE TO COLUMN ............ 13-1/4" MINIMUM, 72" MAXIMUM
DISTANCE SPINDLE TO BASE .............. 14-1/2" MINIMUM, 72" MAXIMUM
TRAVEL OF HEAD ON ARM ................. 58-3/4"
TRAVEL OF ARM ON COLUMN ............... 37-1/2"
POWER CLAMPING ........................ YES
POWER ARM ELEVATION ................... YES
POWER HEAD TRAVERSE ................... YES
COOLANT ............................... YES
HORSEPOWER SPINDLE DRIVE MOTOR ........ 15
