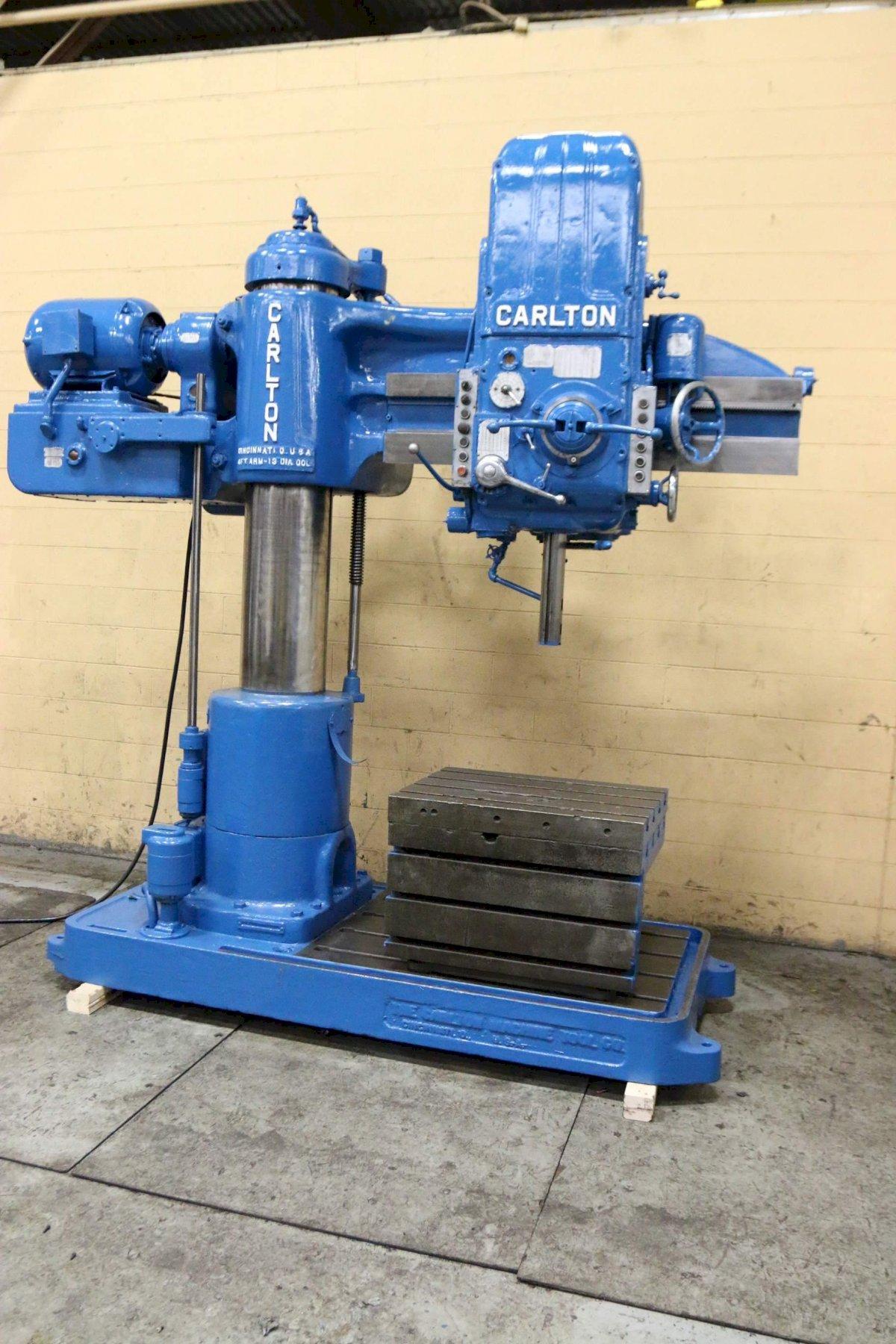

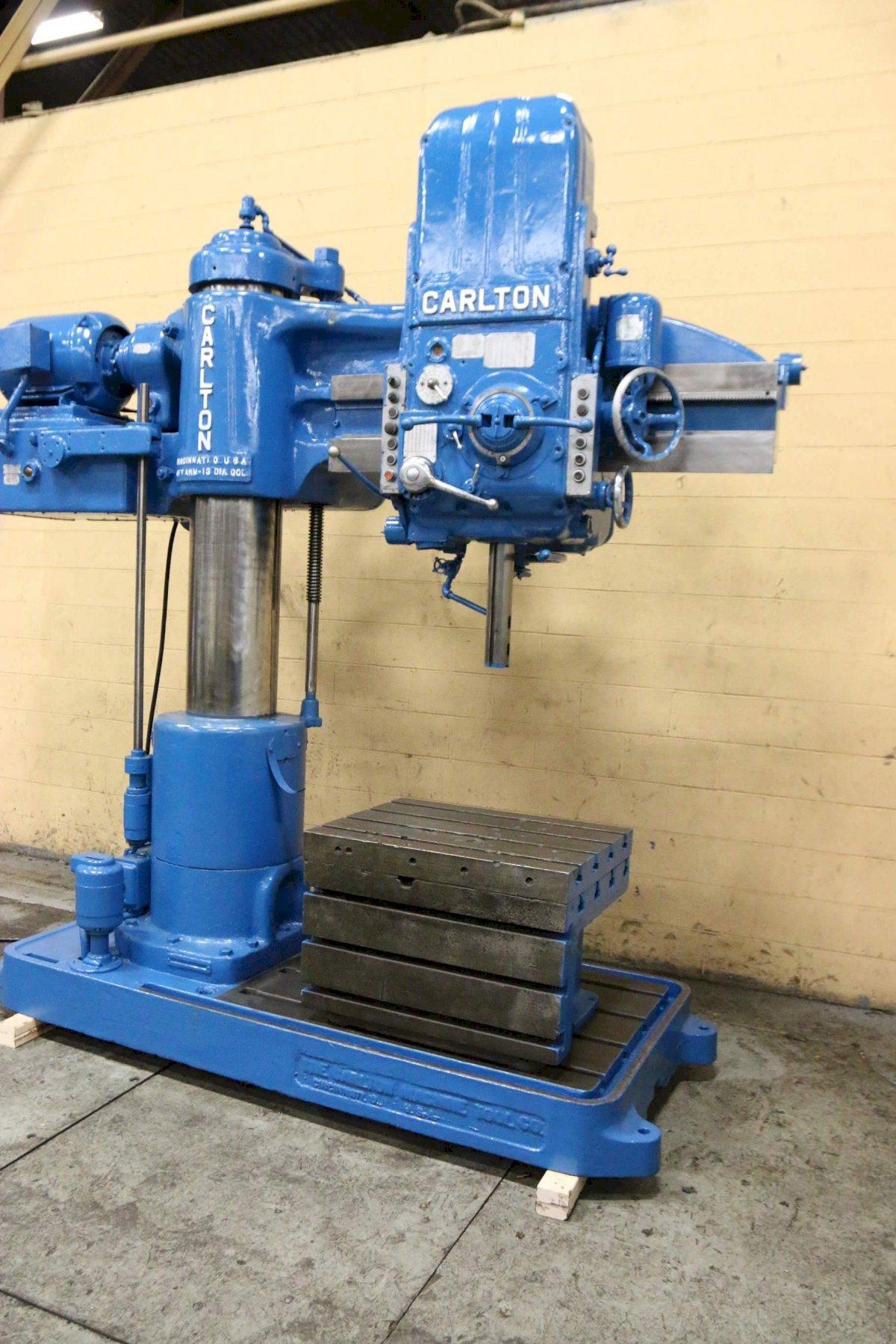

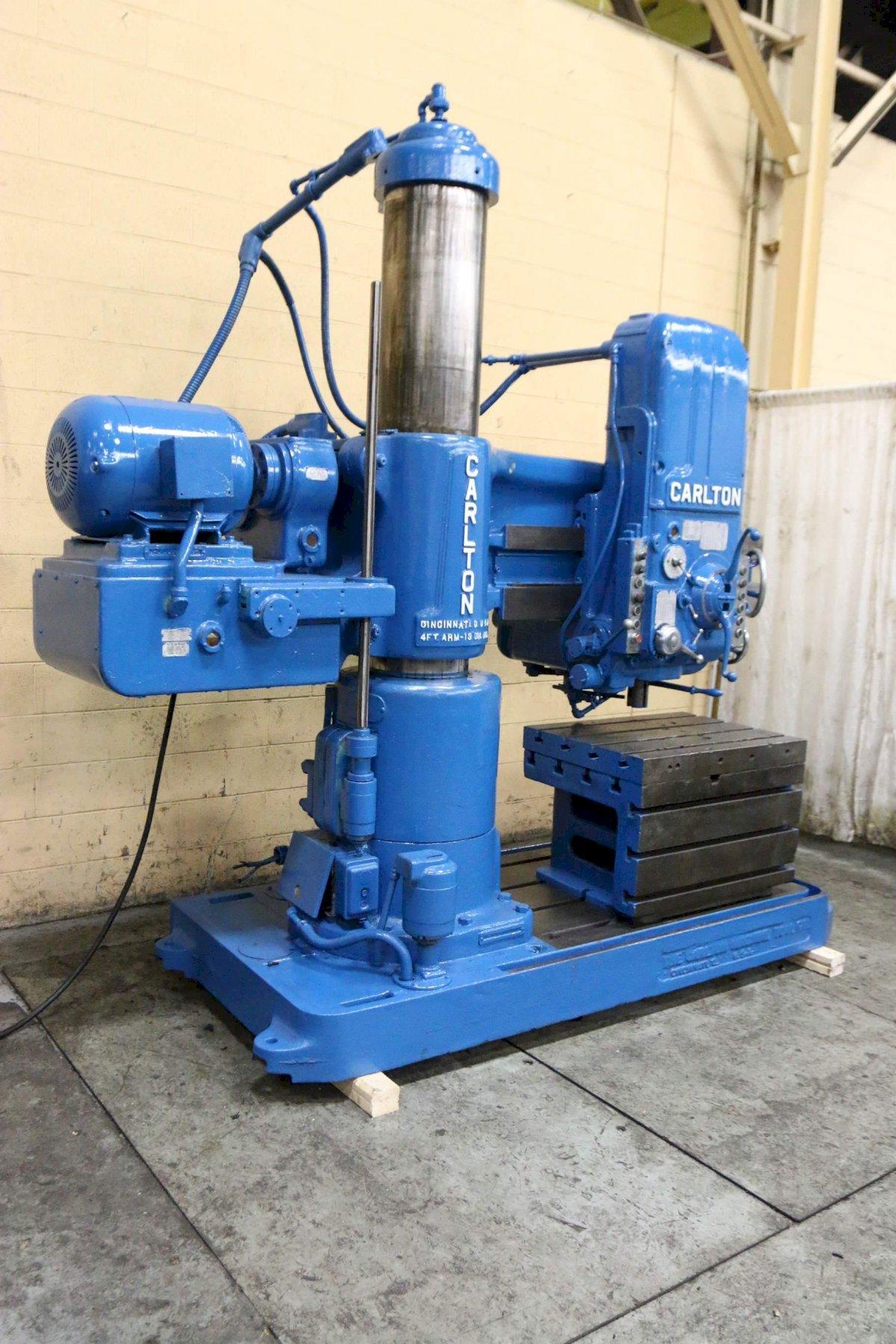

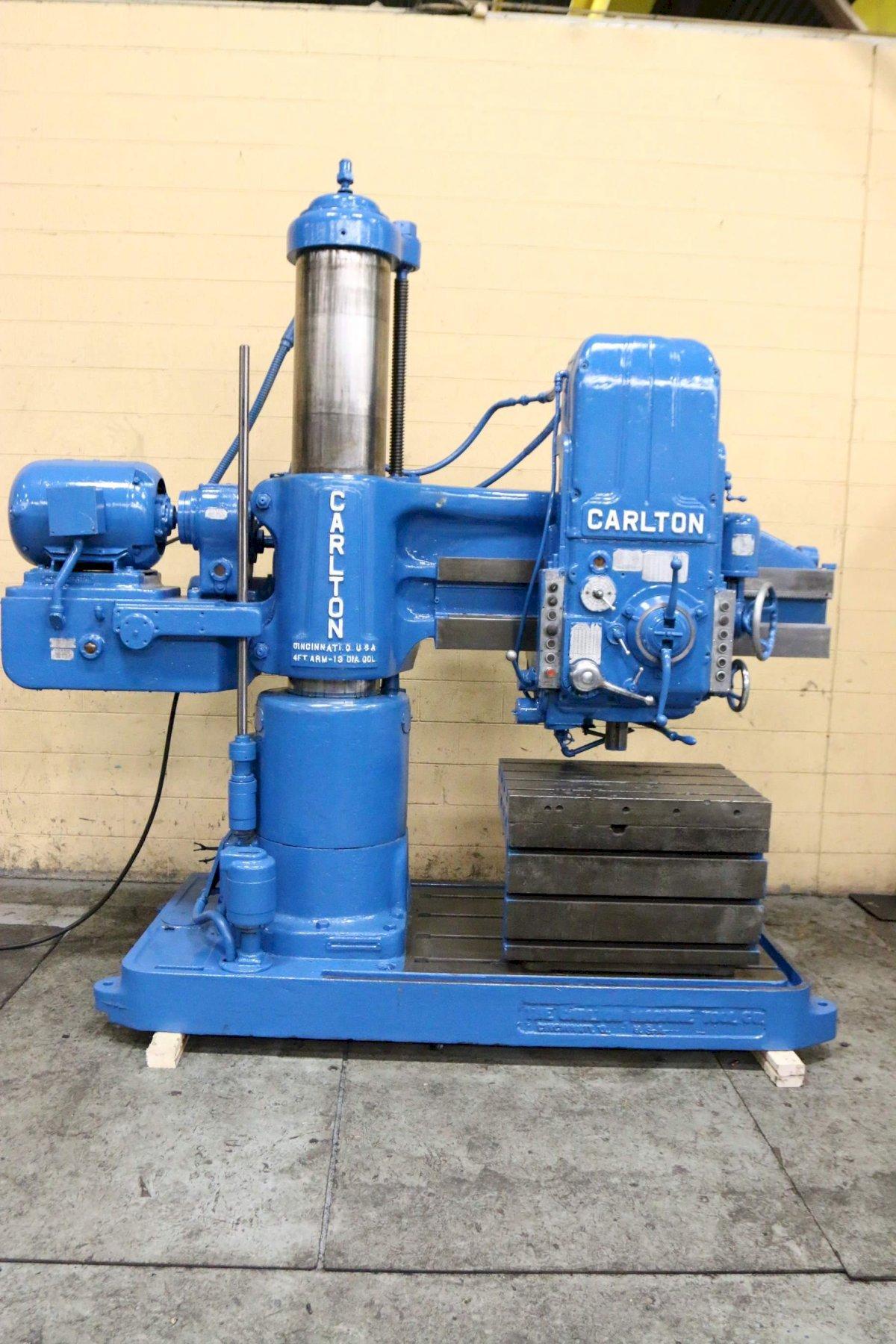

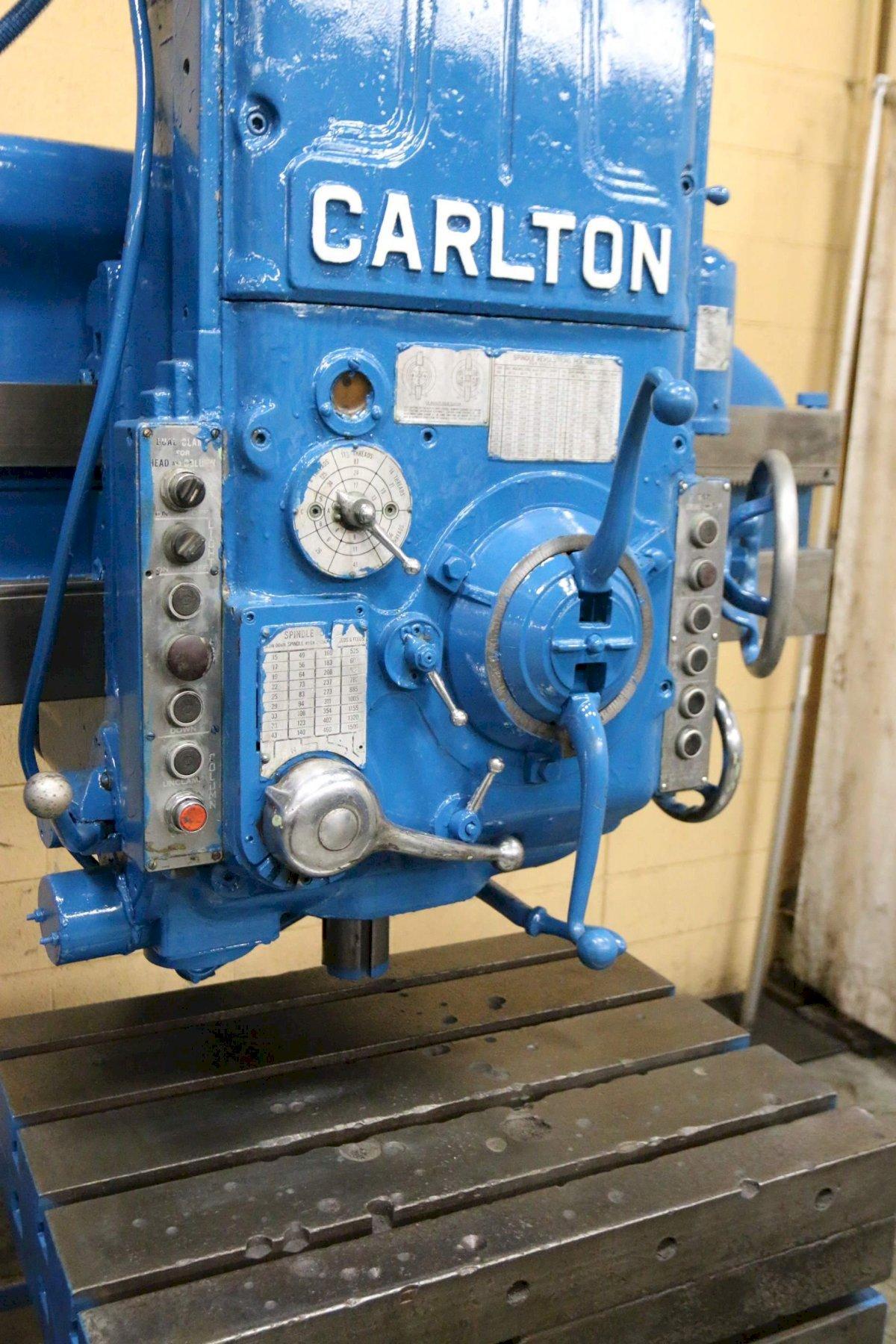

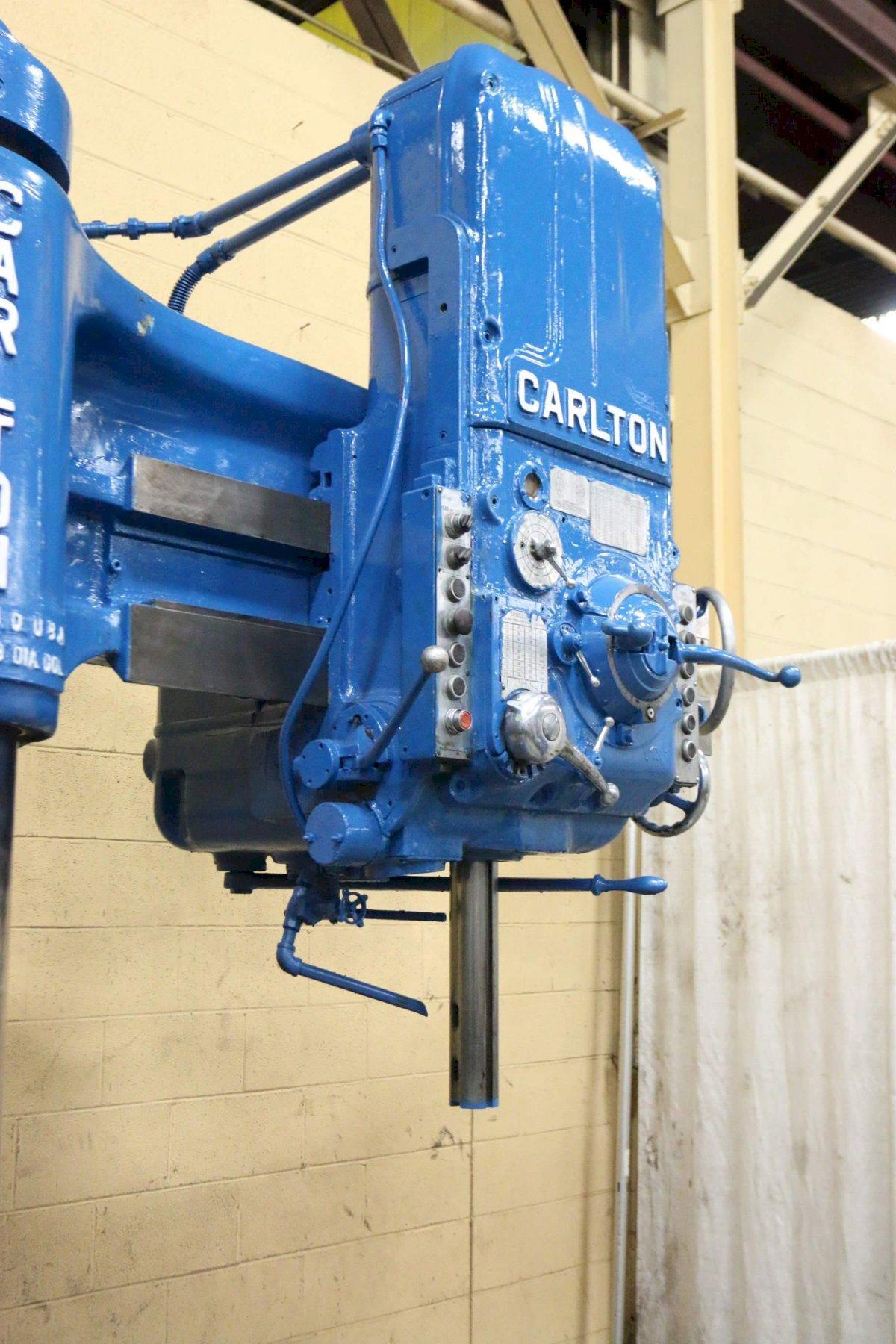

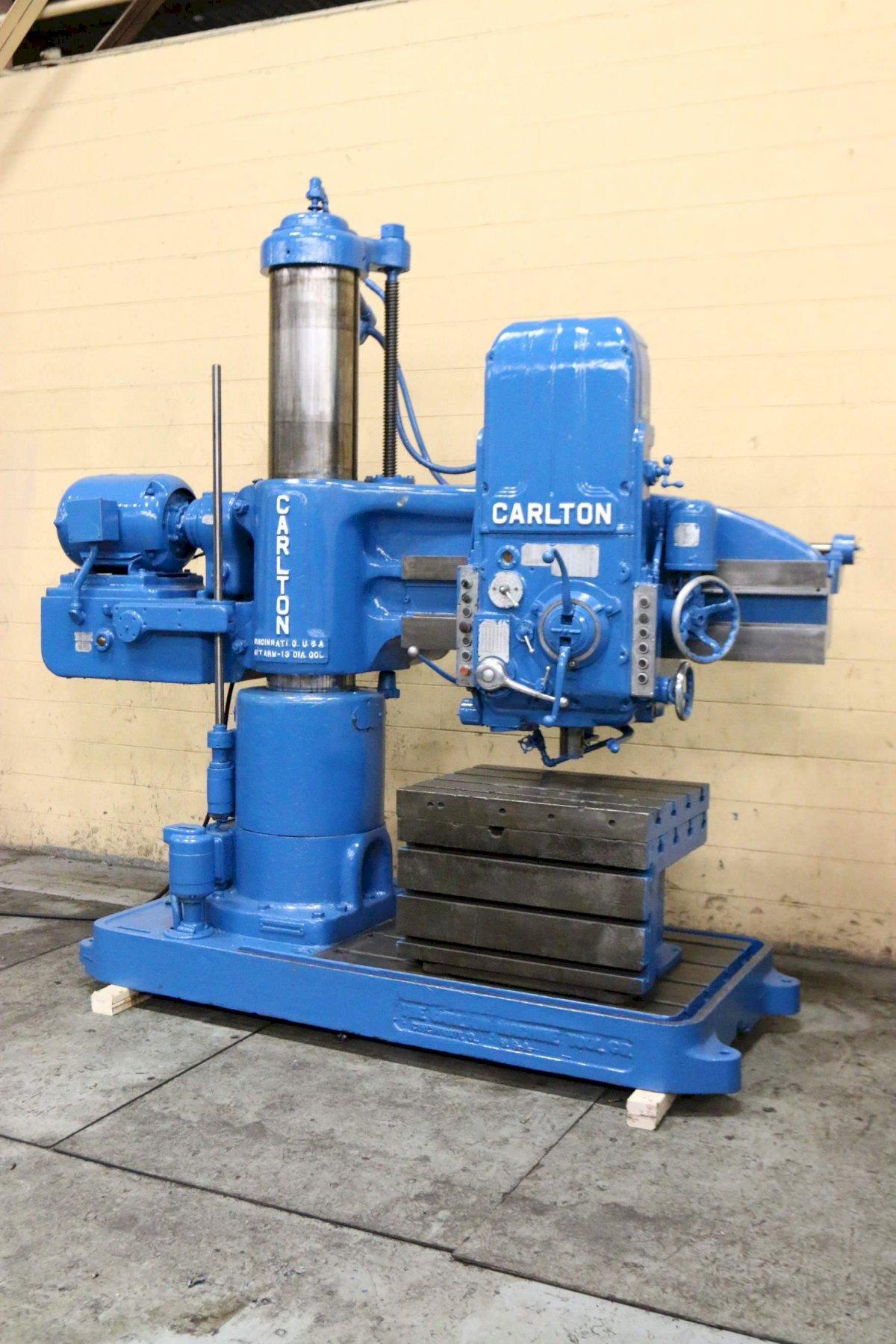

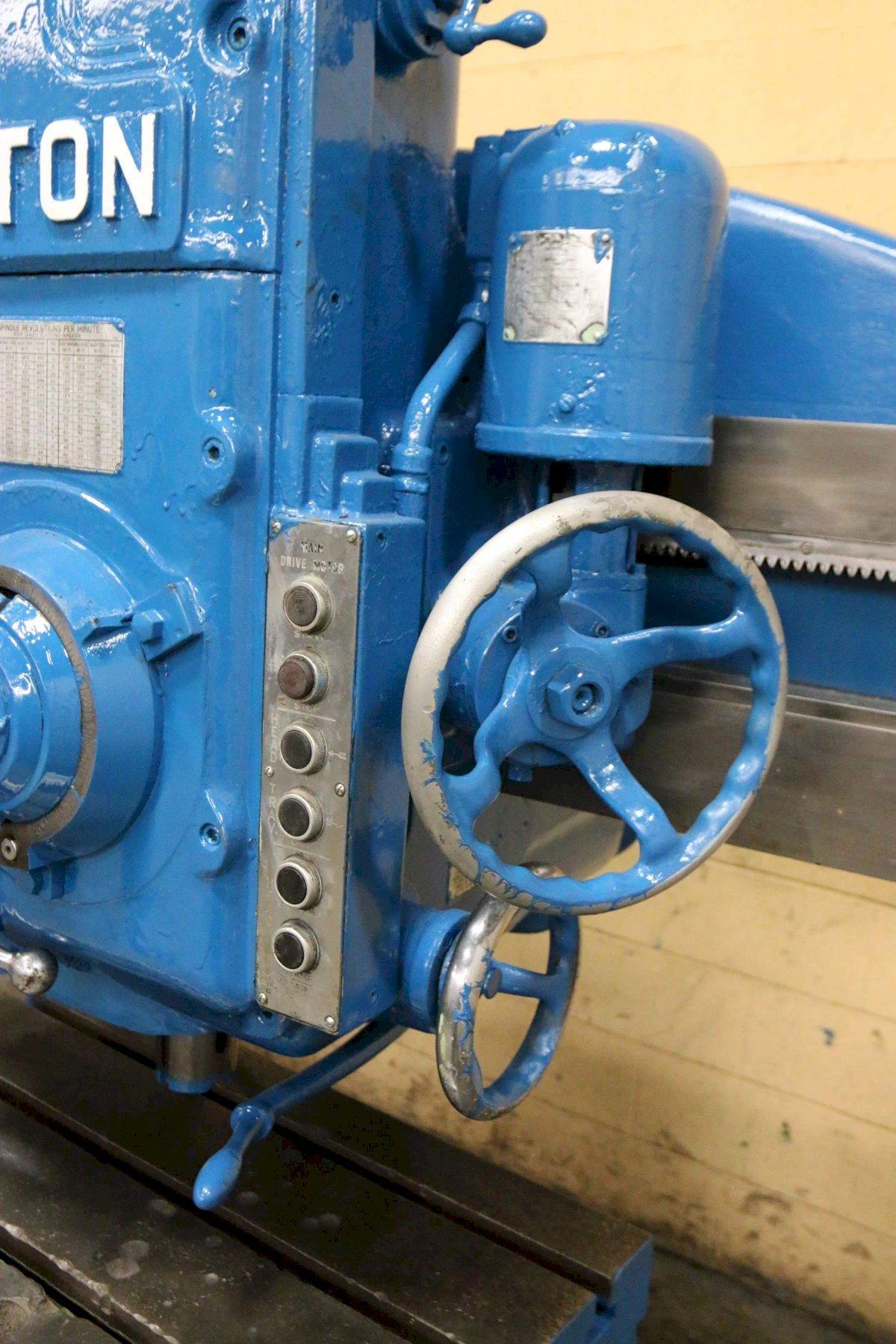

4' X 13' CARLTON RADIAL DRILL: STOCK #69091

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

69091

Model

04 x 13

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .......................... 3A3461
MODEL ........................... 3A

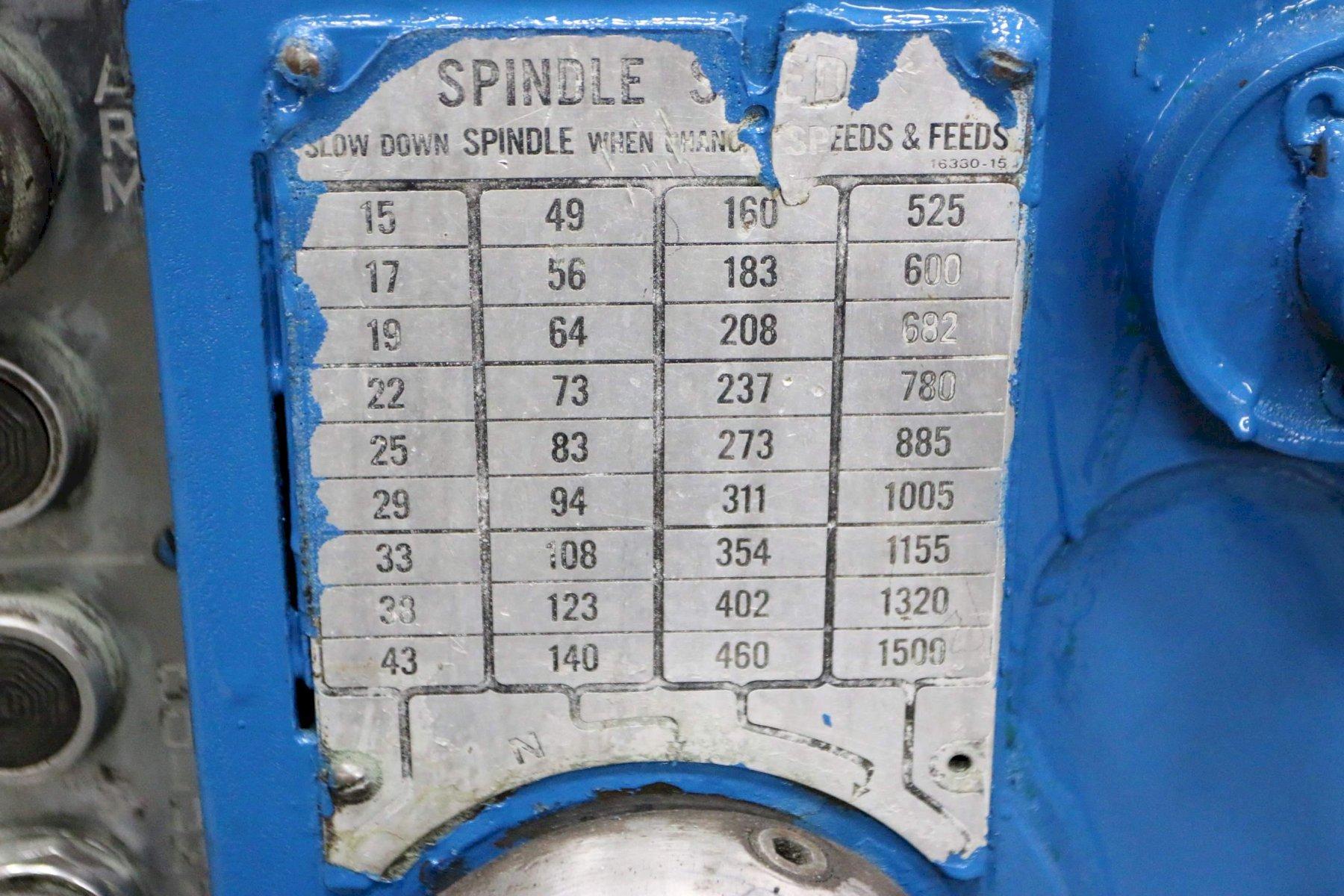

SPINDLE SPEEDS .................. (36) 15 TO 1500 RPM

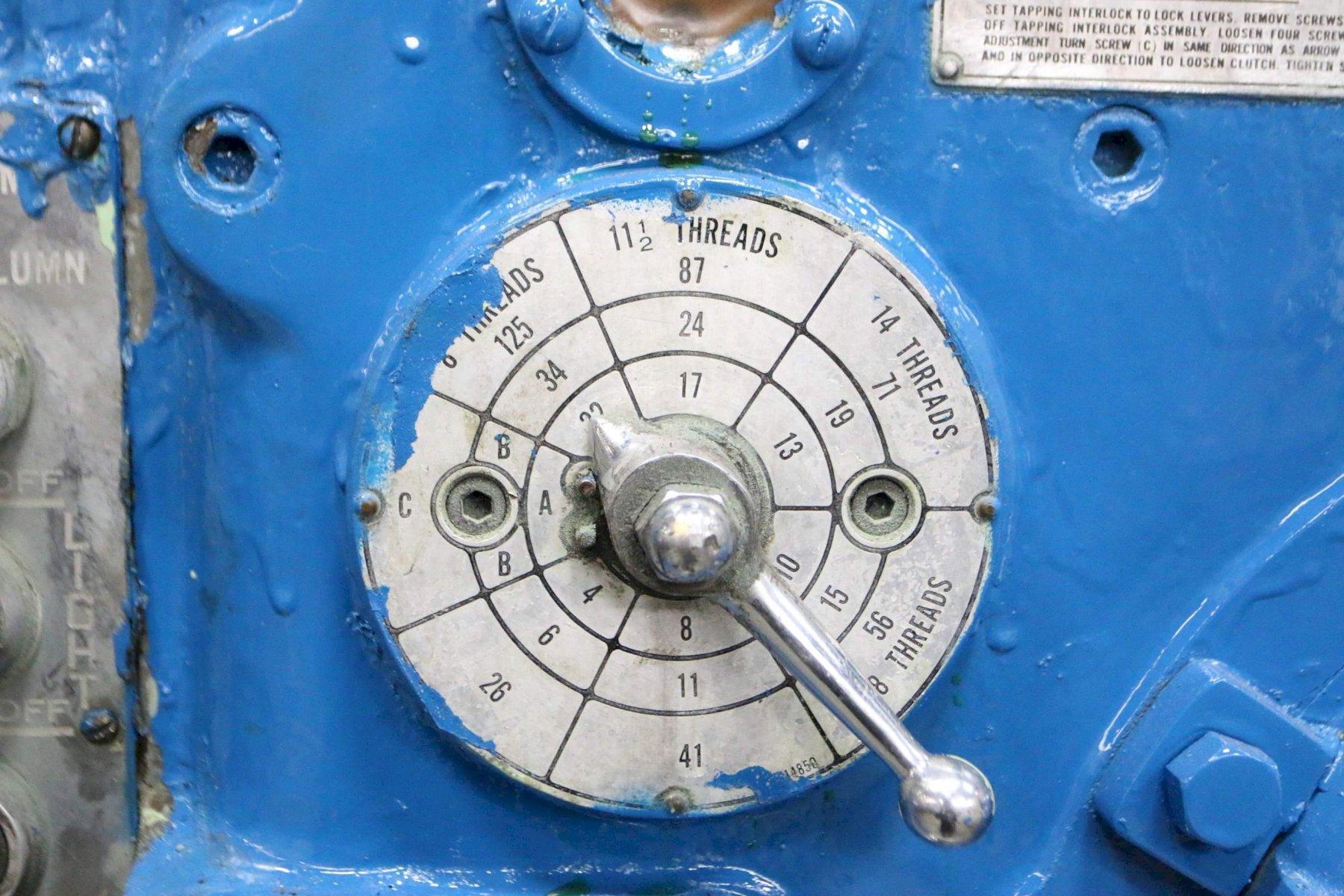

FEEDS ........................... (18) .004" TO .125"
SPINDLE TRAVEL .................. 18"
DIAMETER OF SPINDLE ............. 3-3/16"
TAPER IN SPINDLE ................ #5MT
CENTER OF SPINDLE TO COLUMN ..... 15" MIN, 4' MAX
DISTANCE SPINDLE TO BASE ........ 10-1/2" MIN, 5' MAX

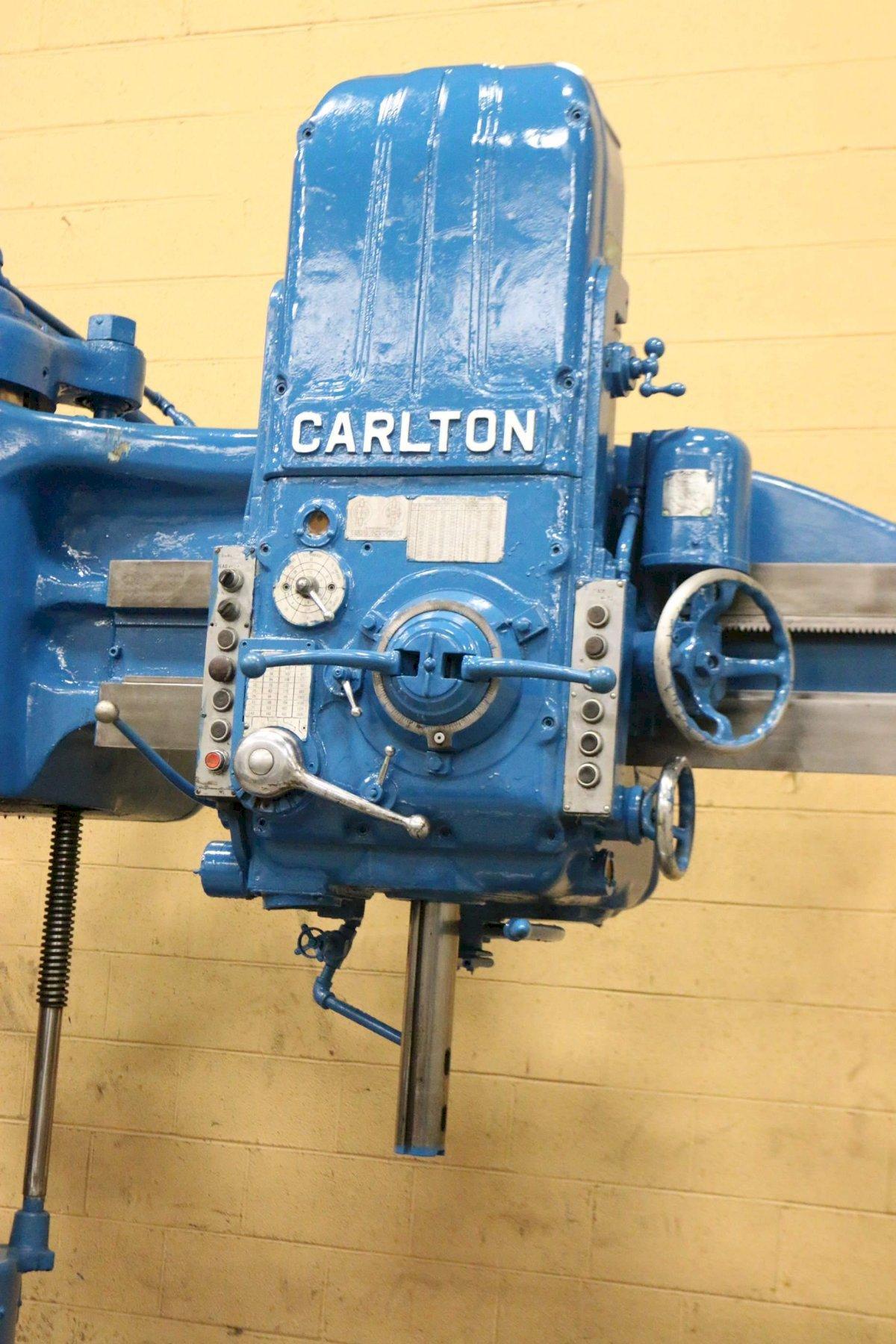

TRAVEL OF HEAD ON ARM ........... 2'9"
TRAVEL OF ARM ON COLUMN ......... 2'7-1/2"
POWER ELEVATION ................. YES
POWER COLUMN CLAMP .............. YES
COOLANT ......................... YES

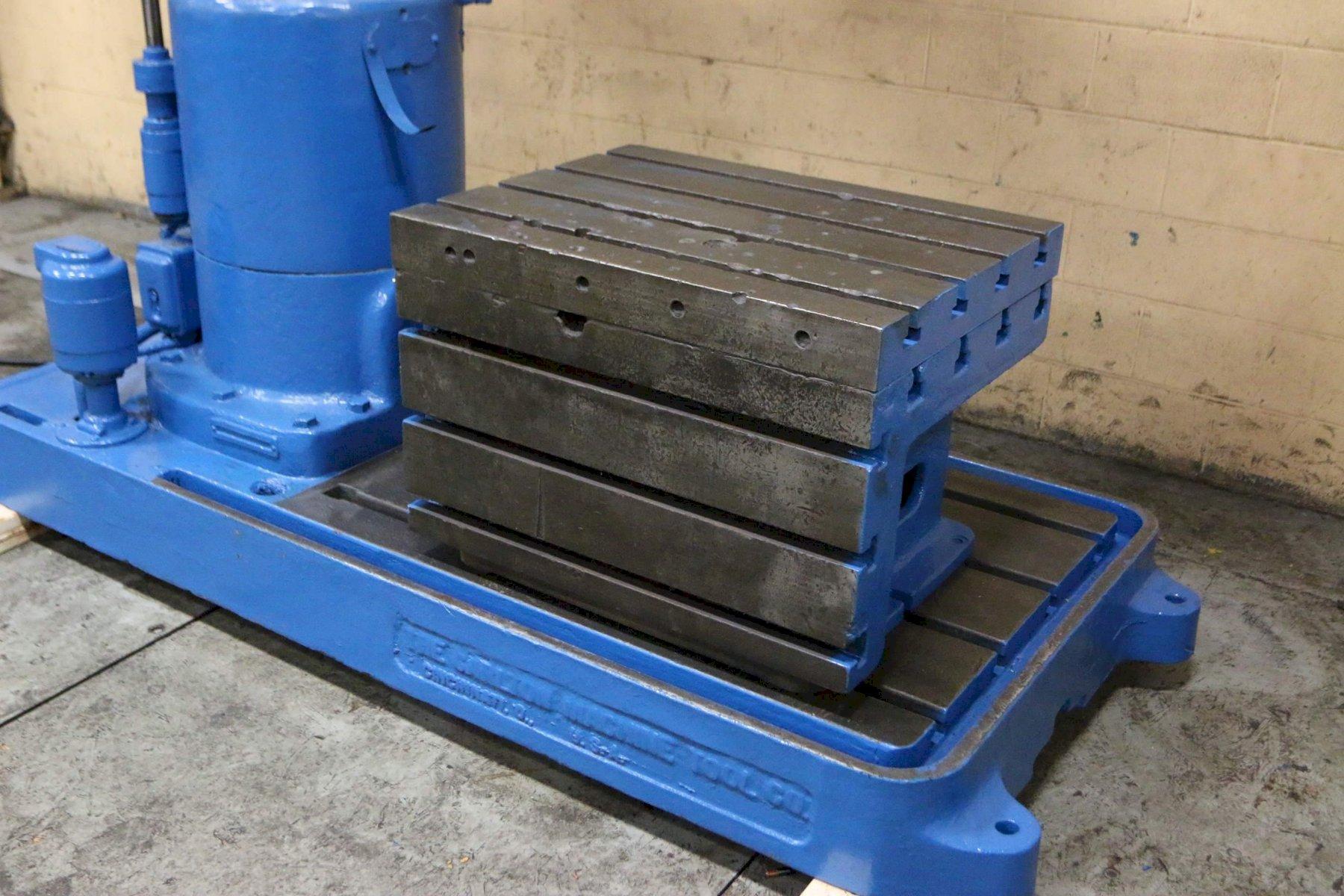

DRILL TABLE ..................... 33" X 25" X 24"
SPINDLE MOTOR ................... 10 HORSEPOWER
