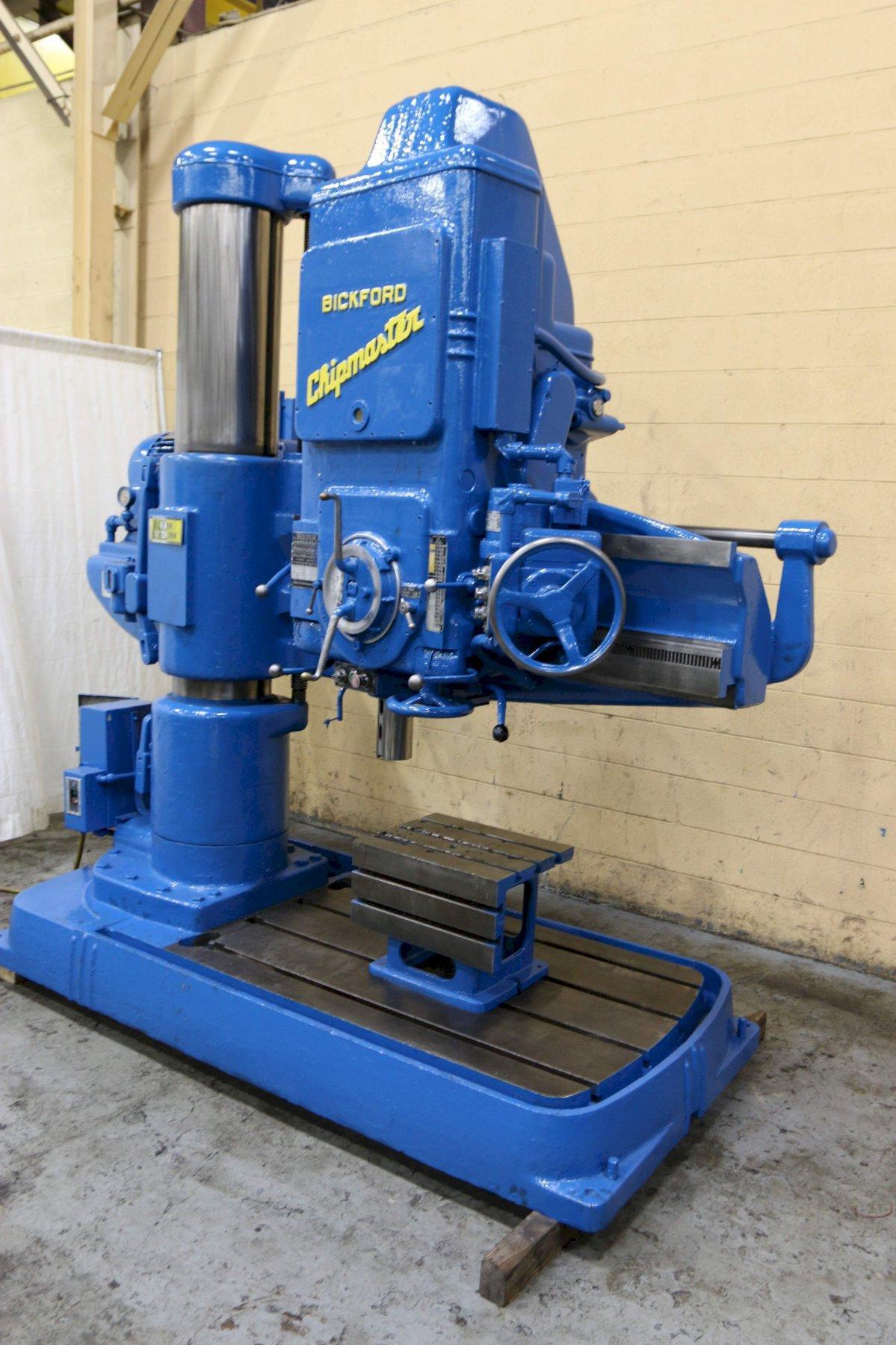

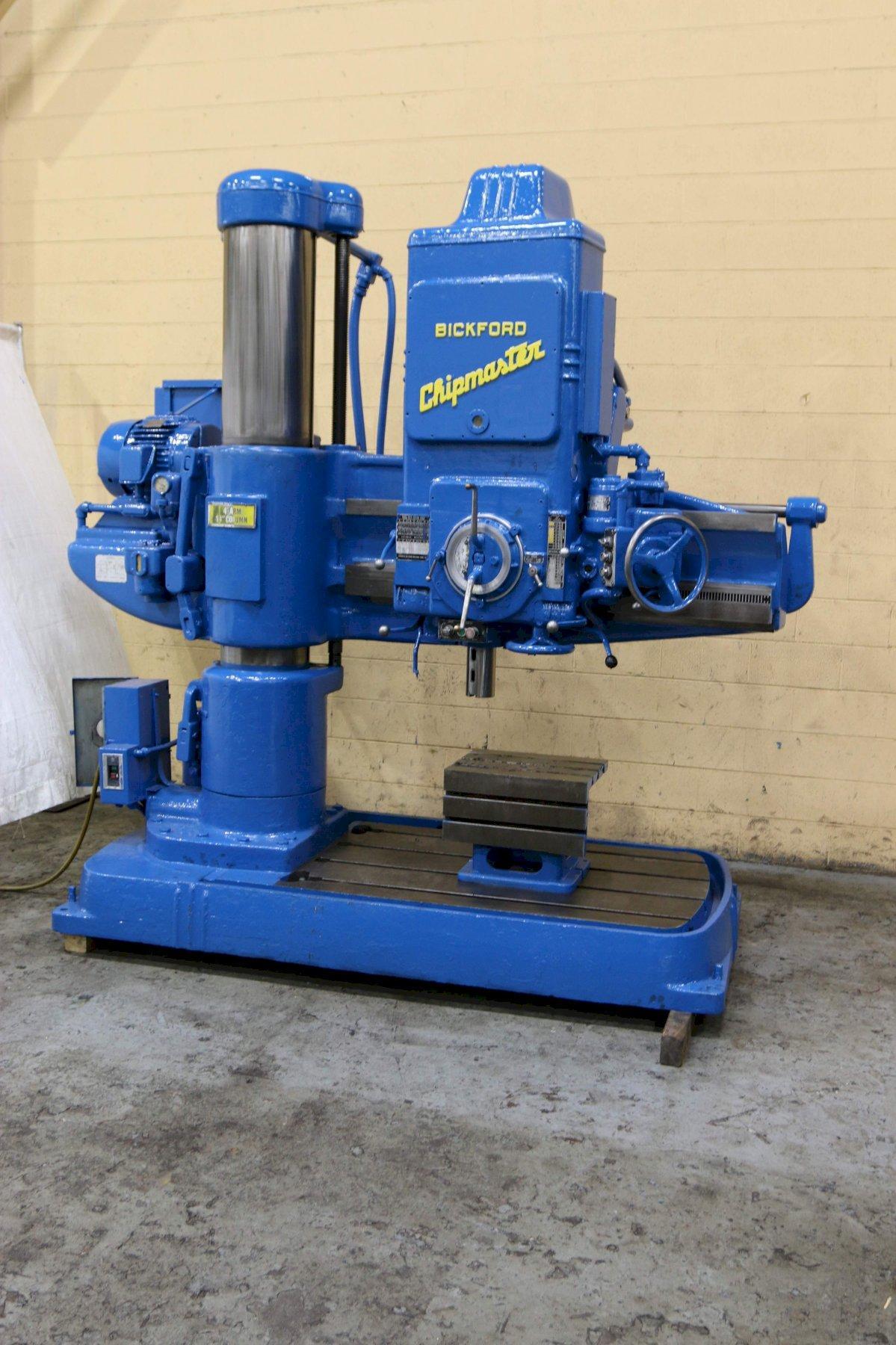

4' X 13' GIDDINGS & LEWIS BICKFORD MODEL #953 RADIAL DRILL: STOCK 70912

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

70912

Model

04 x 13

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ 953-00199-68
MODEL ............................. 953 CHIPMASTER
SIZE .............................. 4' ARM X 13" COLUMN
AREA OF BASE (T-SLOTTED) .......... 59" X 42"
SPINDLE SPEEDS .................... (18) 100 TO 1500 RPM
SPINDLE FEEDS ..................... (18) .004 TO .125 IPR
THREADS ........................... (6) 8 TO 27 TPI
SPINDLE STROKE .................... 20"
SPINDLE DIAMETER .................. 3-15/16"
SPINDLE TAPER ..................... #4 MT
SPINDLE TO COLUMN ................. 16" TO 48"
SPINDLE TO BASE ................... 9-1/2" TO 60"
POWER ELEVATION ................... 32"
POWER HEAD TRAVERSE ............... YES
POWER CLAMPING .................... YES
COOLANT ........................... YES
AUXILIARY BASE .................... YES
MAIN MOTOR ........................ 20 HP
