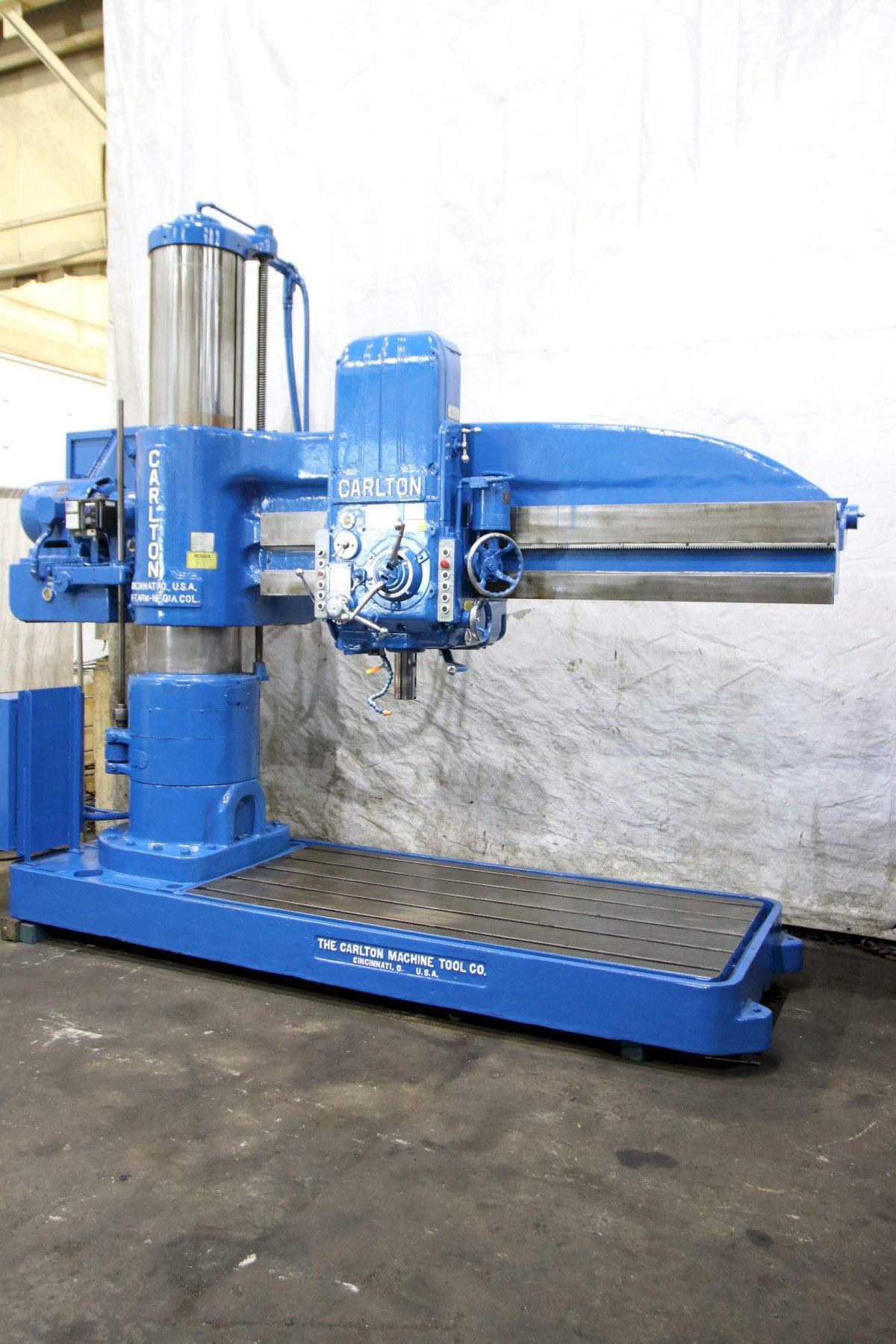

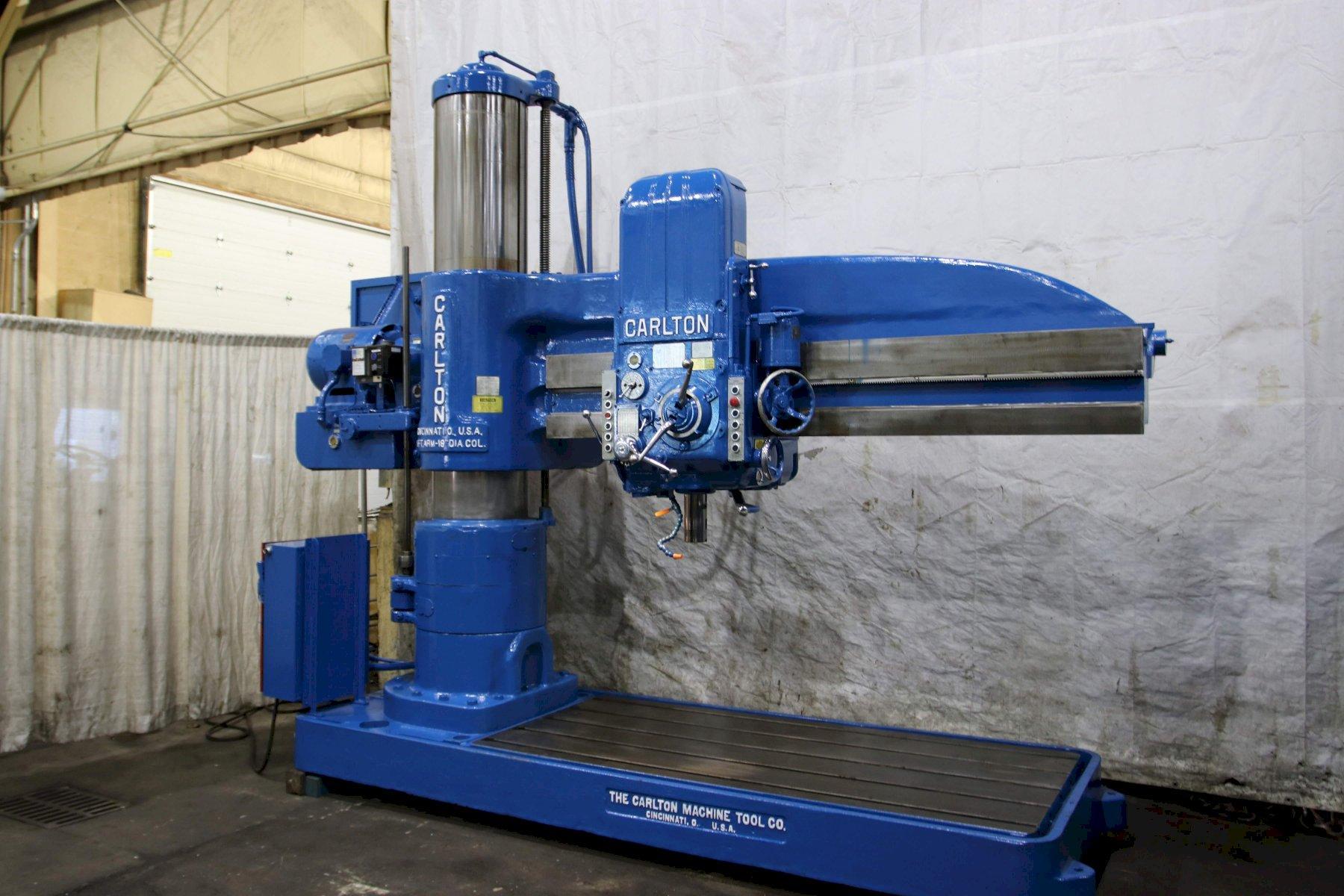

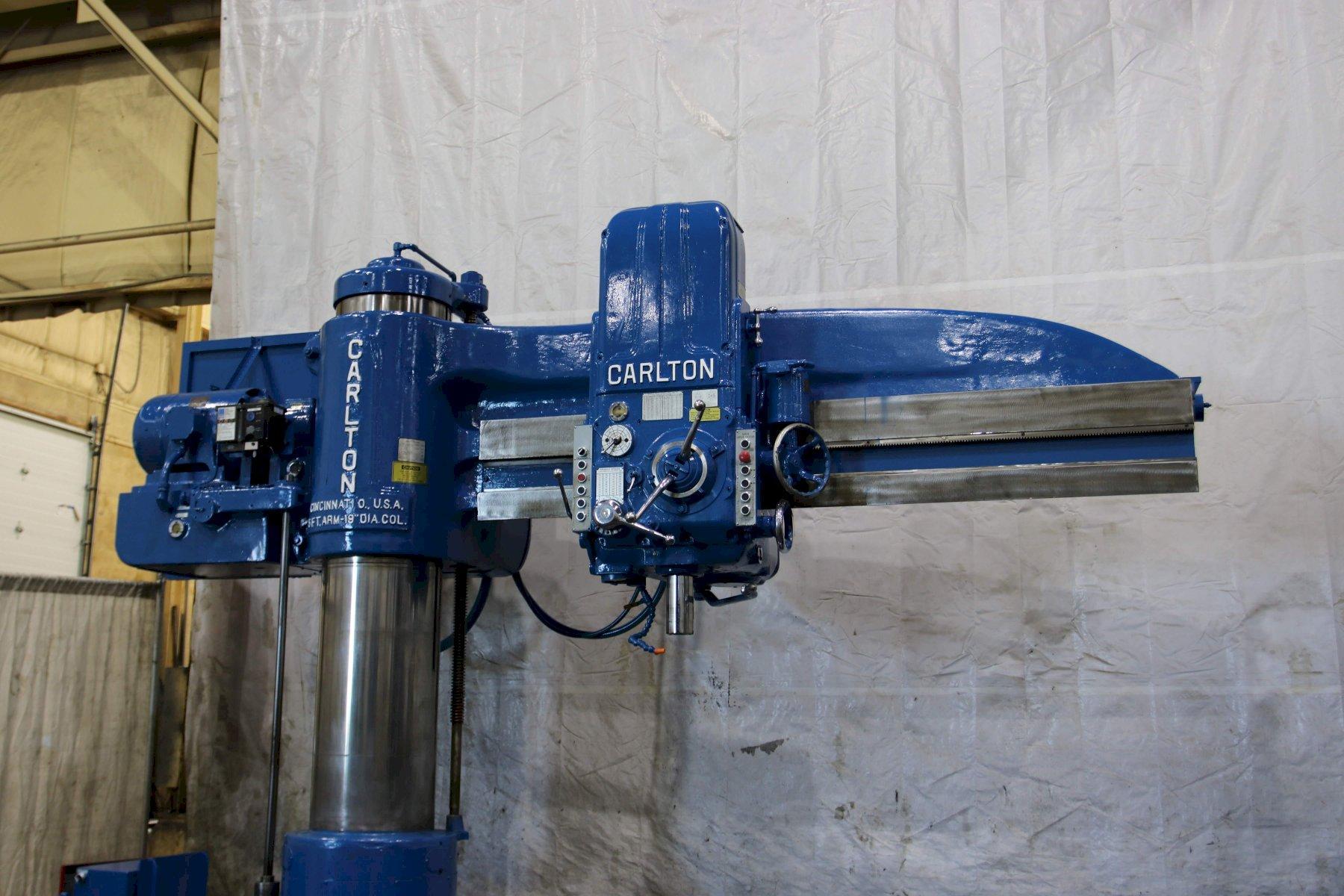

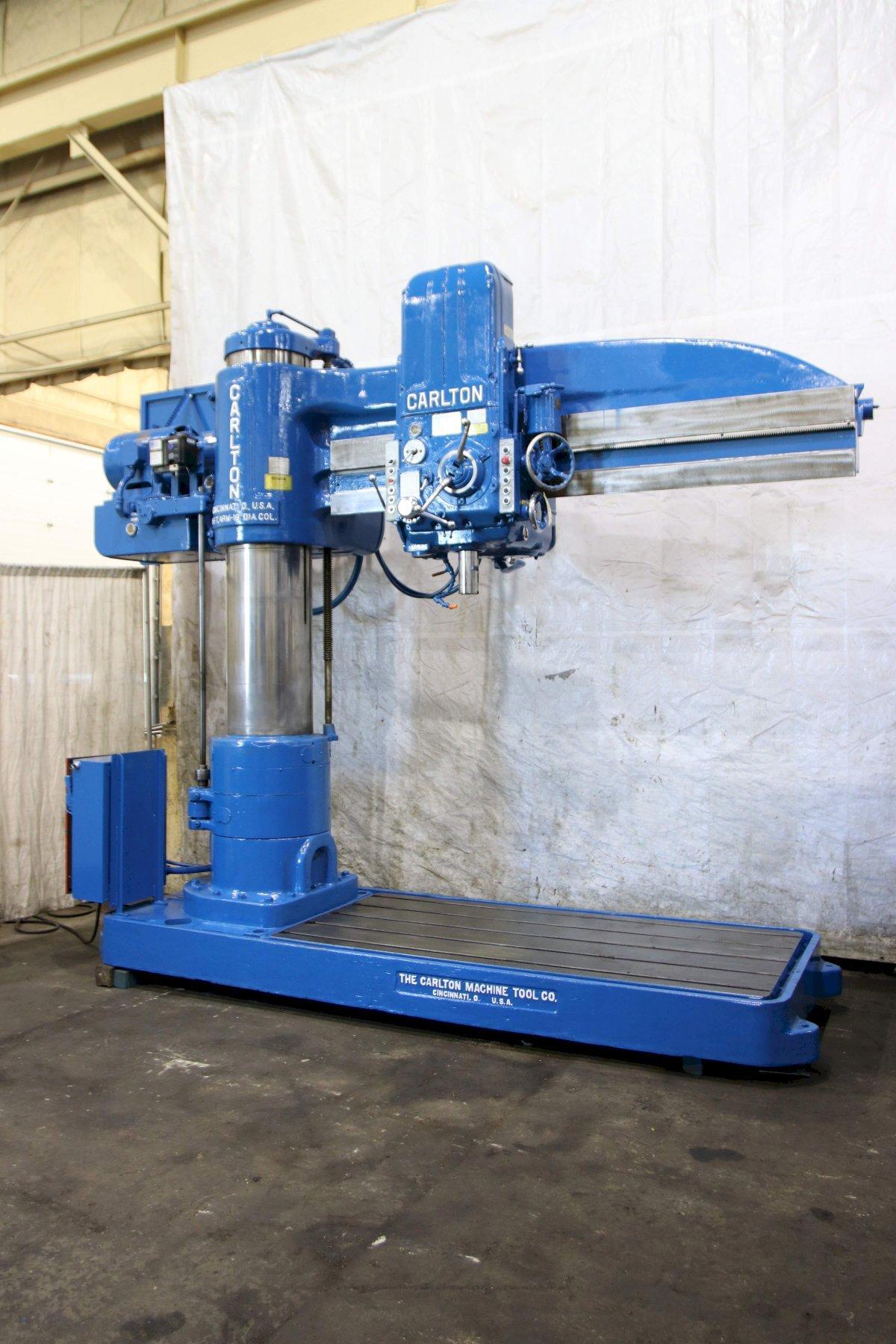

8' X 19" CARLTON MODEL #4A RADIAL DRILL: STOCK #70965

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

70965

Model

08 X 19

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SSERIAL ........................... 4A-3865
MODEL ............................ 4A
SPINDLE SPEEDS ................... (36) 12 TO 1200 RPM
FEEDS ............................ (18) .004 TO .125 IPR
THREADS .......................... 8, 11-1/2, 14, & 18 TPI
SPINDLE TRAVEL ................... 20"
DIAMETER OF SPINDLE .............. 4"
TAPER ............................ #6 MORSE TAPER
DISTANCE SPINDLE TO COLUMN ....... 13-1/4" MIN. TO 96" MAXIMUM
TRAVEL OF HEAR ON ARM ............ 82-3/4"
TRAVEL OF ARM ON COLUMNS ......... 43-1/2
POWER ARM CLAMPING ............... YES
POWER HEAD TRAVEL ................ YES
POWER ELEVATION .................. YES
COOLANT .......................... YES
MOTOR ............................ 15 HORSEPOWER
