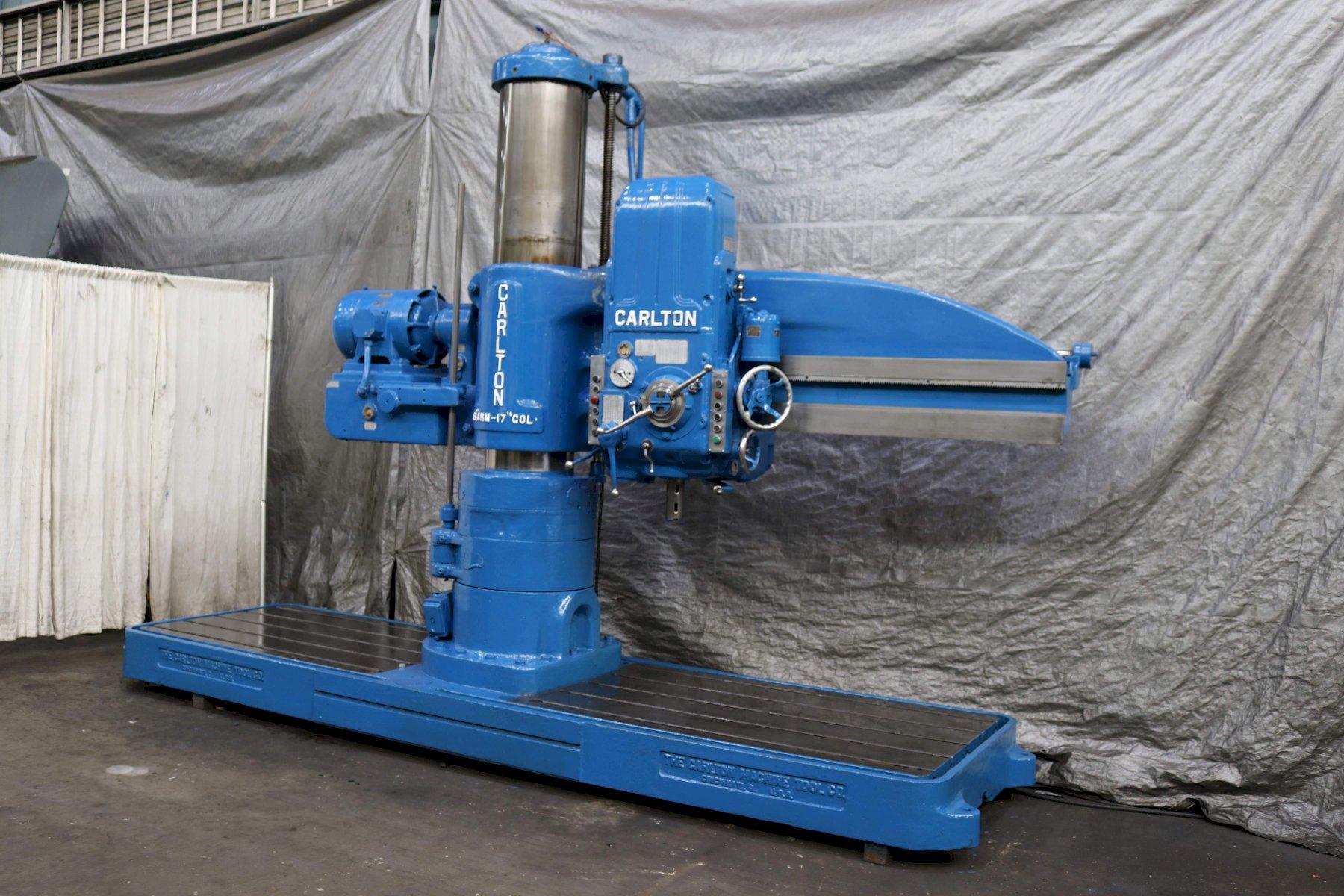

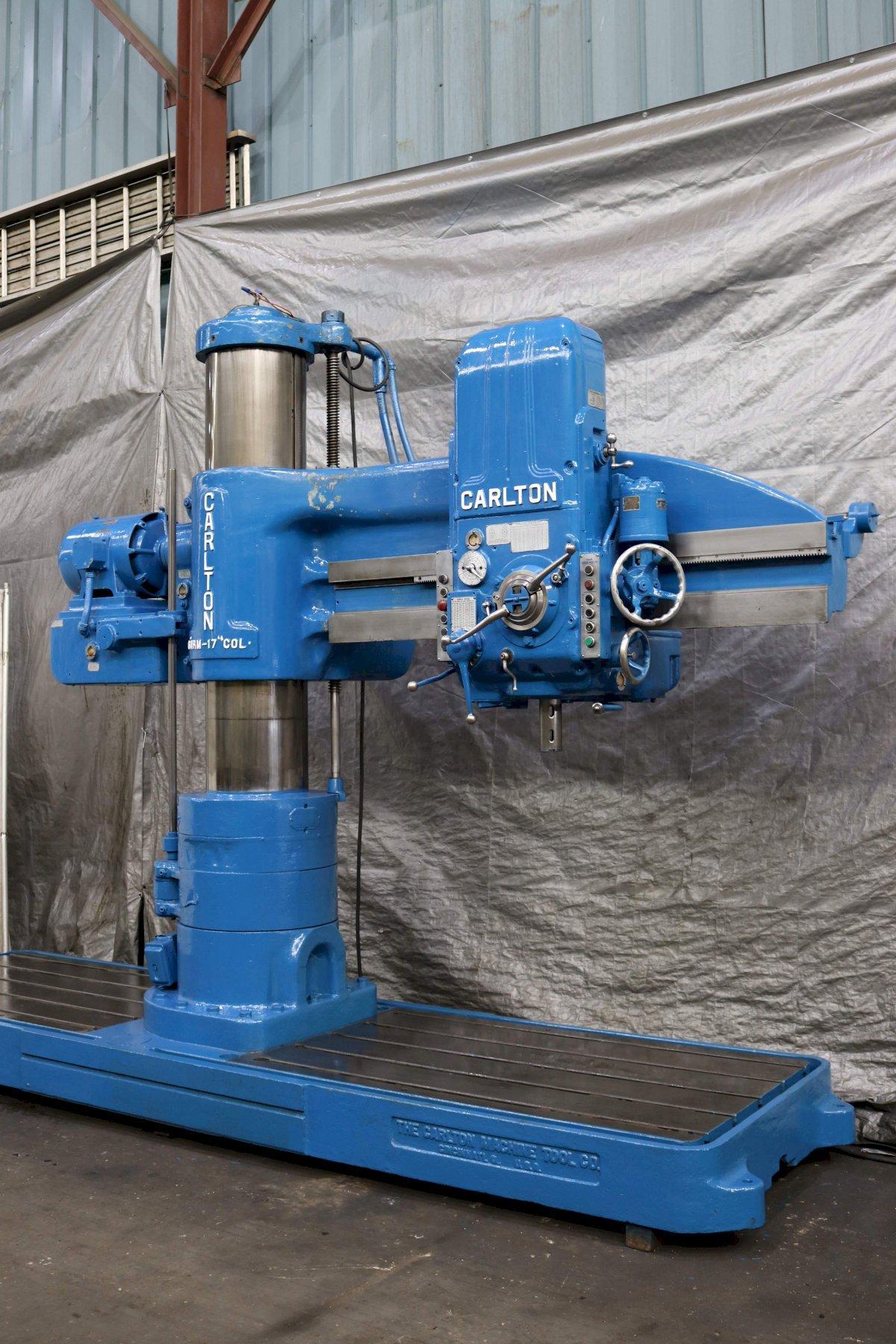

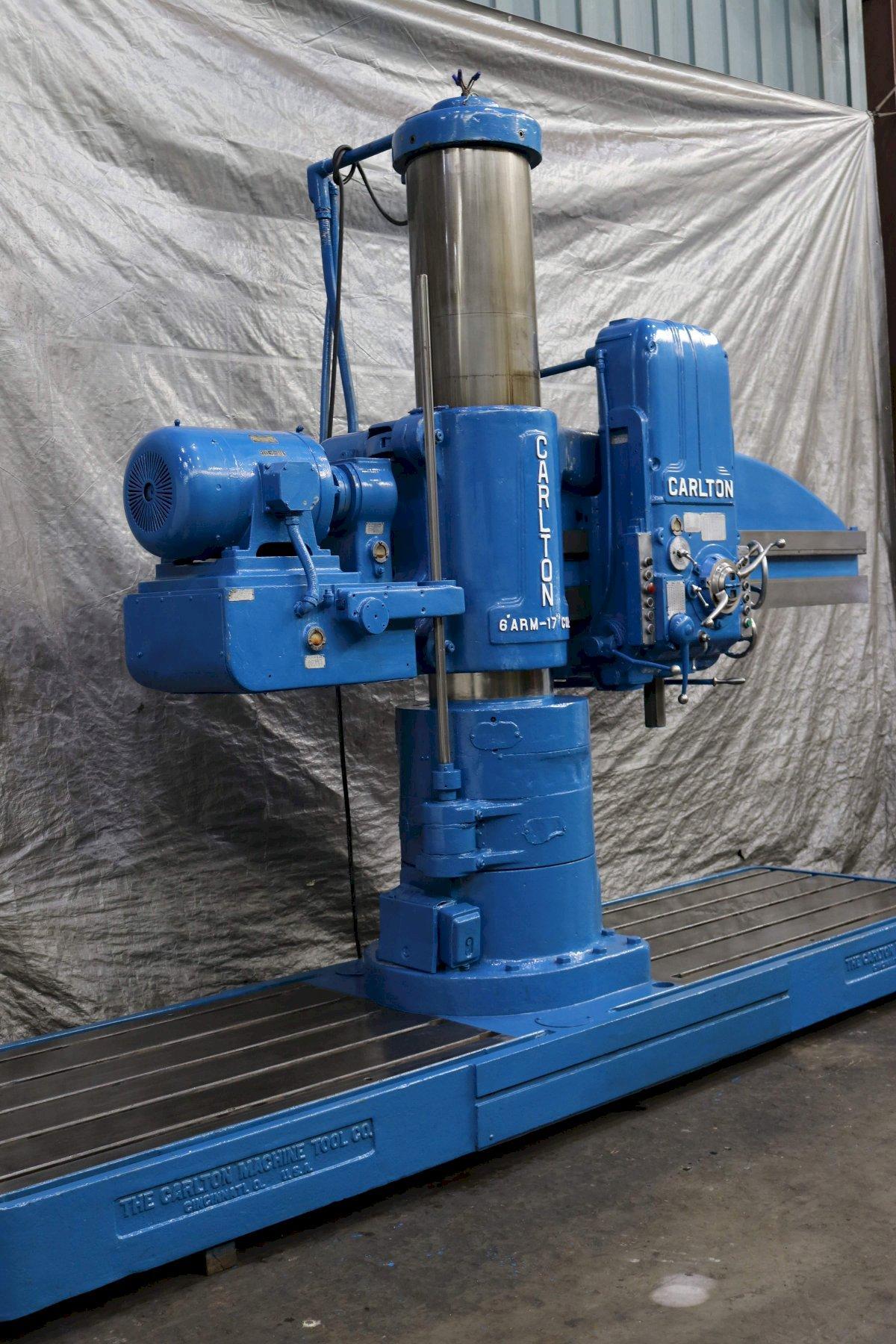

6' X 17' CARLTON RADIAL DRILL: STOCK #71032

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

71032

Model

06 X 17

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. 4A4227
MODEL .................................. 4A

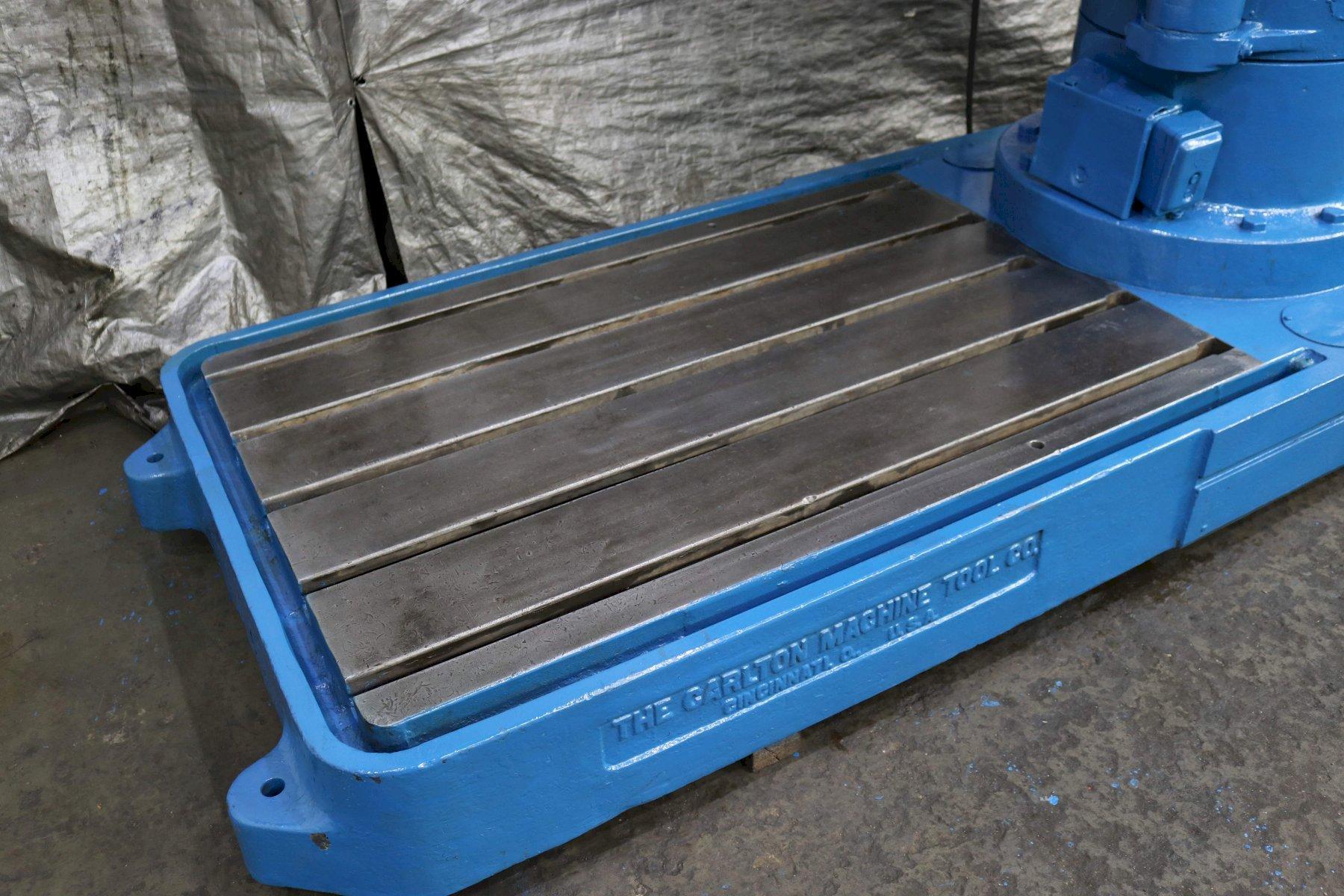

WORKING SURFACE OF BASE ................ 76" X 48"
SPINDLE SPEEDS ......................... (48) 15 TO 1500 RPM
FEEDS .................................. (18) .004 TO .125 IPR
THREADS ................................ 8, 11-1/2, 14, 18 TPI
SPINDLE TRAVEL ......................... 15"
DIAMETER OF SPINDLE .................... 3"
TAPER IN SPINDLE ....................... 6MT
DISTANCE SPINDLE TO BASE ............... 24" MIN, 66" MAX
DISTANCE SPINDLE TO COLUMN ............. 14" MIN, 72" MAX

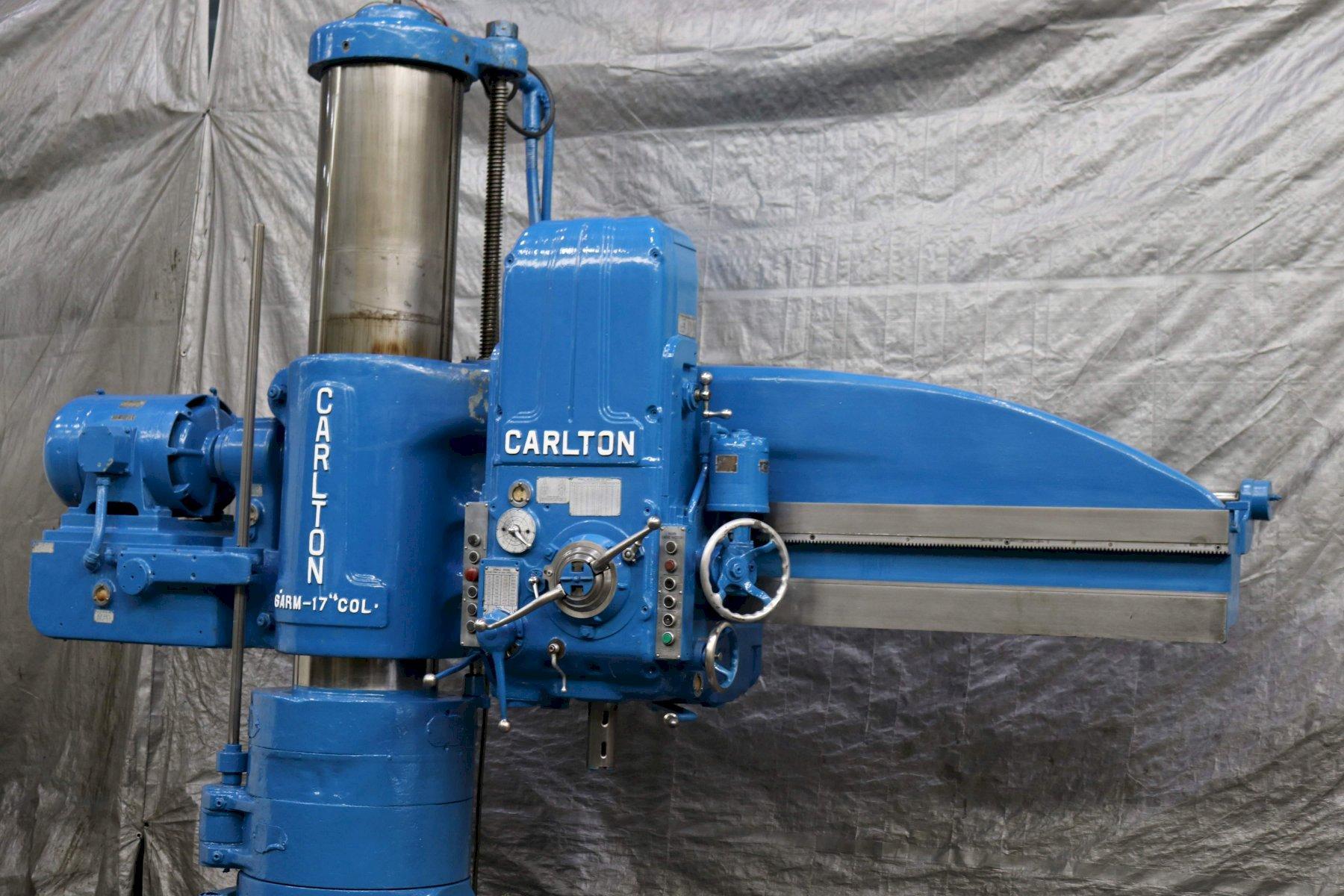

TRAVEL OF HEAD ON ARM .................. 58"
TRAVEL OF ARM ON COLUMN ................ 42"

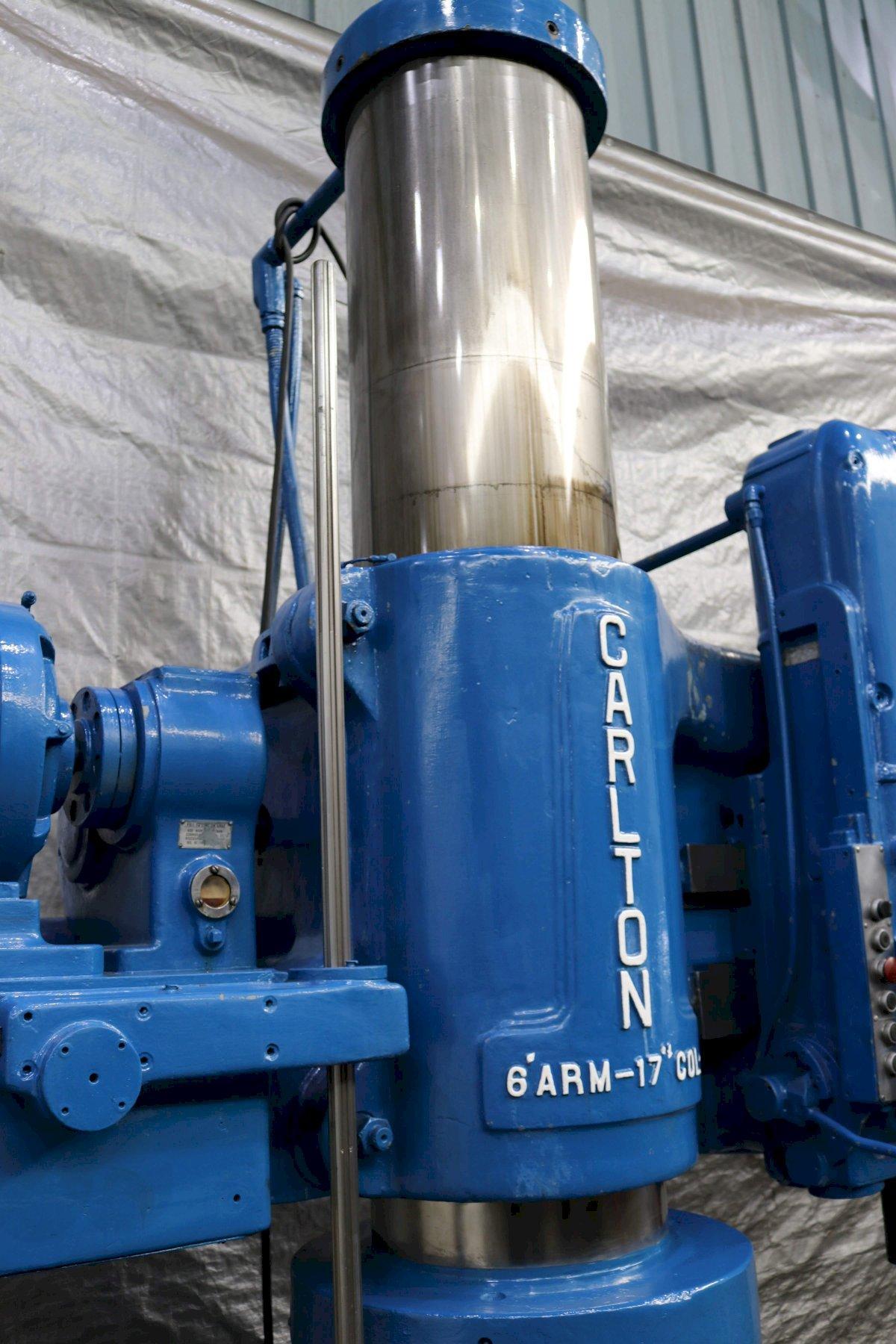

POWER COLUMN CLAMP ..................... YES

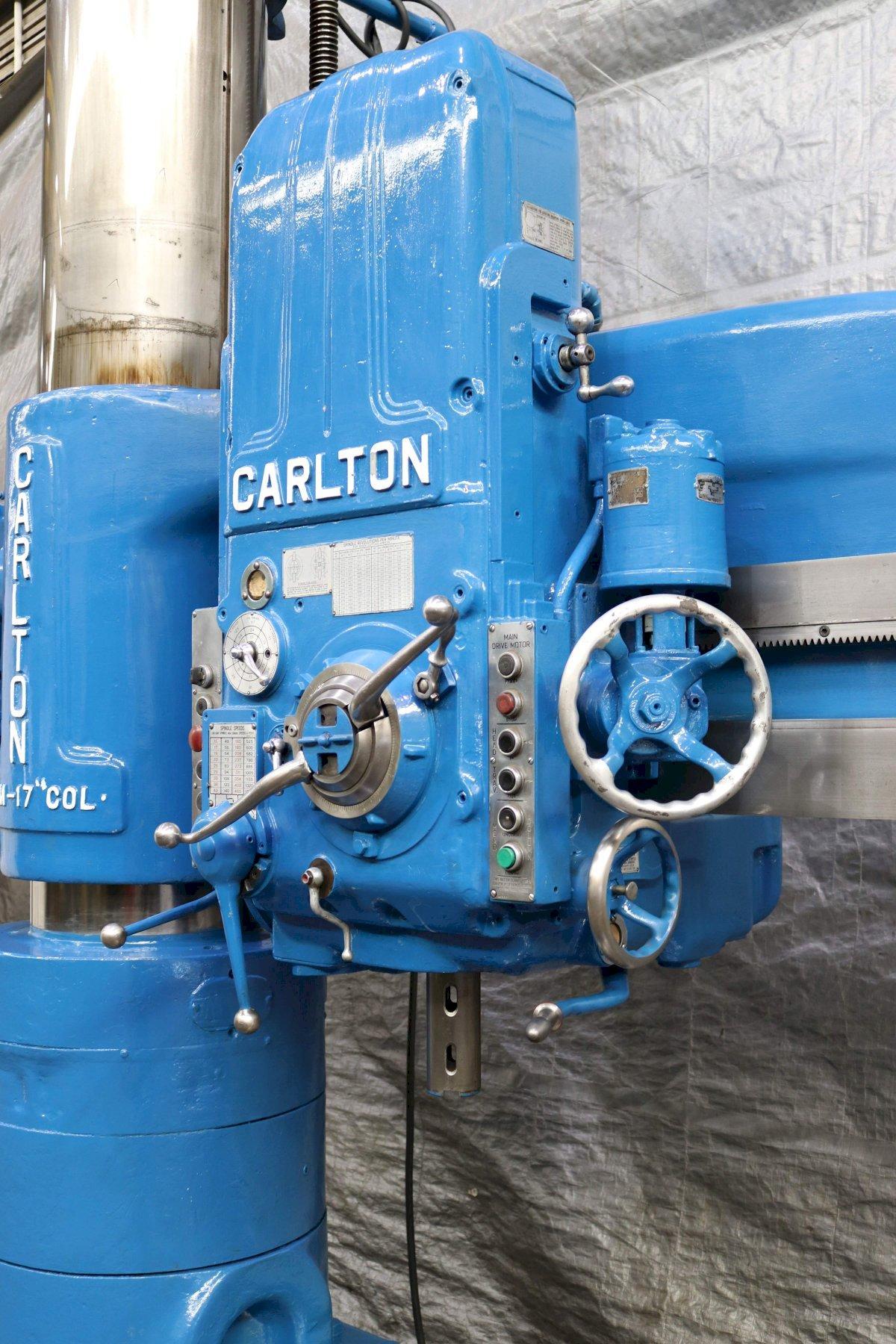

POWER HEAD TRAVERSE .................... YES
POWER ELEVATION ........................ YES

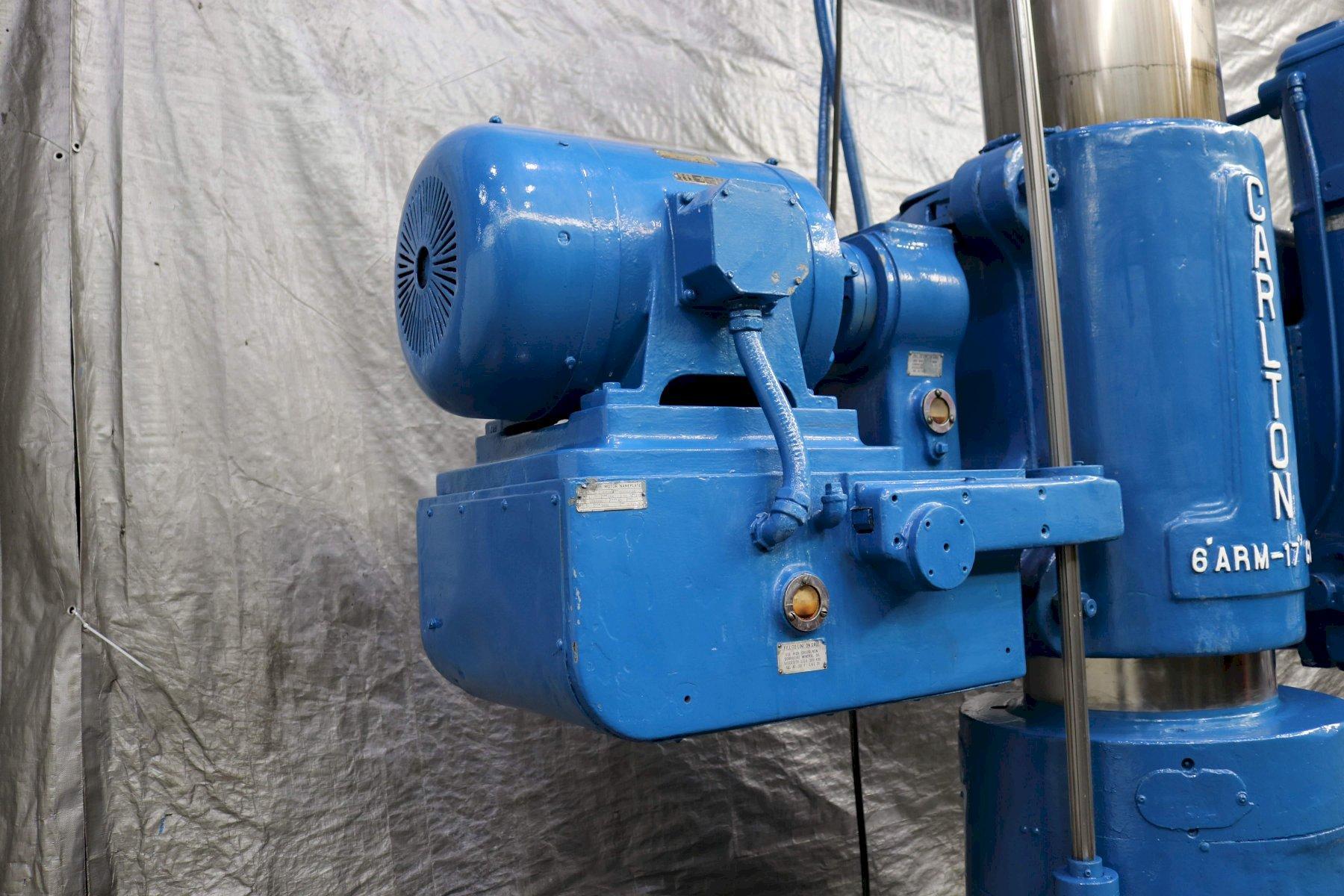

MOTOR .................................. 15 HORSEPOWER
