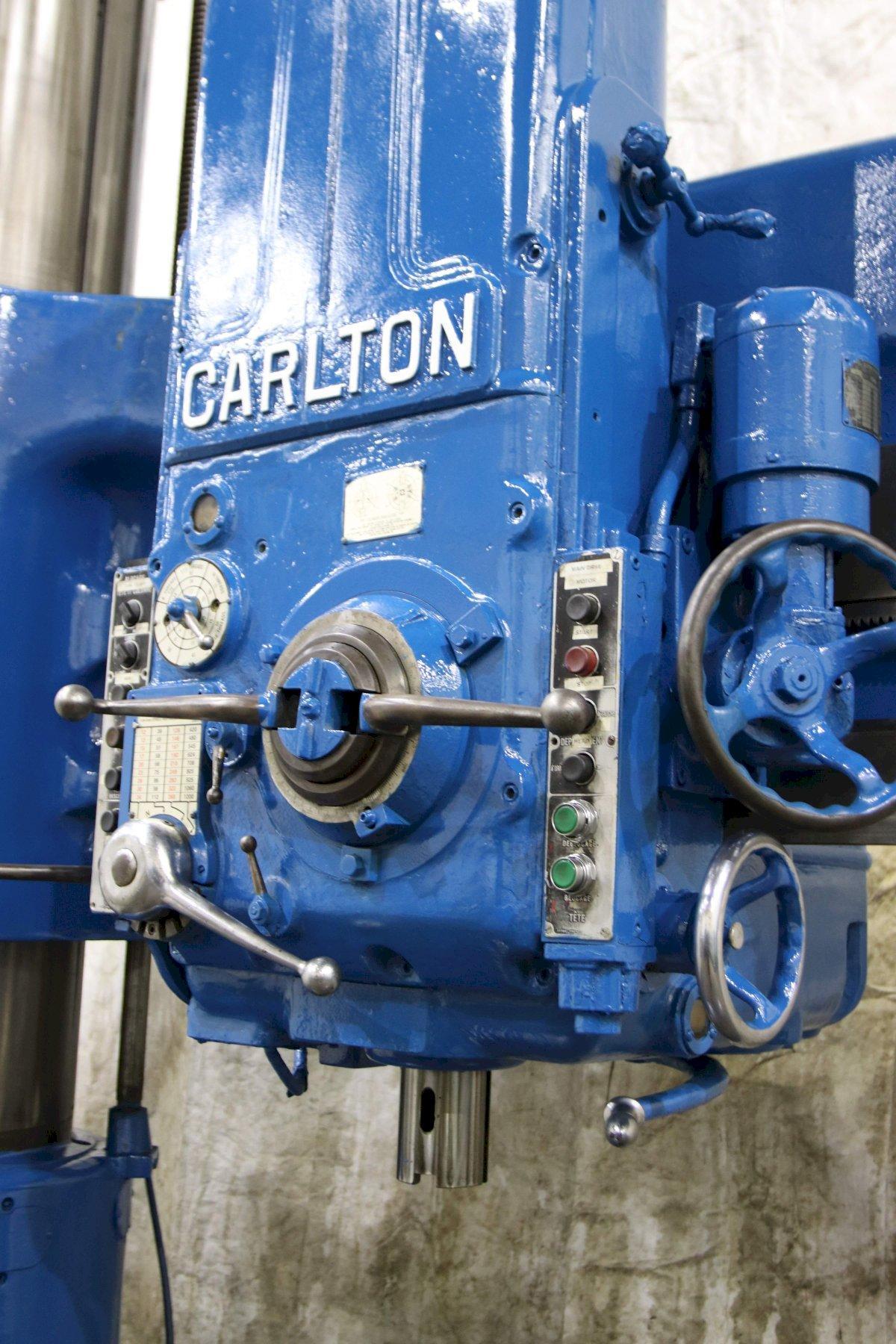

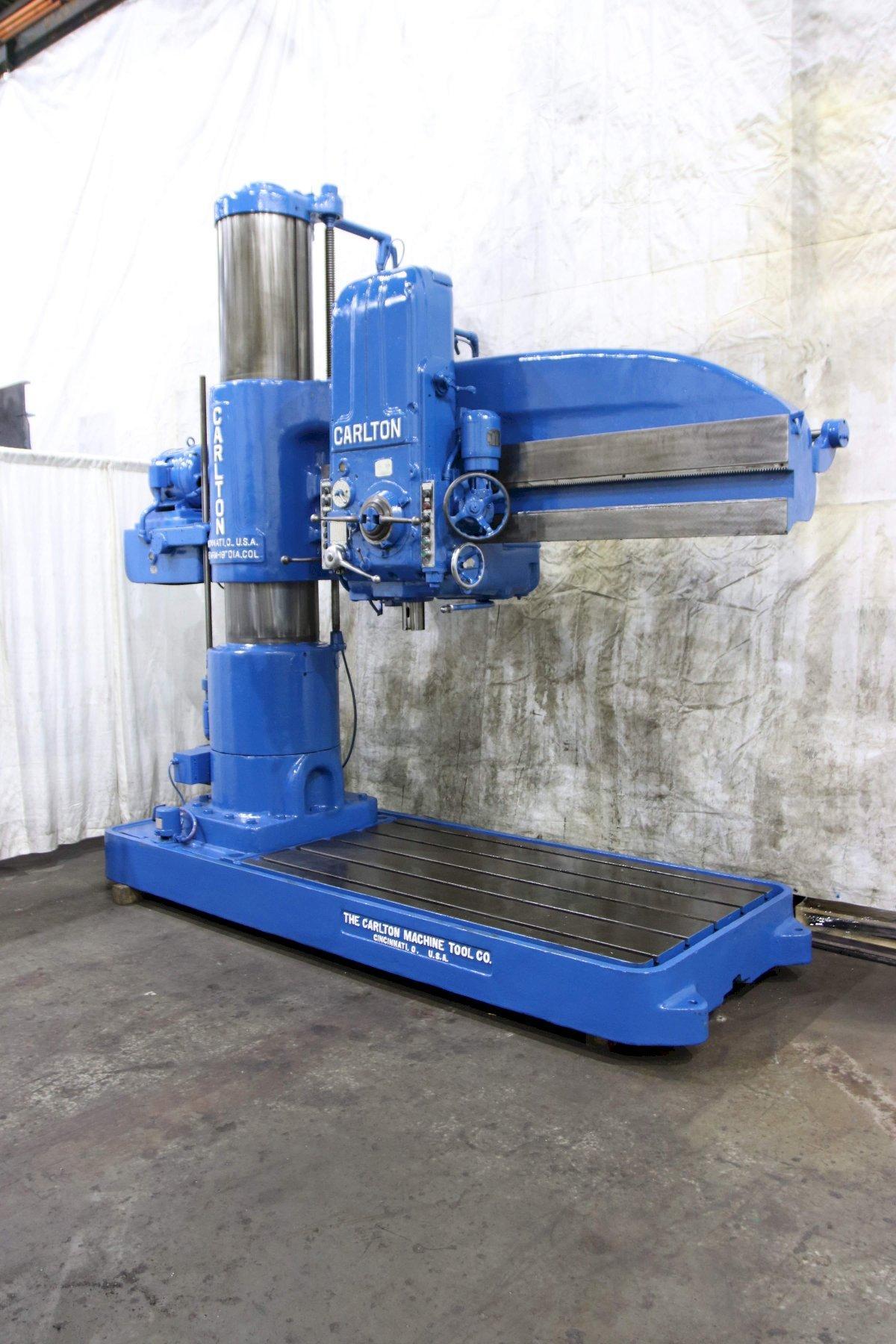

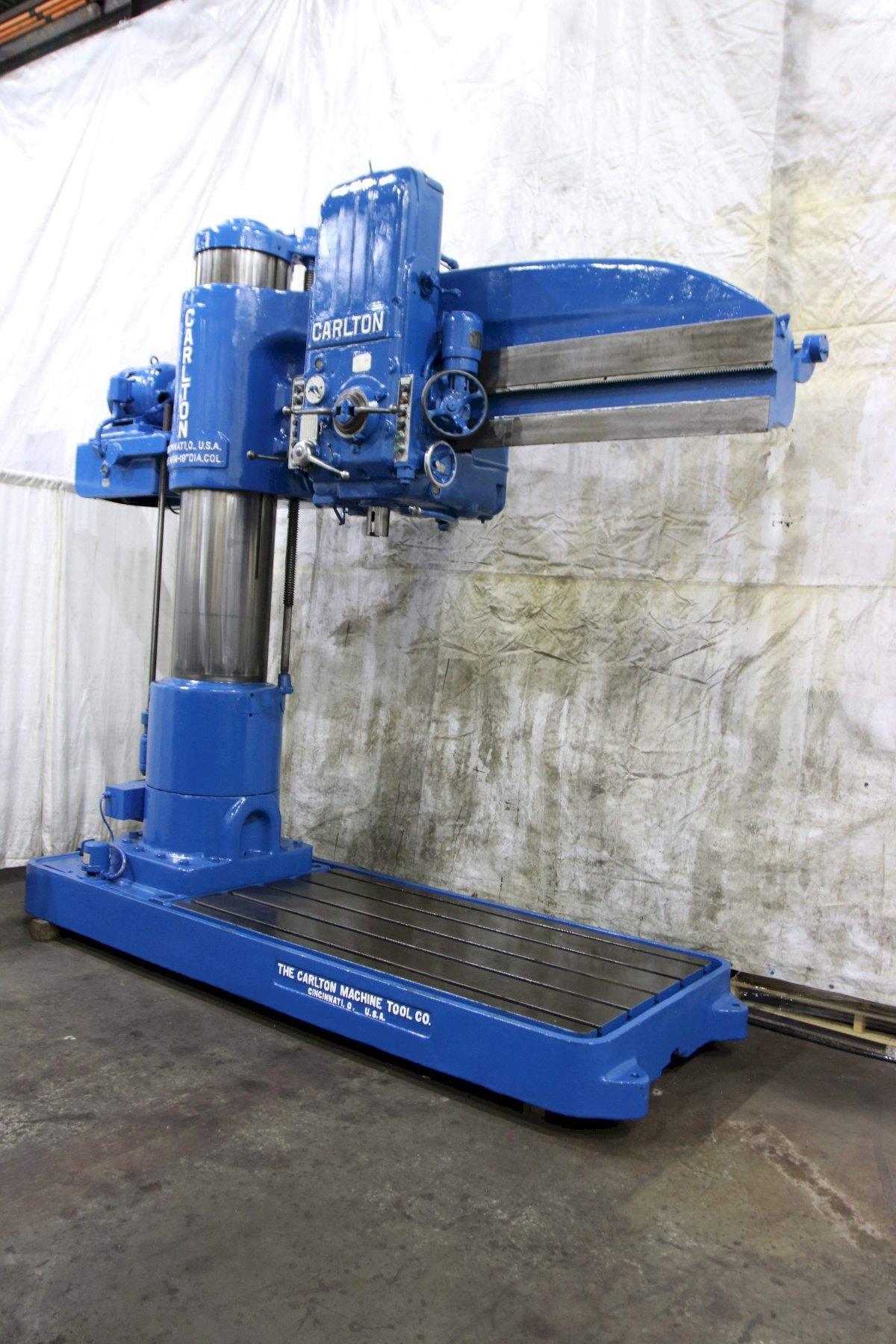

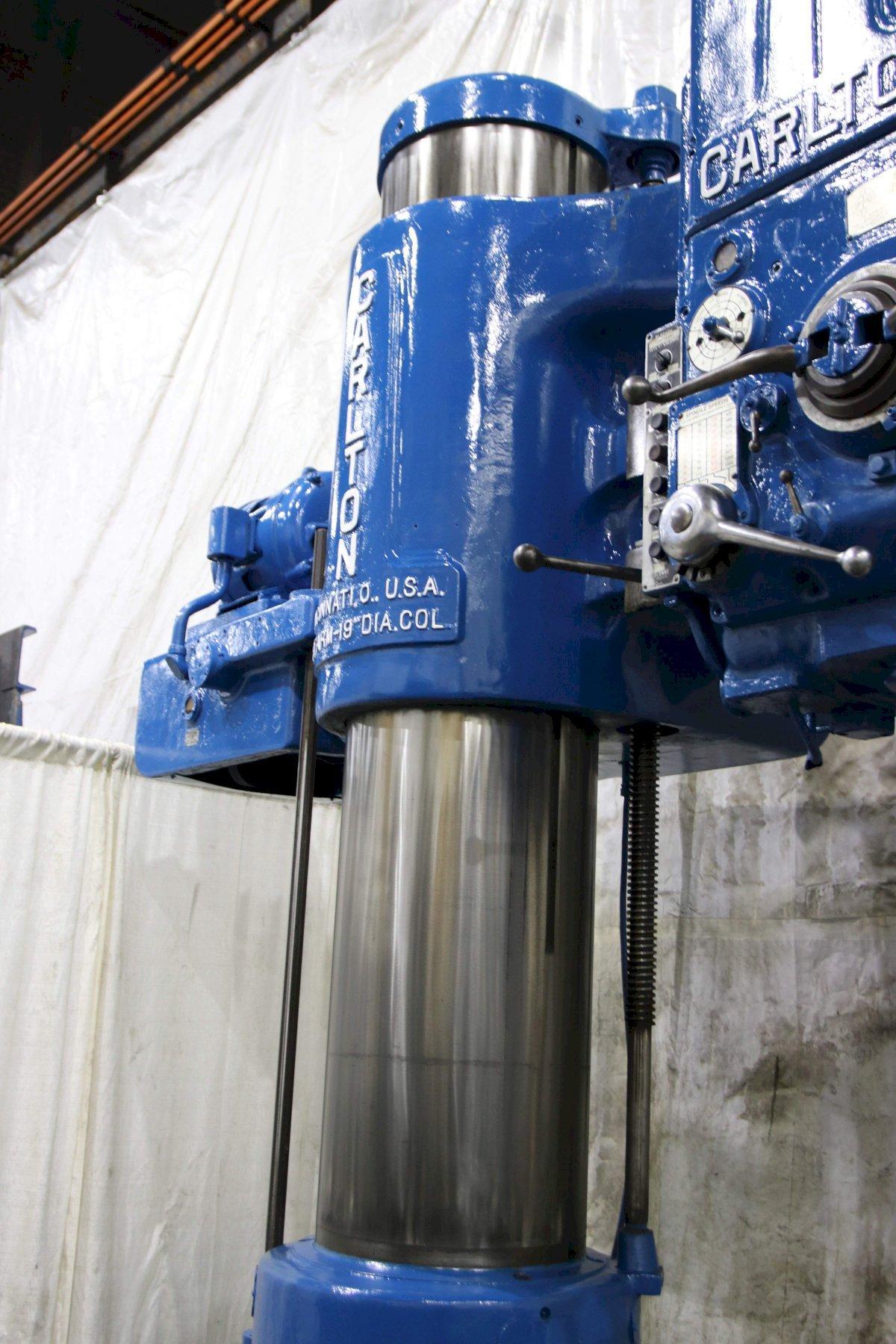

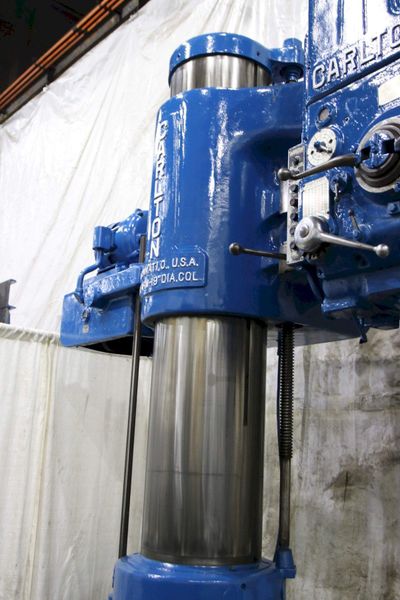

7' X 19" CARLTON MODEL #4A RADIAL DRILL: STOCK #71507

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

71507

Model

07 X 19

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... 4A 1931
MODEL ............................ 4A

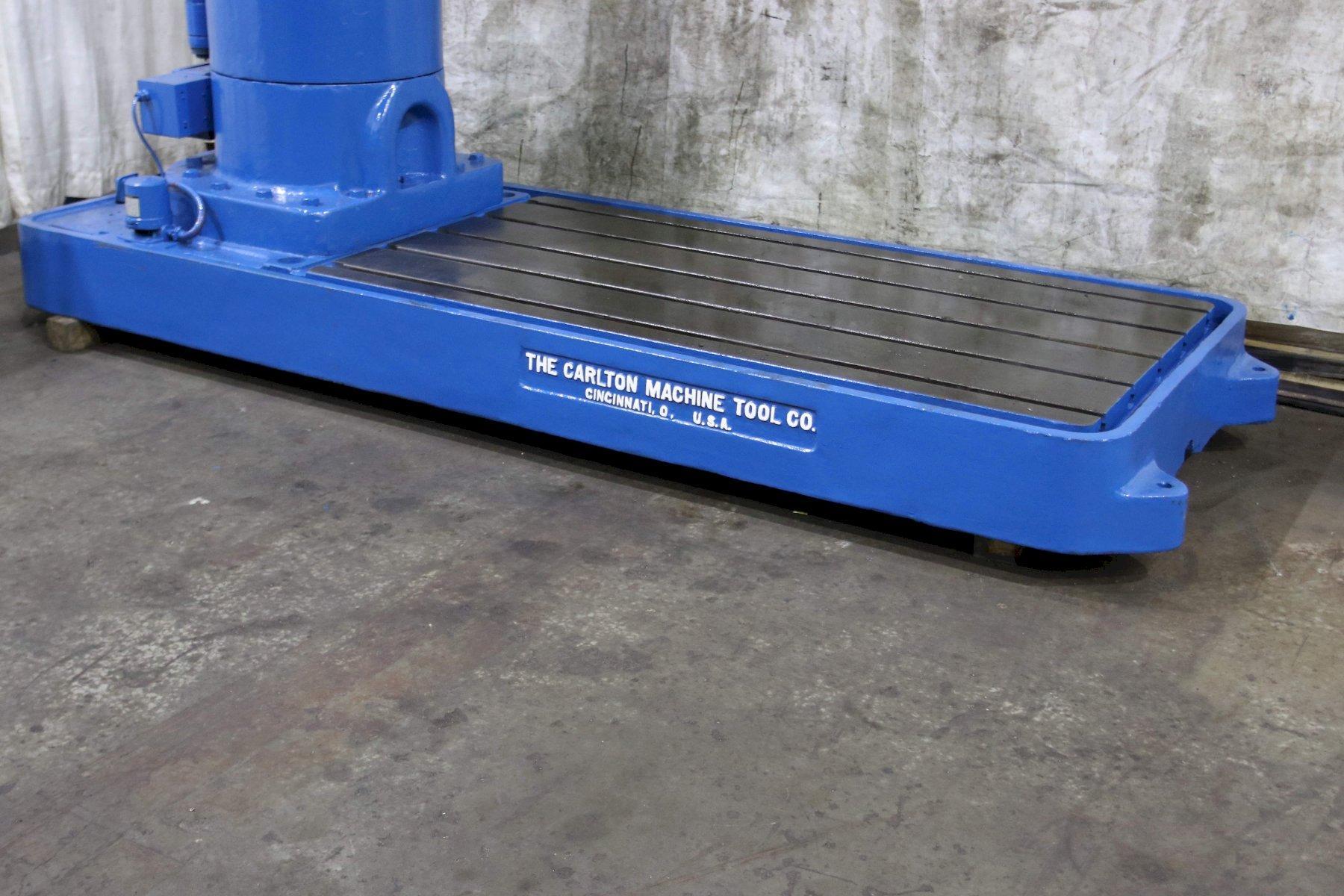

AREA OF BASE (T-SLOTTED) ......... 77" X 50"

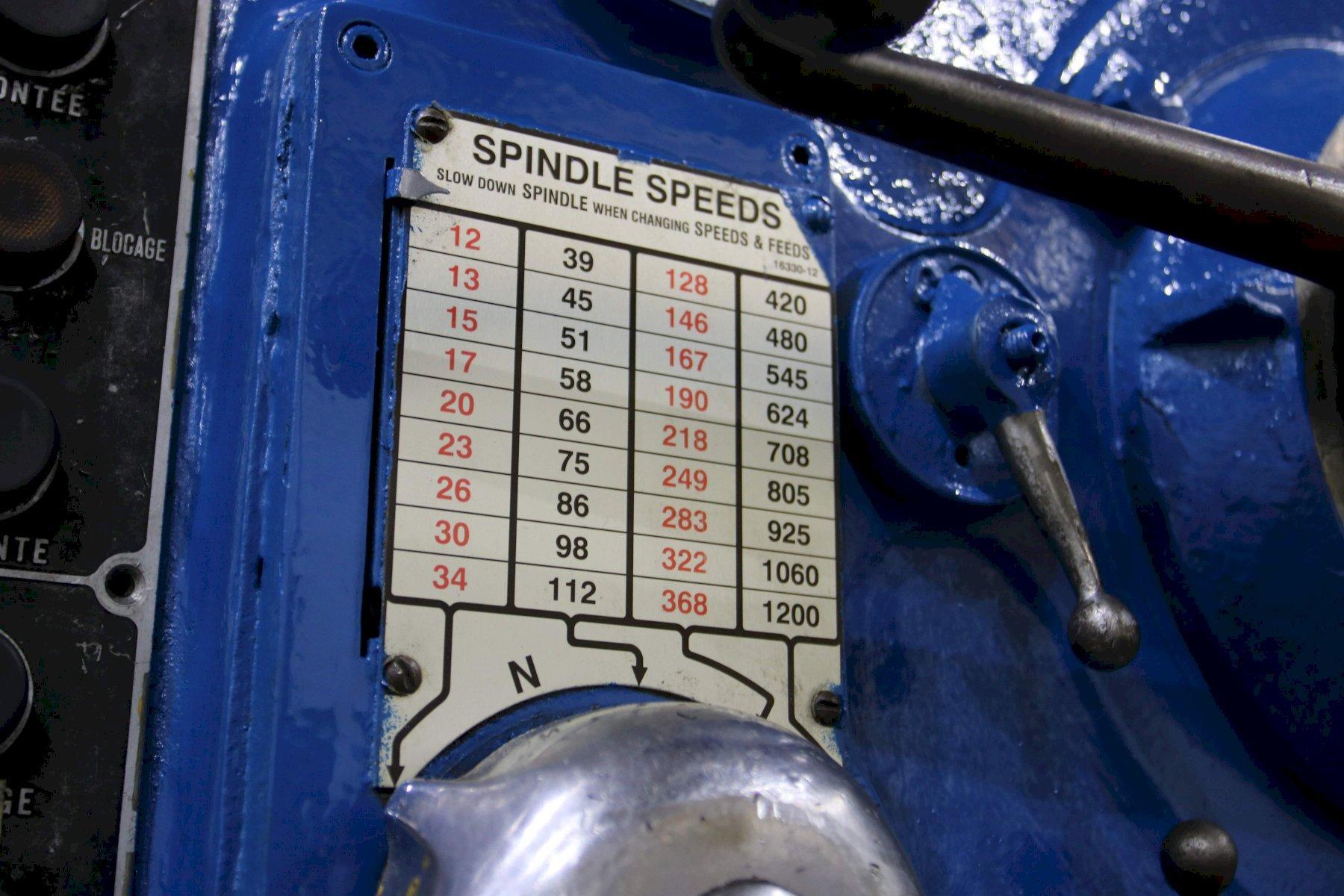

SPINDLE SPEEDS ................... (36) 12 TO 1200 RPM
SPINDLE FEEDS .................... (18) .004 TO .125 IPR
TAP LEADS ........................ 8 / 11-1/2 / 14 / 18 TPI
DISTANCE SPINDLE TO BASE ......... 14-1/2" MINIMUM TO 78" MAXIMUM
DISTANCE SPINDLE TO COLUMN ....... 13-1/4" MINIMUM TO 84" MAXIMUM
SPINDLE TRAVEL ................... 20"
DIAMETER OF SPINDLE .............. 4"
TAPER IN SPINDLE ................. #6 MT
POWER CLAMPING ................... YES
POWER ELEVATION .................. YES
POWER HEAD TRAVERSE .............. YES
COOLANT .......................... YES
MOTOR ............................ 20 HORSEPOWER
