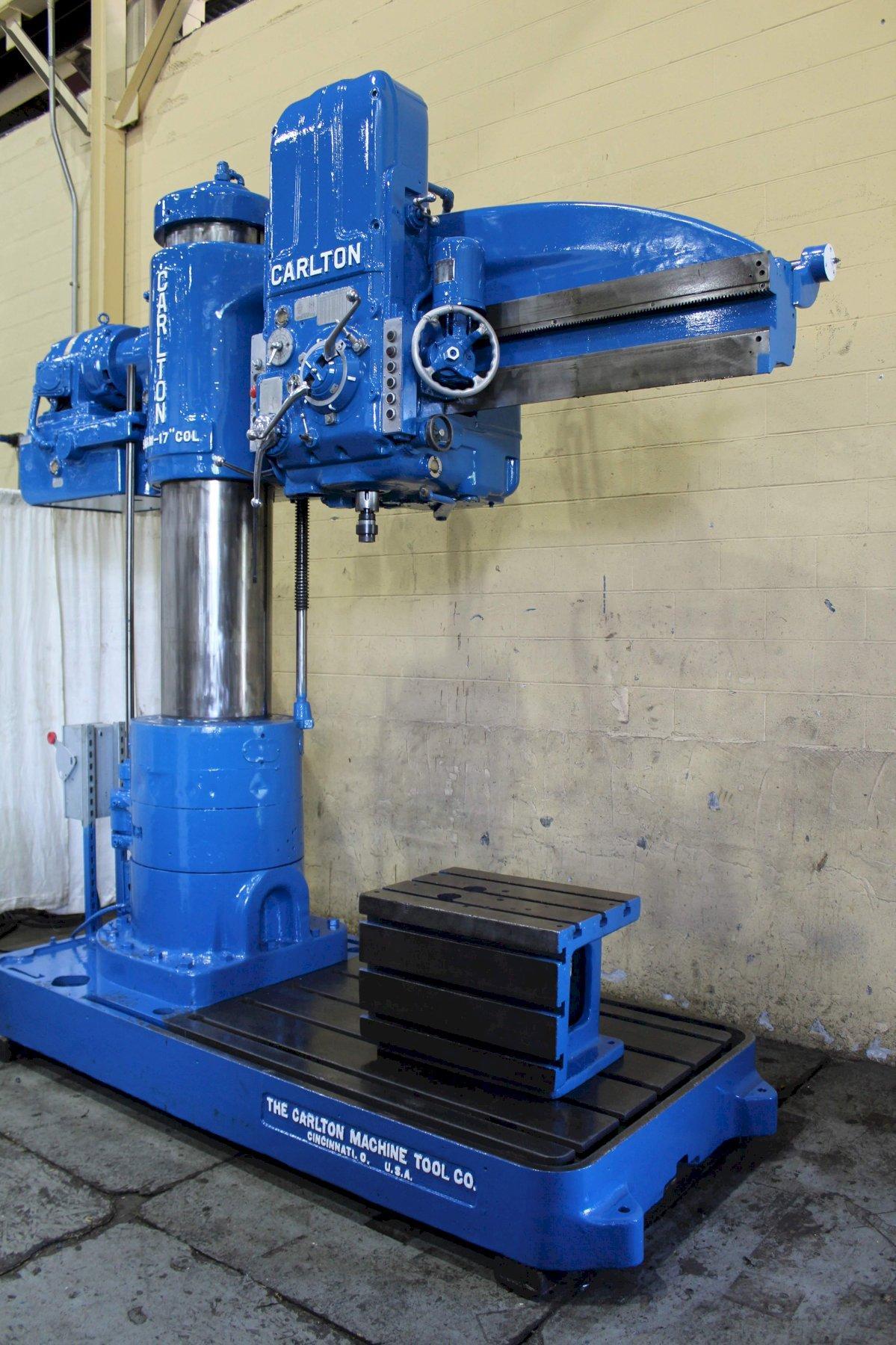

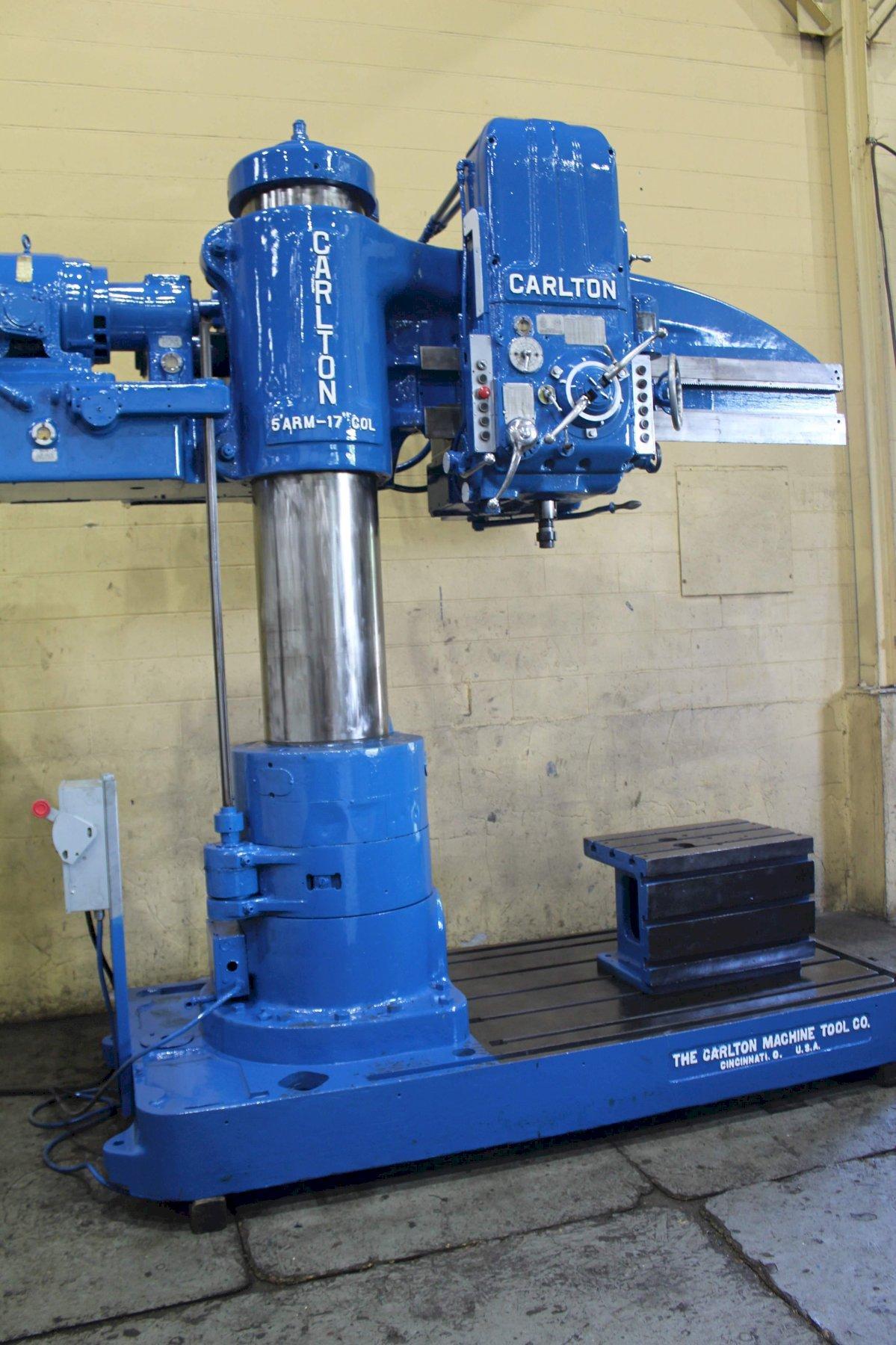

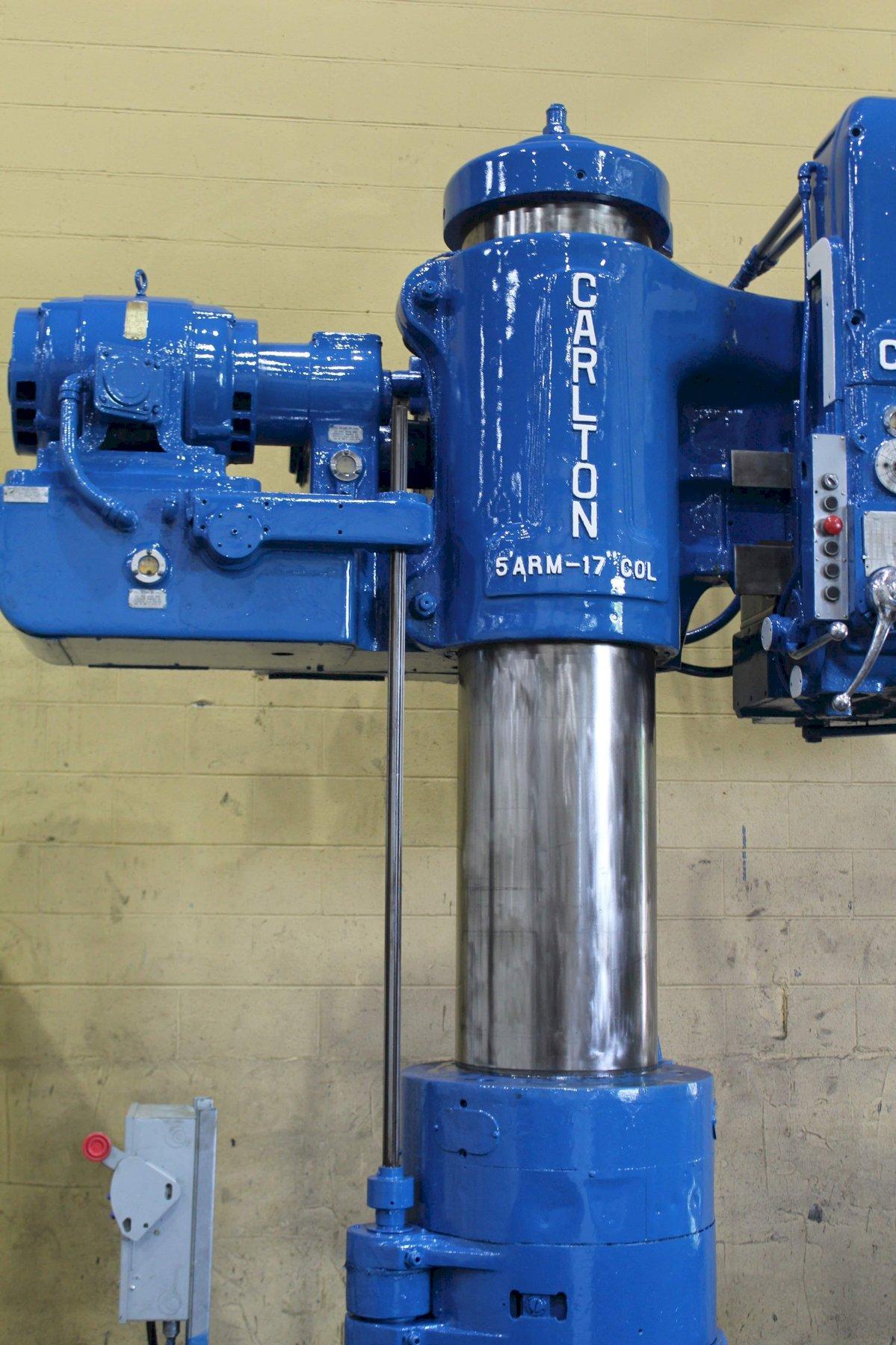

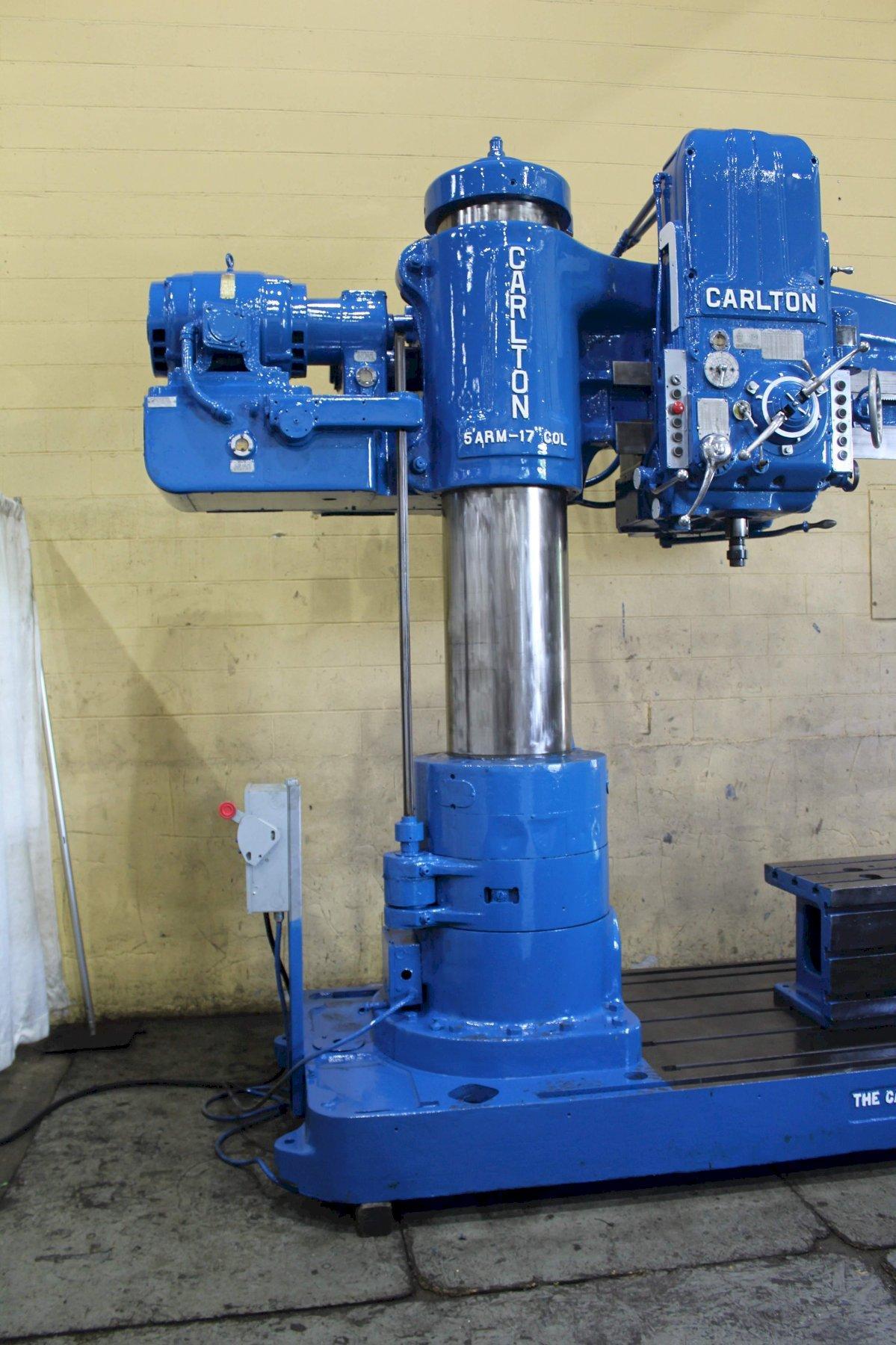

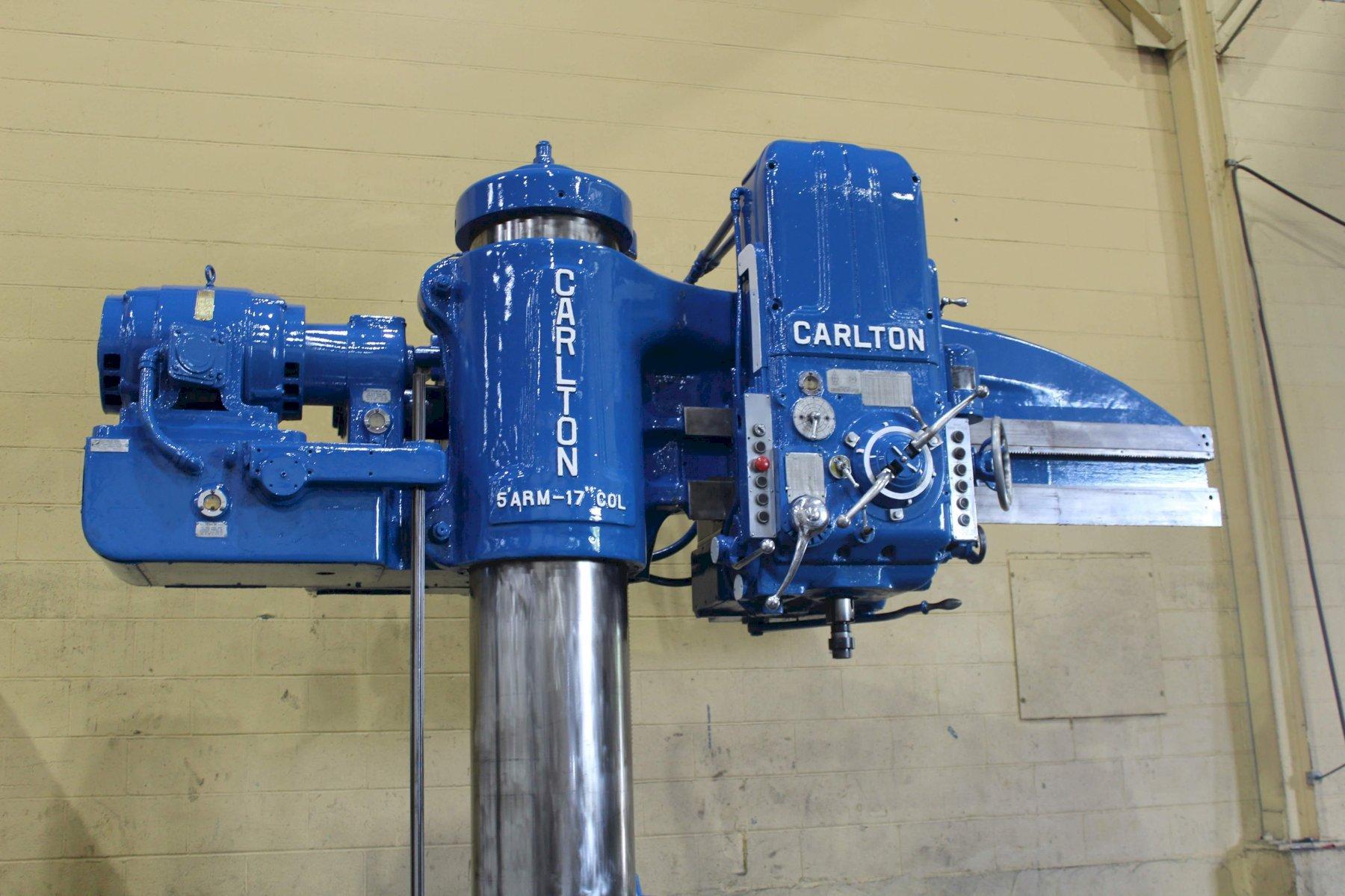

5' X 17" CARLTON RADIAL ARM DRILL: STOCK #71883

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

71883

Model

05 x 17

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ 3A4235
AREA OF BASE....................... 65" X 50"
SPINDLE SPEEDS..................... (36) 12 TO 1200 RPM
FEEDS.............................. (18) .004 TO .125 IPR
THREADS............................ 8, 11-1/2, 14, 18
DIAMETER OF SPINDLE................ 3-3/16"
TAPER IN SPINDLE................... #5 MT
SPINDLE TRAVEL..................... 18"
DISTANCE SPINDLE TO COLUMN......... 13-3/4" MIN. / 60" MAX.
DISTANCE SPINDLE TO BASE........... 16-7/8" MIN. / 72" MAX.
TRAVEL OF ARM ON COLUMN............ 37-1/8"
TRAVEL OF HEAD ON ARM.............. 46-1/4"
POWER ARM ELEVATION ............... YES
POWER HEAD TRAVERSE ............... YES
POWER CLAMPING .................... YES
BOX TABLE ......................... 28" X 20" X 20" HIGH
HORSEPOWER SPINDLE DRIVE MOTOR .... 15
