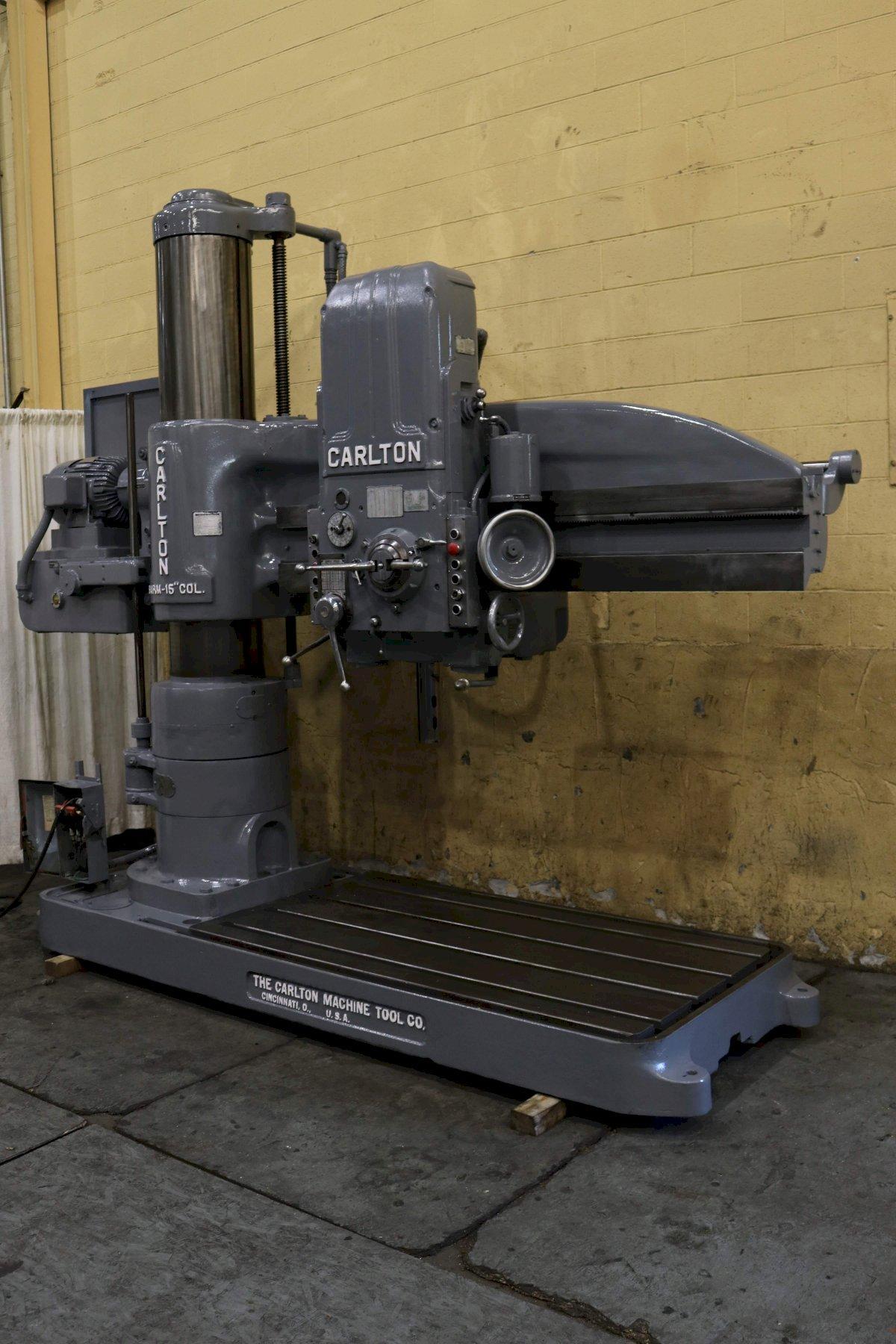

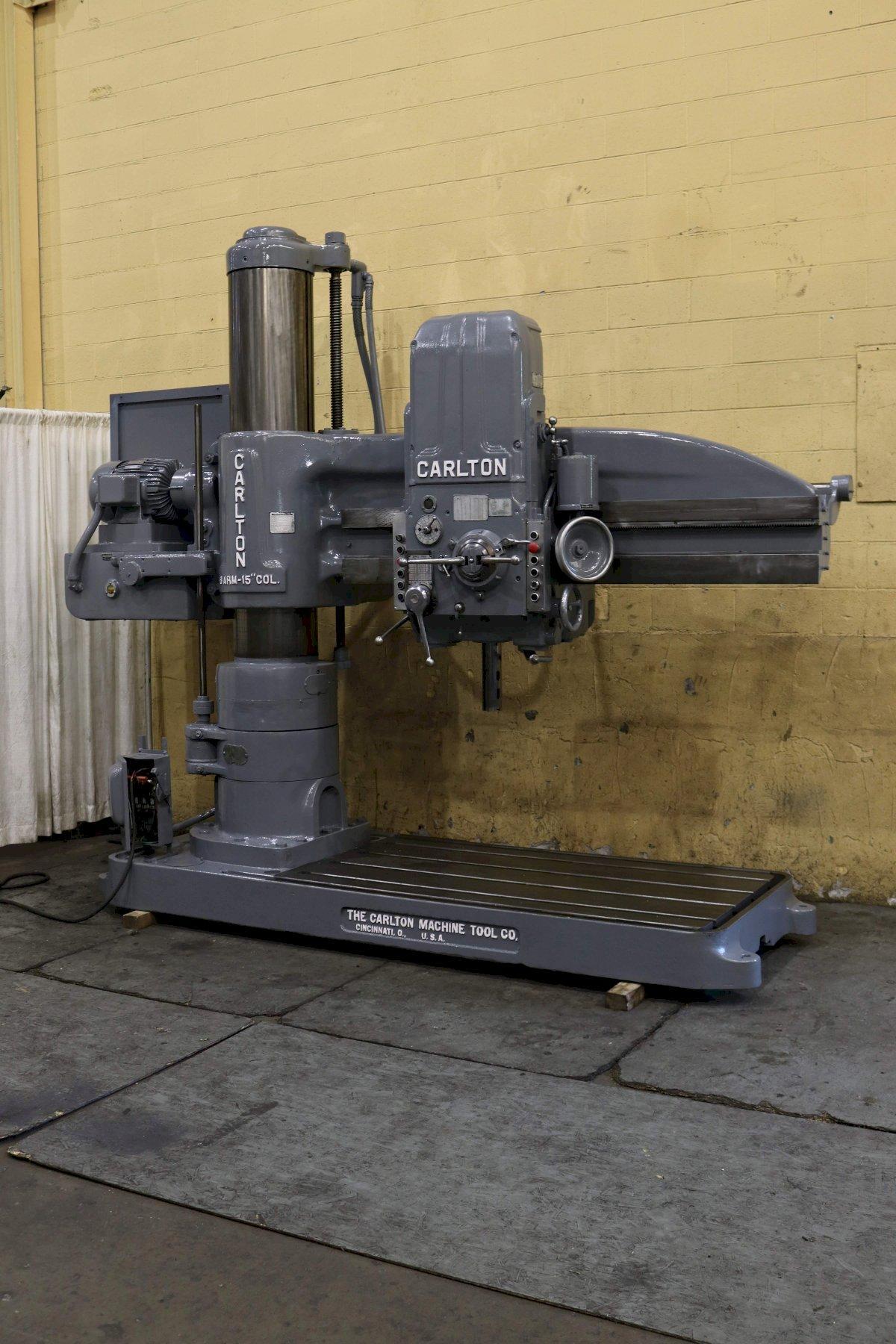

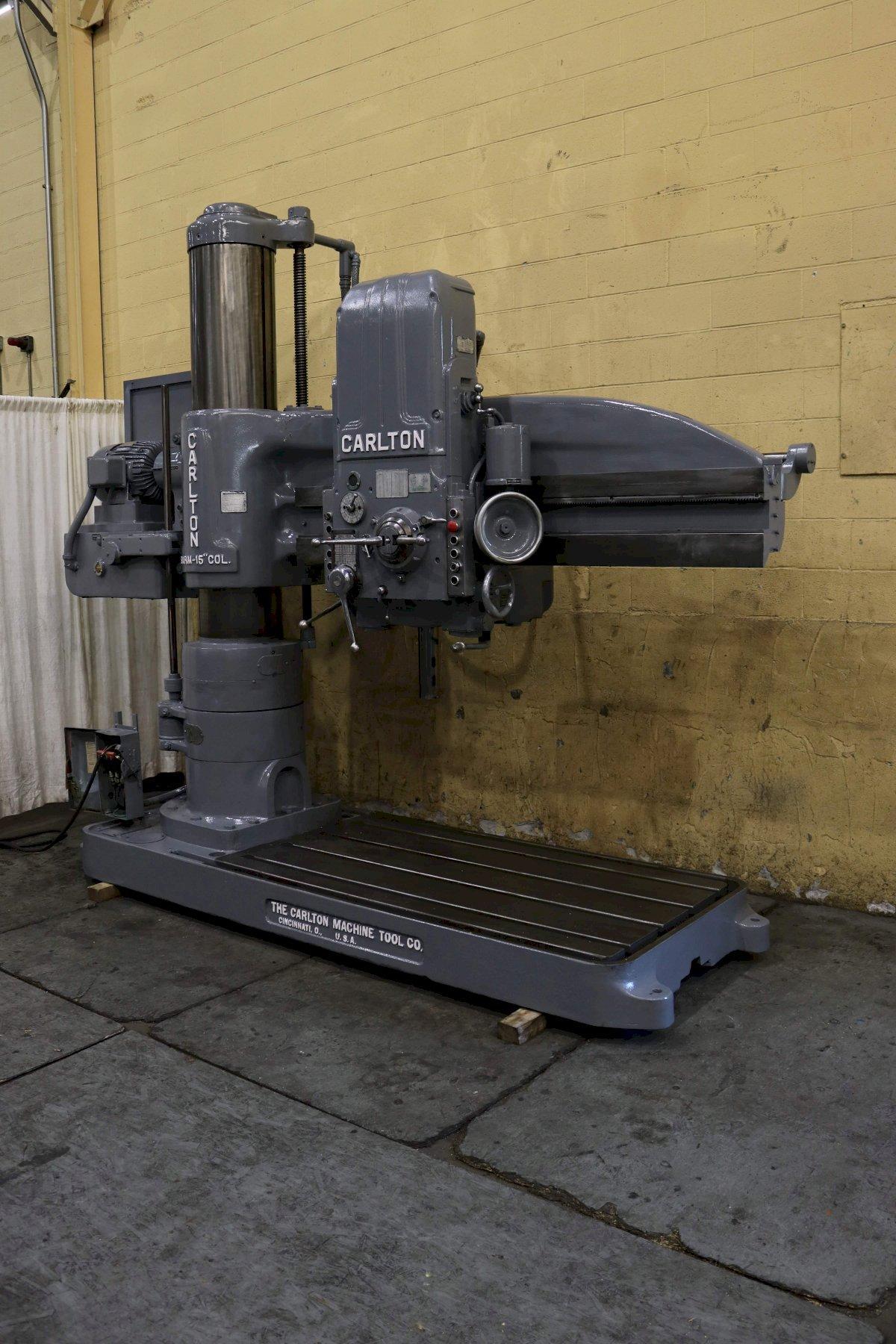

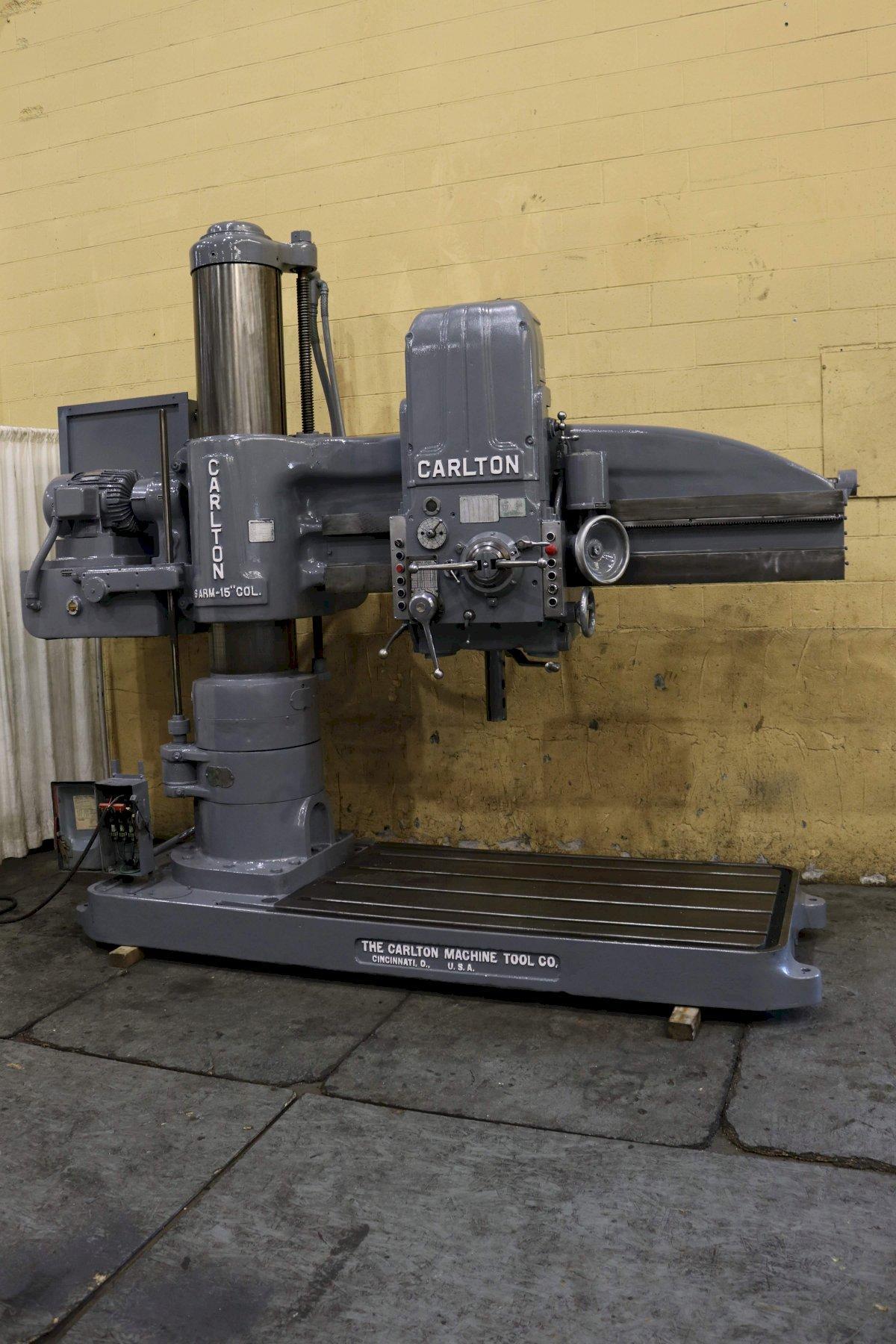

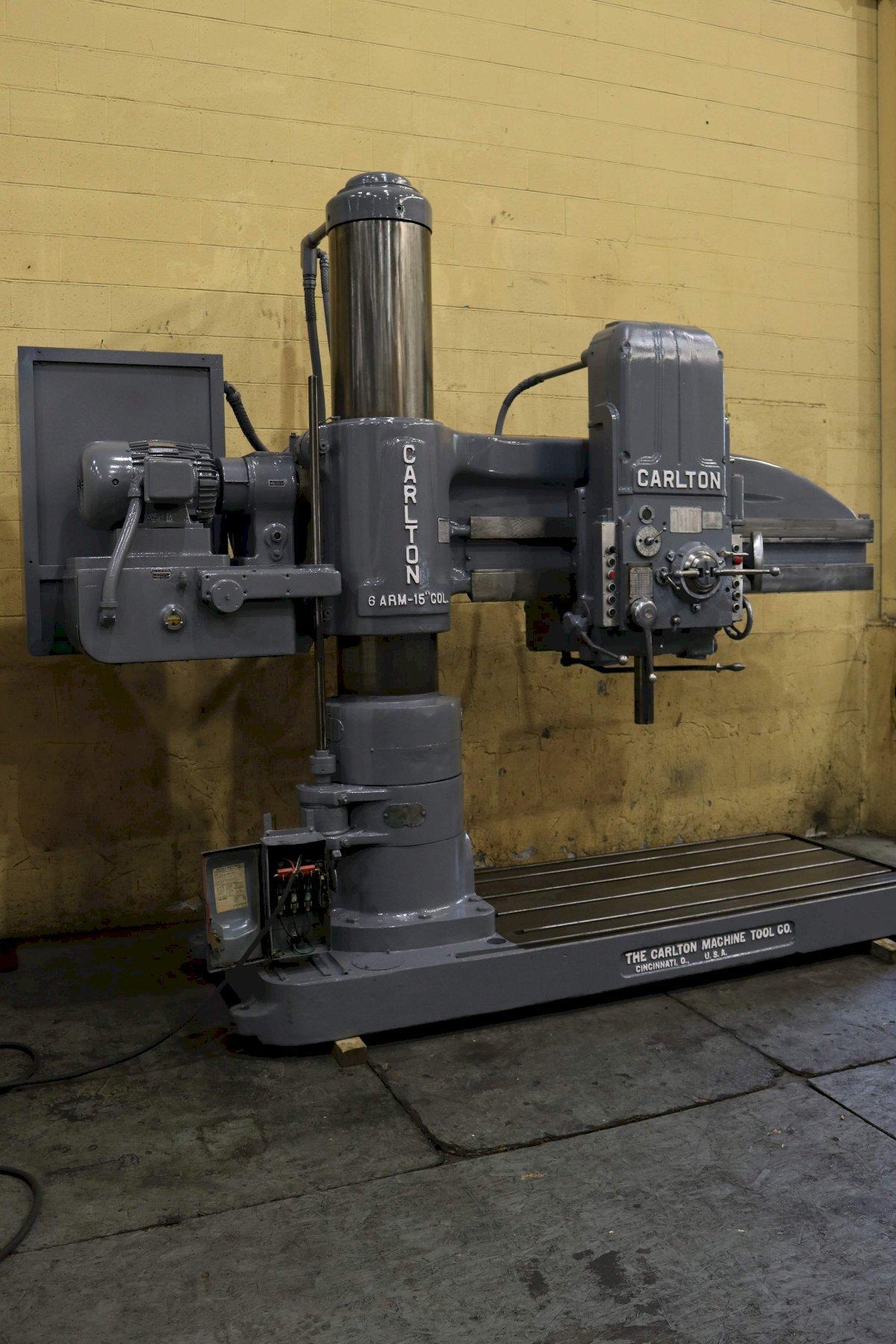

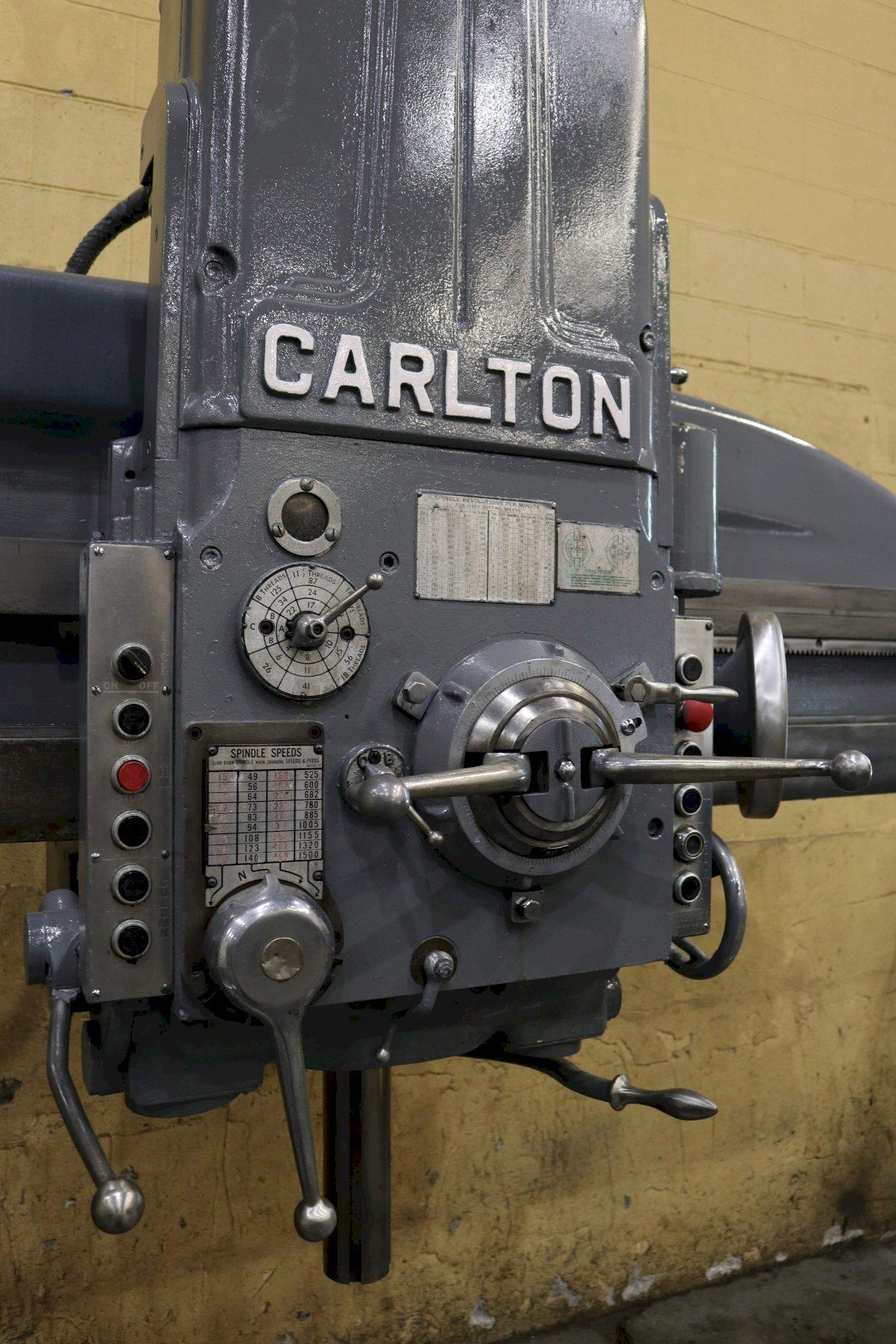

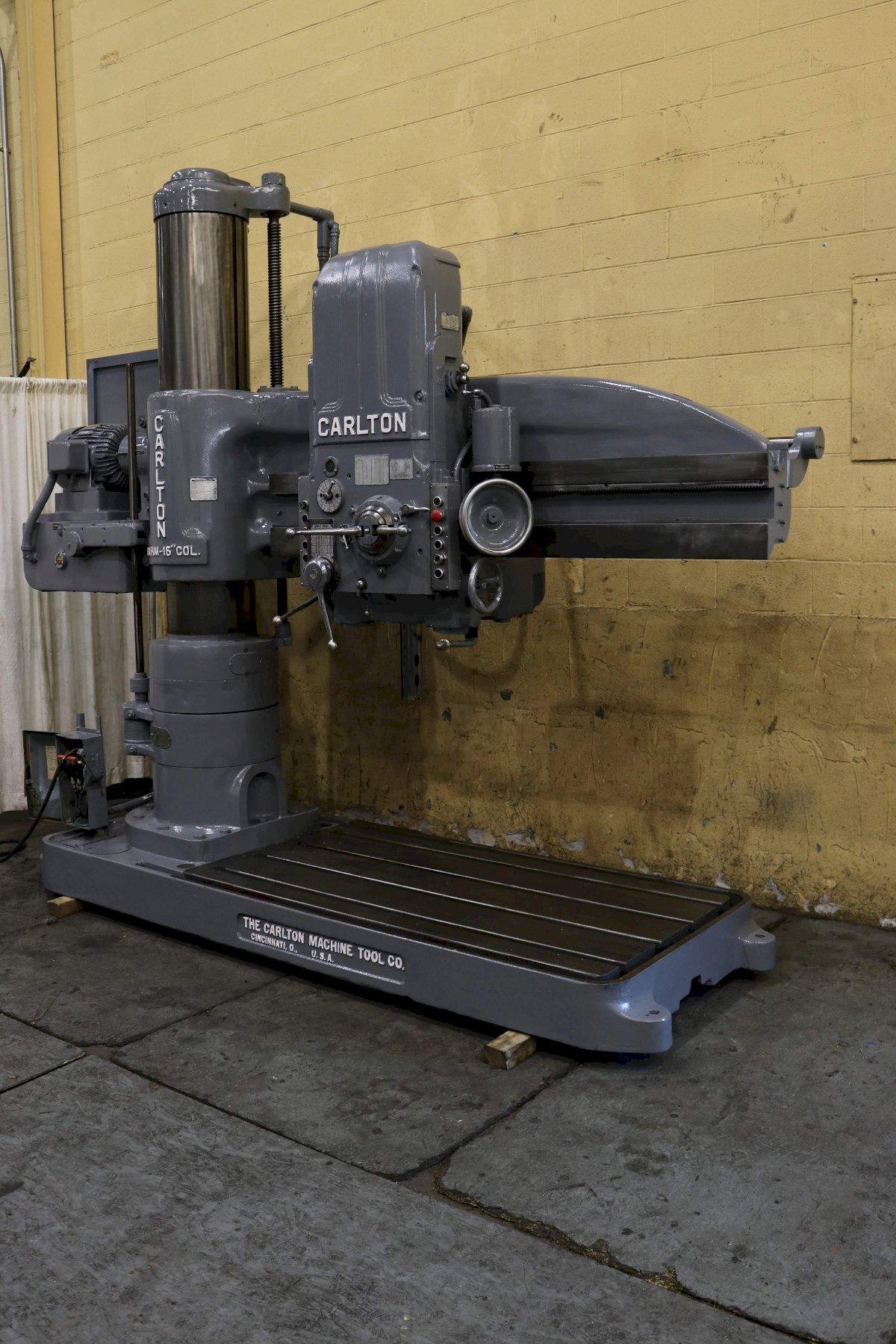

6' X 15' CARLTON RADIAL ARM DRILL: STOCK #72865

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

72865

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL.......................... #3A-5753
MODEL........................... 3A
YEAR............................ 1975

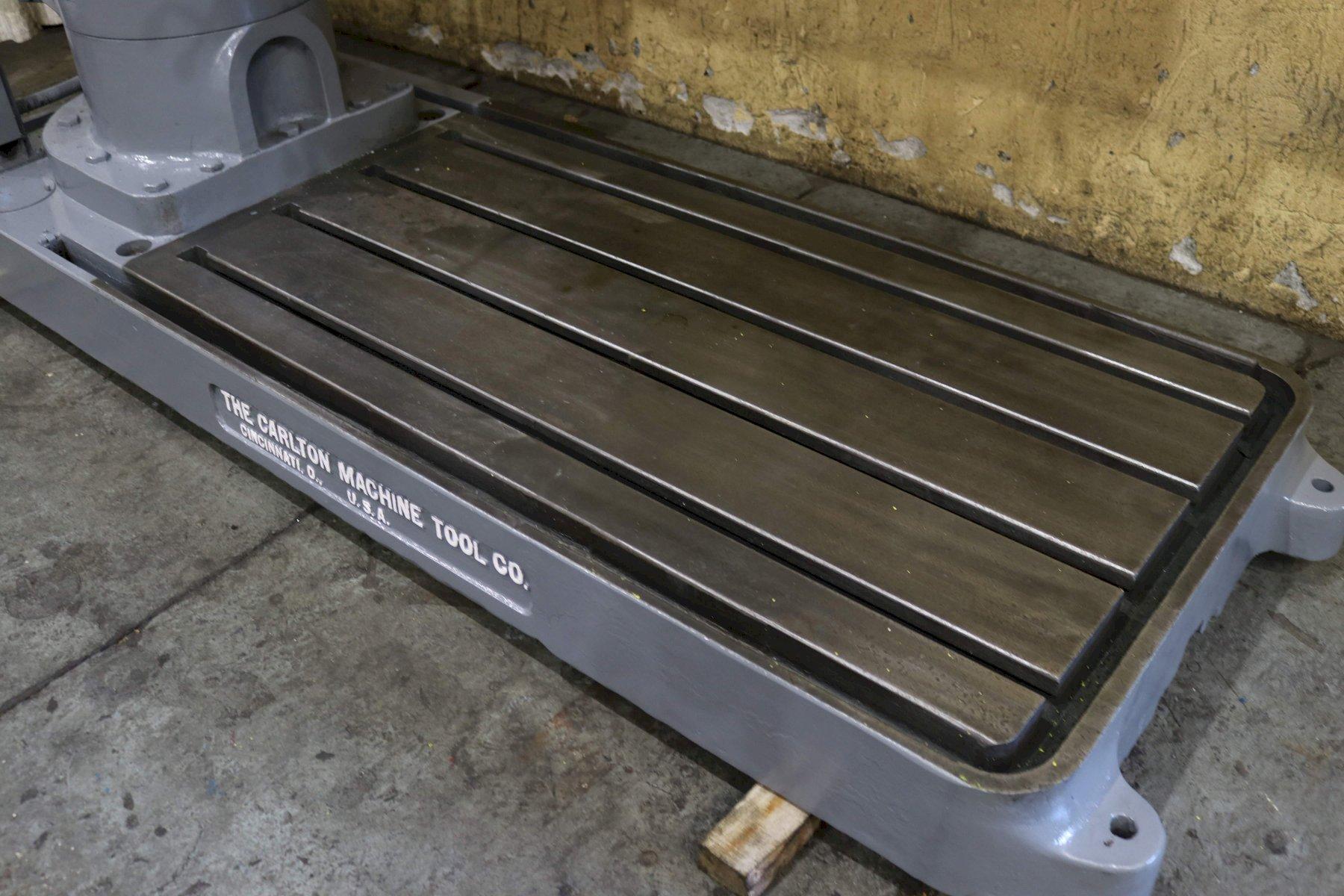

AREA OF BASE.................... 77" X 42"

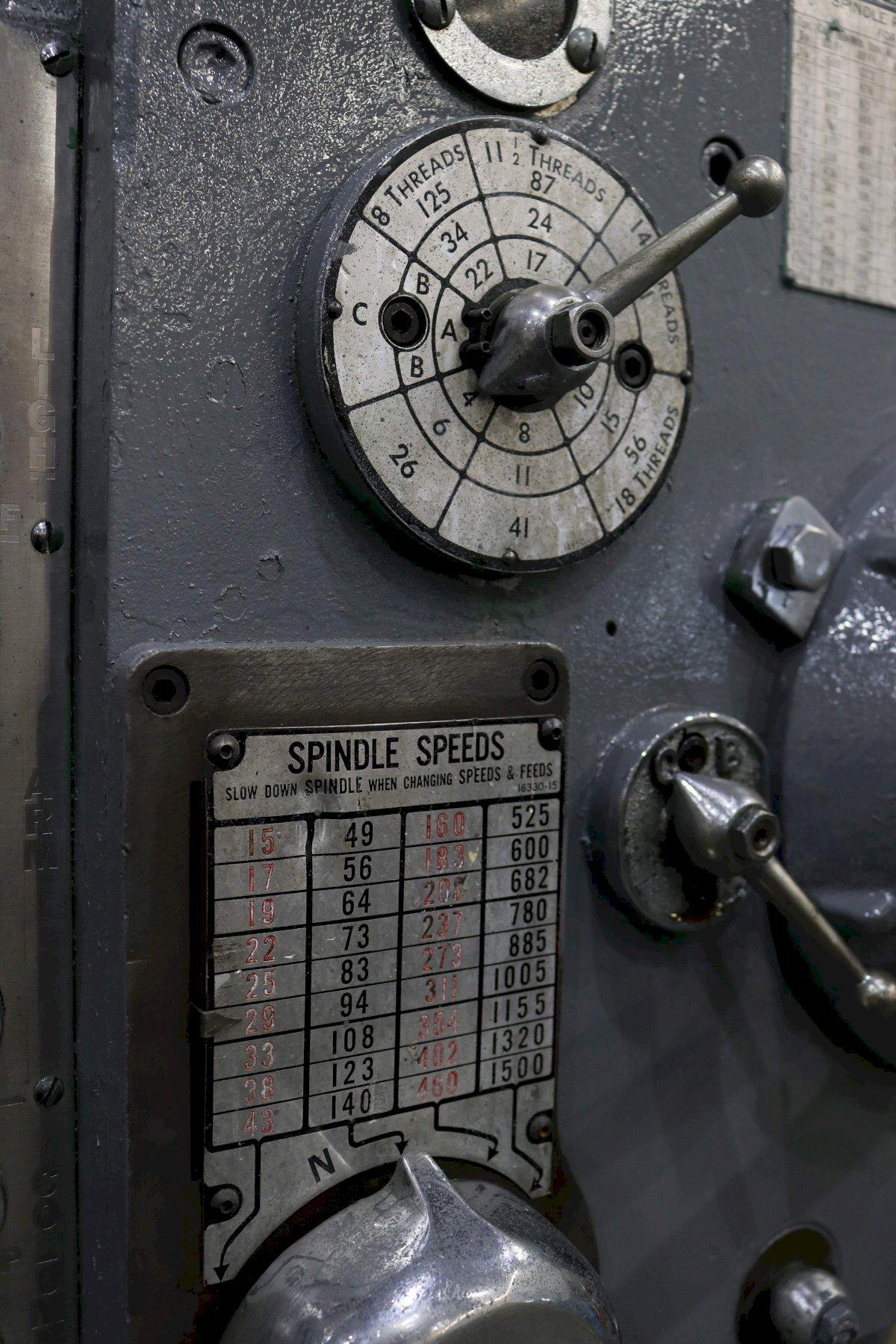

SPINDLE SPEEDS.................. (36) 15 TO 1500 RPM
FEEDS........................... (18) .004 TO .125 IPR
THREADS......................... 8,11-1/2, 14, 18, TPI
DIAMETER OF SPINDLE............. 3-3/16"
TAPER IN SPINDLE................ 5 MT
SPINDLE TRAVEL.................. 18"
DISTANCE SPINDLE TO COLUMN...... 15" MIN. TO 72" MAXIMUM
DISTANCE SPINDLE TO BASE........ 10-1/2" MIN. TO 66" MAXIMUM

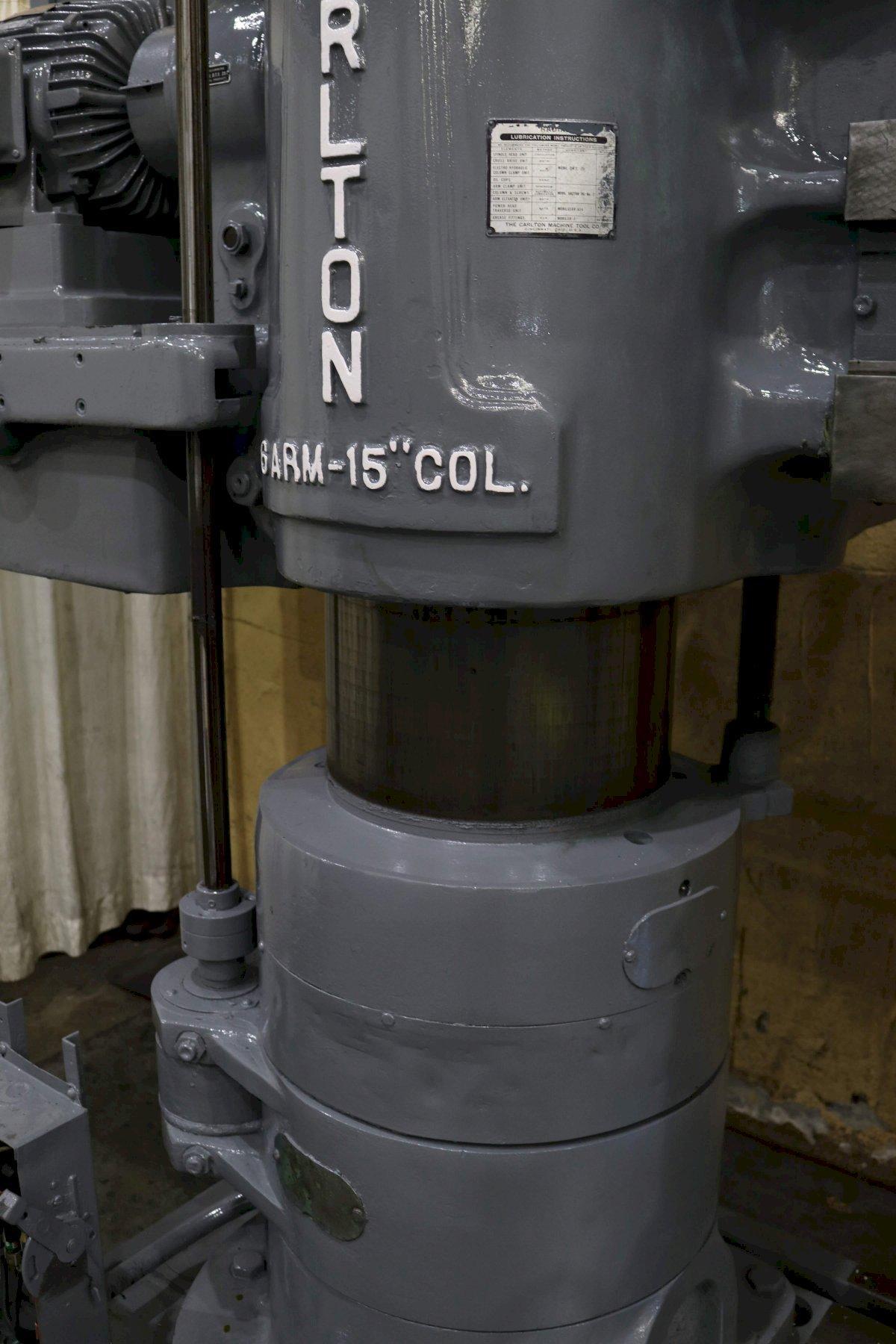

TRAVEL OF ARM ON COLUMN......... 37-1/2"

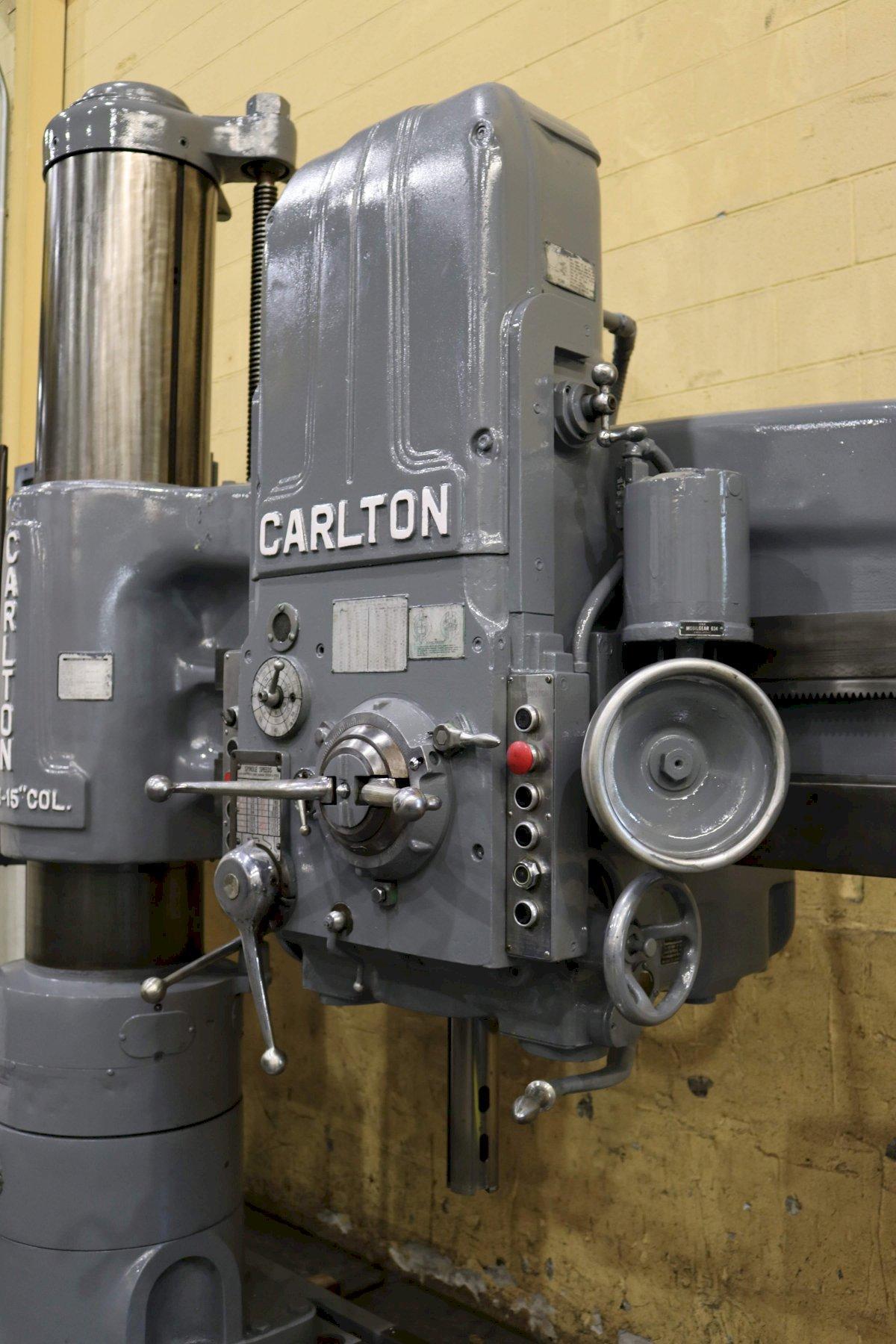

TRAVEL OF HEAD ON ARM........... 57"
POWER HEAD TRAVEL............... YES
POWER ARM CLAMPING.............. YES
POWER ARM ELEVATION..............YES
COOLANT ........................ YES
