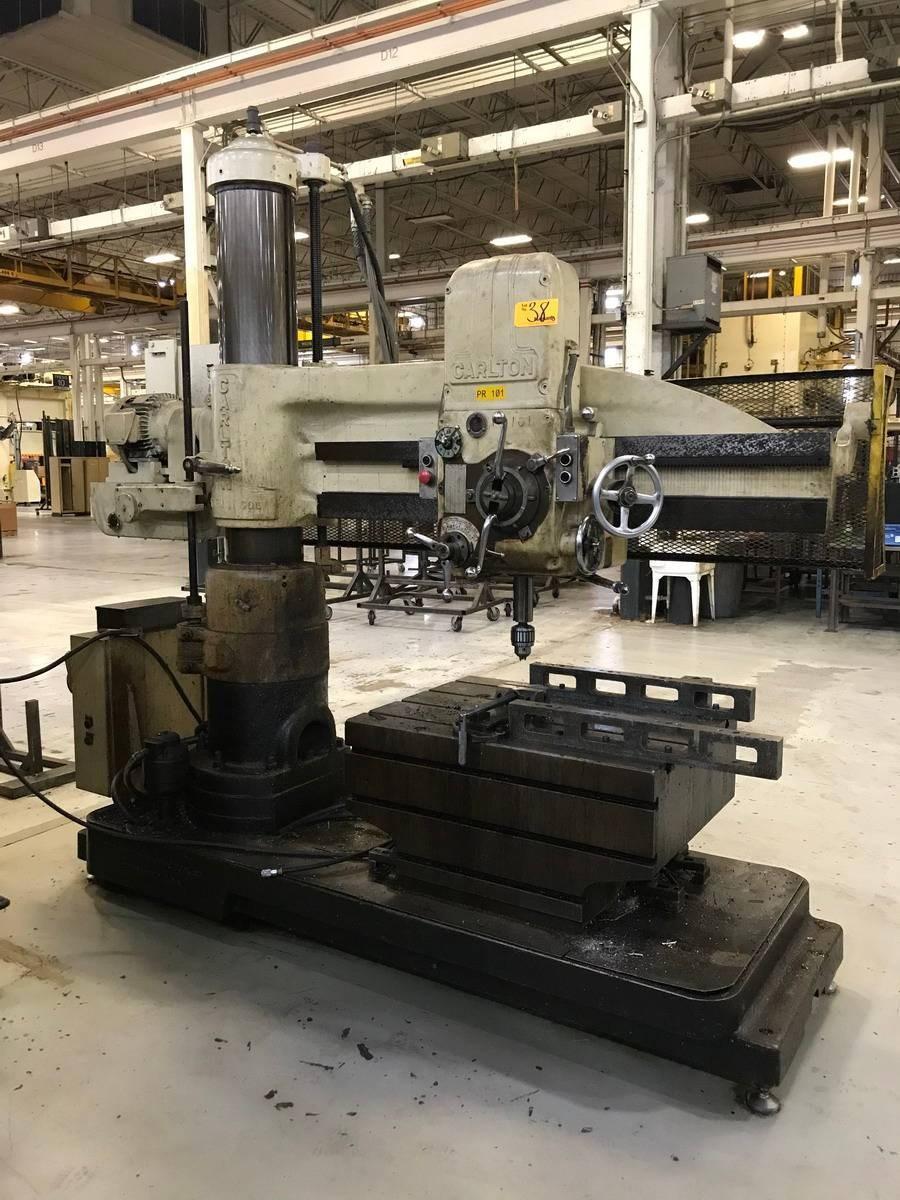

5' X 11' CARLTON RADIAL DRILL: STOCK #73051

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

73051

Model

05 x 11

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .......................... 4315
MODEL ........................... 1A
AREA OF BASE .................... 31" X 39 1/2"
SPINDLE SPEEDS .................. (12) 80 TO 1500 RPM
FEEDS ........................... (12) .006 TO .0025 IPR
TAPER IN SPINDLE ................ #5 MT
DIAMETER OF SPINDLE ............. 2-1/2"
SPINDLE TRAVEL .................. 12"
TRAVEL OF ARM ON COLUMN ......... 28"
TRAVEL OF HEAD ON ARM ........... 29"
DISTANCE SPINDLE TO BASE ........ 28" MINIMUM, 56" MAXIMUM
DISTANCE SPINDLE TO COLUMN ...... 9" MINIMUM, 36" MAXIMUM
POWER ELEVATION ................. YES
POWER COLUMN CLAMP .............. YES
COOLANT ......................... YES
MOTOR ........................... 7-1/2 HORSEPOWER
