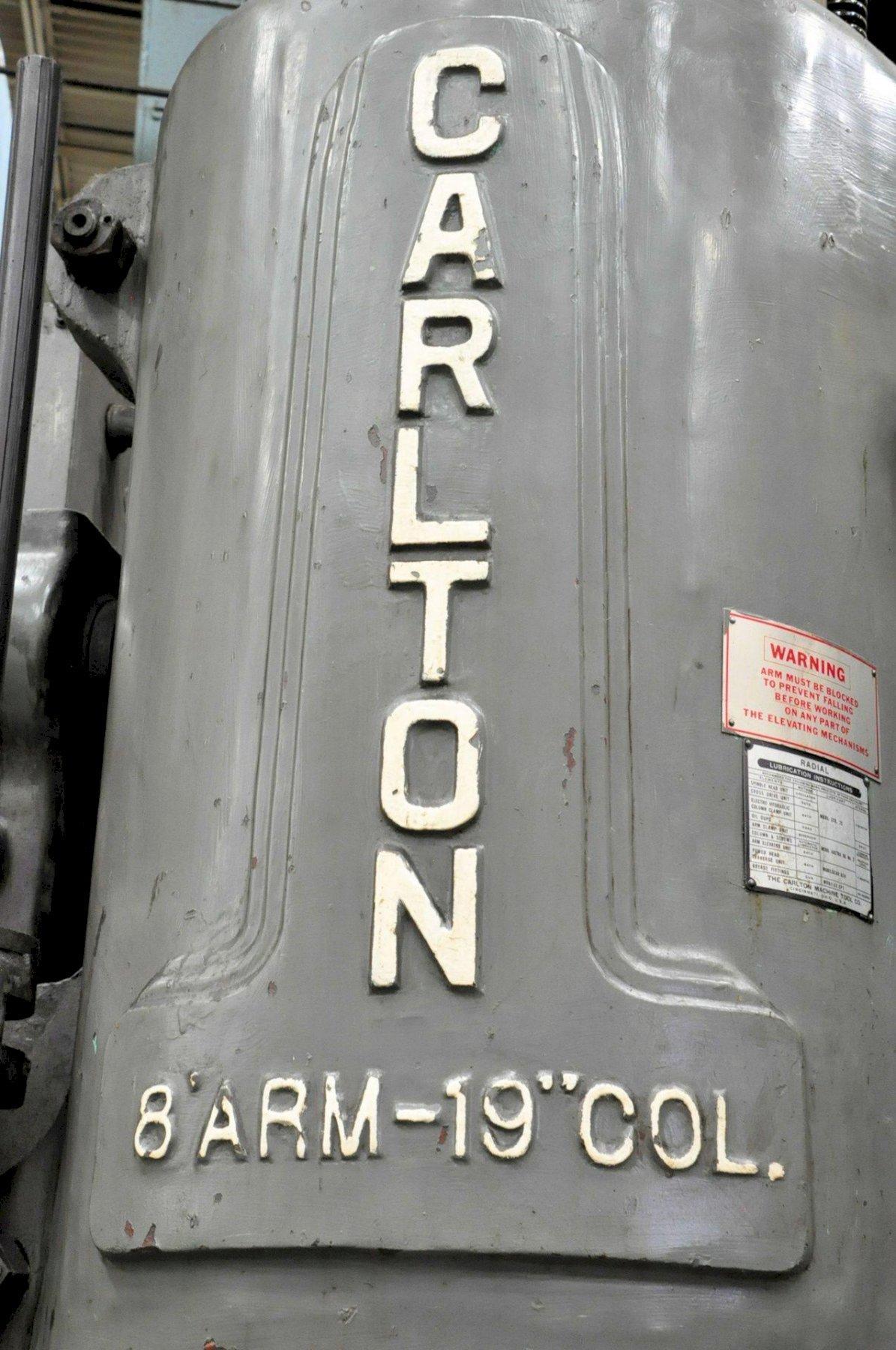

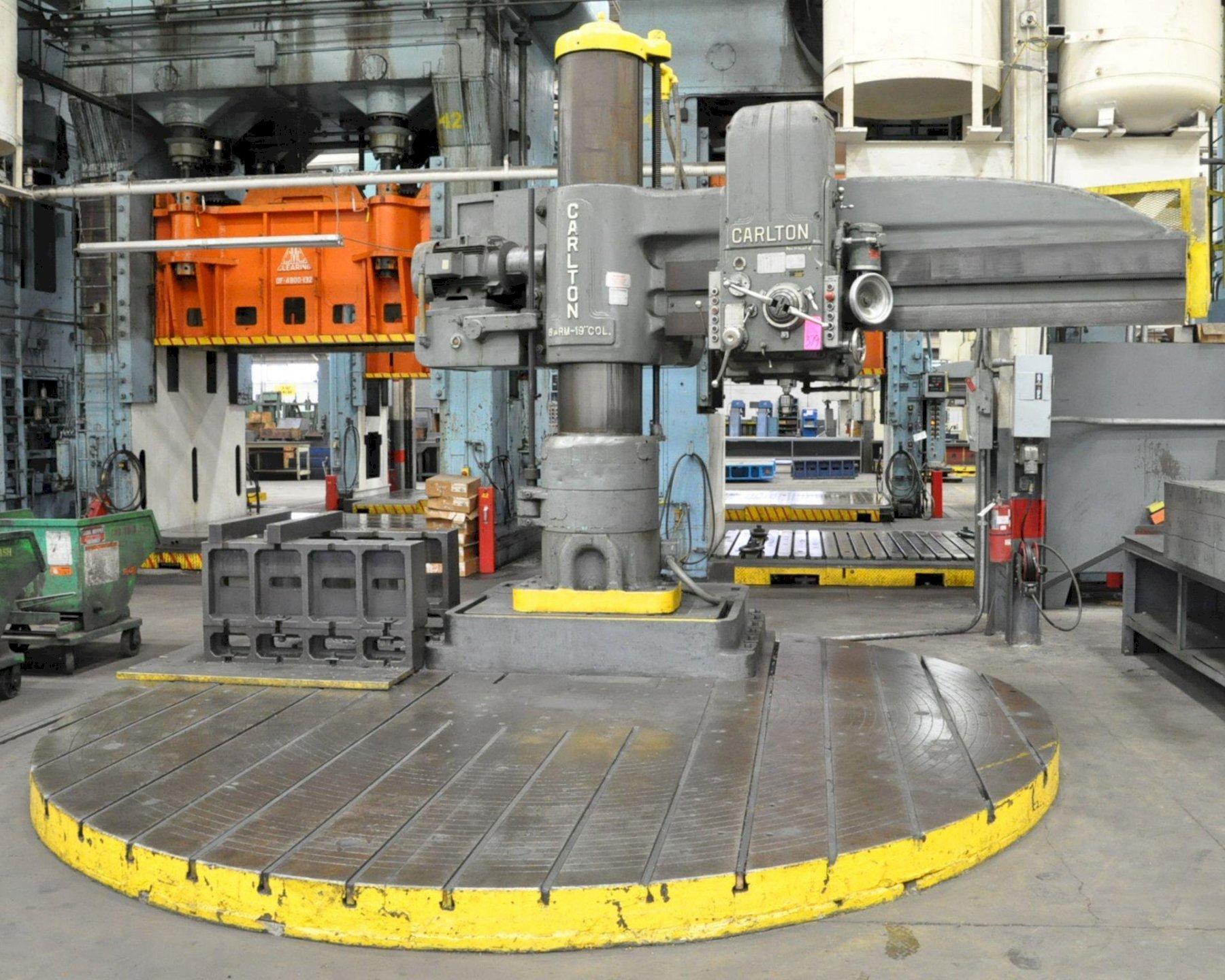

8' X 19" CARLTON RADIAL DRILL: STOCK # 73786

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

73786

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

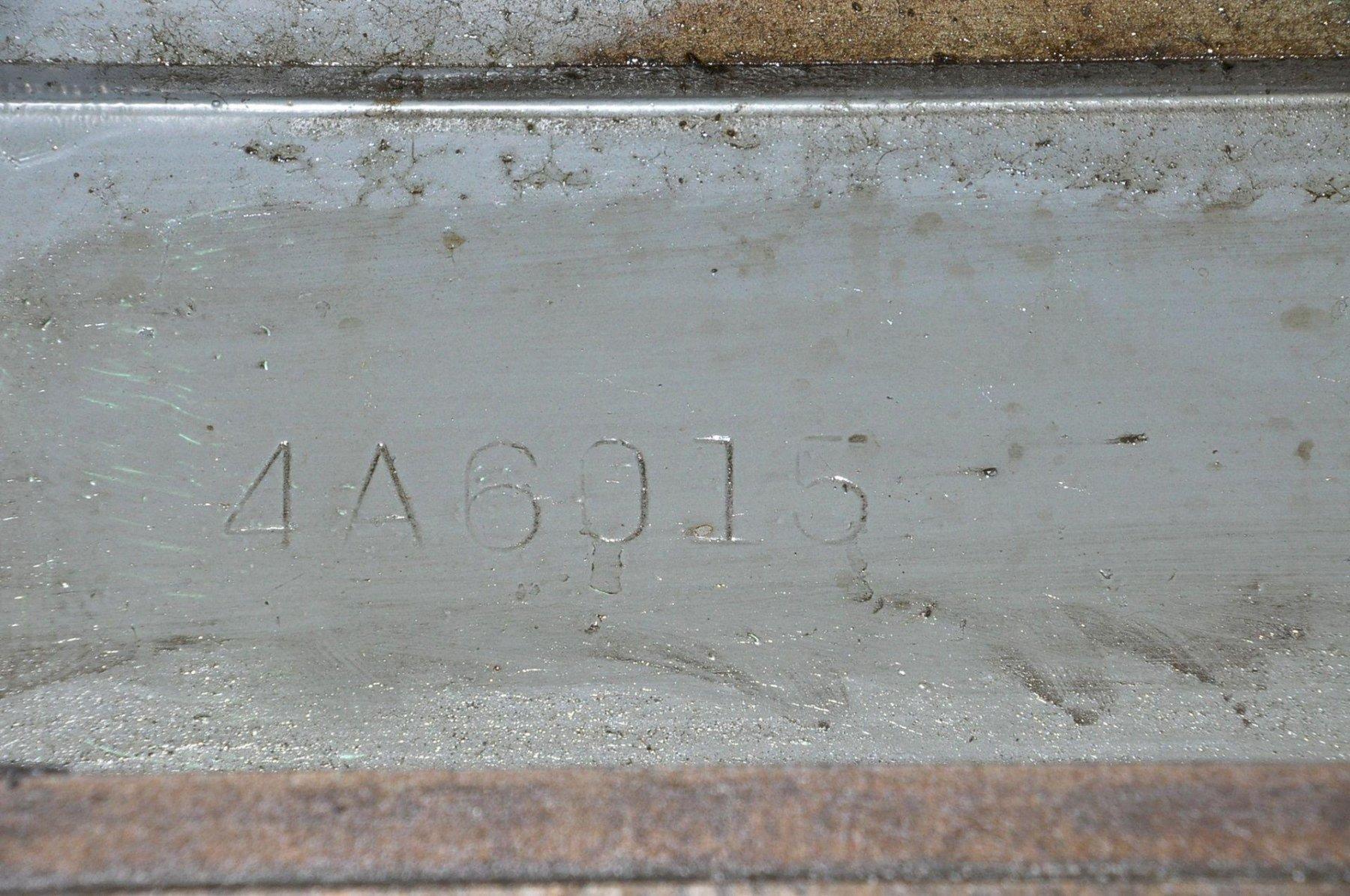

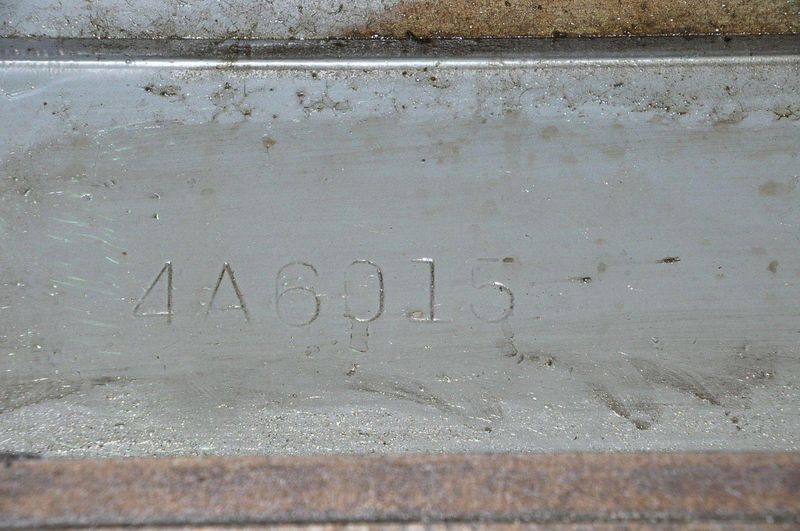

SERIAL ............................ #4A6015
MODEL ........................... 4A
YEAR NEW .................... 1981
ARM LENGTH  ....................... 8'
COLUMN DIAMETER ................... 19"
COLUMN FACE TO SPINDLE CENTER ..... 13.25" MIN, 96" MAX
SPINDLE NOSE TO BASE .............. 20.5" MIN, 84" MAX
HEIGHT OF BASE .................... 10"
VERTICAL TRAVEL OF SPINDLE IN HEAD. 20"
HEIGHT OVER HEAD .................. 12'8" MAXIMUM
HEIGHT OVER COLUMN ................ 12'3"
SPINDLE NOSE TAPER ................ #5 MT
VERTICAL TRAVEL OF ARM ............ 37.5"
TRAVEL OF HEAD ON ARM ............. 6'10-3/4"
SINDLE SPEEDS ..................... (36) 15 - 1500 RPM
SPINDLE FEEDS...................... (18) .004 - .125 IPR
THREAD LEADS ...................... 8, 11.5, 14, 18 TPI
DIAMETER OF BASE .................. 15'
MAIN MOTOR & CONTROLS ............. 40 HORSEPOWER
