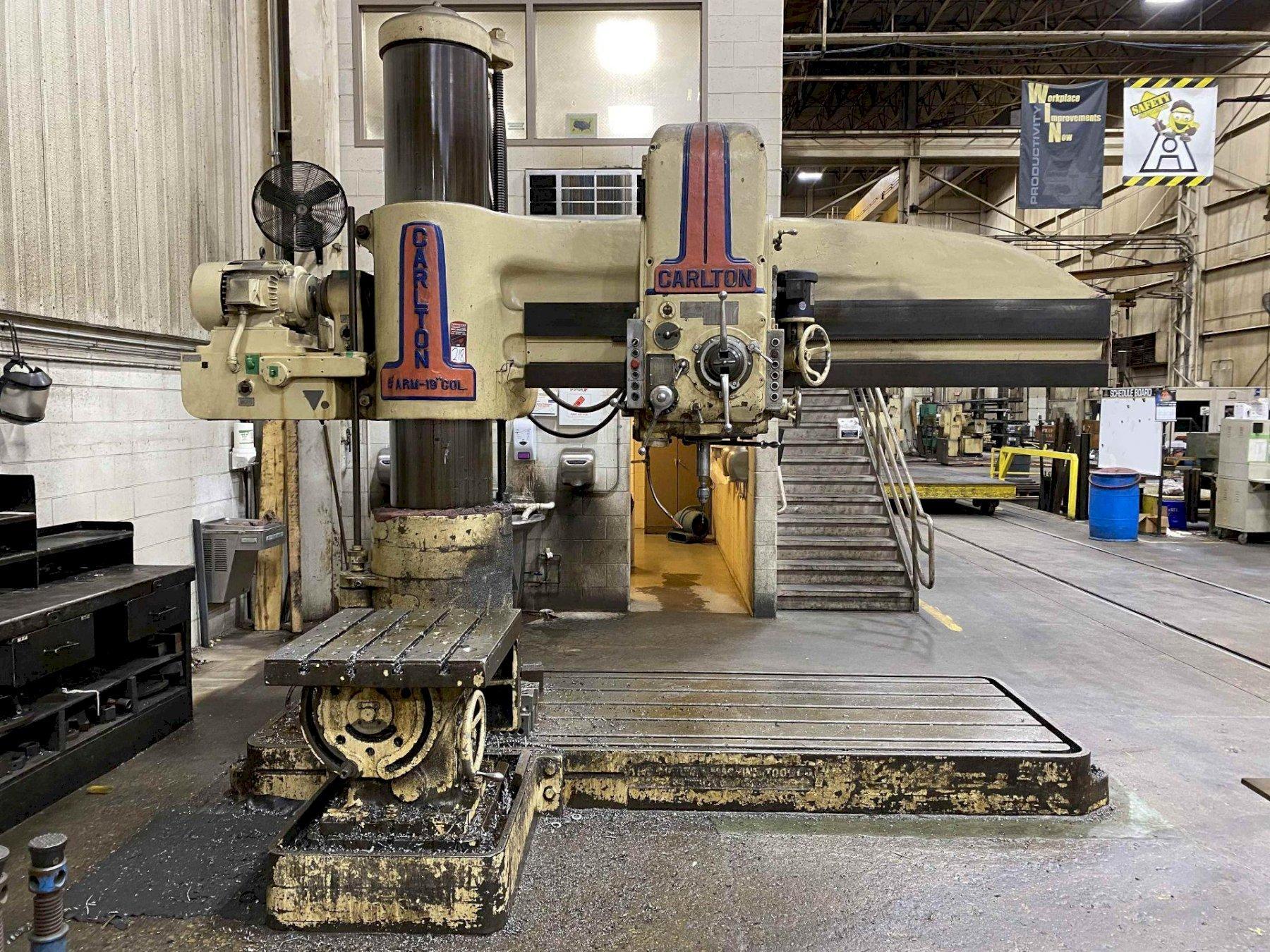

8' X 19" CARLTON RADIAL ARM DRILL: STOCK #73713

Manufacturer

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

73713

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ 4A
MODEL ............................. 4A
LENGTH OF ARM ..................... 96"
DIAMETER OF COLUMN ................ 19"
SPINDLE SPEEDS .................... (36) 10 TO 1000 RPM
SINDLE SPEEDS ..................... (18) .004 TO .125 IPR
COLUMN FACE TO SPINDLE CENTER ..... 13.25" MIN, 96" MAX
SPINDLE NOSE TO BASE .............. 20.5" MIN, 84" MAX
HEIGHT OF BASE .................... 10"
VERTICAL TRAVEL OF SPINDLE ........ 20"
SPINDLE NOSE TAPER ................ #6 MT
VERTICAL TRAVEL OF ARM ............ 37.5"
TRAVEL OF HEAD ON ARM ............. 6'10-3/4"
THREAD LEADS ...................... 8, 11.5, 14, 18 TPI
MAIN MOTOR ........................ 30 HORSEPOWER
