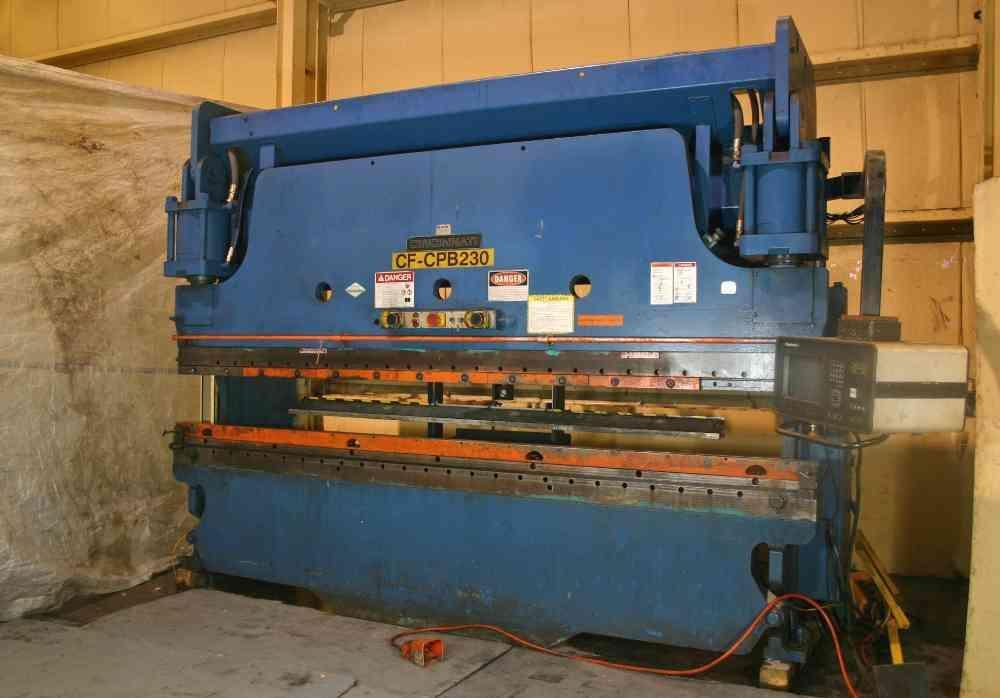

230 TON X 14' CINCINNATI HYDRAULIC PRESS BRAKE: STOCK #56000

Manufacturer

Category

Air Compressors

Stock

56000

Model

0230 X 14

Dealer Location

Ohio

Spec Sheet



SERIAL ........................... 41574
MODEL ............................ 230CB12
YEAR NEW ......................... 1980
CAPACITY ......................... 230 TON
OVERALL LENGTH OF BED AND RAM .... 14'
DISTANCE BETWEEN HOUSING ......... 12'6"
STROKE OF RAM .................... 10"
OPEN HEIGHT ...................... 17"
CLOSED HEIGHT .................... 7"
DEPTH OF THROAT .................. 8"
RAM SPEED HIGH ................... 101 IPM
RAM SPEED MEDIUM ................. 49 IPM
RAM SPEEDS LOW ................... 14 IPM
RAM SPEEDS RETURN ................ 95 IPM
HURCO AUTOBEND 20C CNC BACK GAUGE. YES
MILLED & DRILL FOR ANGLES ........ YES
ELECTRIC FOOT TRIP ............... YES
MOTOR ............................ 30 HORSEPOWER
