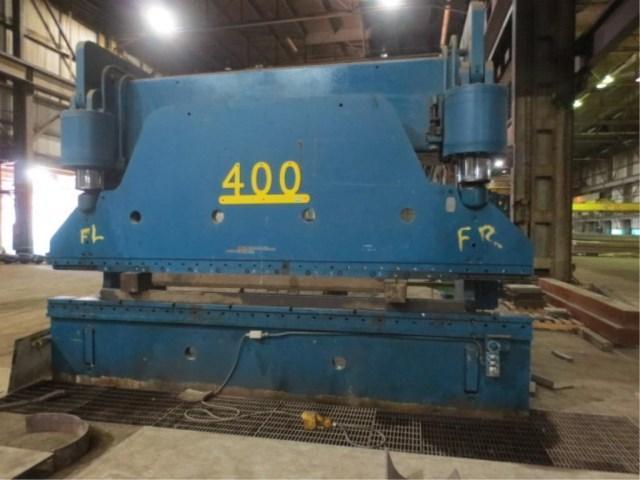

400 TON X 16' CINCINNATI MODEL 400H HYDRAULIC PRESS BRAKE: STOCK #67571

Stock

67571

Model

0400 x 16

Dealer Location

Ohio

Spec Sheet

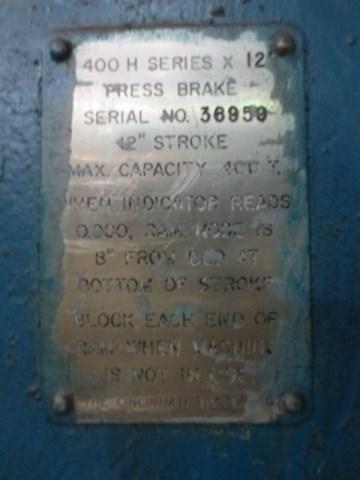

SERIAL ............................ 36959
MODEL ............................. 400 H X 12
CAPACITY .......................... 400 TON
STROKE ............................ 12"
OVERALL LENGTH OF BED & RAM ....... 16'
DISTANCE BETWEEN HOUSING .......... 12'5-3/4"
STROKE OF RAM ..................... 12"
OPEN HEIGHT ....................... 20"
CLOSED HEIGHT ..................... 8"
THROAT ............................ 10"
RAM SPEEDS ........................ 64 IPM FAST PRESS
RAM SPEEDS ........................ 27 IPM PRESSING
RAM SPEEDS ........................ 51 IPM RETURN
DIE CLAMPS ........................ YES
MILLED & DRILL FOR ANGLES ......... YES
ELECTRIC FOOT PEDAL ............... YES
MOTOR ............................. 40 HORSEPOWER
