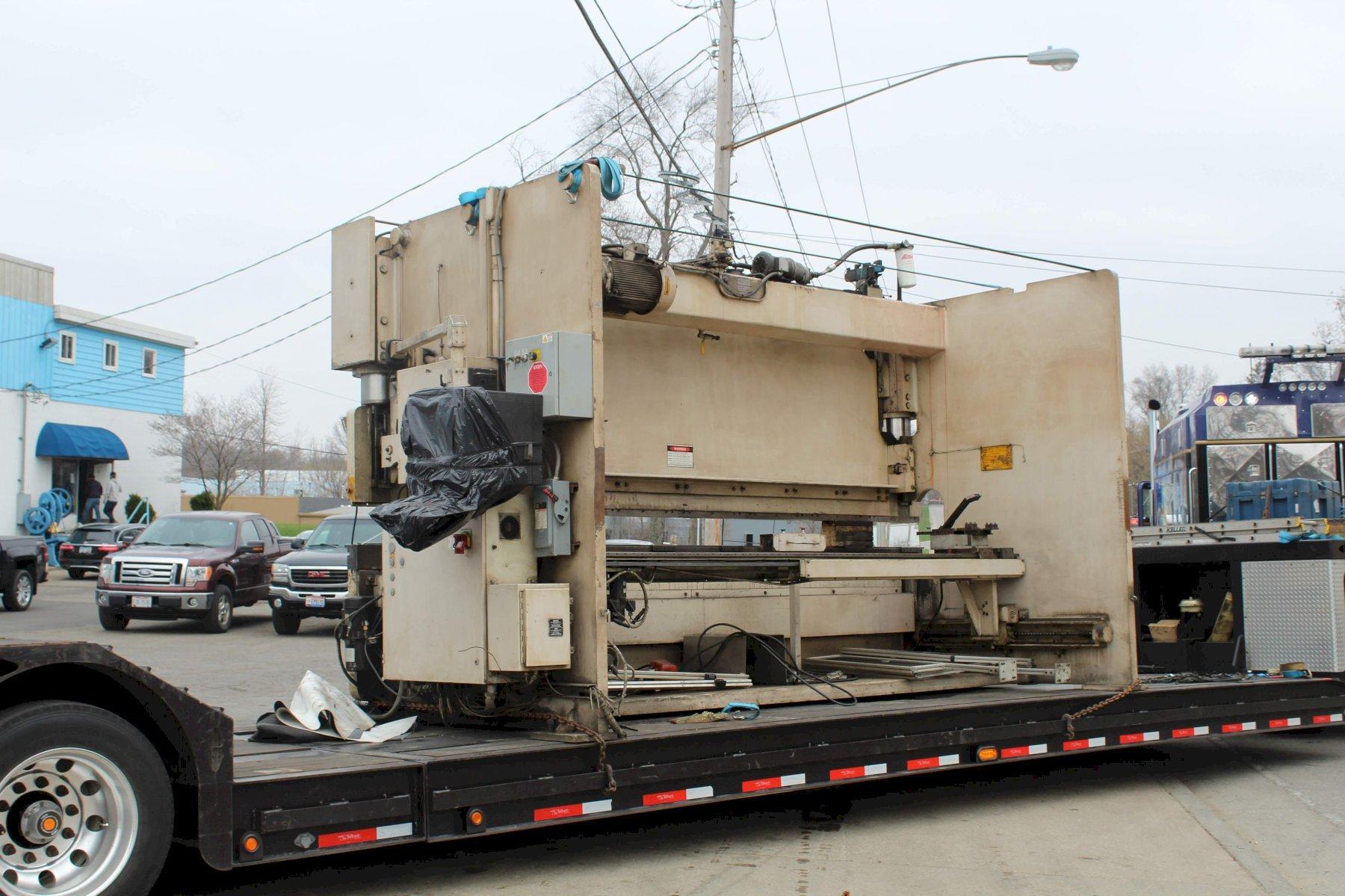

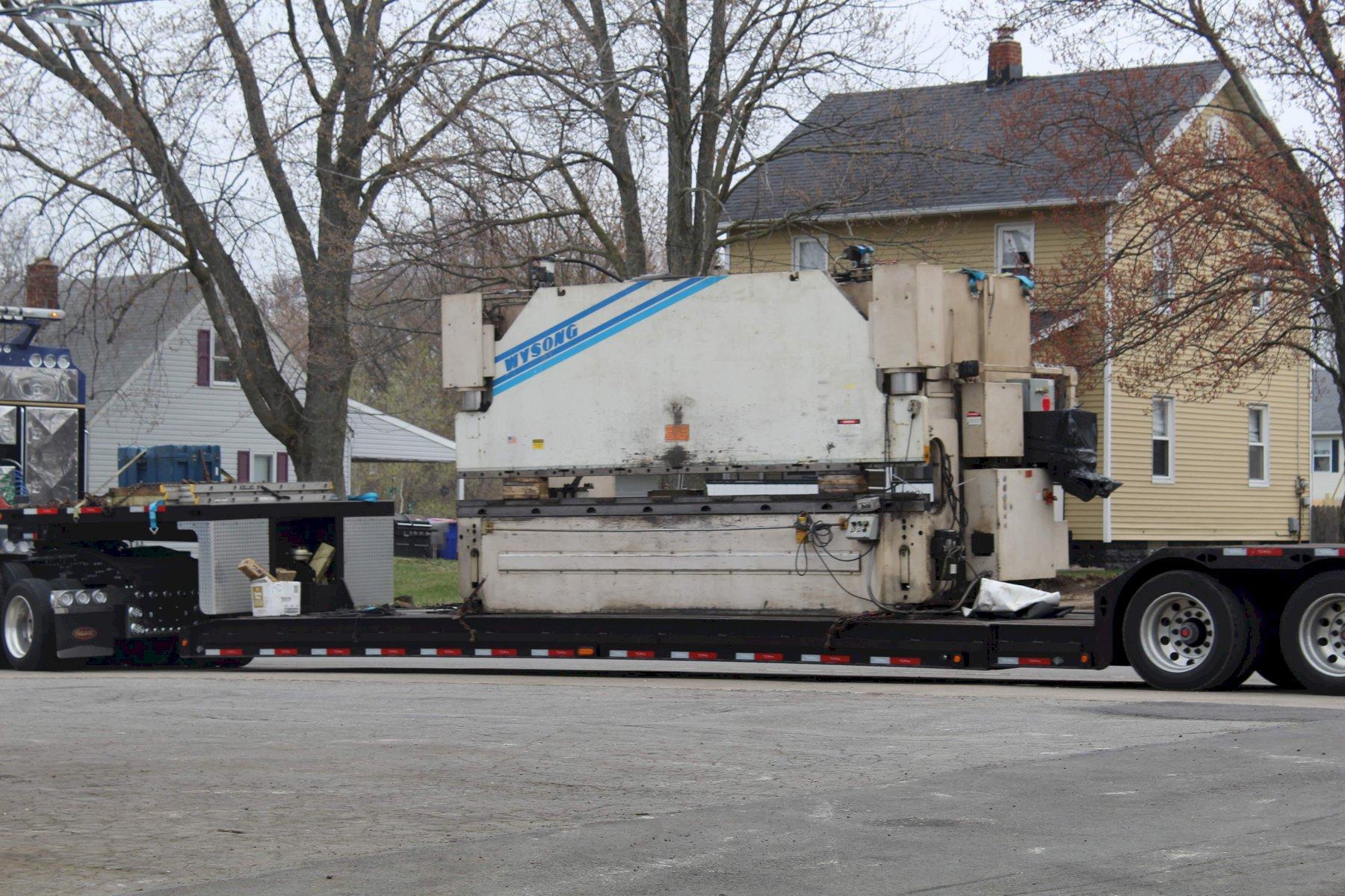

250 TON X 16' WYSONG HYDRAULIC PRESS BRAKE: STOCK #71655

Manufacturer

WYSONG

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

71655

Model

0250 X 16

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .......................... HPB 64-100
MODEL ........................... PHP 250-192
YEAR NEW ........................ 1997
CAPACITY ........................ 250 TON
OVERALL LENGTH OF BED & RAM ..... (192") 16'
DISTANCE BETWEEN HOUSING ........ 174"
STROKE .......................... 10"
OPEN HEIGHT ..................... 19"
CLOSED HEIGH .................... 9"
DEPTH OF THROAT ................. 18"
HYDRAULIC DIE CLAMPING .......... YES
CNC BACK GAUGE .................. 5 AXIS
RAM SPEED APPROACH .............. 250 IPM
RAM SPEED PRESSING .............. 20 IPM
RAM SPEED RETURN ................ 200 IPM
PRESS CONTROLS .................. PRO FORM
FRONT ARM SUPPORTS .............. (2) @ 36"
PASSLINE OVER FILLER BLOCK ...... 39"
FLOOR STANDING................... YES
MOTOR ........................... 20 HORSEPOWER
