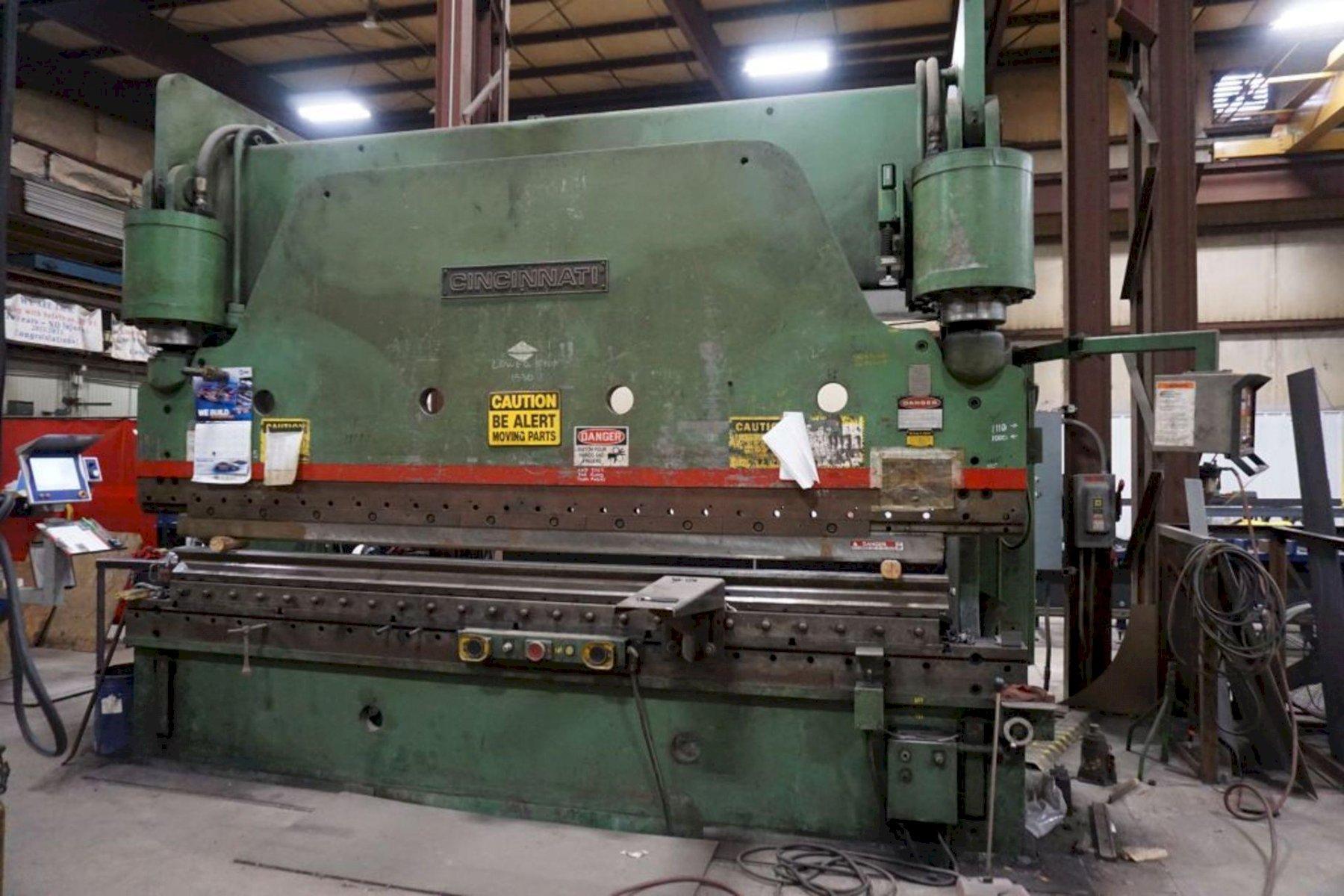

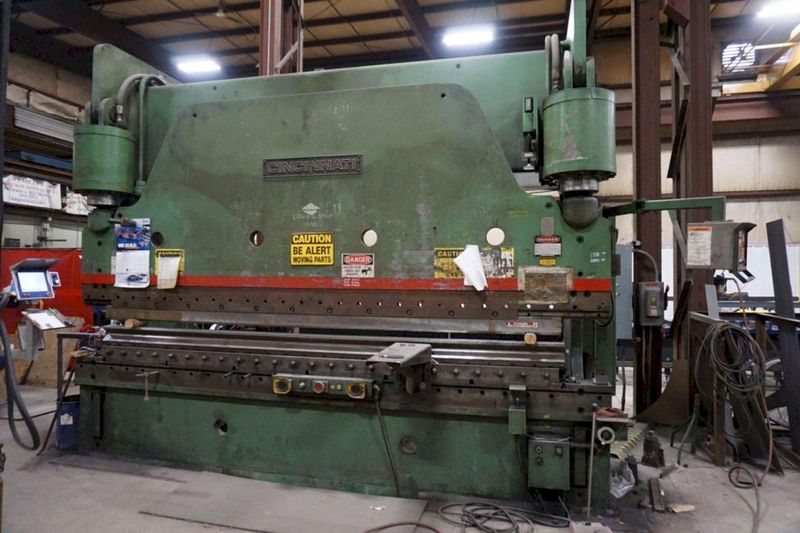

300 TON X 12' CINCINNATI HYRAULIC PRESS BRAKE: STOCK #73717

Manufacturer

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

73717

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

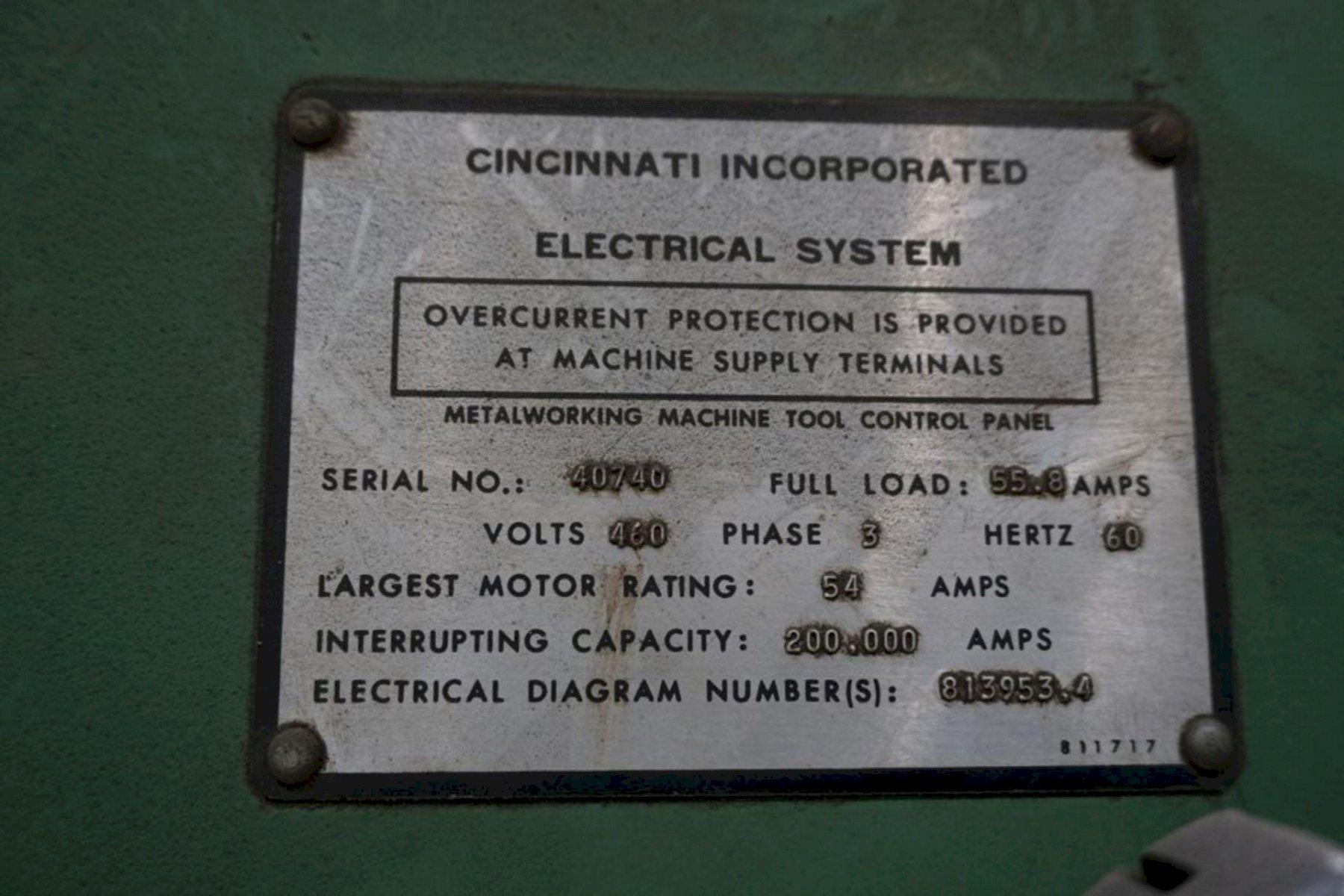

SERIAL ........................... 40740
MODEL ............................ 300H - 10
YEAR ............................. 1975
CAPACITY ......................... 300 TON
OVERALL LENGTH OF BEND ........... 12'
DISTANCE BETWEEN HOUSINGS ........ 10'5-3/4"
STROKE ........................... 12"
OPEN HEIGHT ...................... 20"
CLOSED HEIGHT .................... 8"
DEPTH OF THROAT .................. 10-1/2"
RAM SPEED - FAST PRESS ........... 77 IPM
RAM SPEED - FULL TONNAGE ......... 37 IPM
RAM SPEED - RETURN ............... 80 IPM
HURCO CNC BACK GAUGE ............. AUTOBEND 7
FLOOR STANDING (NO PIT REQUIRED) . YES
ELECTRIC FOOT PEDAL .............. YES
DUAL PALM BUTTONS ................ YES
MILL & DRILL FOR ANGLES .......... YES
MOTOR ............................ 40 HORSEPOWER
*** 10' 4WAY DIE TOP DIE & BOTTOM DIE HOLDER ***
