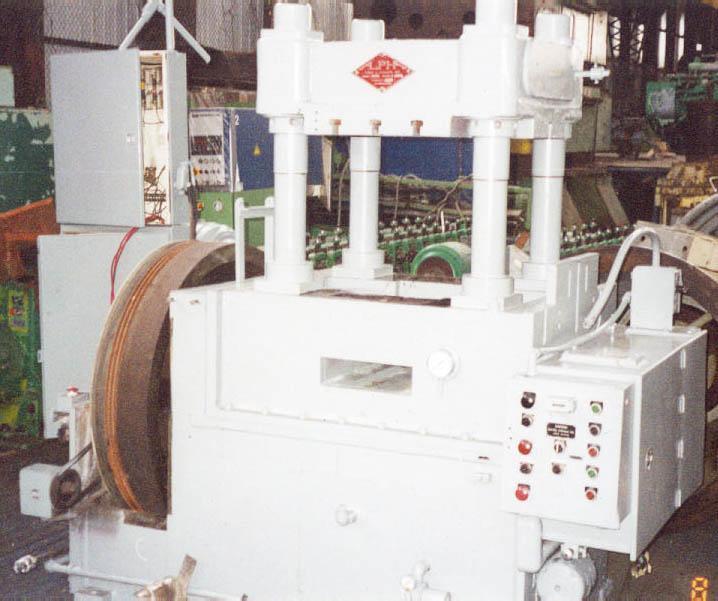

MODEL 100-24-18 ALPHA 4-POST PRESS TYPE CUT-OFF: STOCK #51693

Manufacturer

Category

Presses

Type

PRESSES, CUT-OFF

Stock

51693

Model

0100

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



Capacity: 100 Ton
Distance Between Posts:
Left to Right: 25" (22 1/2" Post Base at Top of Bed)
Front to Back: 19" (16 3/4" Post Base at Top of Bed)
Ram Size: 32" F.B. x 38" L.R.,T-Slotted
Bed Size: 35" F.B. x 45" L.R.
Stroke: 1 1/2 "
Open Height: 21 3/4"
Manual Nut Adjustment
Bed Opening: 13 1/2" F.B. x 36" L.R.
Scrap Chute: 6" High x 14" Wide, Running F.B.
Pass Line: Floor to Top Of Bed: 48"
EQUIPPED WITH:
Operating Controls-12 Buttons
Main Controls
Variable Drive and Reducer
Dimensions:
Main: 7 4" H x 8 L x 5 10" W
Veri Drive: 5 8" L x 3 3" W
MOTOR DATA:
U.S. Veri Drive & Reducer
U.S. Electric 25 HP - 220/440 Volts
583 RPM (min) - 1750 RPM (max)
Motor RPM 1800
Condition - GOOD
