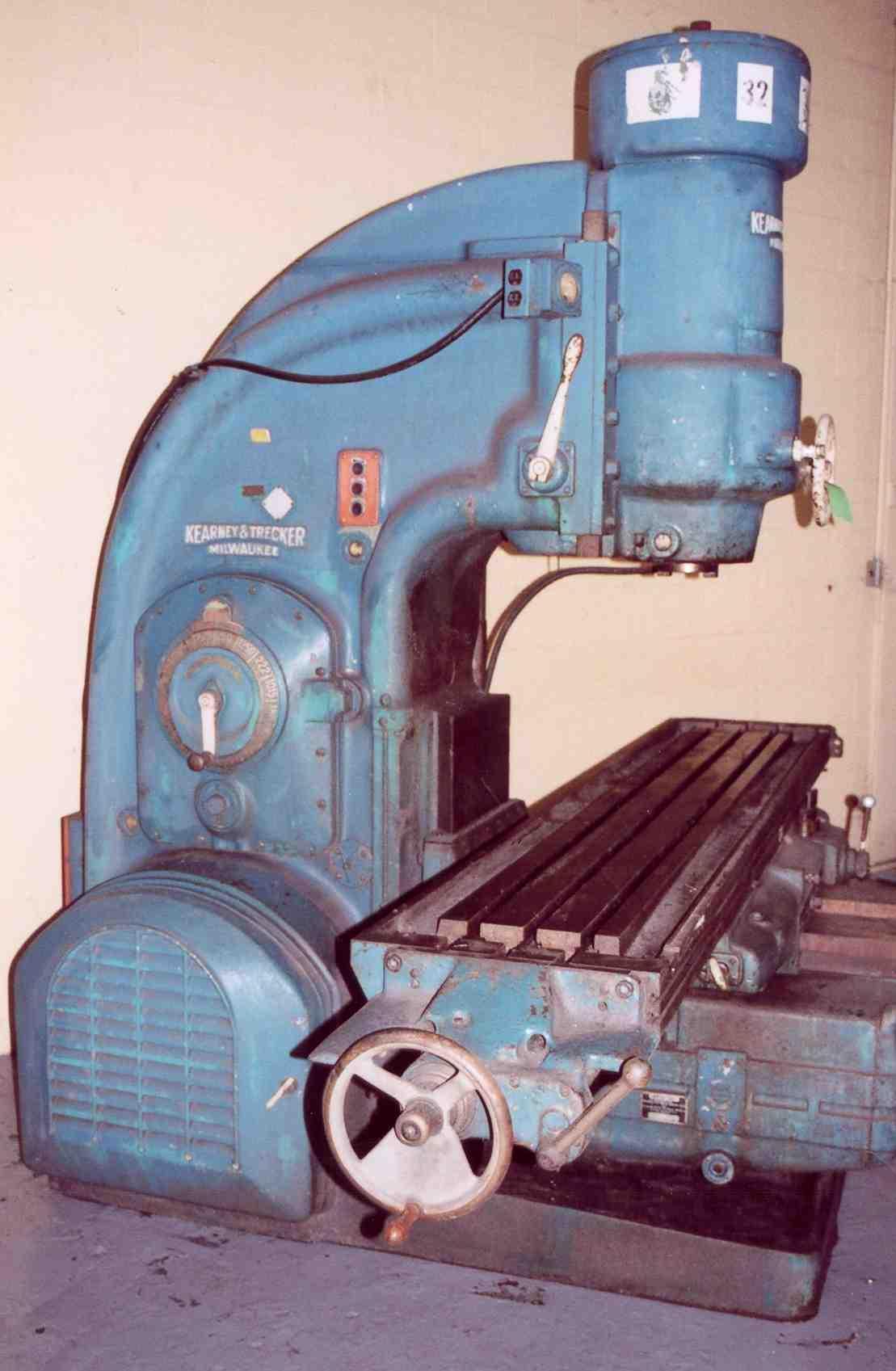

KEARNEY & TRECKER MODEL #5 VERTICAL MILL: STOCK #15984

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

15984

Model

5CSM-50

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ..................................... 7-7102
MODEL ...................................... 5CSM-50/25
AREA OF TABLE .............................. 98" X 18"
SPINDLE SPEEDS ............................. (32) 25 TO 1250 RPM
LONGITUDINAL AND CROSS FEEDS ............... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ............................. (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL ........................ 50"
CROSS TRAVEL ............................... 16"
VERTICAL KNEE TRAVEL ....................... 20"
VERTICAL TRAVEL OF SPINDLE ................. 4"
DISTANCE SPINDLE TO TABLE .................. 0" MIN, 21-3/4" MAX
RAPID TRAVERSE ............................. 150 FPM
TAPER IN SPINDLE ........................... #50NS
DUAL CONTROLS .............................. YES
COOLANT .................................... YES
SPINDLE MOTOR, HORSEPOWER .................. 50
