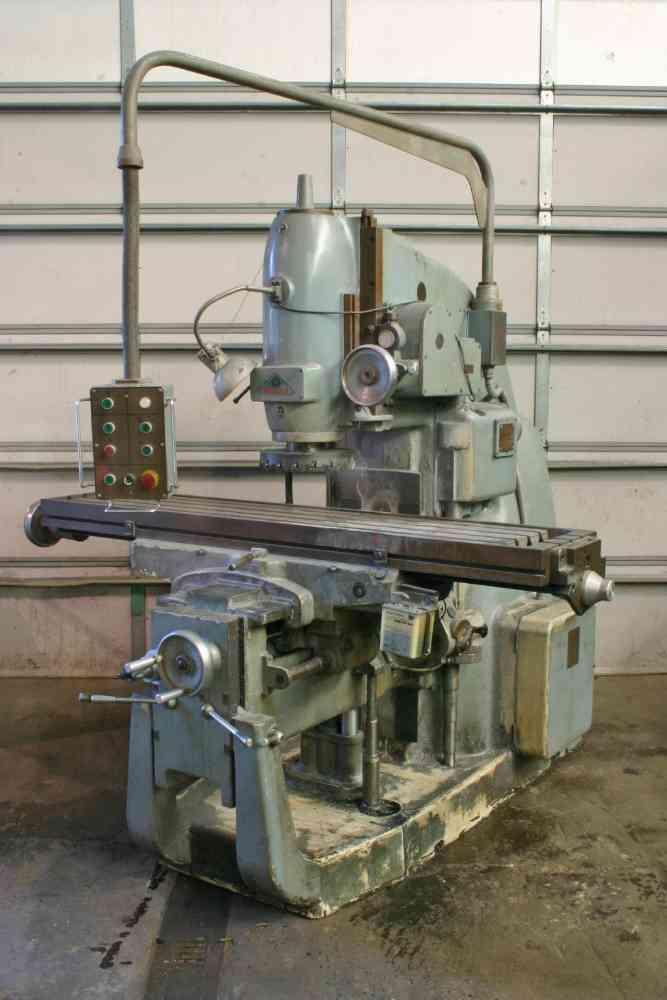

POLAMCO MODEL #4 VERTICAL MILL: STOCK #52634

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

52634

Model

4

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 1 3004-964-28
MODEL .............................. FYA41M

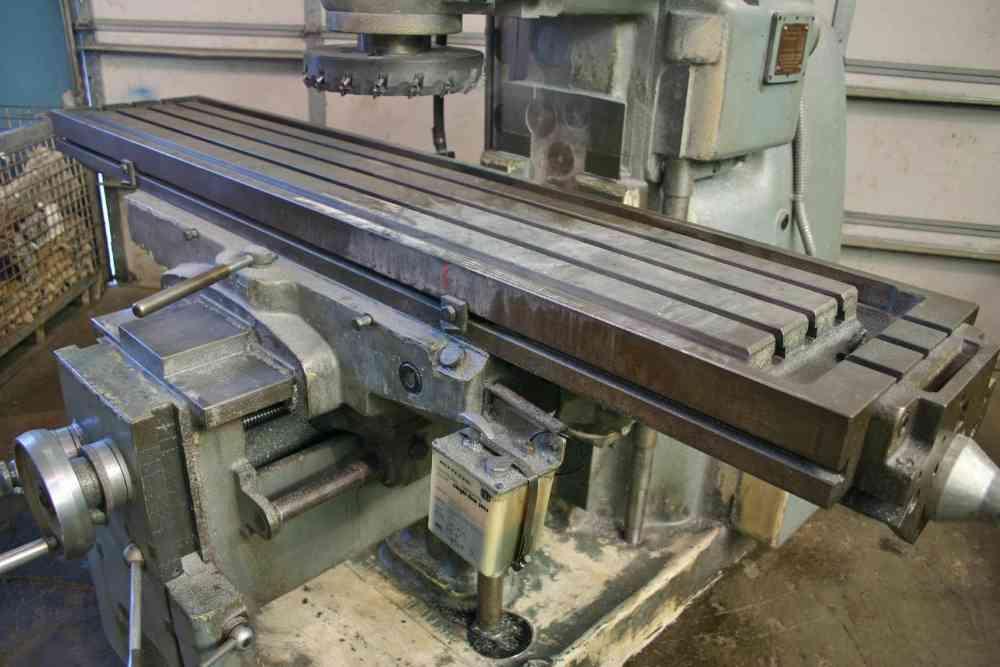

AREA OF TABLE ...................... 78" X 15-3/4"
SPINDLE SPEEDS ..................... (21) 28 TO 1300 RPM
LONGITUDINAL FEEDS ................. (32) 1/2 TO 42 IPM
CROSS FEEDS ........................ (32) 3/8 TO 31-5/8 IPM
VERTICAL KNEE FEEDS ................ (32) 1/4 TO 20 IPM
VERTICAL RAM FEEDS ................. (16) 1/4 TO 80 IPM
LONGITUDINAL TRAVEL ................ 41-3/4"
CROSS TRAVEL ....................... 14-3/16"
VERTICAL KNEE TRAVEL ............... 13-13/16"
VERTICAL RAM TRAVEL ................ 5-1/2"
DISTANCE SPINDLE NOSE TO TABLE ..... 0" MIN, 20" MAX
DEPTH OF THROAT .................... 18-1/2"
TAPER IN SPINDLE ................... #50 NS
RAPID TRAVERSE ..................... 99 IPM
SPINDLE MOTOR, HORSEPOWER .......... 15
