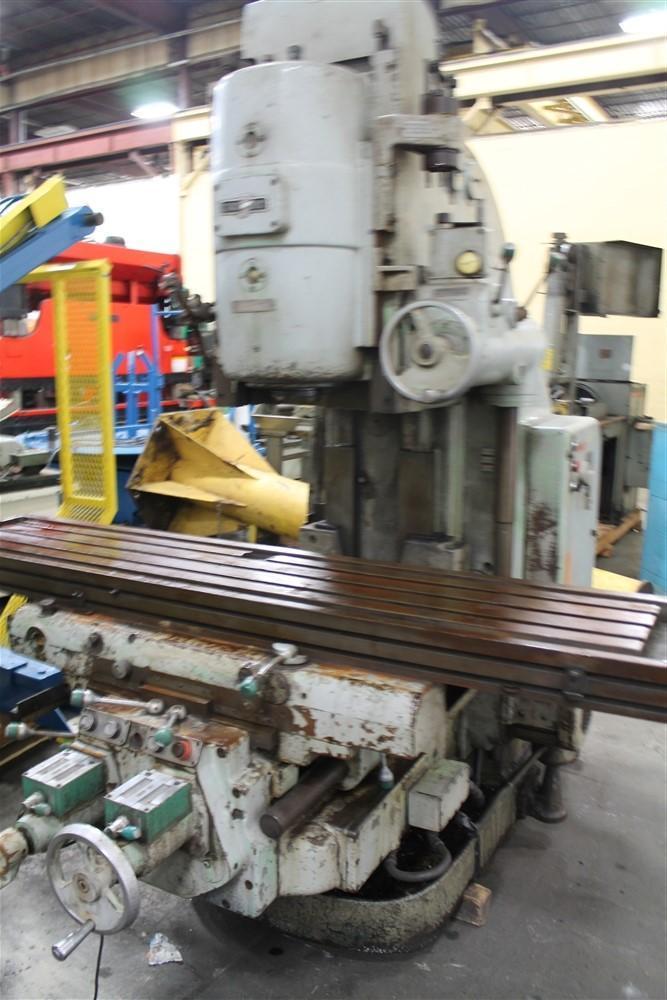

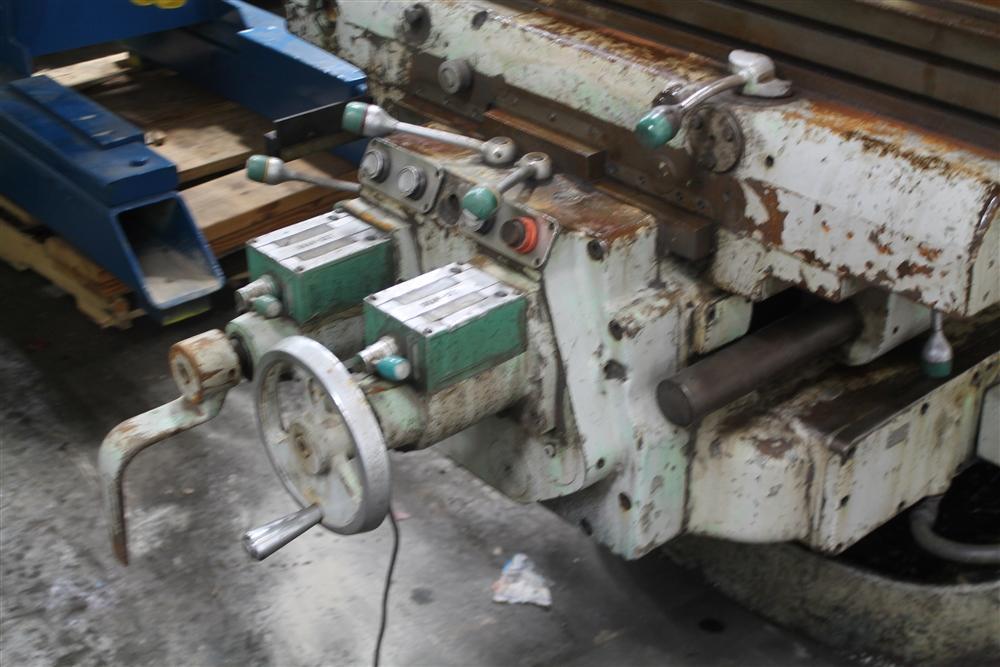

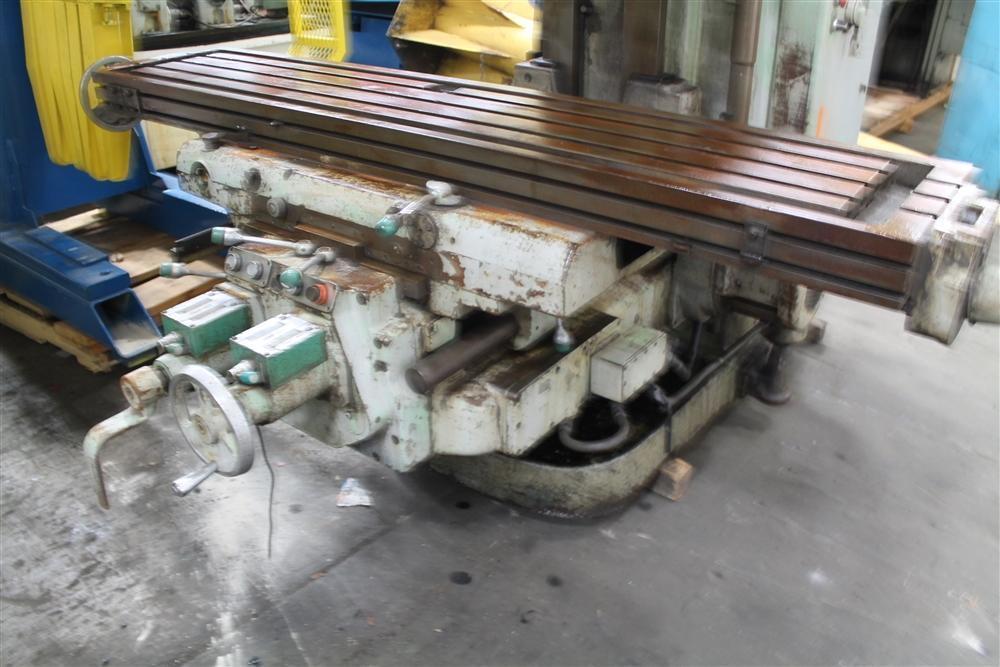

420-16 CINCINNATI VERTICAL MILL STK #61818

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

61818

Model

420-16

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ 4A4V5T-3
MODEL ................................. 420-16
AREA OF TABLE ......................... 79-3/4" X 16-1/4"
SPINDLE SPEEDS ........................ (24) 16 TO 1600 RPM
LONGITUDINAL & CROSS FEEDS ............ (32) 3/8 TO 90 IPM
VERTICAL FEEDS ........................ (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL ................... 42"
CROSS TRAVEL .......................... 16"
VERTICAL TRAVEL OF KNEE ............... 16"
VERTICAL TRAVEL OF HEAD ............... 6"
TAPER IN SPINDLE ...................... #50 NT
DISTANCE SPINDLE TO TABLE ............. 0" MIN TO 22-1/8" MAXIMUM
RAPID TRAVERSE ........................ 150 IPM
VERTICAL RAPID TRAVERSE ............... 75 IPM
DEPTH OF THROAT ....................... 18"
COOLANT ............................... YES
SPINDLE DRIVE MOTOR ................... 20 HORSEPOWER
FEED MOTOR ............................ 5 HORSEPOWER
