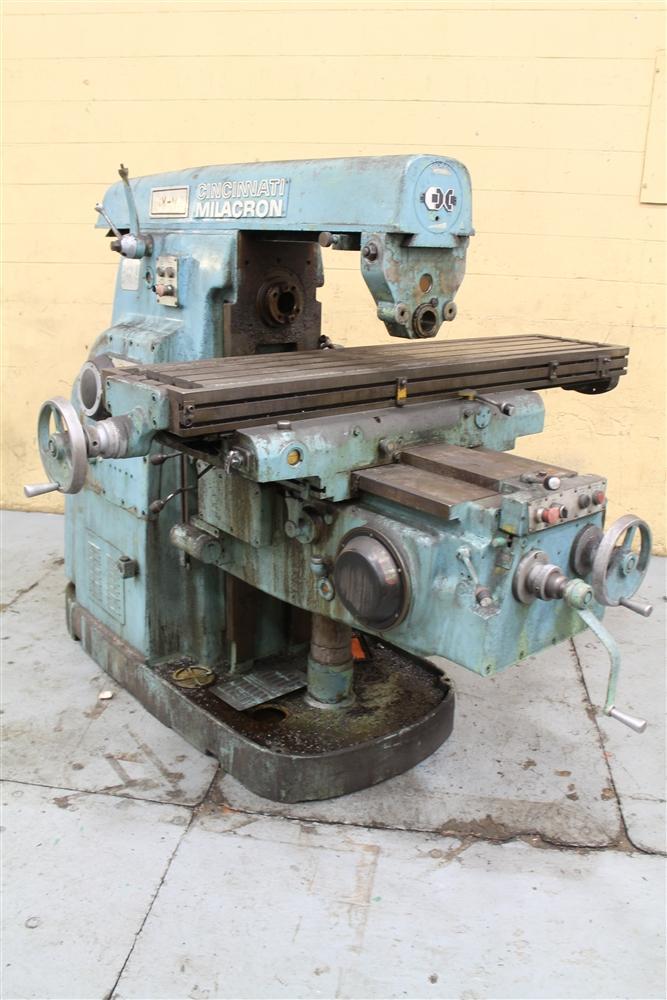

#3 CINCINNATI MILACRON MODEL 315-16 HORIZONTAL MILL: STOCK 61822

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

61822

Model

315-16

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. 31043P75-0006
MODEL .................................. 315-16

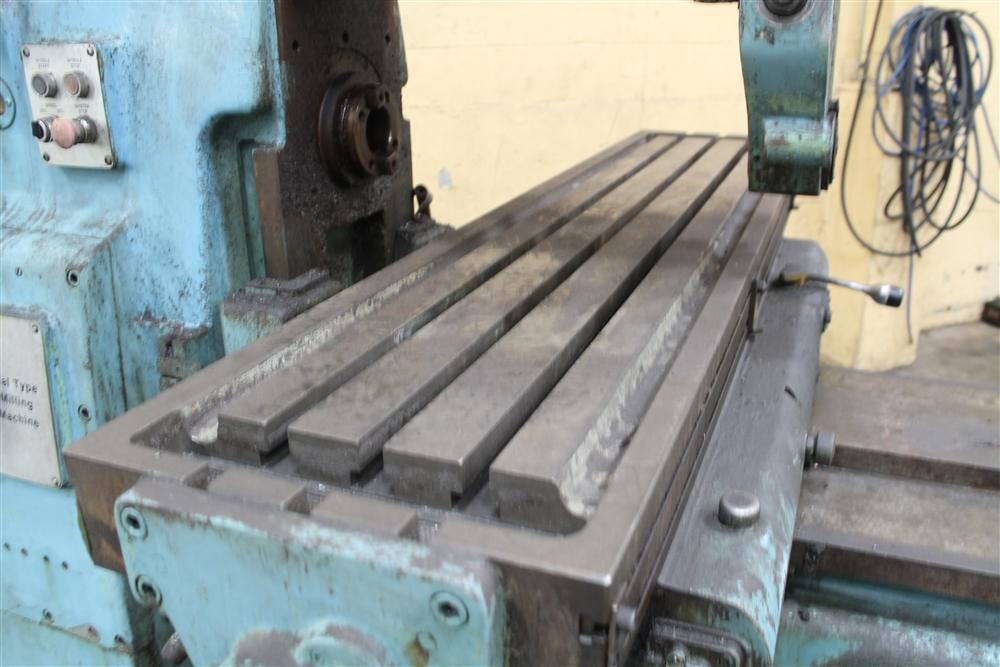

AREA OF TABLE .......................... 72" X 16"
SPINDLE SPEEDS ......................... (24) 16 TO 1600 RPM
LONGITUDINAL AND CROSS FEEDS ........... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ......................... (32) 3/32 TO 22 1/2 IPM
LONGITUDINAL TRAVEL .................... 34"
CROSS TRAVEL ........................... 12"
VERTICAL TRAVEL ........................ 20"
CENTERLINE OF SPINDLE TO TOP OF TABLE .. 0" MINIMUM, 20" MAXIMUM
RAPID TRAVERSE ......................... 150 IPM
TAPER IN SPINDLE ....................... #50NS
DUAL CONTROLS .......................... YES
MAIN DRIVE MOTOR, HORSEPOWER ........... 15
