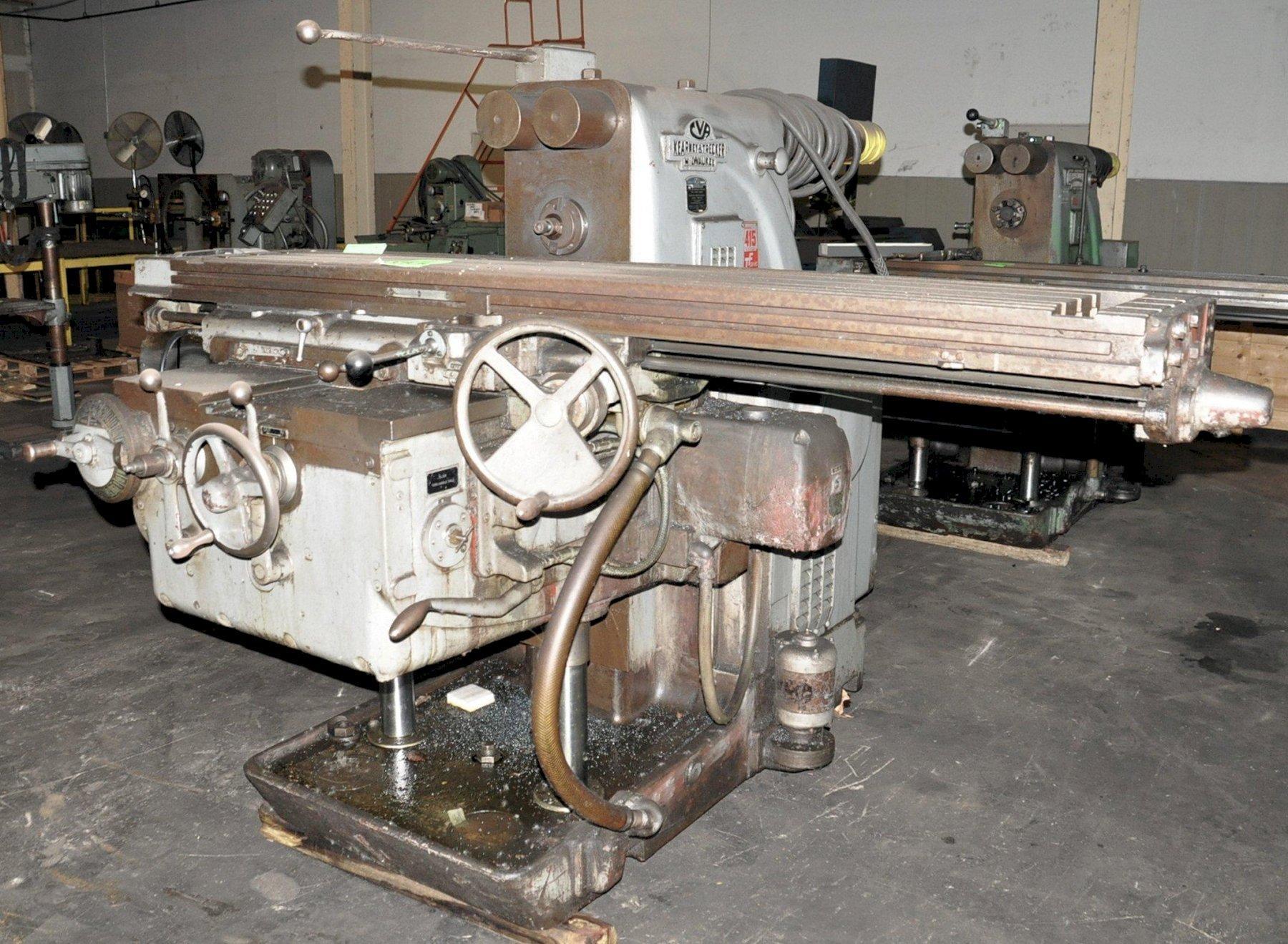

#4 KEARNEY & TRECKER MODEL 415TF HORIZONTAL MILL: STOCK #62762

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL

Stock

62762

Model

415TF

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................ TF1005
MODEL ................................. 415TF
AREA OF TABLE ......................... 80" X 15-1/2"
SPINDLE SPEEDS ........................ (24) 15 TO 1500 RPM
LONGITUDINAL & CROSS FEEDS ............ (32) 3/8 TO 90 IPM
VERTICAL FEEDS ........................ (32) 1/8 TO 30 IPM
LONGITUDINAL TABLE TRAVEL ............. 42"
CROSS TRAVEL .......................... 14"
VERTICAL KNEE TRAVEL .................. 18"
CENTER OF SPINDLE TO TOP OF TABLE ..... 0 MIN. TO 18" MAX.
RAPID TRAVERSE ........................ 150 IPM
TAPER IN SPINDLE ...................... #50 NS
TABLE ELEVATION SCREWS ................ 2
DUAL CONTROLS ......................... YES
MOTOR ................................. 15 HORSEPOWER
